AJA KONA LHe Plus HD/SD PCIe Card and Breakout Box Bundle
AJA KONA LHe Plus HD/SD PCIe Card and Breakout Box Bundle
AJA KONA LHe Plus HD/SD PCIe Card and Breakout Box Bundle
AJA KONA LHe Plus HD/SD PCIe Card and Breakout Box Bundle
AJA KONA LHe Plus HD/SD PCIe Card and Breakout Box Bundle
AJA KONA LHe Plus HD/SD PCIe Card and Breakout Box Bundle

AJA KONA LHe Plus HD/SD PCIe Card and Breakout Box Bundle

Brand: AJA

MFR: KONA-LHE+R0-S01

SKU: SF-2443-SJBC

6,813.00 ﾹ

  • Single-Channel SDI I/O PCIe Card
  • 1 RU External Breakout Box
  • 1 x 1.5G-SDI Input, 2 x 1.5G-SDI Outputs
  • Additional Composite and SDI on Breakout
  • RS-422 Control, 4:2:2 10-Bit Workflows
  • Supports up to 1080p30/720p60 Video
  • AES and Analog Audio 3-Pin XLR I/O
  • Real-Time HD to SD Down Conversion

Items Included

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Post Production

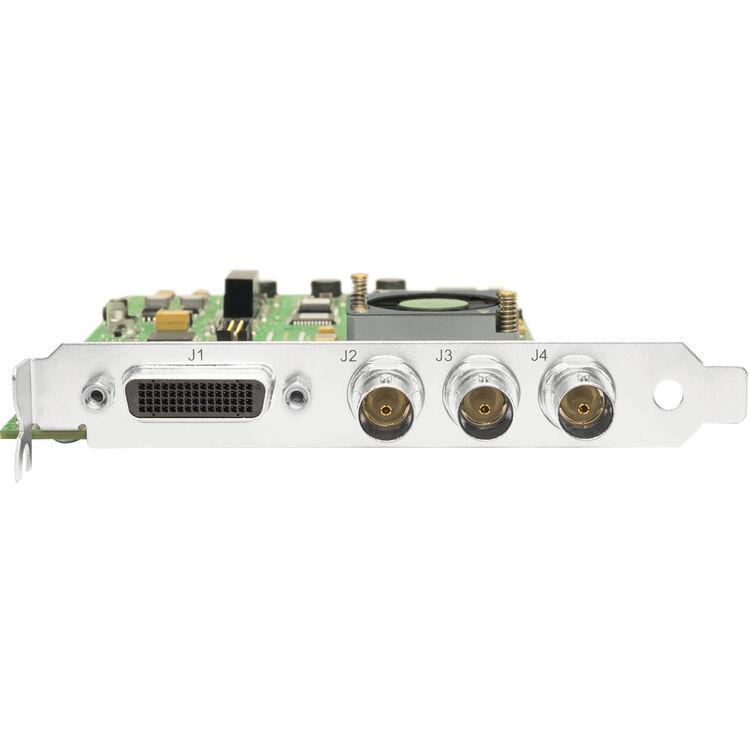

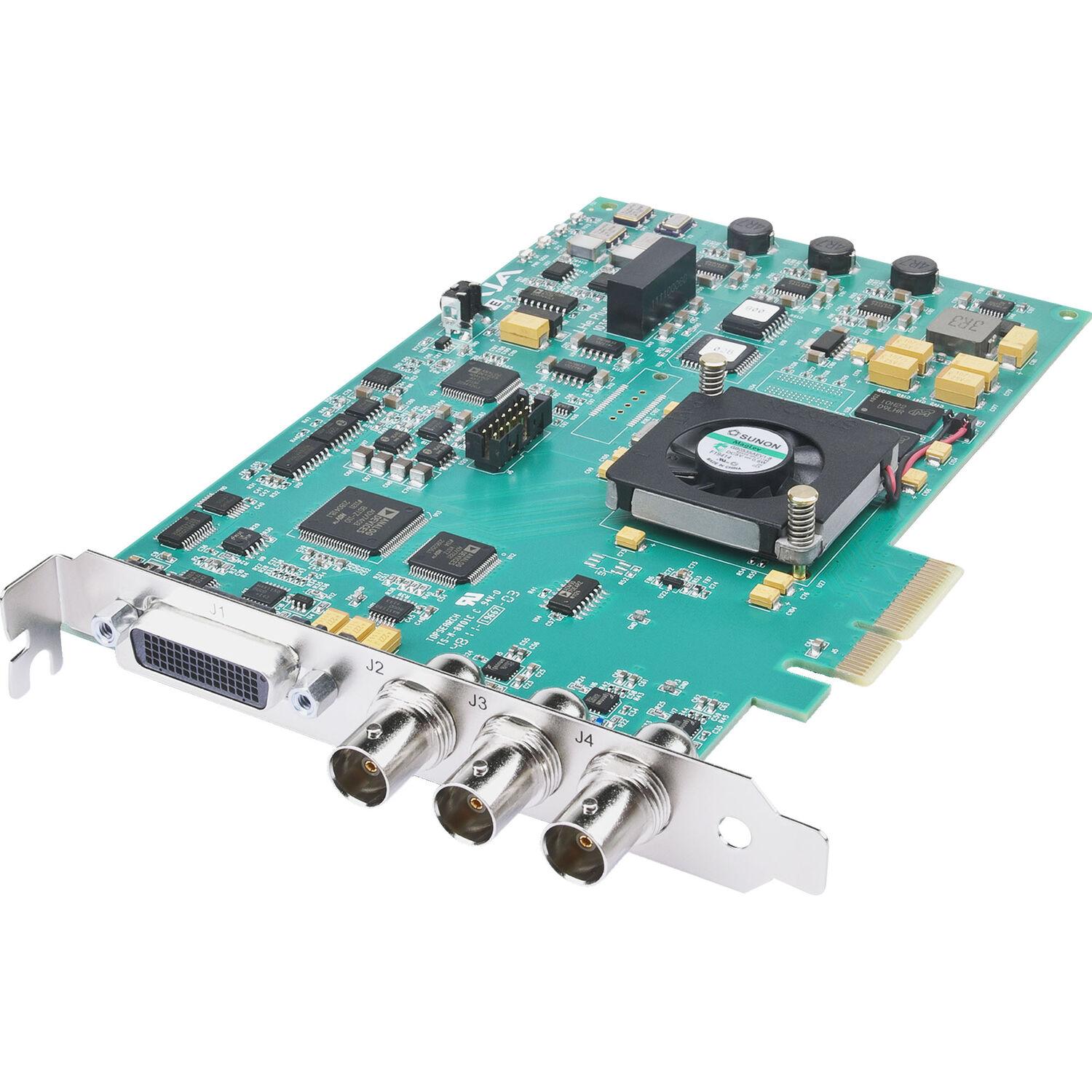

AJA KONA LHe Plus HD/SD PCIe Card

Capture sharp, high-definition video for broadcast, postproduction, or development with the KONA LHe Plus HD/SD PCIe Card from AJA. The PCIe card features one 1.5G-SDI BNC input and two 1.5G-SDI outputs that support up to 1080p30/720p60 video with eight channels of embedded audio. A breakout port requires an optional cable that provides reference, RS-422, 2-channel AES/EBU, analog composite/S-video/SD/HD component video, and 2-channel analog audio I/O.
Quick Features
  • HD-SDI and SD-SDI up to 1080p30 / 720p60
  • Three 1.5G-SDI connections (One In, Two Out) with 8-channel embedded audio
  • YCbCr 4:2:2 10-bit workflows supported
  • 10-bit LUT support (.cube)
  • Real-time HD to SD down-conversion with pristine 10-bit quality
  • Compatible with leading creative apps
  • Includes support for the new Apple M1 chip
  • Supports AES and Analog Audio I/O for Telecast Wirestream
  • Included breakout cable for Ref (Analog Color Black or Composite Sync), RS-422, 2-ch AES/EBU, Analog composite or S-video, or SD/HD component, 2-ch analog audio I/O
  • Extend external connectivity with KL-BOX-LH breakout box
Apple Silicon Support
AJA Desktop Software is optimized for the latest Apple silicon with native support for AJA macOS drivers, application plug-ins, AJA Control Room, AJA Control Panel, and AJA System Test.
Affordable Power
KONA LHe Plus offers video professionals at all levels an affordable desktop I/O solution that doesn't compromise on quality or essential functionality. KONA LHe Plus supports both HD/SD analog and digital I/O for video and audio, providing maximum capability, simplifying integrating analog and digital signals into a single workflow, and multiple output options to ensure you can deliver whatever formats are required.
Versatile I/O
With support for 10-bit or 8-bit uncompressed video, KONA LHE Plus features one input and two outputs, which can be configured independently for HD or SD. KONA LHe Plus also includes 2-channel AES digital audio, 8-channel SDI embedded digital audio, analog composite/S-video/SD/HD component video I/O, 2-channel balanced analog audio I/O, Genlock input, and three BNCs, which may be configured for analog video input and output (HD or SD).
Unique Analog Workflows
Because KONA LHe Plus supports 12-bit analog component HD input and output, devices with analog HD output, such as analog VTRs and game consoles, can be connected for a variety of workflows.
RS-422 Serial Control
A 9-pin RS-422 connection available on either the included breakout cable or the optional KL-Box-LH breakout box, allows KONA LHe Plus to take control of external devices for frame accurate ingest and layoffs.
AJA Hardware Conversion
KONA LHe Plus features full 10-bit, broadcast-quality, motion-adaptive HD to SD down-conversion, and HD/SD 12-bit component analog output. The down-converter allows KONA LHe Plus to connect to analog SD devices for output. This can be used to check framing and color for SD versions while still working in full-resolution HD within your application, ensuring proper quality for multi-format deliveries. Since conversion is hardware-based, it's available all the time during ingest or playback.
Applications Compatibility
AJA Desktop products offer unparalleled workflow compatibility with a range of software applications that span production, post, and delivery, and more.
AJA 1 RU External Breakout Box for KONA LHe Plus

The 1 RU External Breakout Box from AJA is designed for the KONA LHe Plus and offers cost-effective connectivity for a range of workflows. It integrates the KONA LHe Plus into rack environments for quick access to video and audio connections.


General
Compatibility
AJA KONA LHe
Wireless
Global Positioning (GPS, GLONASS, etc.)
Yes
Power
Power Source
Proprietary Interface

Add your review

Your email address will not be published. Required fields are marked *

Please login to write review!

Upload photos

Looks like there are no reviews yet.

Items Included
