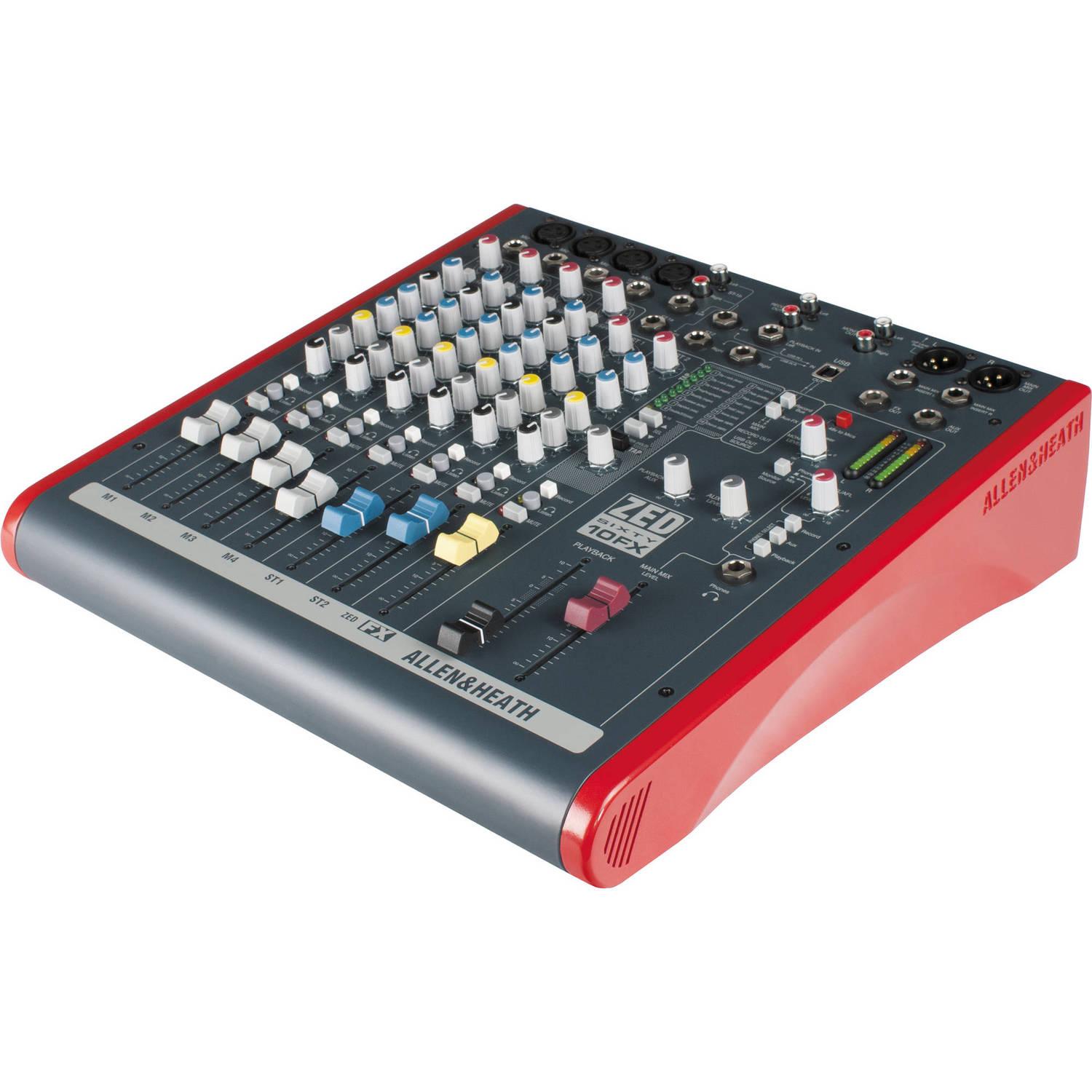

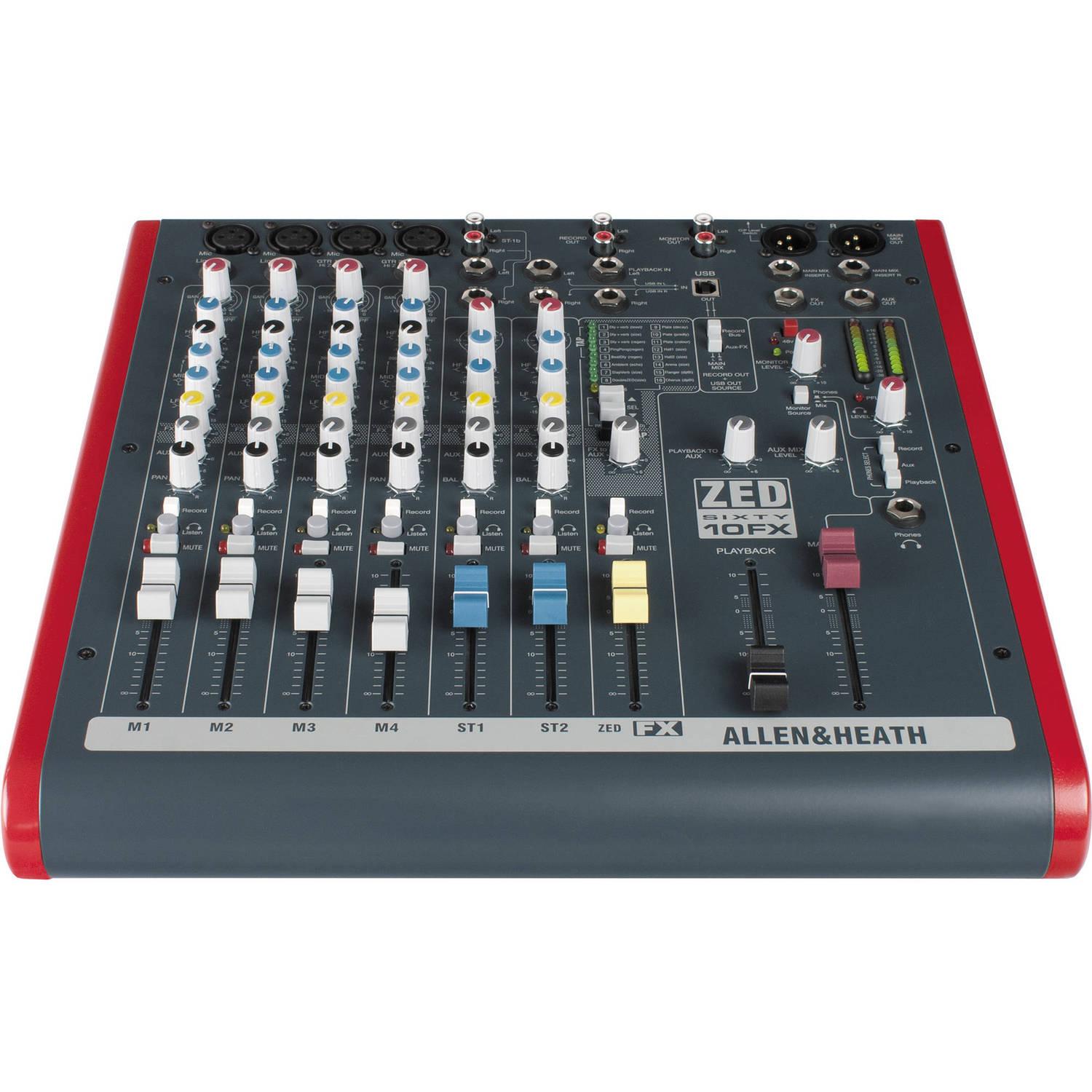

The Allen & Heath ZED60-10FX is a small, 6-channel mixer that packs an incredible amount of connectivity along with built-in digital effects. It's a great companion for live mixing, live recording, and multitracking over USB.
The ZED60-10FX features 4 mic/line inputs with 3-band EQ and Phantom Power. Channels 3 and 4 have 1/4" Hi-Z instrument-level inputs for connecting guitars, electric basses, etc. There are 2 additional stereo channels for connecting keyboards or other stereo sources, like a CD player or iPod.

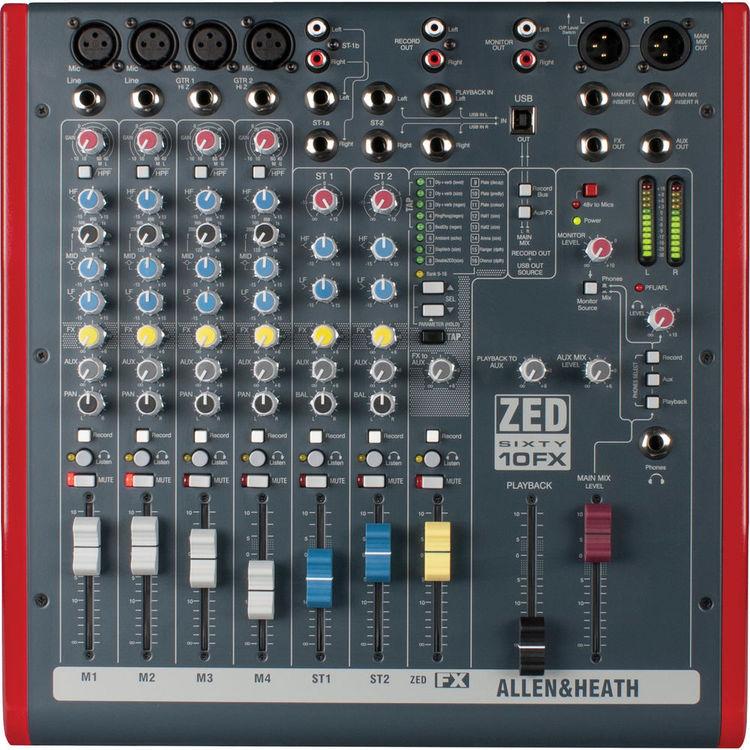

The channel strips of the ZED60-10FX have big functionality for a small format mixer. Each channel features low and high frequency shelving EQ, while the mono channels add a 100Hz high pass filter and an extra band of sweepable midrange. An FX send on each channel controls how much signal is sent to the onboard effects buss, while an Aux send can feed an independent monitor mix. After the panning controls, each channel can be sent or bypassed from the recording buss, post-EQ solo'd with the "Listen" button, or muted. The final stage of each channel strip is a 60mm level fader, providing a tactile mixing experience.
There are 16 digital effects built into the ZED60-10FX, including delays, reverbs, doubler, flanger, and chorus. These same effects algorithms are used on the Allen & Heath flagship digital consoles. Each preset has a parameter adjust control to morph the overall intensity of the effect.
The output section of the ZED60-10FX is perhaps its most versatile element. In addition to the balanced XLR main outputs, there are recording outputs and switchable-source monitor outputs both with stereo RCA connectors. Additionally, a USB output allows you to route the recording buss directly into a computer.
The Allen & Heath ZED60-10FX offers flexibility and functionality that you'd never expect from a 6-channel mixer. With built-in effects, extensive routing options, and high quality components, the ZED60-10FX will always have an extra feature that comes in handy.
| Number of Analog Input Channels | |
| Number of Mic Preamps | |
| Analog Output Channels | |
| Mix Routing | |
| Faders & Level Adjustment | |
| Meters |
| Gain/Trim Range | |
| Dynamic Processing | |
| EQ | |
| EQ Parameters | |
| Graphic EQ | |
| Filters | |
| Solo/Mute | |
| Built-In Effects |
| Sample Rates | |
| Bit Depth |
| Frequency Response | |
| Max Input Level | |
| Noise Floor | |
| THD+N |
| Analog Inputs | |
| Analog Outputs | |
| Phantom Power | |
| Digital I/O | |
| MIDI I/O | |
| USB I/O | |
| Wireless |
| Max Multitrack Recording |
| OS Compatibility |
| Rack Mountable | |
| Dimensions | |
| Weight |
| Package Weight | |
| Box Dimensions (LxWxH) |
