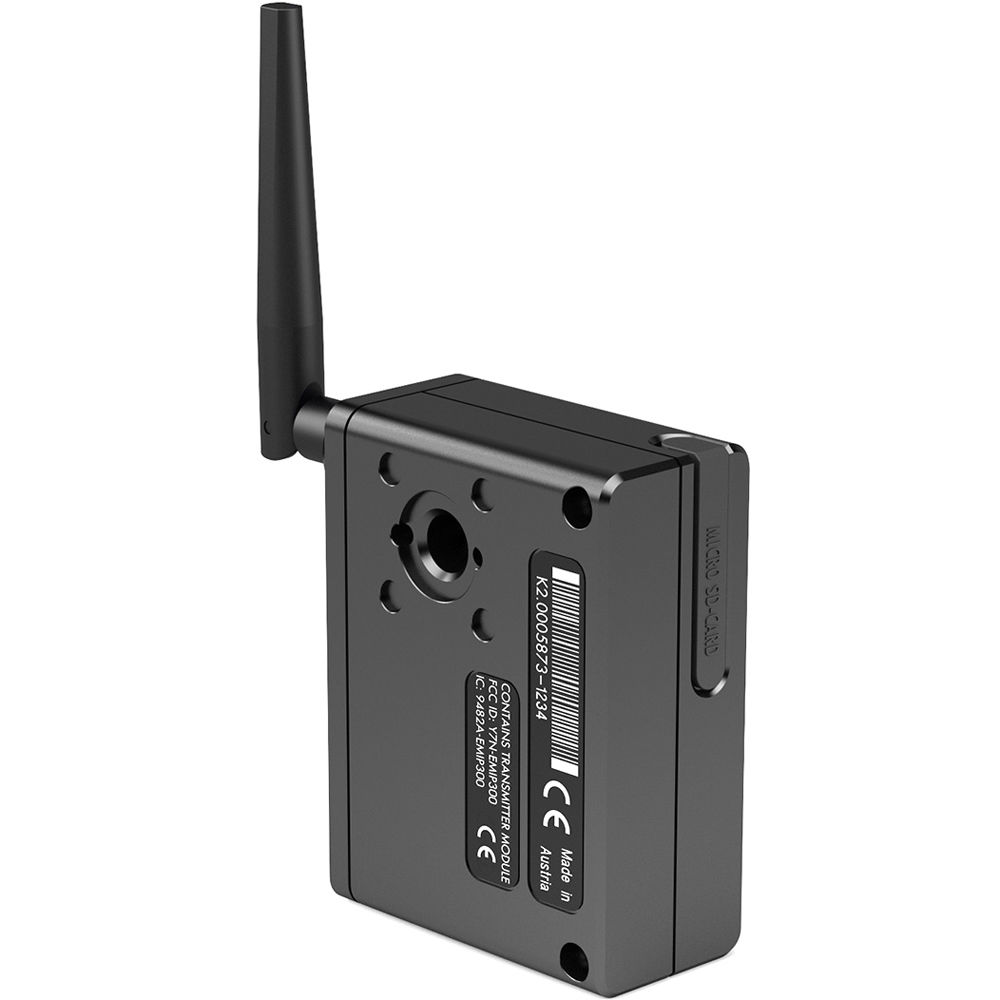

Use the ARRI AMC-1 Motor Controller to remotely control focus, iris, and zoom via an LBUS interface. The AMC-1 Controller can link up to three daisy-chained cforce motors, and is compatible with WCU-4, SXU-1, Master Grip, and cmotion units. Compatible cameras include the ARRI ALEXA, AMIRA, and a wide variety of third-party cameras.
The AMC-1 mini motor-controller features a compact design, suiting it for handheld, gimbal, drone, and other lightweight camera configurations.
Features
Interface
Antenna
LBUS connector - 4-pin connector
ARRI LCS connector - 5-pin connector
CAM connector - 10-pin connector
3/8"-16 mounting thread
| Connectors | 1 x antenna 1 x 4-pin LBUS 1 x 5-pin LCS 1 x 10-pin CAM |
| Receiver Channel | Eight Channels: 2.410 to 2.475 GHz |
| Supply Voltage | 12 to 34 VDC |
| Current Consumption | Radio On/Ready: 135 mAh at 12 V 70 mAh at 24 V |
| Mounting Thread | 3/8"-16 |
| Operating Temperature | -4 to 122°F (-20 to 50°C) |
| Dimensions | Without Antenna: 2.4 x 1.1 x 2.9" (61 x 28.8 x 74.5 mm) With Antenna: 3.2 x 1.1 x 5" (82.3 x 28.8 x 126 mm) |
| Weight | With Antenna: 6 oz (173 g) |
Packaging Info
| Package Weight | 0.5 lb |
| Box Dimensions (LxWxH) | 6.9 x 4.9 x 2.7" |
