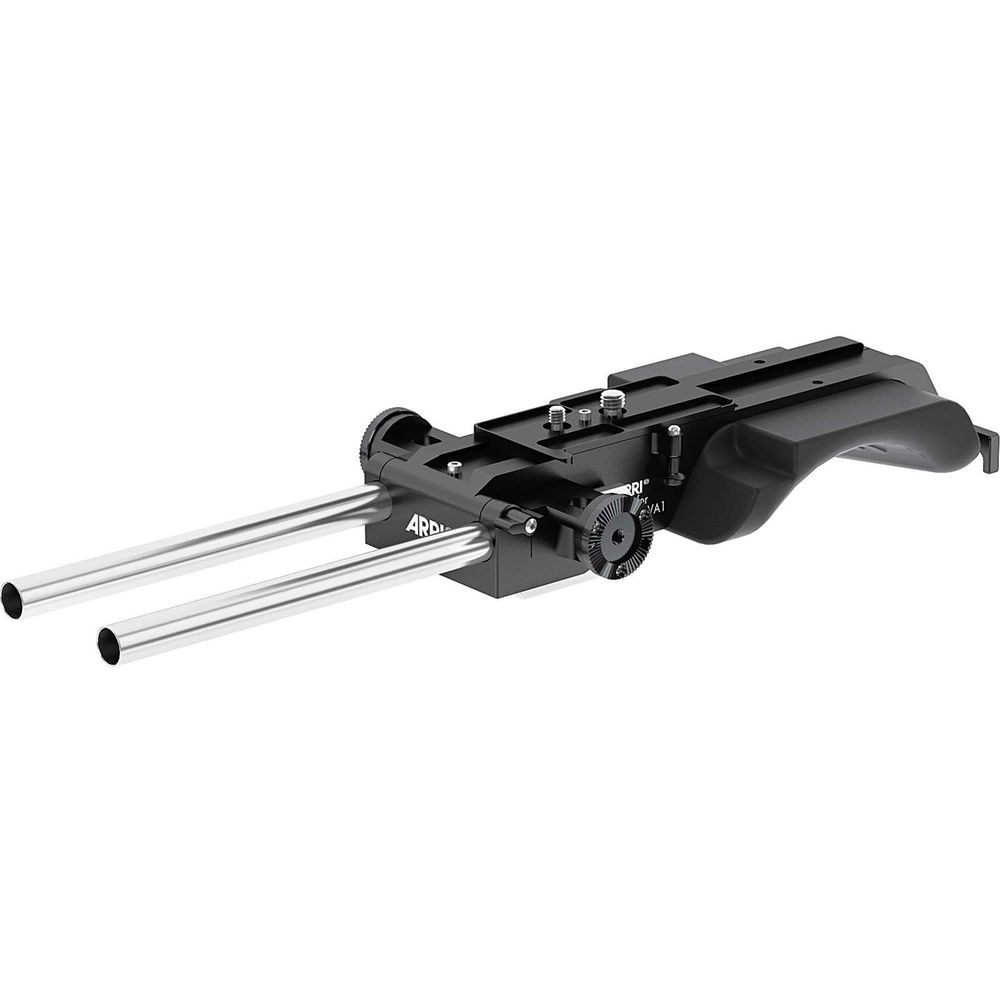

The ARRI Basic Set for Panasonic EVA1 includes a 15mm LWS shoulder pad baseplate, a top plate for the camera, and dual 9" 15mm rods. The baseplate is compatible with select bridge plates and VCT-style tripod adapters, and the top plate offers 15mm LWS rod support.

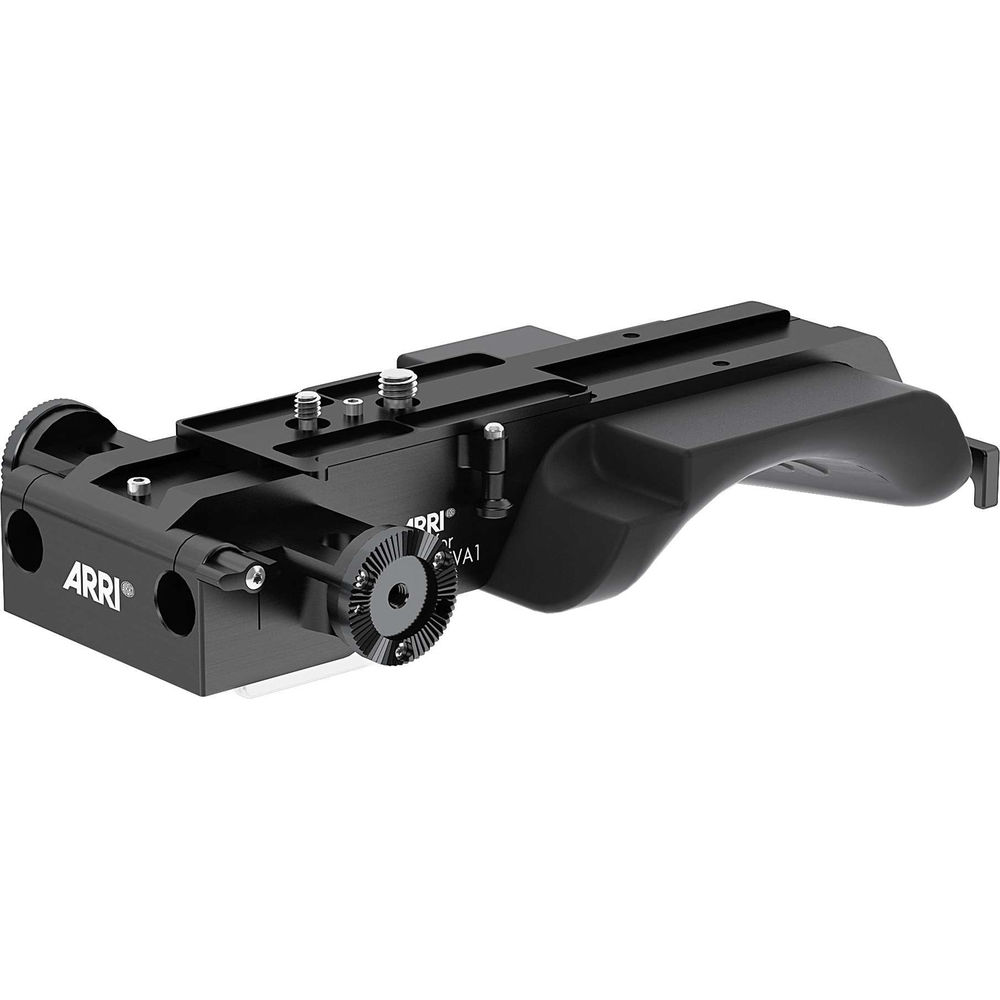

ARRI Plate for Panasonic EVA1
The ARRI Plate for Panasonic EVA1 is a 15mm LWS baseplate with an integrated shoulder pad. Featuring rosette handgrip mounts, this hybrid baseplate provides the starting point for a shoulder-mounted camera rig for your Panasonic AU-EVA1 cameras. It's compatible with ARRI BP-8 and BP-9 bridge plates, and with VCT-style tripod adapters such as the QRP-1.

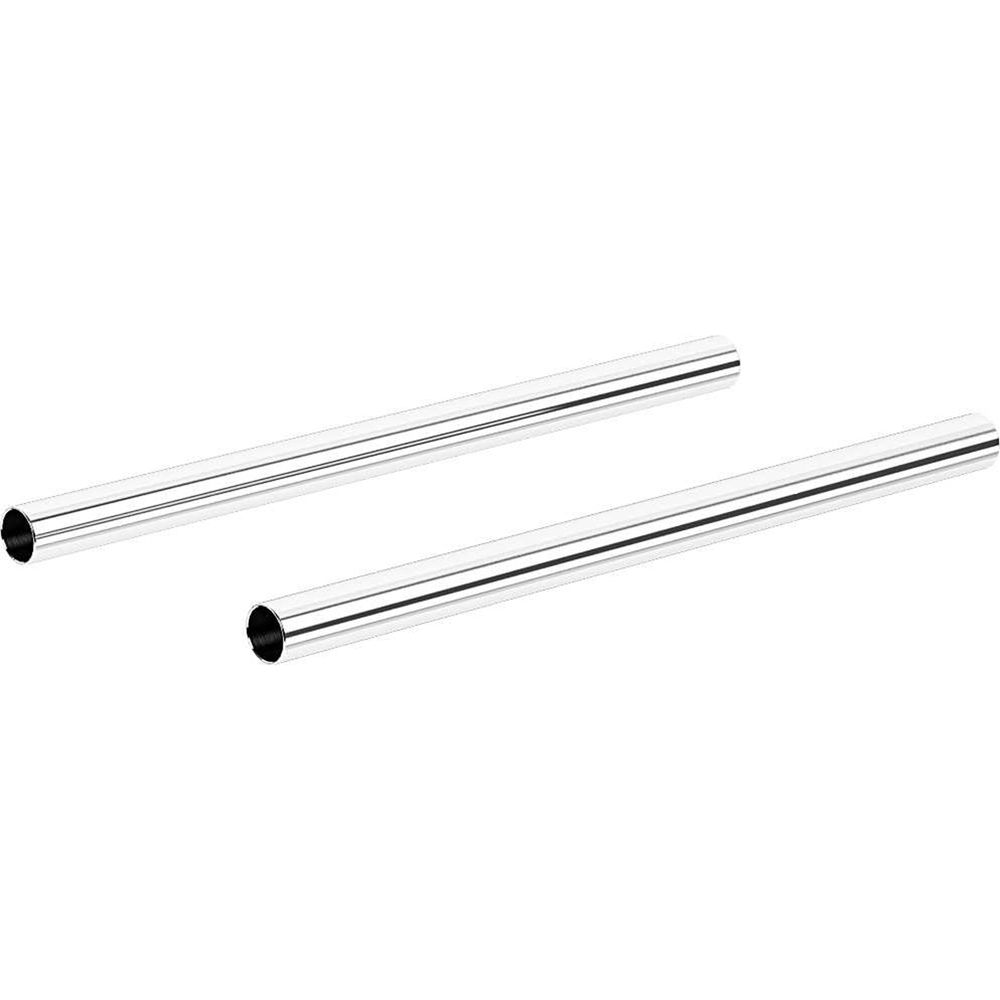

ARRI 15mm Lightweight Support Rods (Pair, 9")
This pair of 9" ARRI Lightweight Support Rods feature lightweight stainless steel construction and are designed to reduce your rig's weight. Use them with any 15mm-based accessory or bridgeplate.
| Support Type | Shoulder Support |
| Grip Type | Grip Required (Not Included) |
| Camera Compatibility | Panasonic AU-EVA1 |
Mounting
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Camera Mounting | 1/4"-20 Male Screw, 3/8"-16 Male Screw |
| Tripod Mounting | VCT-14 |
| Rod Ports | 2 x 15 mm Rod Port |
| Rosettes | Sides: 2 x Rosette w/ 1/4”-20 Female Thread |
| Material of Construction | Stainless Steel |
| Rod Diameter | 15 mm |
| Rod Length | 9.4" / 23.9 cm |
| Weight | 5.2 oz / 148 g |
Packaging Info
| Package Weight | 0.31 lb |
| Box Dimensions (LxWxH) | 10.5 x 1.65 x 1" |
