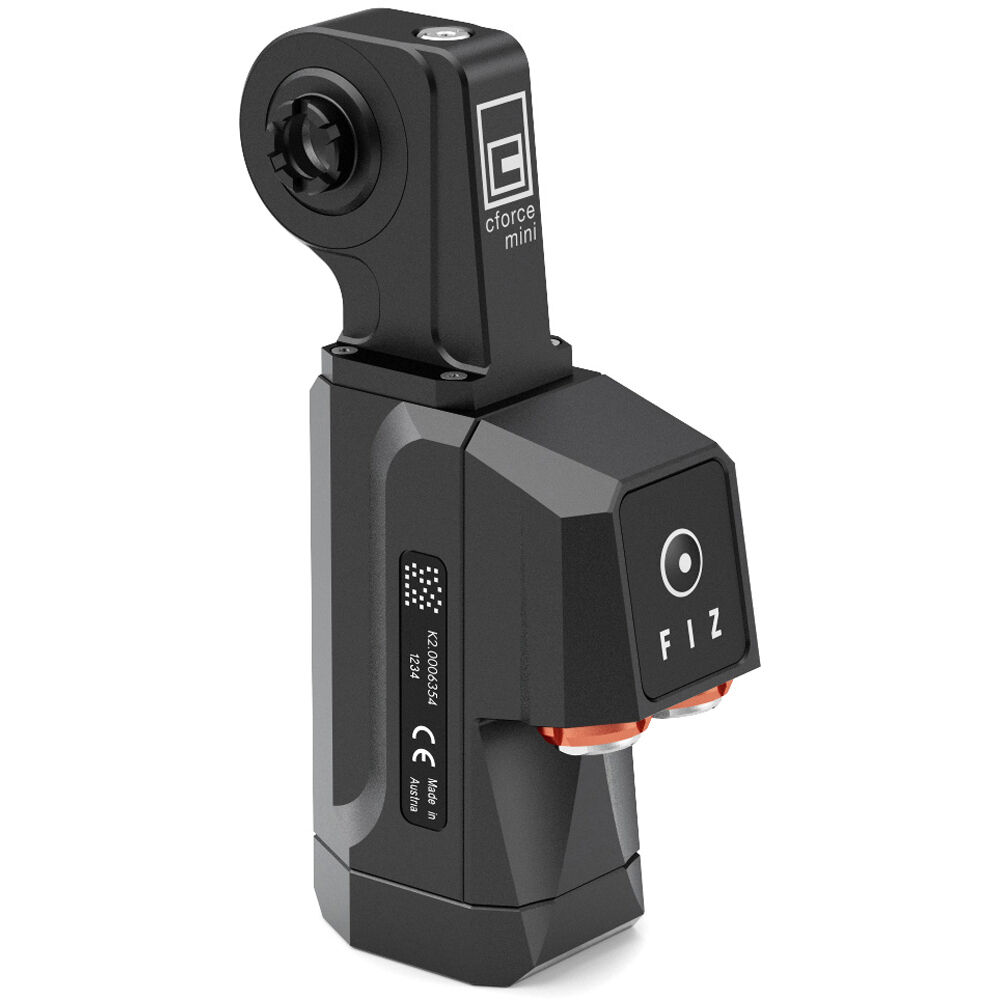

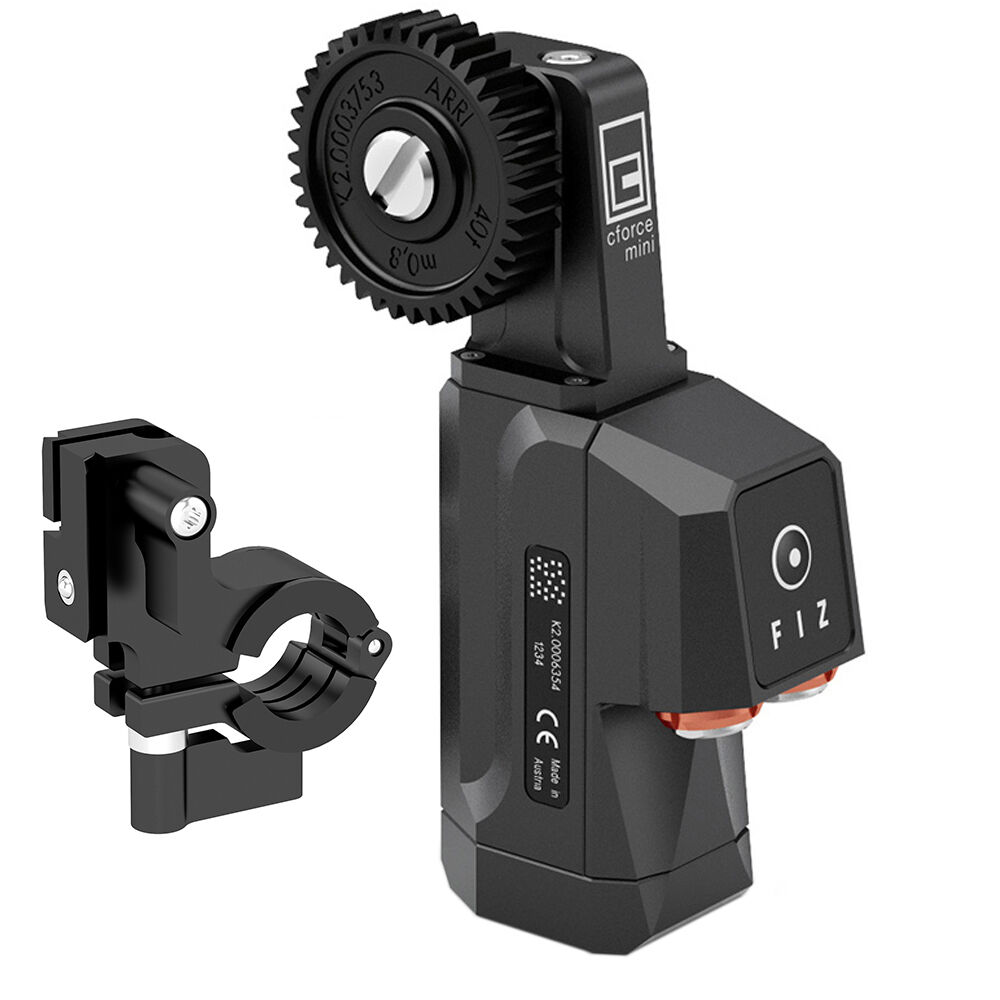

ARRI cforce Mini Motor Unit
ARRI's cforce Mini Motor is an ultracompact, lightweight motor used to remotely control your lens' focus, iris, or zoom function. The cforce Mini Motor weighs just over six ounces with a gear and bracket (available separately). Directly compatible with ARRI ALEXA Mini cameras and cmotion units, the cforce Mini Motor can be connected to an RIA-1 (Radio Interface Adapter) to work with any camera. Up to three cforce Mini Motors may be daisy-chained together, saving space and weight in your camera rig.
The cforce Mini Motor's ultralight, compact form makes it suitable for gimbal, drone, and other lightweight camera rigs. This basic motor unit requires a separately available gear, cable, and bracket.
Compatibility
Versatile Lens Control
Uses twin LBUS ports for daisy chaining up to three motors in a row

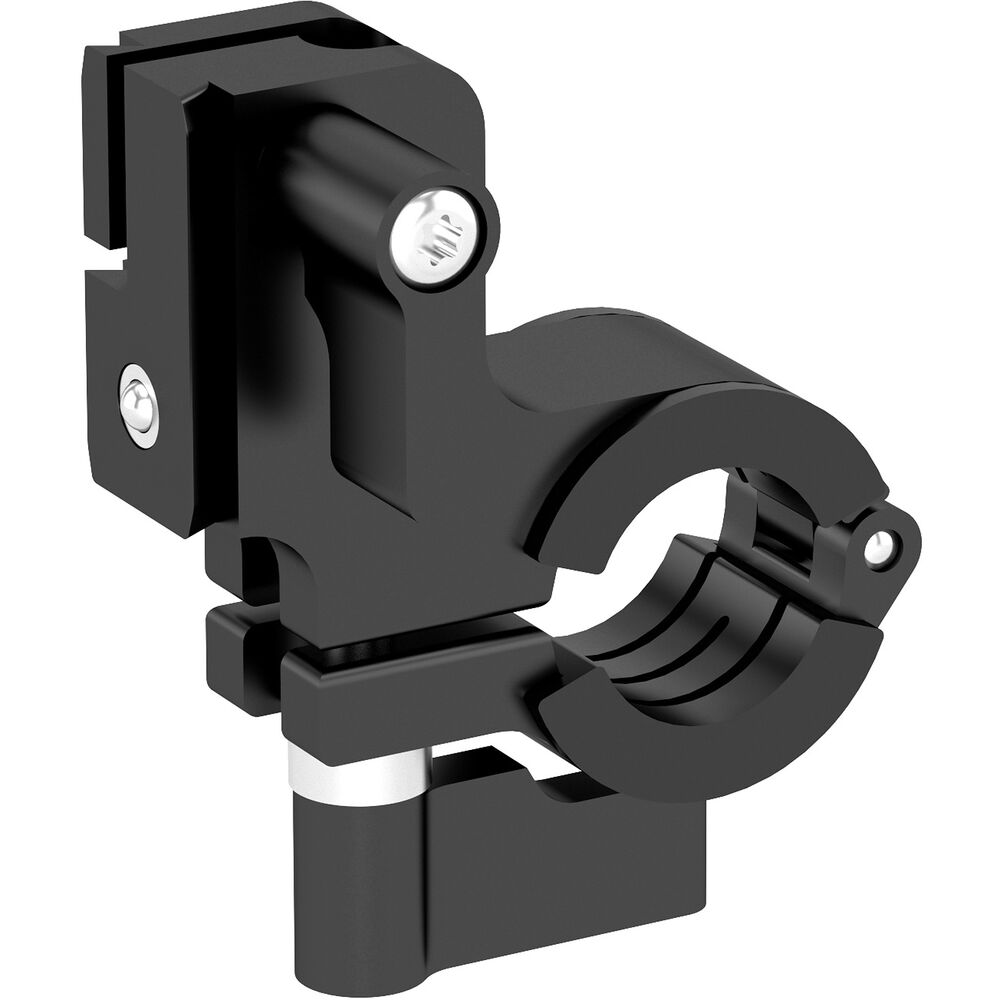

ARRI cforce mini Clamp Console 2
The ergonomic cforce mini Clamp Console 2 from ARRI is designed to offer easier rod mounting and removal of several ARRI lens components. This clamp is compatible with the cforce mini, cforce mini RF, cmotion cpro, and CLM-5 motors, as well as the OCU-1 control unit. The clamp design offsets the thumb levers for easier handling, and a spring-loaded plunger provides a secure fit. This 19mm clamp can be used with the included 15mm rod adapter or the separately available 5/8" bushing.
Compatibility

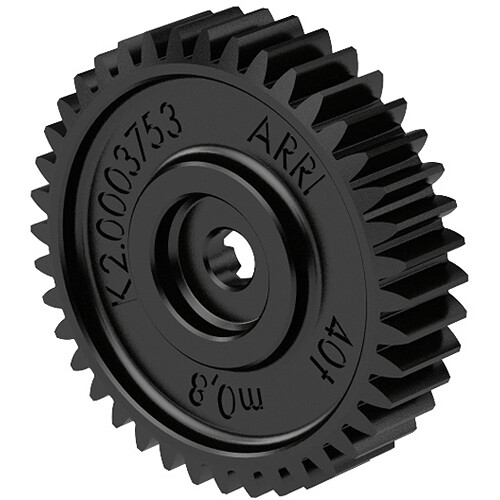

ARRI Gear for CLM-5 or cforce mini Motor (0.8-Mod, 32-Pitch, 40-Tooth)
This Gear for CLM-5 or cforce mini from ARRI is designed for use with a CLM-5 or cforce mini lens control motor. This 0.8-mod, 32-pitch, 40-tooth gear is compatible with ARRI/Zeiss and Fujifilm focus, iris, and zoom gears. It will also drive the focus gear on Panavision lenses.
Compatible Lenses
Including but not limited to:
ARRI/Zeiss focus, iris, and zoom gears
Fujifilm focus, iris, and zoom gears
Panavision focus gears
Inputs / Outputs
| Other I/O | 2 x LBUS |
Wireless
| Mobile App Compatible | No *As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
Power
| Power Source | Camera |
| DC Input Power | 12 to 34 VDC |
| Power Consumption | 20 W (Maximum) |
| Torque Constant | 0.3 Nm |
| Maximum Peak Torque | 0.5 Nm |
| Speed | 170 Teeth/Second with 40-Tooth Gear, 4.25 R/Second |
Environmental
| Environmental Protection | No |
| Certifications | EU, CE, FCC, ICES, Kcc |
| Operating Temperature | -4 to 122°F / -20 to 50°C |
Physical
| Color | Black |
| Dimensions | 3.9 x 2.4 x 1.1" / 97.9 x 61.9 x 28.8 mm |
| Weight | 6.1 oz / 173 g (Basic Set) |
Packaging Info
| Package Weight | 0.805 lb |
| Box Dimensions (LxWxH) | 9.95 x 6.8 x 2.7" |
Physical
| Rod Compatibility | 15 mm, 19 mm |
| Material of Construction | Aluminum |
| Dimensions | Not Specified by Manufacturer |
| Weight | Not Specified by Manufacturer |
Packaging Info
| Package Weight | 0.1 lb |
| Box Dimensions (LxWxH) | 4.35 x 2.85 x 1.2" |
Physical
| Gear Standard | : 0.8 MOD / 32 Pitch (40 Teeth) |
Packaging Info
| Package Weight | 0.04 lb |
| Box Dimensions (LxWxH) | 1.5 x 1.1 x 0.4" |
