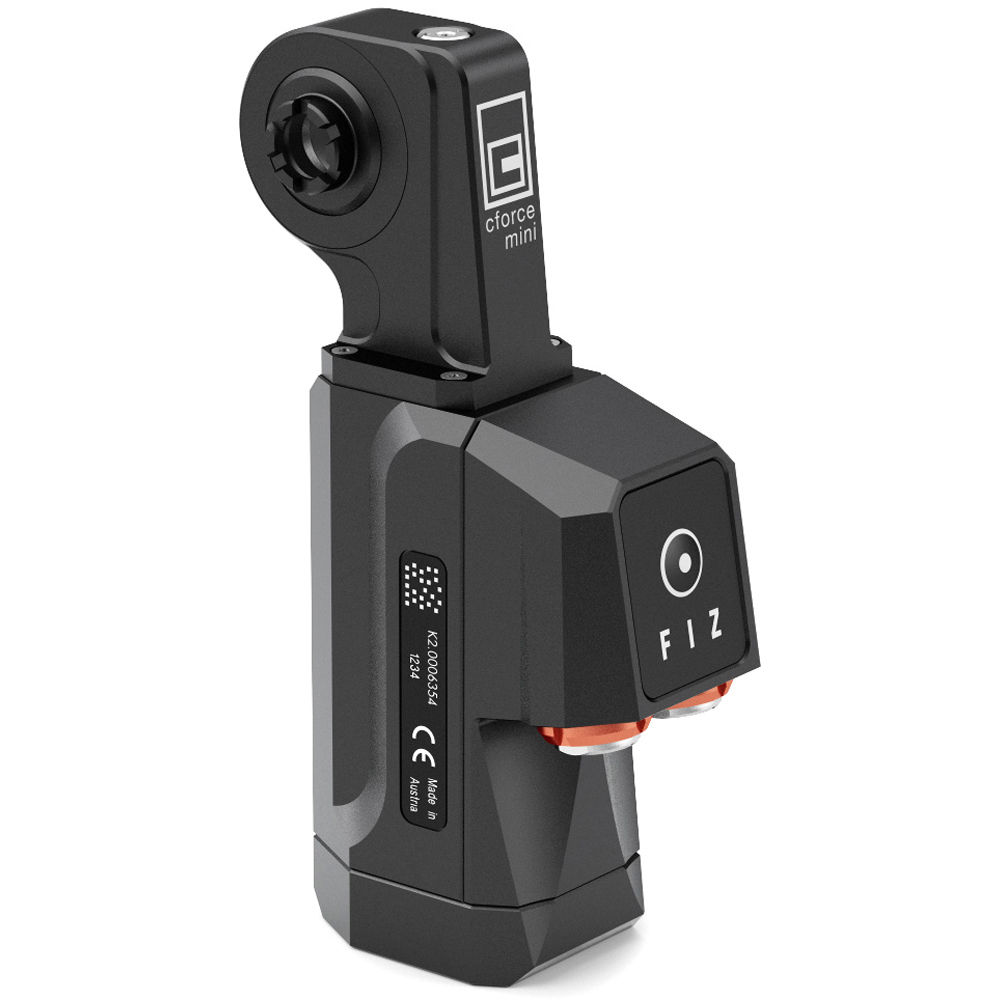

ARRI's cforce Mini Motor is an ultracompact, lightweight motor used to remotely control your lens' focus, iris, or zoom function. The cforce Mini Motor weighs just over six ounces with a gear and bracket (available separately). Directly compatible with ARRI ALEXA Mini cameras and cmotion units, the cforce Mini Motor can be connected to an RIA-1 (Radio Interface Adapter) to work with any camera. Up to three cforce Mini Motors may be daisy-chained together, saving space and weight in your camera rig.
The cforce Mini Motor's ultralight, compact form makes it suitable for gimbal, drone, and other lightweight camera rigs. This basic motor unit requires a separately available gear, cable, and bracket.
Compatibility
Versatile Lens Control
Inputs / Outputs
| Other I/O | 2 x LBUS |
Wireless
| Mobile App Compatible | No *As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
Power
| Power Source | Camera |
| DC Input Power | 12 to 34 VDC |
| Power Consumption | 20 W (Maximum) |
| Torque Constant | 0.3 Nm |
| Maximum Peak Torque | 0.5 Nm |
| Speed | 170 Teeth/Second with 40-Tooth Gear, 4.25 R/Second |
Environmental
| Environmental Protection | No |
| Certifications | EU, CE, FCC, ICES, Kcc |
| Operating Temperature | -4 to 122°F / -20 to 50°C |
Physical
| Color | Black |
| Dimensions | 3.9 x 2.4 x 1.1" / 97.9 x 61.9 x 28.8 mm |
| Weight | 6.1 oz / 173 g (Basic Set) |
Packaging Info
| Package Weight | 0.805 lb |
| Box Dimensions (LxWxH) | 9.95 x 6.8 x 2.7" |
