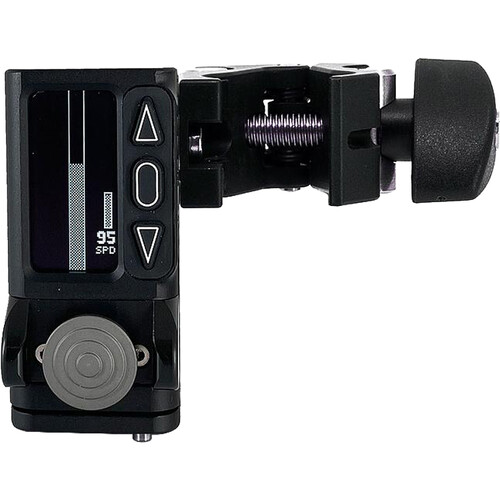

Designed with a new clamping mechanism, the Black Edition cmotion steady zoom from ARRI is a pro zoom control optimized to fit any stabilizer, camera, or gimbal setup. The joystick can be positioned flush with your pan bar, leaving the operator's thumb in a comfortable, neutral position. Features include adjustable joystick sensitivity, an LBUS connector, an integrated clamp with three-axis adjustment, and four user-assignable buttons. The steady zoom clamp fits pan bars 0.6 to 1.3" in diameter.
The steady zoom is compatible with cforce motors, ARRI ALEXA Mini, ALEXA Mini LF, and ALEXA Plus cameras, and ARRI UMC-4, AMC-1, SMC-1, and EMC-1 controllers. The four user buttons offer the option of assigning camera start/stop, marker recall, a fast zoom function, or lens limits to any button.
Compatible Cameras
Compatible Components
Operating Features
Clamp Mechanism
Control
| Control Features | Zoom Control Start/Stop Recording |
| Compatible Cameras | ARRI ALEXA Mini/Mini LF ARRI ALEXA Plus cforce Motors AMC-1, EMC-1 SMC-1, UMC-4 |
Connectivity
| Inputs/Outputs | 1 x LEMO 4-Pin (LBUS) Input |
Mounting
| Attachment Method | Tripod Clamp |
| Clamping Range | 0.59 to 1.26 " / 15.00 to 32.00 mm |
General
| Material of Construction | Aluminum, Stainless Steel |
| Dimensions | H: 3.3 x W: 2.4 x D: 2.0" / H: 85.0 x W: 60.0 x D: 50.0 mm |
| Weight | 5 oz / 143 g |
Packaging Info
| Package Weight | 0.5 lb |
| Box Dimensions (LxWxH) | 6.9 x 6.3 x 3.4" |
