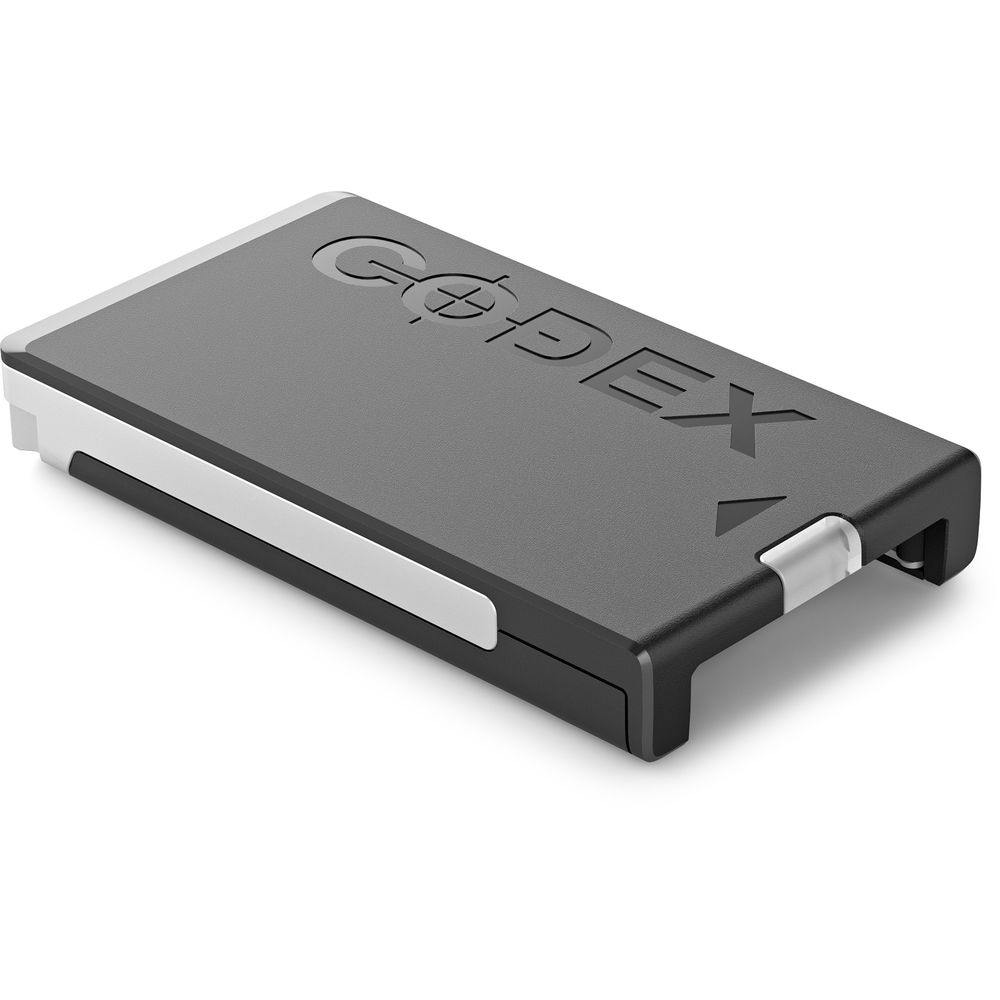

The Codex Compact Drive Adapter from ARRI enables you to access Compact Drives using an ARRI SXR Capture Drive Dock, Codex Vault, or Codex Capture + Transfer Drive Dock. This adapter offers a quick, streamlined offloading solution when you're working with both an ALEXA Mini LF and an ALEXA LF, ALEXA 65, or ALEXA SXT W camera.
This adapter features a PCIe interface, a compact form, and transfer speeds up to 20 Gb/s.
Note:
Even though there is a mechanical fit if you insert the adapter into, for example, an ALEXA LF, the Compact Drive does not operate in a big ALEXA because the communication protocols do not match.
The SXR Capture Drive Dock is only supported on macOS and does require the Codex Device Manager software.
Codex Model Number
CX.0000109
| Interface | PCIe |
| Transfer Speed | Up to 20 Gb/s |
| Insertion / Extraction | Up to 10,000 Actions |
| Operating Temperature Range | 32 to 158°F / 0 to 70°C |
| Storage Temperature Range | -40 to 185°F / -40 to 85°C |
| Dimensions | 4.3 x 2.4 x 0.6" / 110 x 61 x 16 mm |
| Weight | 7.1 oz / 200 g |
Packaging Info
| Package Weight | 0.56 lb |
| Box Dimensions (LxWxH) | 5.8 x 3.6 x 1.1" |
