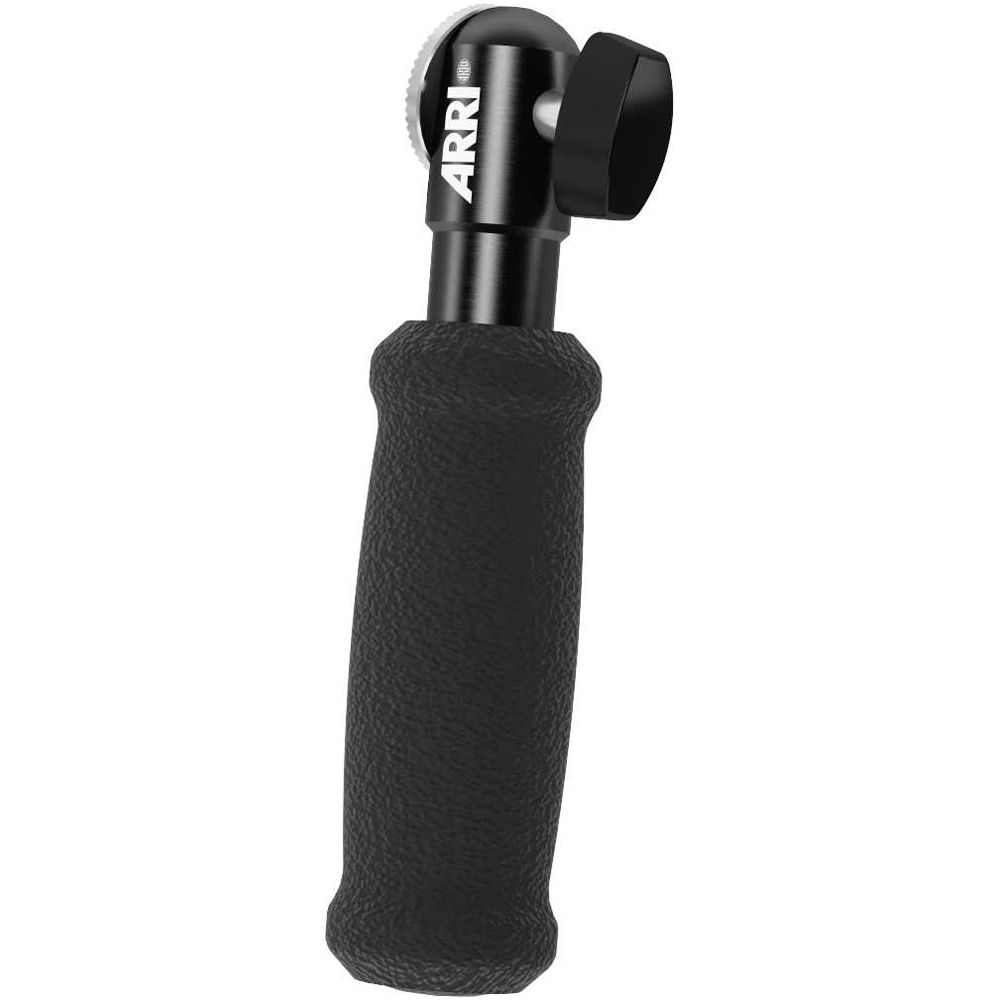

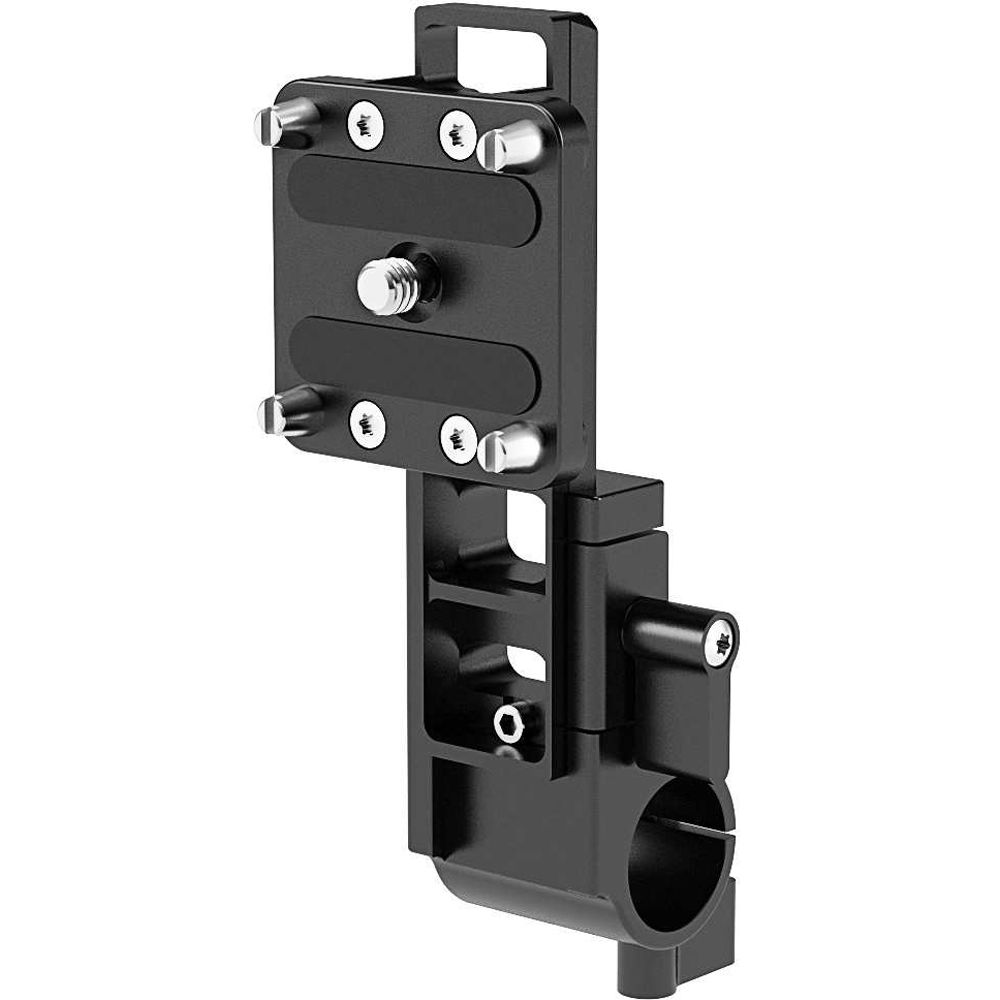

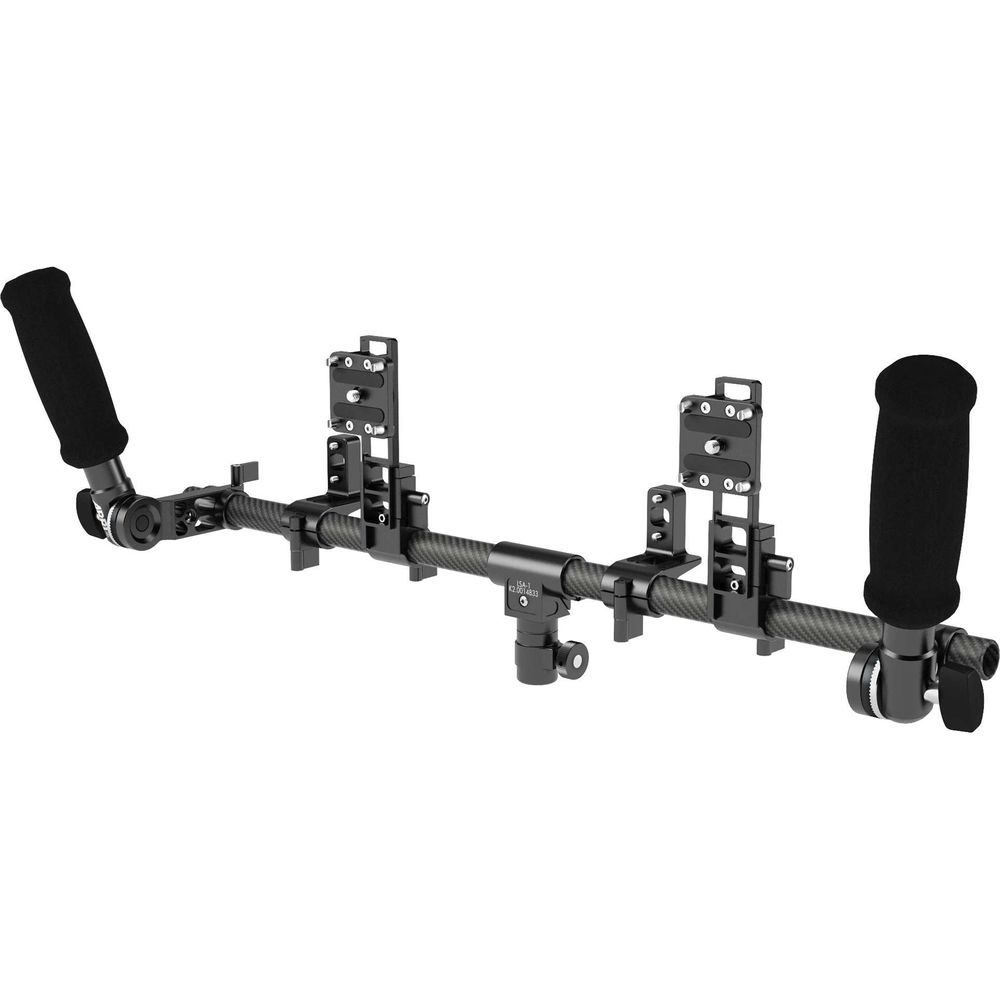

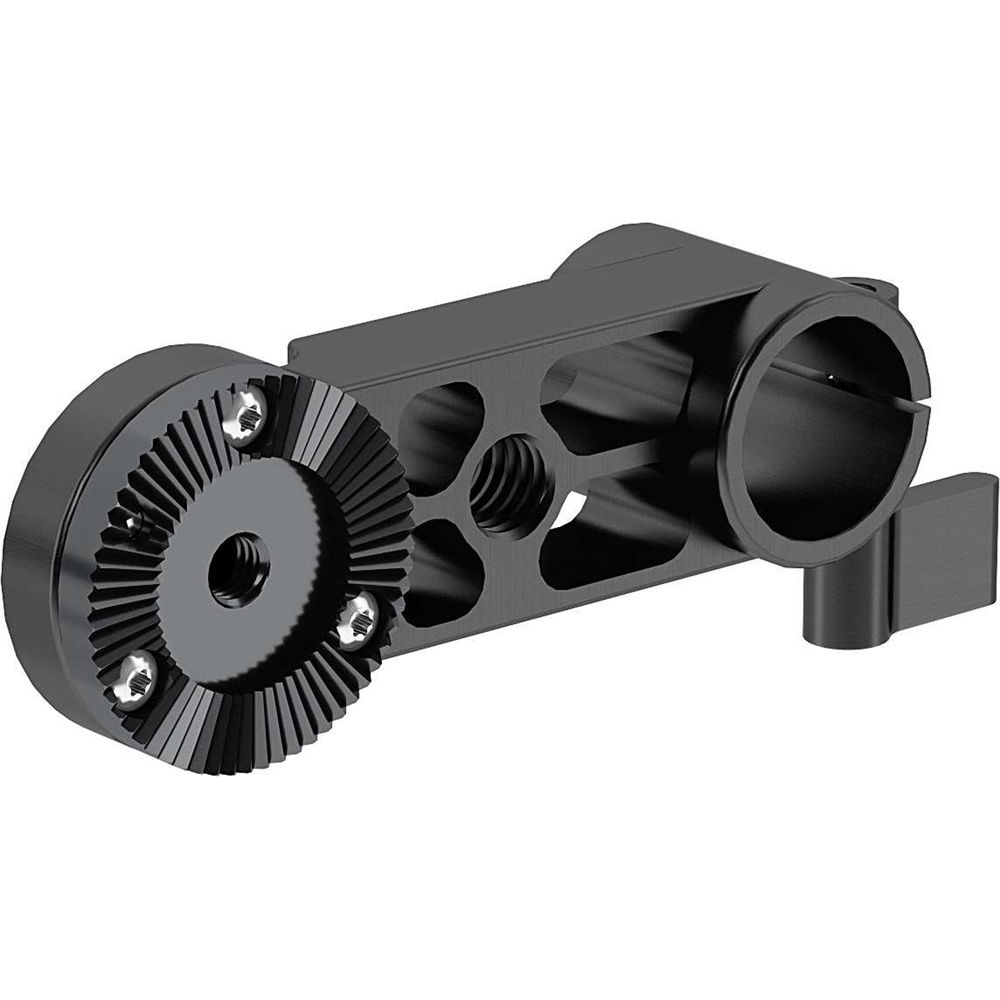

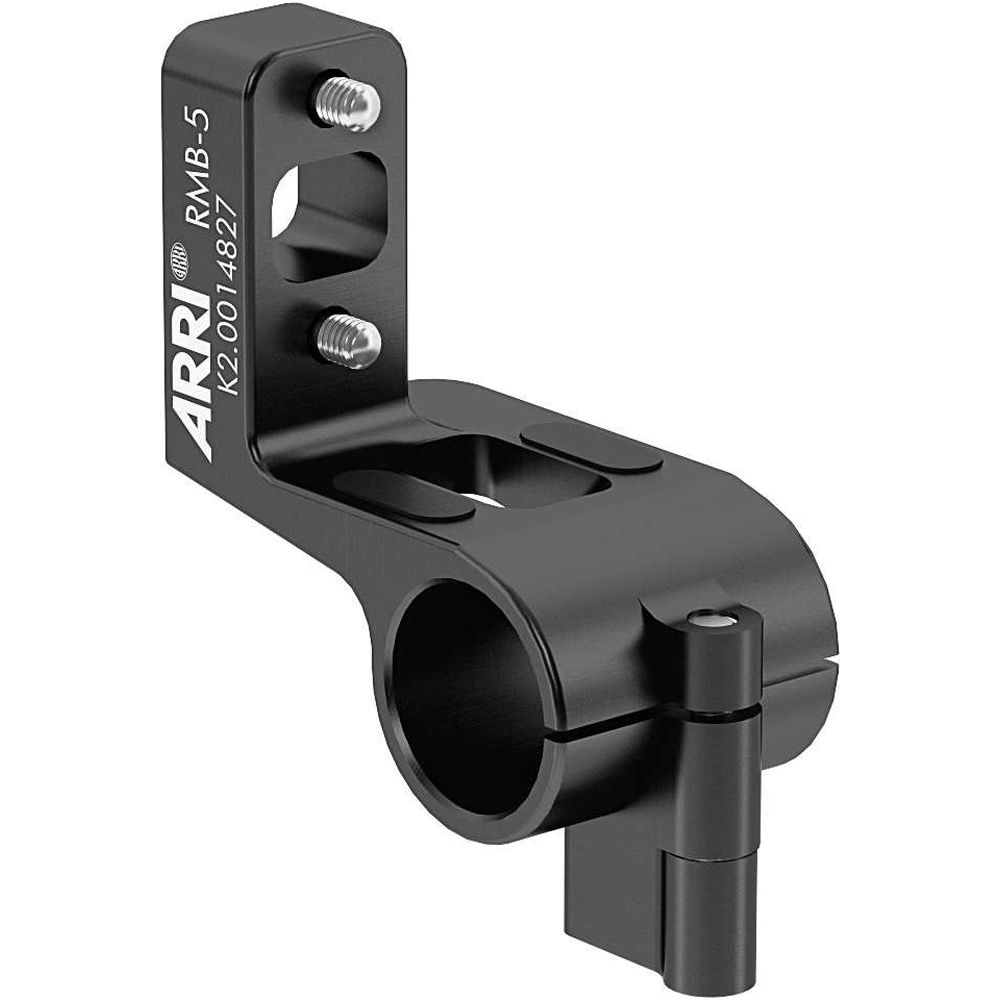

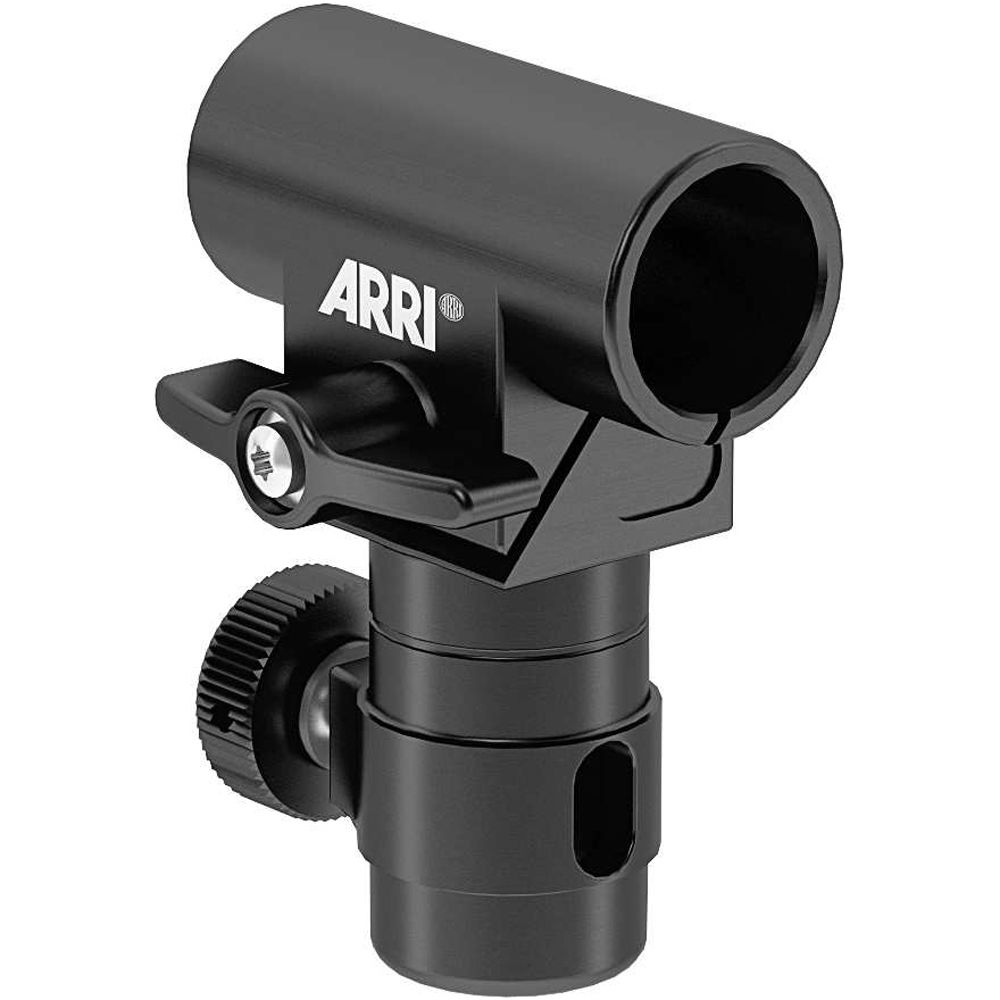

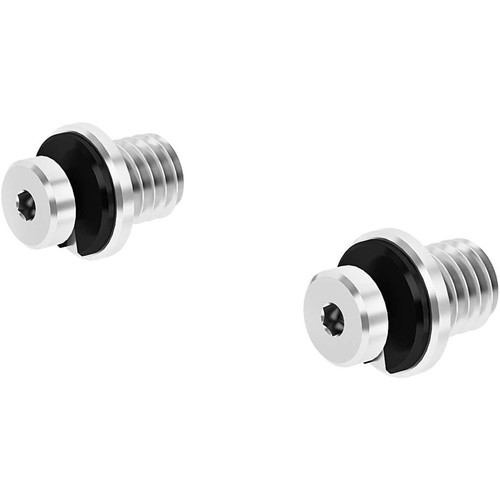

The Director's Monitor Support DMS-1 from ARRI is a lightweight handheld monitor support that can accommodate two Transvideo monitors and two WVR-1 wireless video receivers. This modular set includes two rod mount adapters for mounting the monitors, two RMB-5 19mm rod-mounting brackets for the wireless receivers, two RA-4 rosette to 19mm rod adapters, one LSA-1 19mm rod to lighting spigot adapter, two handgrips, a pair of SBA-1 ENG shoulder belt adapters, and one 21.3" 19mm carbon fiber support rod.
Mounting
| Mounting | Handle Mount: 2 x ARRI Rosette with M6 Female Thread |
| Rod Standard | 19 mm Single Rod |
| Rod Ports | Handle: 1 x 19 mm Rod Port Monitor Mount: 1 x 19 mm Rod Port Transmitter/Receiver: 1 x 19 mm Rod Port |

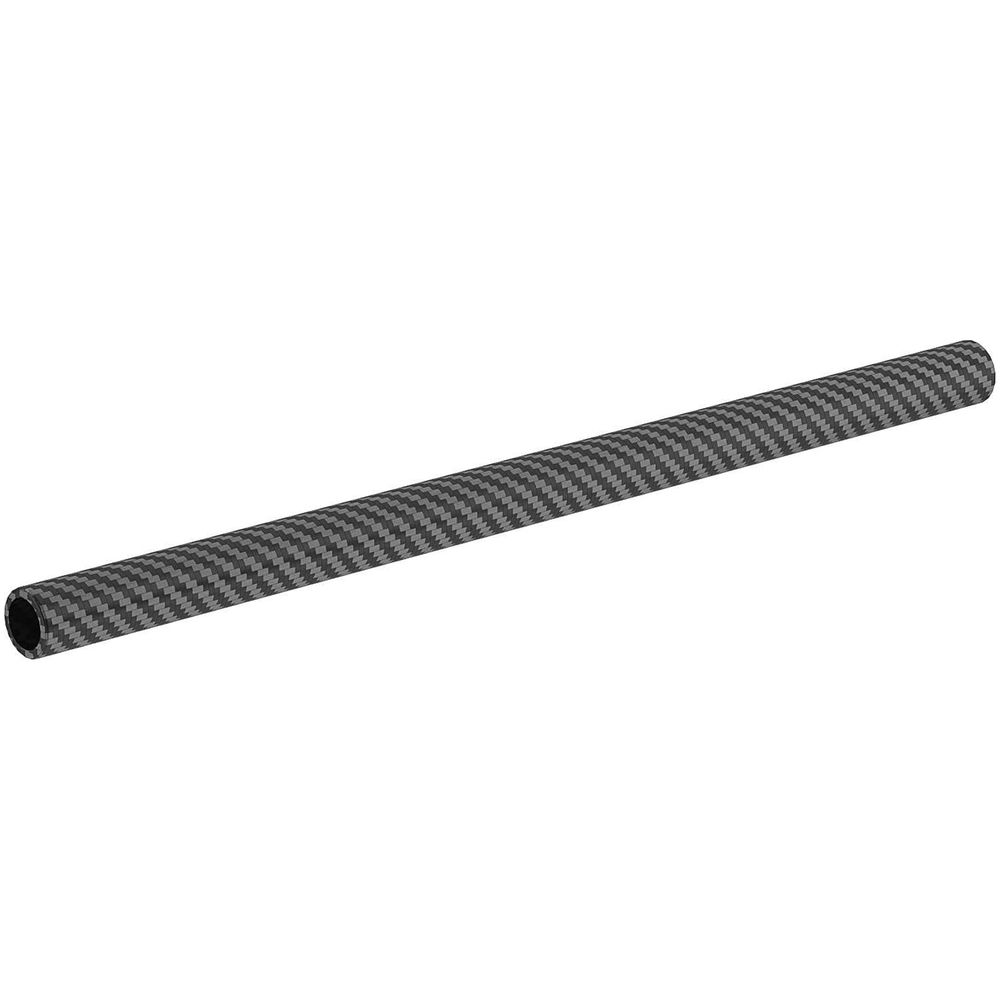

| Included Rods | 1 x 21.3" / 54 cm 19 mm Carbon Fiber Rod |
General
| Dimensions | 4.3 x 2 x 2.1" / 110 x 50 x 54 mm (Monitor Mount) 2.9 x 2.3 x 1.2" / 73 x 59 x 30 mm (Rod Mounting Bracket) 3.5 x 1.6 x 1.3" / 90 x 40 x 32 mm (Rosette Adapter) 3.1 x 2.1 x 1.5" / 80 x 53 x 37 mm (Spigot Adapter) 6.3 x 1.6 x 1.6" / 160 x 40 x 40 mm (Handgrip) |
| Weight | 3.8 oz / 107 g (Monitor Mount) 1.7 oz / 49 g (Rod Mounting Bracket) 2.6 oz / 74 g (Rosette Adapter) 3.5 oz / 99 g (Spigot Adapter) 4.2 oz / 118 g (Handgrip) 0.6 oz / 17 g (Shoulder Belt Adapter) |
