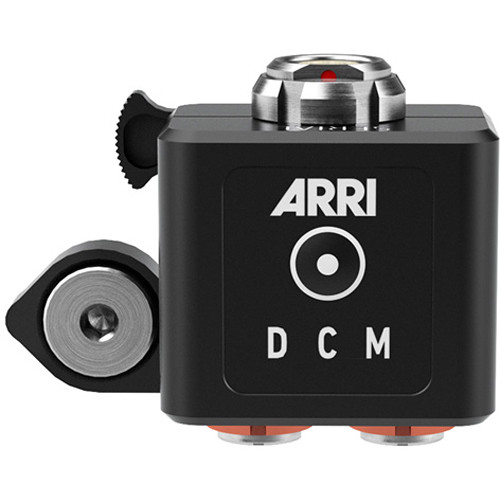

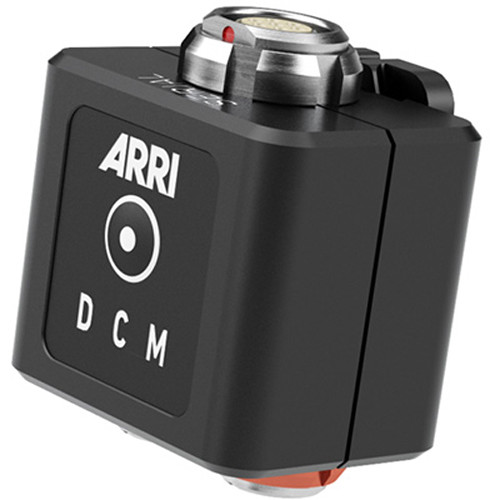

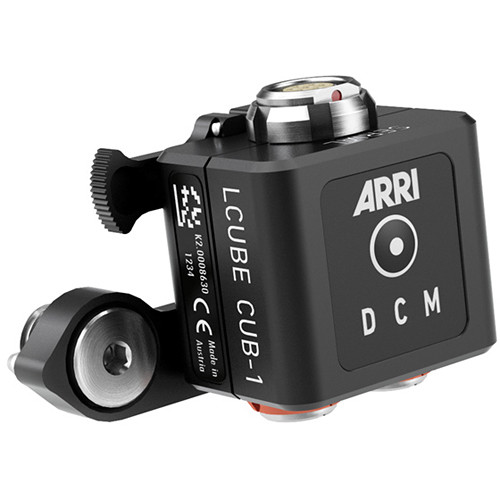

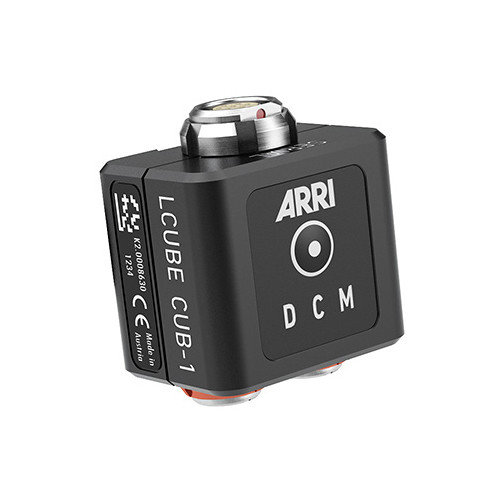

The ARRI LCUBE CUB-1 Serial Converter changes LBUS protocols to serial protocols and vice versa. This multi-purpose protocol converter can be used for different functions in various camera setups. Use the CUB-1 and one or more cforce motors (not included) to connect a UDM-1 Distance Measure to an ALEXA Mini. The CUB-1 will also enable ARRI electronic control system accessories such as Master Grips to communicate with select 3rd-party cameras.

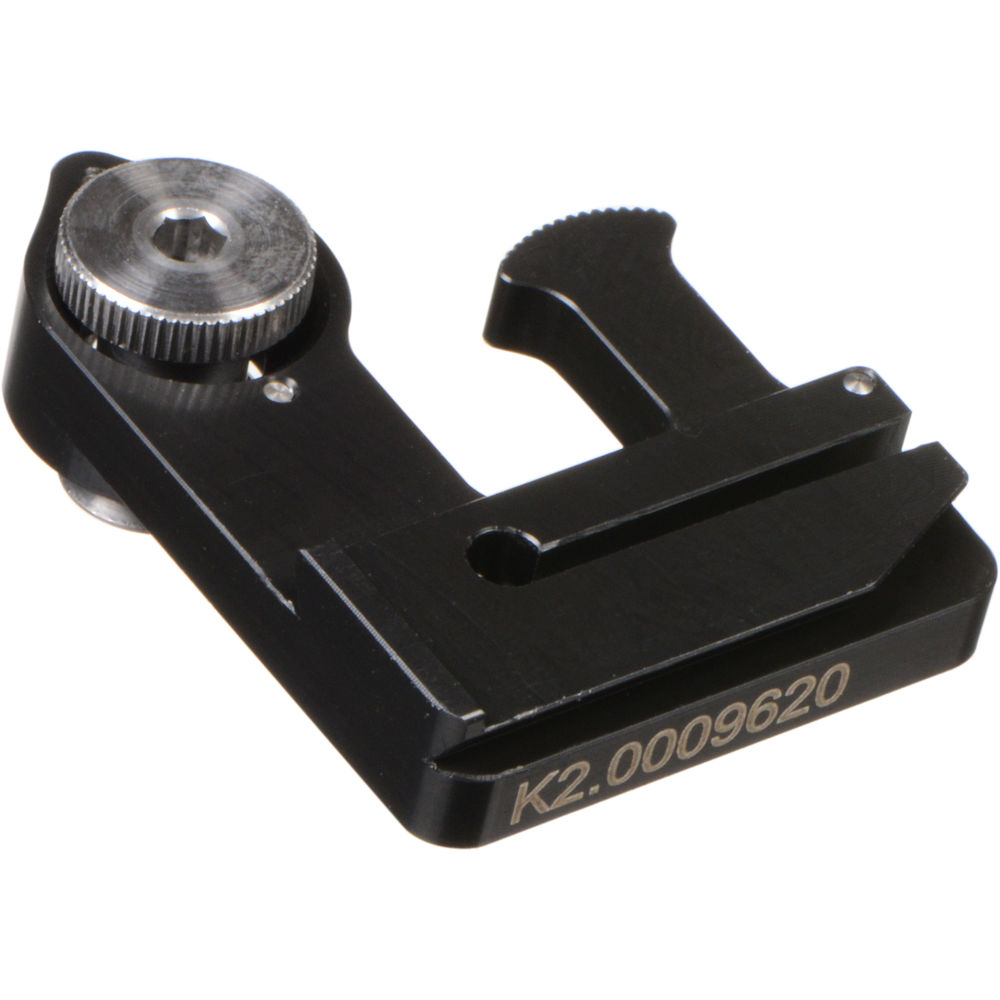

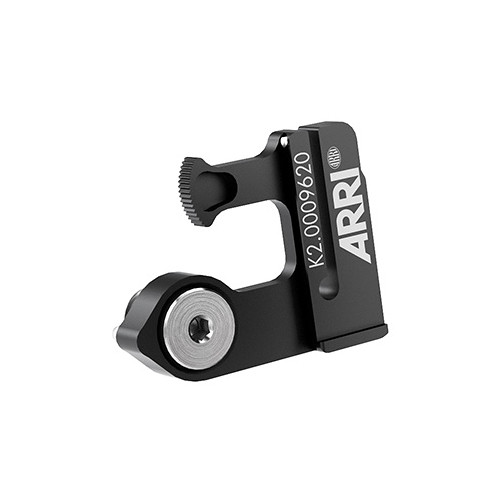

A vari-colored LED indicates the status of the CUB-1's SETUP button. A quick-release bracket with a 3/8"-16 screw is included with the converter. The CUB-1 does not include an LBUS cable (available separately).
Features
Compatibility
Distance-Measuring Devices
ARRI UDM-1 Ultrasonic Distance Measure
Cinematography Electronics CTM CINE TAPE MEASURE
Cameras
Including but not limited to:
ALEXA Mini: Distance measure
Sony F5/F55: REC start/stop
RED Epic/Dragon: REC start/stop, user buttons
| Serial Interfaces | RS232, RS422, RS485 |

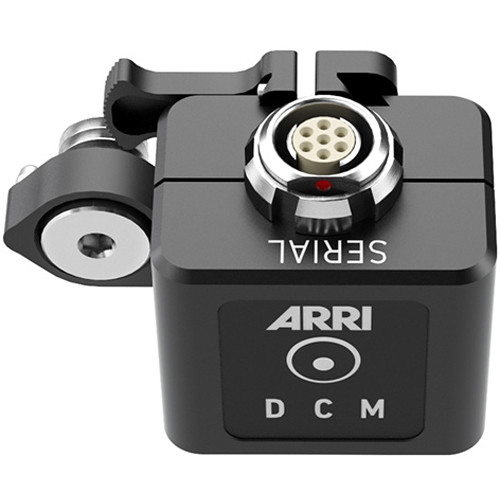

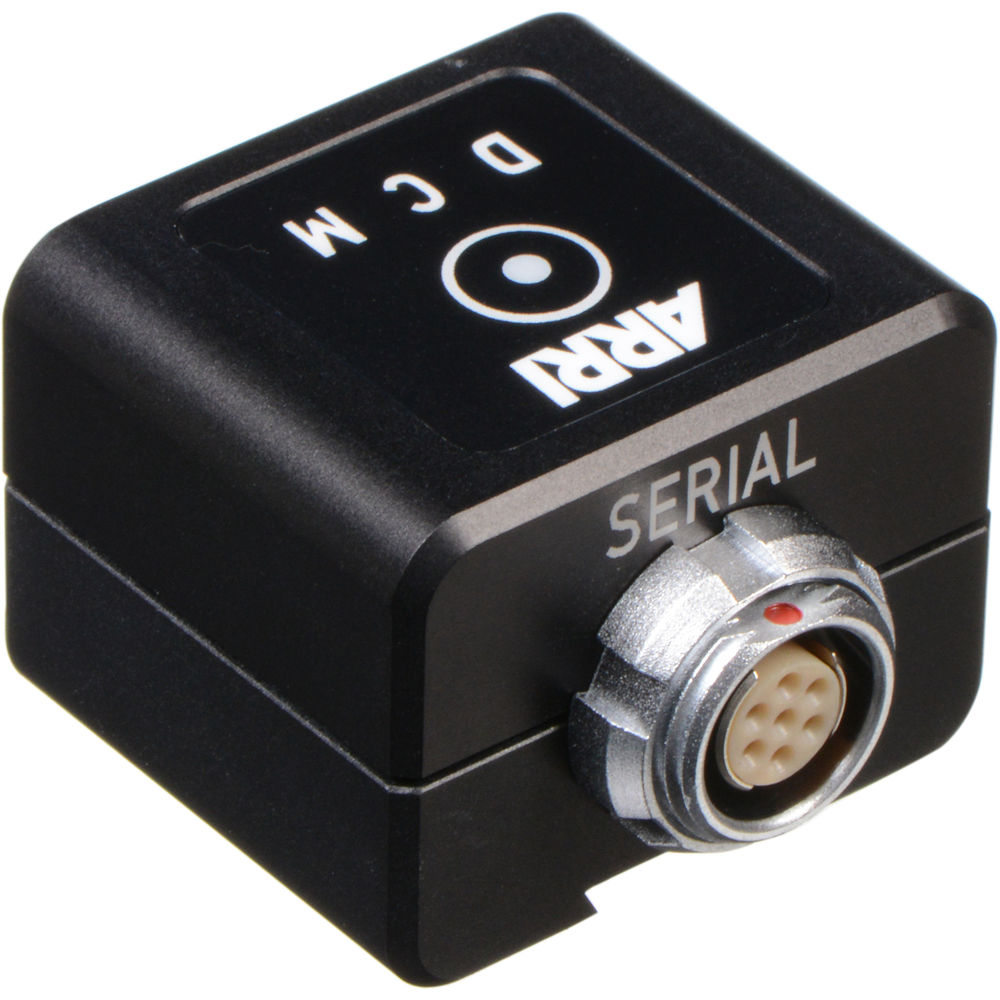

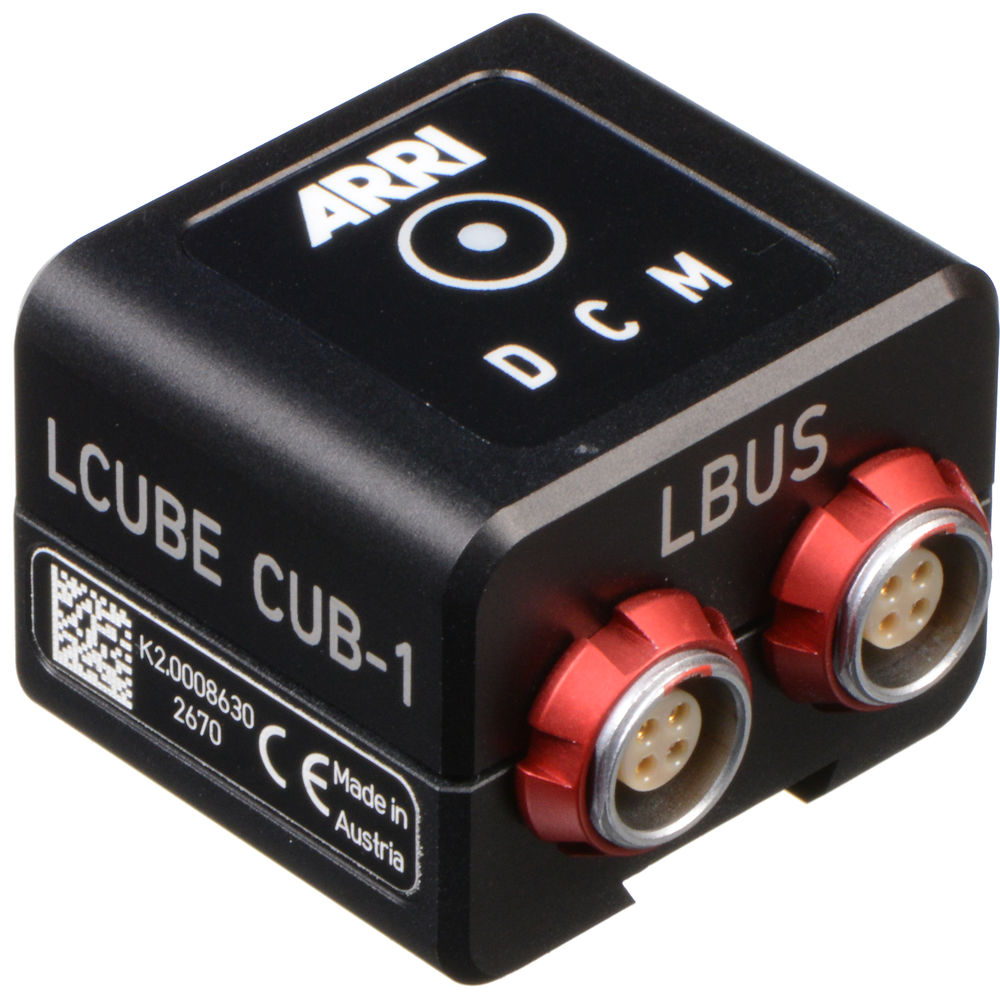

| Connectors | 2 x 4-pin LBUS 1 x 7-pin serial |
| Supply Voltage | 12 to 34 V |
| Current Consumption | 18 mA @ 24 V |
| Temperature Range | -4 to 122°F (-20 to 50°C) |
| Dimensions | 1.3 x 1.5 x 0.9" (32 x 37.3 x 24 mm) |
| Weight | CUB-1: 1.66 oz (47 g) LCUBE Bracket: 0.46 oz (13 g) |
Packaging Info
| Package Weight | 0.405 lb |
| Box Dimensions (LxWxH) | 6.95 x 5 x 2.6" |
