ARRI Lightweight Support Set for ALEXA 35 (Top)

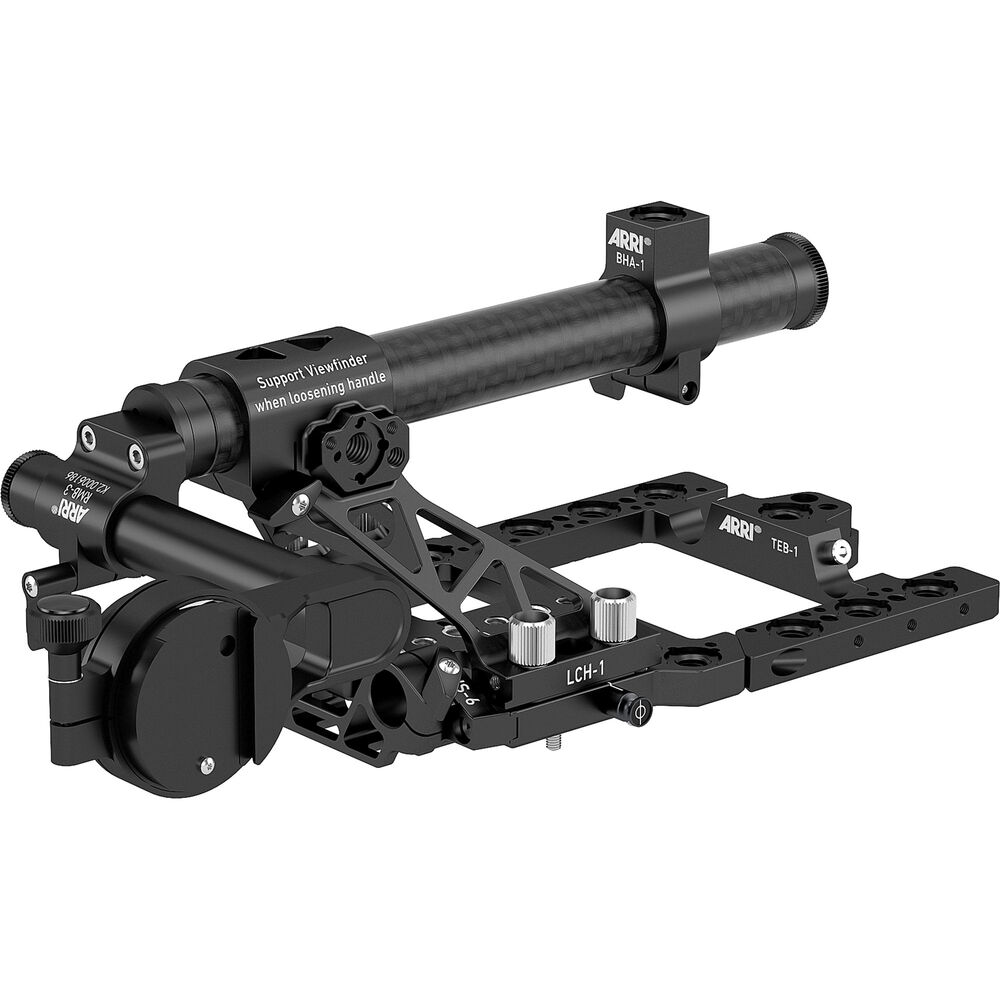

This ARRI Lightweight Support Set is designed for the top of the ALEXA 35 cinema camera. The set includes the UAP-1 universal adapter plate, the TEB-1 top extension bracket, the LCH-1 lightweight camera handle, the BHA-1 balance harness adapter, the RMB-3 rod bracket, and the viewfinder cross pipe. Read more below about the items in this kit.

ARRI Universal Adapter Plate UAP-3 for ALEXA 35

Mount accessories such as top handles and extensions onto the top of your ALEXA 35 cinema camera with this ARRI Universal Adapter Plate UAP-3. The flat, low-profile plate mounts on top of the camera, and it provides attachment points for accessories such as the optional Lightweight Camera Handle LCH-1 and Center Camera Handle CCH-2. You can add more accessories by mounting the optional Top Extension Bracket TEB-1. The plate can also be mounted onto the bottom of the camera for additional mounting options.

ARRI Top Extension Bracket TEB-1

Extend your ALEXA 35 rig to add more accessories with this ARRI Top Extension Bracket TEB-1. The bracket attaches to the Low Mode Support LMS-4 or Universal Adapter Plate UAP-3 to extend the mounts so you can add accessories like the Rear Accessory Bracket RAB-2 or the Articulated Mounting Plate AMP-1. The bracket does not obstruct any of the camera's top ventilation.

ARRI Lightweight Camera Handle LCH-1

Easily and safely carry your ALEXA 35 cinema camera with the ARRI Lightweight Camera Handle LCH-1. The lightweight carbon fiber handle mounts onto the top of the camera using the Universal Adapter Plate UAP-3, and it requires no installation tools. The handle slides back and forth through the post to provide balance adjustment.

Compatibility

ARRI ALEXA 35 cinema camera
ARRI Universal Adapter Plate UAP-3
ARRI Balance Harness Adapter BHA-1
ARRI Lightweight Support LWS-6

ARRI Balance Harness Adapter BHA-1

The ARRI Balance Harness Adapter BHA-1 mounts onto the Lightweight Camera Handle LCH-1 for the ALEXA 35 cinema camera and provides quick camera balancing when using a suspension harness. It slides back and forth over the handle, allowing for easy balancing, and it secures using a thumbscrew. There is also one 3/8"-16 thread available on the adapter for mounting an accessory.

Compatibility

ARRI ALEXA 35 cinema camera
ARRI Lightweight Camera Handle LCH-1

ARRI Lightweight Support LWS-6

The ARRI Lightweight Support LWS-6 enables you to add two optically centered standard 15mm LWS rods and accessories to your camera rig. It can be used with the LCH-1 lightweight camera handle and/or the UAP-3 universal adapter plate to mount a variety of accessories such as a focus motor, matte box, or the MVB-1 viewfinder bracket.

Compatibility

Standard 15mm LWS rods and 15mm LWS compatible accessories
ARRI LCH-1 Lightweight Camera Handle
ARRI UAP-3 Universal Adapter Plate
ARRI MVB-1 Viewfinder Bracket

ARRI Rod Mounting Bracket (RMB-3)

Use the Rod Mounting Bracket (RMB-3) from ARRI to support a single, standard 19mm rod for mounting a lens motor, lightweight EVF bracket, etc. to your camera or cage rig. When used with a separately available insert, the RMB-3 can be used to support a 15mm rod. A mounted rod is easily secured using the thumb lever on this screw-in bracket.

Rod Compatibility

19mm
15mm (with separately available insert K2.66255.0)

ARRI Viewfinder Cross Pipe

The ARRI Viewfinder Cross Pipe is compatible with the MVB-1 viewfinder mounting bracket. Use it with ARRI EVF brackets to attach an ARRI or third-party viewfinder.
