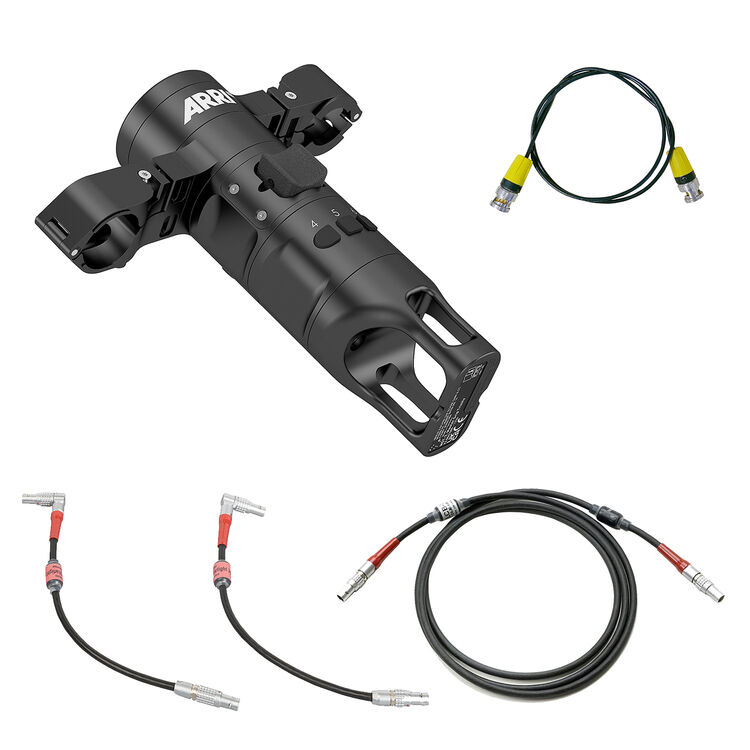

The ARRI Master Grip TRINITY 2 Two-Controller Set combines two MGT LBUS controllers with several cables needed to complete your TRINITY 2 fingertip control setup. This set includes a 33" 12G-SDI BNC cable, a 29.5" joystick cable, and both 2- and 5-pin LEMO monitor cables. Read more below about the components in this kit.
ARRI MGT-2 Master Grip Trinity 2 (Two Controllers)
The MGT-2 Master Grip for TRINITY 2 from ARRI is a set of two LBUS-based joystick controllers for the TRINITY 2 stabilizer. The LBUS protocol, two joysticks, and six function keys enable you to assign functions for precise control. Assignable functions include Home Position, True Tilt, True Roll, Limits On/Off, and user presets.
Compatibility
TRINITY 2 stabilizer
Assignable Functions
Multiple functions, including tilt, roll, zoom, and more, can be freely assigned between the two joysticks and six keys
Mounting
On each controller:

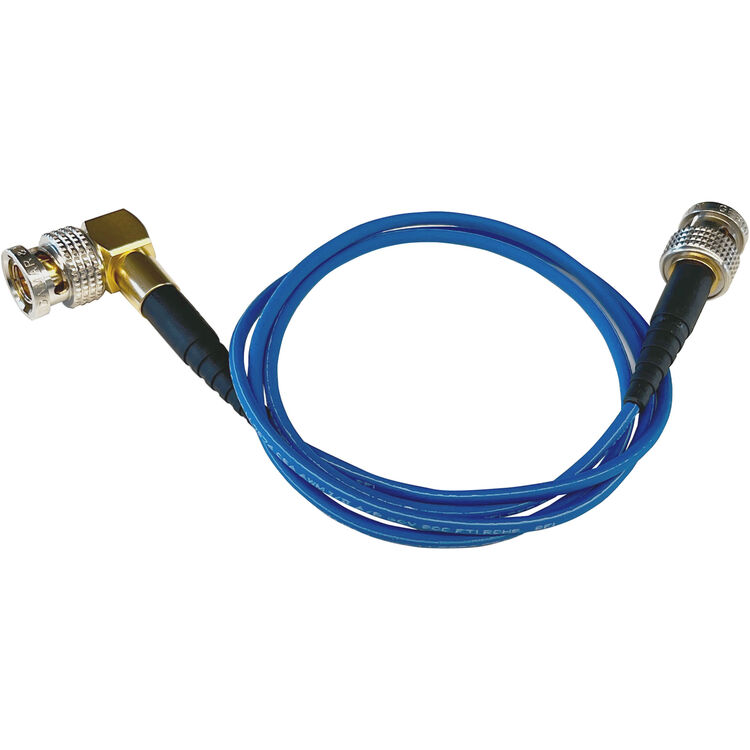

ARRI 12G HD-SDI BNC Cable (33")
The blue 33" 12G HD-SDI BNC Cable from ARRI is designed for use with artemis, TRINITY, and MAXIMA stabilizers and the SRH-3 remote head. This 4.5 GHz 12G video cable has a straight BNC male connector on one end and a right-angle BNC male connector on the other.

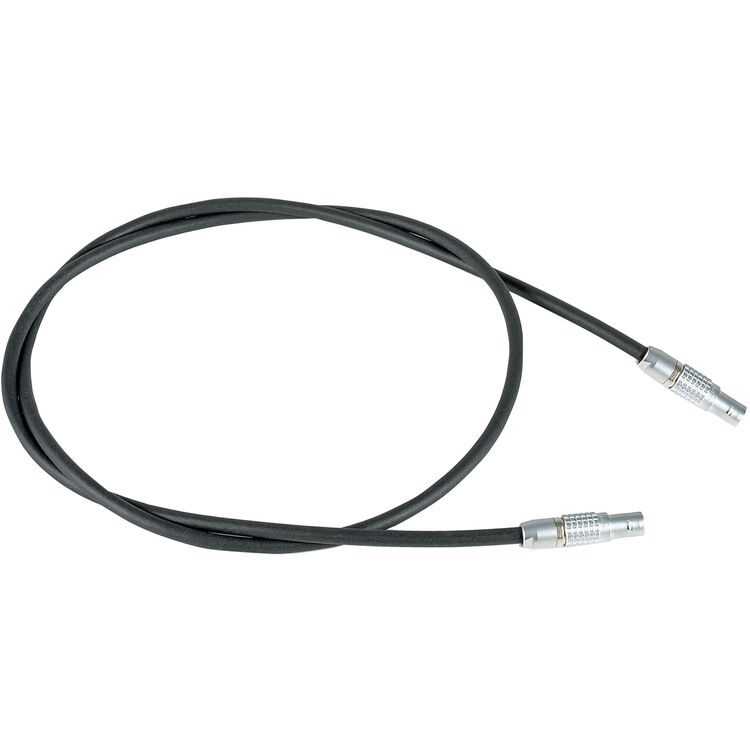

ARRI TRINITY 2 Joystick Cable (29.5")
The 29.5" TRINITY 2 Joystick Cable from ARRI is a flexible cable used to connect a Master Grip TRINITY with a TRINITY 2 stabilizer. This cable has a 4-pin 0B LEMO connector on each end.
Note:
For TRINITY 2 only.

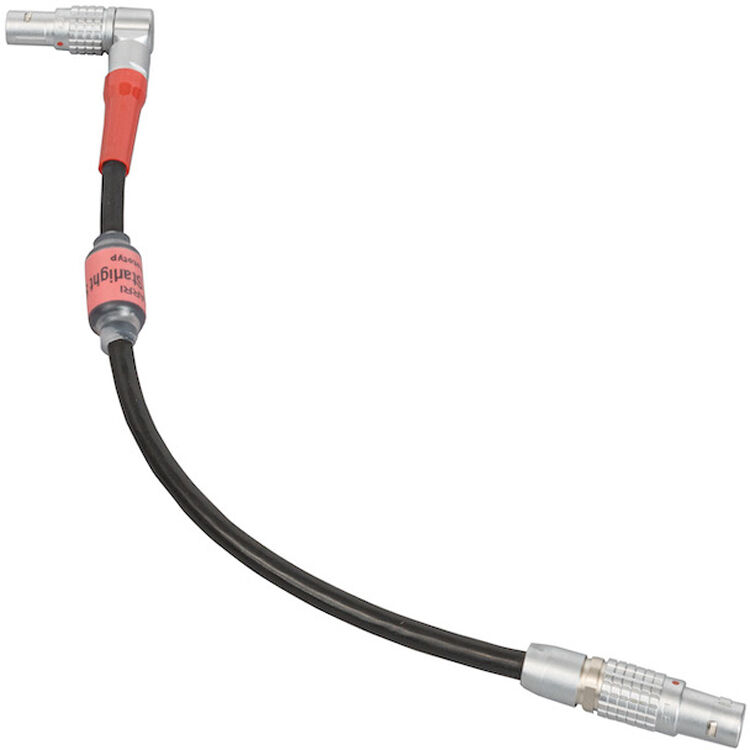

ARRI MTG Monitor Power (LEMO 0B, 2-Pin)
The MTG Monitor Power from ARRI is used to power a Transvideo Starlite or SmallHD 503 monitor from a Master Grip TRINITY. This 12V cable has a straight 4-pin LEMO connector on one end and a right-angle 2-pin LEMO on the other.
Note:
For MGT-1, MGT-2, and TRINITY 2 only.

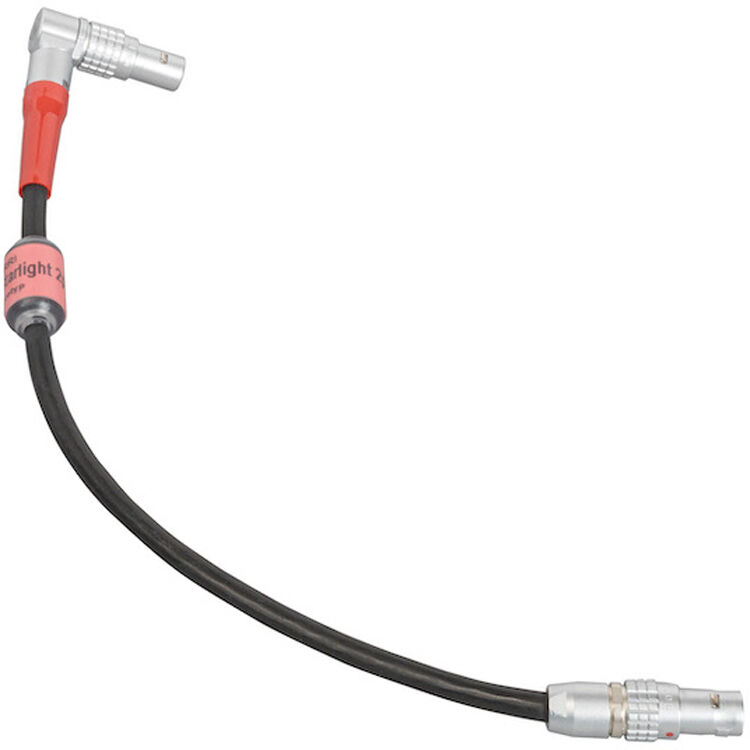

ARRI MTG Monitor Power (LEMO 0B, 5-Pin)
The MTG Monitor Power from ARRI is used to power an ARRI Starlite monitor from a Master Grip TRINITY. This 12V cable has a straight 4-pin LEMO connector on one end and a right-angle 5-pin LEMO on the other.
Note:
For MGT-1, MGT-2, and TRINITY 2 only.
General
| Compatibility | ARRI TRINITY 2 |
Display
| Panel Type | Not Specified by Manufacturer |
| Display Size | Not Specified by Manufacturer |
| Touchscreen | Yes |
Power
| Power Source | Proprietary Interface |
Physical
| Mounting | 2 x Gimbal Clamp 2 x 19 mm Rod Bracket |
| Dimensions | Not Specified by Manufacturer |
| Weight | Not Specified by Manufacturer |
Packaging Info
| Package Weight | 1.13 lb |
| Box Dimensions (LxWxH) | 7.65 x 5.55 x 2.3" |
General
| Connector 1 | 1 x BNC |
| Connector 2 | 1 x BNC |
| Cable Length | 33" / 83.8 cm |
| Signal Type | 12G-SDI |
Packaging Info
| Package Weight | 0.105 lb |
| Box Dimensions (LxWxH) | 5.35 x 3.75 x 0.7" |
General
| Compatibility | Transvideo Starlite SmallHD 503 |
Inputs / Outputs
| Connector 1 | 1 x LEMO 0B 4-Pin Male |
| Connector 2 | 1 x LEMO 0B 2-Pin Male |
Physical
| Cable Length | Not Specified by Manufacturer |
Packaging Info
| Package Weight | 0.07 lb |
| Box Dimensions (LxWxH) | 6.3 x 4.15 x 2.2" |
General
| Compatibility | ARRI Starlite |
Inputs / Outputs
| Connector 1 | 1 x LEMO 0B 4-Pin Male |
| Connector 2 | 1 x LEMO 0B 5-Pin Male |
Physical
| Cable Length | Not Specified by Manufacturer |
Packaging Info
| Package Weight | 0.085 lb |
| Box Dimensions (LxWxH) | 5.5 x 4.3 x 0.9" |
