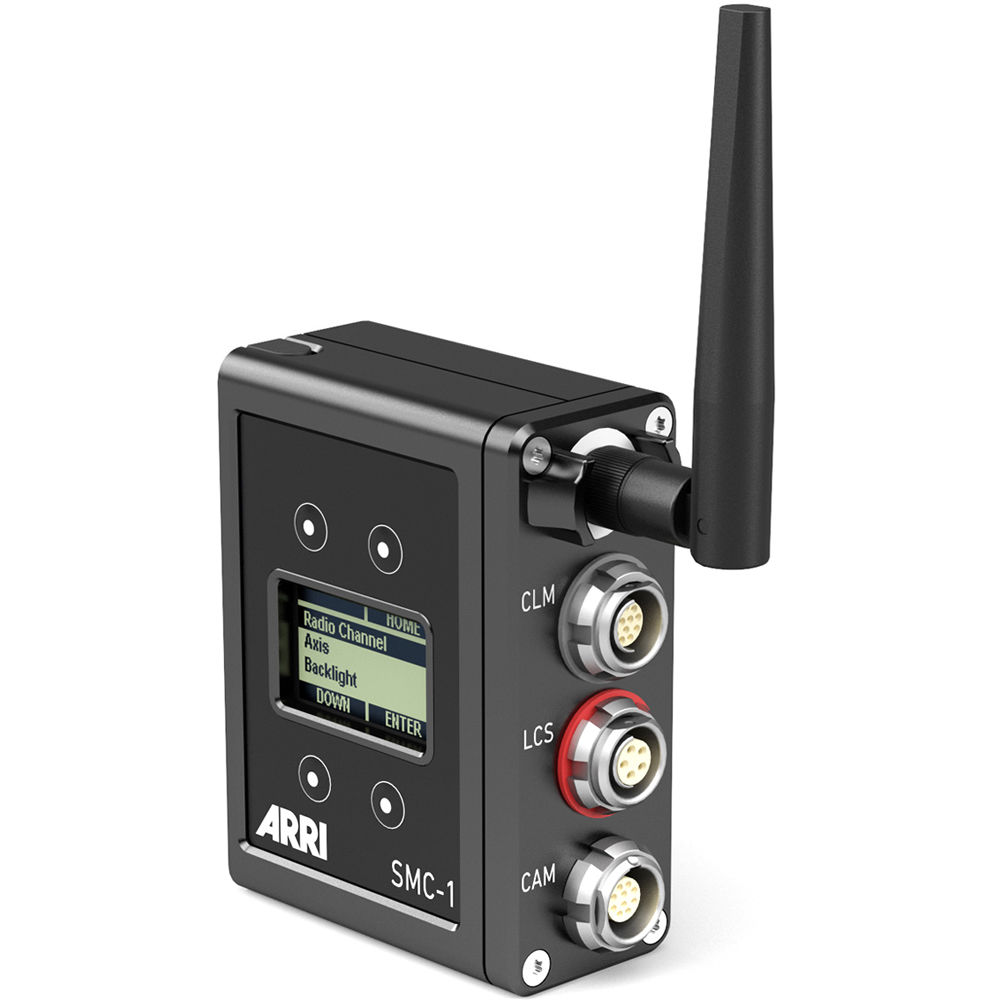

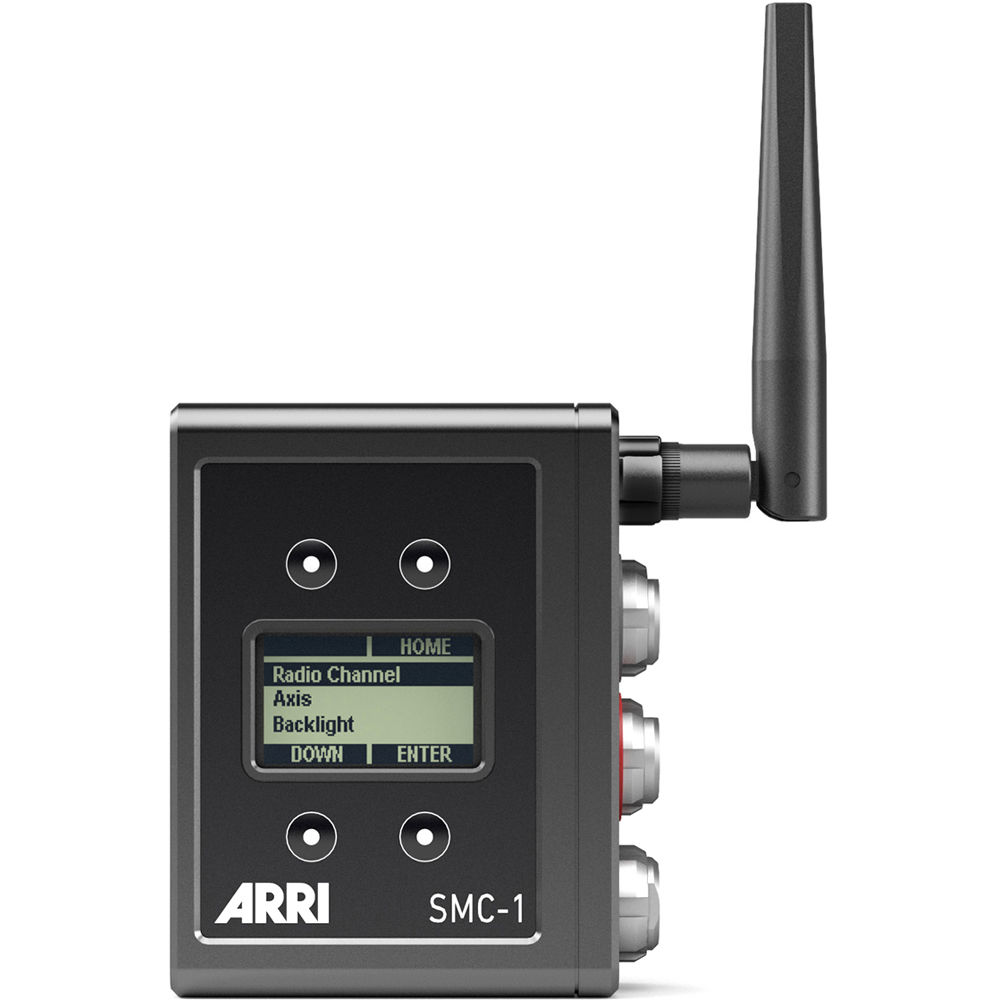

The compact ARRI SMC-1 Single Motor Controller from ARRI is used to remotely control a single focus, iris, or zoom axis. This controller is compatible with WCU-4, SXU-1, Master Grip, and ARRI zoom controls. The SMC-1 controller works with any ARRI or third-party pro camera, and with CLM-3/4/5 lens motors.
The SMC-1 motor controller features a 1.2" LCD display, and a micro-SD card slot used when updating the controller's firmware.
Features
| Connectors | 1 x 12-pin CLM 1 x 5-pin LCS 1 x 10-pin CAM |
| Receiver Channel | 8 x channels: 2.410 to 2.475 GHz |
| Supply Voltage | 9.5 to 34 VDC |
| Current Consumption | Radio On/Ready: 100 mAh at 12 V 50 mAh at 24 V |
| Mounting Thread | 3/8"-16 |
| Operating Temperature | -4 to 122°F (-20 to 50°C) |
| Dimensions | Without Antenna: 2.4 x 1.1 x 2.9" (61 x 28.8 x 74.5 mm) With Antenna: 3.2 x 1.1 x 5" (82.3 x 28.8 x 126 mm) |
| Weight | With Antenna: 6 oz (173 g) |
Packaging Info
| Package Weight | 0.495 lb |
| Box Dimensions (LxWxH) | 6.3 x 4.2 x 2.5" |
