Astera QuikPunch Zoomable LED Spotlight (8-Light Kit)

Name: Astera QuikPunch Zoomable LED Spotlight (8-Light Kit)
Brand: ASTERA
SKU: SF-2443-D5GW
Availability: InStock

Brand: ASTERA

MFR: QUIKPUNCH-OCTO SET KIT

SKU: SF-2443-D5GW

Price Available Upon Request

Eight Lights with Road Case
13 to 60º Zoom, Zero Stray Light
Titan LED Engine
Includes Barndoors with SafetyLink
Includes Dedicated Charging Plate
Includes Power Cable

Items Included

TRUE1 to Molded Edison Cable (14 AWG, 6.5', Black)

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: LED Lights , Stage Light

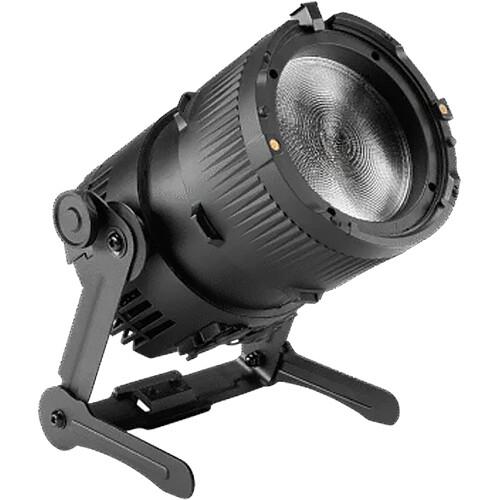

Astera Quik Punch Zoomable LED Spotlight with Removable Yoke and Barndoors

Enhance your lighting possibilities on set or in your studio with the Quik Punch Zoomable LED Spotlight from Astera. This wireless, single-source spotlight features a Fresnel lens, 13 to 60° zoom capabilities with zero stray light, and a removable yoke and barndoors with safety link. Equipped with a Titan LED engine and an integrated rechargeable battery with 4.5 hours of runtime when fully charged, the Quick Punch also boasts a 3/8"-16 mounting thread on the rear of the fixture and multiple waterproof connectors for safe and reliable operation indoors or on location. It also has a built-in kickstand and rubber feet for easy angling during wall splash setups.

Designed for Maximum Output

Being equivalent to a 200 W LED PAR for stage use while delivering 4.5 hours of maximum runtime, QuikPunch is an energy-efficient spotlight prepared for easy and quick operation, thanks to the battery-driven PrepBox and its ChargingPlate.

Highly Controllable Punch

QuikPunch does not only feature a 13 to 60º zoom range, it is also optimized for a sharper, easier to control optical footprint. It outputs a zero-spill, accurate beam reminiscent of a theatrical PC projector, but it can also work as a traditional 650W Fresnel spotlight when the EdgeSoftener filter is added.

Adjustable Beam

QuikPunch is extremely bright, and its 60° beam angle makes it an excellent wash light to evenly light large surfaces. However, unlike traditional Fresnels, QuikPunch allows you to accurately cut the light via the included barndoors even at 45°, and there is no need to flood it to get a sharp and controlled beam shape.

Angling for Elegance

To angle for an elegant up light or wash light, QuikPunch integrates a kickstand in the back of the housing for tilt focusing when no yoke is used.

Standard 3/8-16" Mounting Thread

The pin-ready thread in the back of QuikPunch minimizes the visual impact on those installations where a yoke is not needed, offering an alternative mounting method for gobo heads or low-profile clamps.

Astera Charging Plate for QuikPunch

When combined with the optional Astera PrepBox, this Charging Plate allows you to simultaneously charge up to eight QuikPunch units. Designed to work with an optional flight case, this plate enables charging without wires. This combination with the PrepBox offers quick setup with software adjustments and app connectivity.

The required powerCON TRUE1 cable is not included.

Additional Details

100-240 VAC input voltage
8 x 25.5 VDC output

Astera Hard Case for QuikPunch

Safely store your lighting fixtures for air travel with the Hard Case for QuikPunch by Astera. It holds up to eight of Astera's separately available QuikPunch lighting fixtures with storage space for eight barndoors and filters, and clamps and cables. Two recessed latches lock the case. Move it around on the heavy-duty casters by the recessed spring-loaded handles. A durable metal trim reinforces the case against scuffs and bumps.

Light

Item Type	1x Fresnel
Light Source	1x Color LED - 75 W
Colors	Amber, Blue, Green, Mint, Red
Photometrics	743 fc / 8000 Lux at 9.8' / 3 m
Beam Angle	12 to 60°
Shutter / Strobe	Electronic
Iris	No
Focus	Manual
Zoom Adjustment	Manual, 13 to 60°
Dimming	Electronic

Performance

Operating Modes	DMX
Strobe Rate	0 to 25 Hz
Gobos	No
Color Accuracy Standard	CRI 96 TLCI 96

Control

Control Protocols	DMX512, CRMX, RDM
Remote Control	IR Remote
Mobile App Compatible	Yes: Android & iOS App Name: Astera App Functionality: Remote Control

Connectivity

Inputs/Outputs	1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output
Wireless	Bluetooth / IR / UHF / Wireless DMX / Wi-Fi
Wireless Range	984.3' / 300 m Bluetooth: 9.8' / 3 m

Power

AC Power Connector	Input: 1x powerCON TRUE1 Output: 1x powerCON TRUE1
Input Power	100 to 240 VAC, 50 / 60 Hz
Fuse	No
Power / Current Consumption	100 W (Max)
Approximate Battery Life	Up to 20 Hours
Battery Charging Time	5.25 Hours

Physical

Environmental Resistance	Dust/Water-Resistant (IP65)
Operating Conditions	32 to 104°F / 0 to 40°C
Mounting	Floor Base, Single Yoke Only
Included Accessories	1x Barn Doors
Duty Cycle	No
Exterior Color	Black
Dimensions	12.2 x 9.3 x 7.4" / 309 x 237 x 188 mm
Weight	14.4 lb / 6.5 kg
