Atlas Lens Co. Orion 32mm T2 2x Anamorphic Prime Lens (PL Mount, Feet)

Atlas Lens Co. Orion 32mm T2 2x Anamorphic Prime Lens (PL Mount, Feet)

Name: Atlas Lens Co. Orion 32mm T2 2x Anamorphic Prime Lens (PL Mount, Feet)
Brand: ATLAS LENS
SKU: 6145
Price: 36732 AED
Availability: InStock

Brand: ATLAS LENS

MFR: ORIO-0032-300S

36,732.00 ﾹ

Covers Super 35 Format

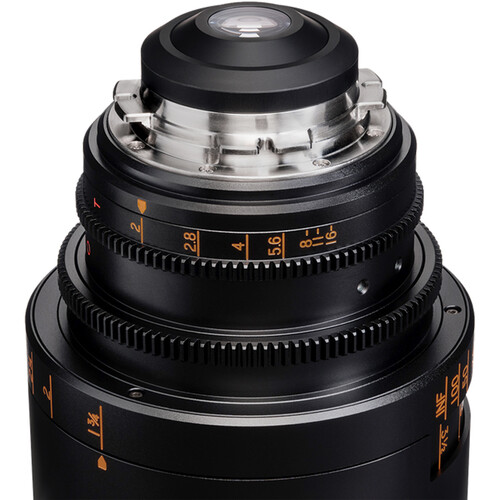

Interchangeable EF/PL Mount
T2 to T16 Aperture Range
0.8-MOD Focus and Aperture Gearing
14-Blade Iris
Streak Effects
1.7' Minimum Focus Distance
114mm Front Diameter
Focus Marks in Feet
Weighs 4.6 Pounds

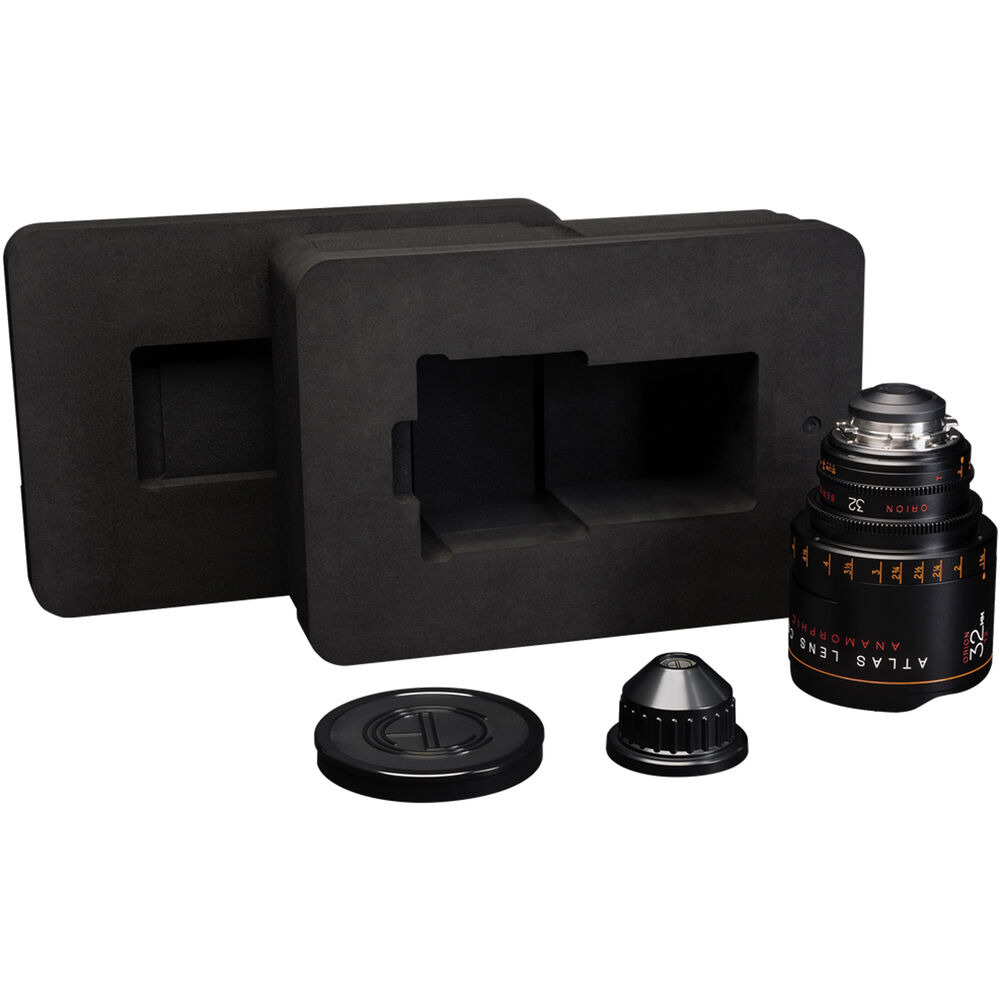

Items Included

Atlas Lens Co. Orion 32mm T2 2x Anamorphic Prime Lens (PL Mount, Feet)

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Quantity

Categories: Lenses & Lens Accessories

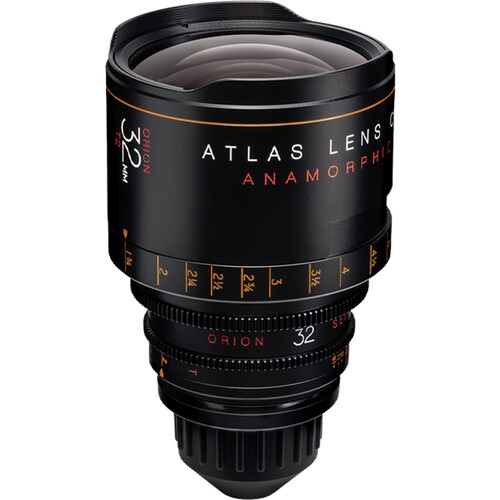

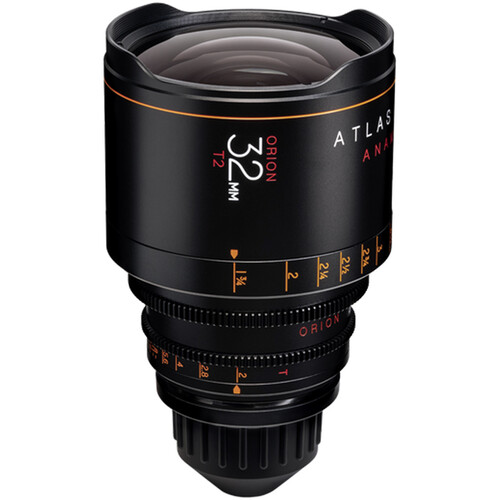

Designed by cinematographers for cinematographers, the Orion 32mm T2 2x Anamorphic Prime Lens from Atlas Lens Co. produces a vintage anamorphic look for Super 35-sensor cine-style cameras. The 32mm creates a wide-angle field of view with the shallow dept of field found in a telephoto prime. To maximize compatibility, this PL-mount lens can be switched to a Canon EF mount using a separately available Atlas mount kit. Anamorphic lens characteristics include "waterfall" bokeh, streak effects, and a spherical aberration glow when used wide open.

This mechanically dependable prime lens features a design that is standardized across the series with unified focus and iris gear positions and a common 114mm front diameter that make lens swaps easier when using cine-style matte boxes and FIZ systems. The Orion 32mm prime comes with focus marks in feet but can be switched by the user to meters using a separately available focus scale.

2x Vintage Anamorphic Look

Creates twice the horizontal field with the same vertical field of view as a similar spherical lens.
Creates a wide-angle view with the shallow depth of field inherent to telephoto prime.
Use this Orion series lens to create a vintage anamorphic look replete with "waterfall" bokeh, streak effects, and a spherical aberration glow when used wide open.

Interchangeable EF/PL Mount

Compatible with ARRI PL-mount cameras or with Canon EF-mount cameras when used with the separately available mount kit.
Works with Sony E-mount or Micro Four Thirds cameras using separately available adapters.

Super 35 Coverage

Covers up to Super 35-format camera sensors.
Use with the separately available Atlas 1.6x LF extender for full-frame coverage.

Fast T2 Aperture

A fast T2 aperture enables low-light capture.
Stopping down to T2.8 or less produces a crisp, flat-field look.

Standardized Design

The mechanically dependable design is standardized across the series for reliable performance.
Unified focus and iris gear positions reduce the need for adjustment when switching lenses on your rig.
The standardized 114mm front diameter is compatible with many filters and matte boxes.
Custom support feet are available separately.

Wide Barrel Rotation

The 270° of focus barrel rotation enables smooth, precise focus pulls.

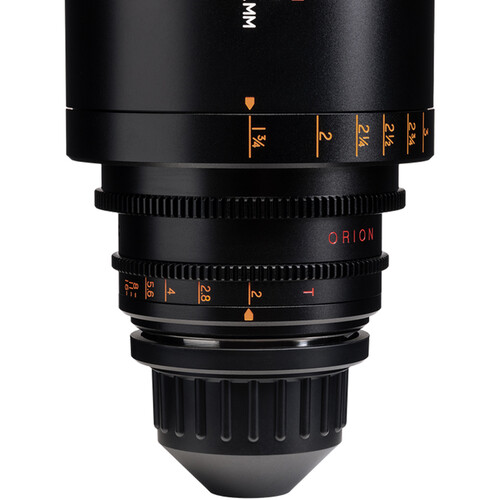

Adjustable Focus Scales

The focus scales are adjustable in the field for maximum accuracy.
Focus scales in feet can be replaced by the user with those in meters and vice versa.

Focal Length	32mm
Maximum Aperture	T2
Minimum Aperture	T16
Lens Mount	ARRI PL
Horizontal Squeeze (Anamorphic)	2x
Lens Format Coverage	Super35/APS-C (24.89 x 18.66 mm
Image Circle	31.0 mm
Focus Scales	Imperial
Filter Thread	None
Minimum Focus Distance	From Unspecified Point in Lens: 1.7' / 53 cm
Diaphragm Blades	14
Image Stabilization	No
Electronic Communication	No
Weight	4.7 lb / 2.1 kg
