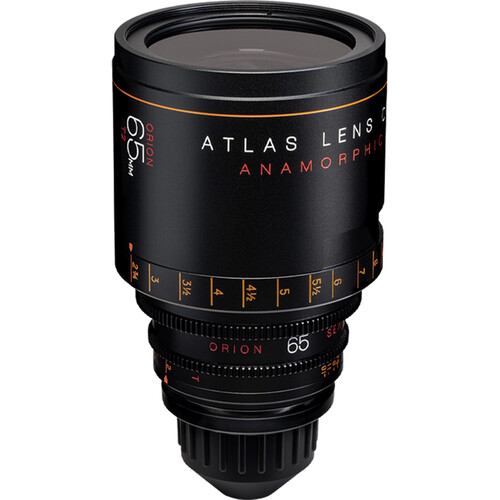

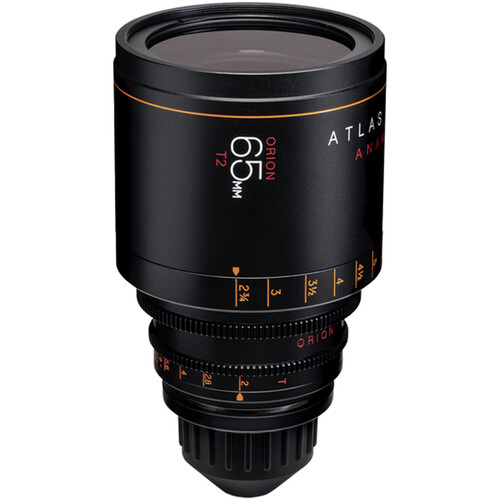

Atlas Lens Co. Orion 65mm T2 2x Anamorphic Prime Lens (PL Mount, Feet)

Atlas Lens Co. Orion 65mm T2 2x Anamorphic Prime Lens (PL Mount, Feet)

Name: Atlas Lens Co. Orion 65mm T2 2x Anamorphic Prime Lens (PL Mount, Feet)
Brand: ATLAS LENS
SKU: 6142
Price: 36732 AED
Availability: InStock

Brand: ATLAS LENS

MFR: ORIO-0065-300S

36,732.00 ﾹ

Covers Super35 Format
Interchangeable EF/PL Mount
T2 to T16 Aperture Range
0.8 MOD Focus & Aperture Gearing
14-Blade Iris
Streak Effects
2.8' Minimum Focus Distance
114mm Front Diameter
Focus Marks in Feet
Weighs 5.1 lb

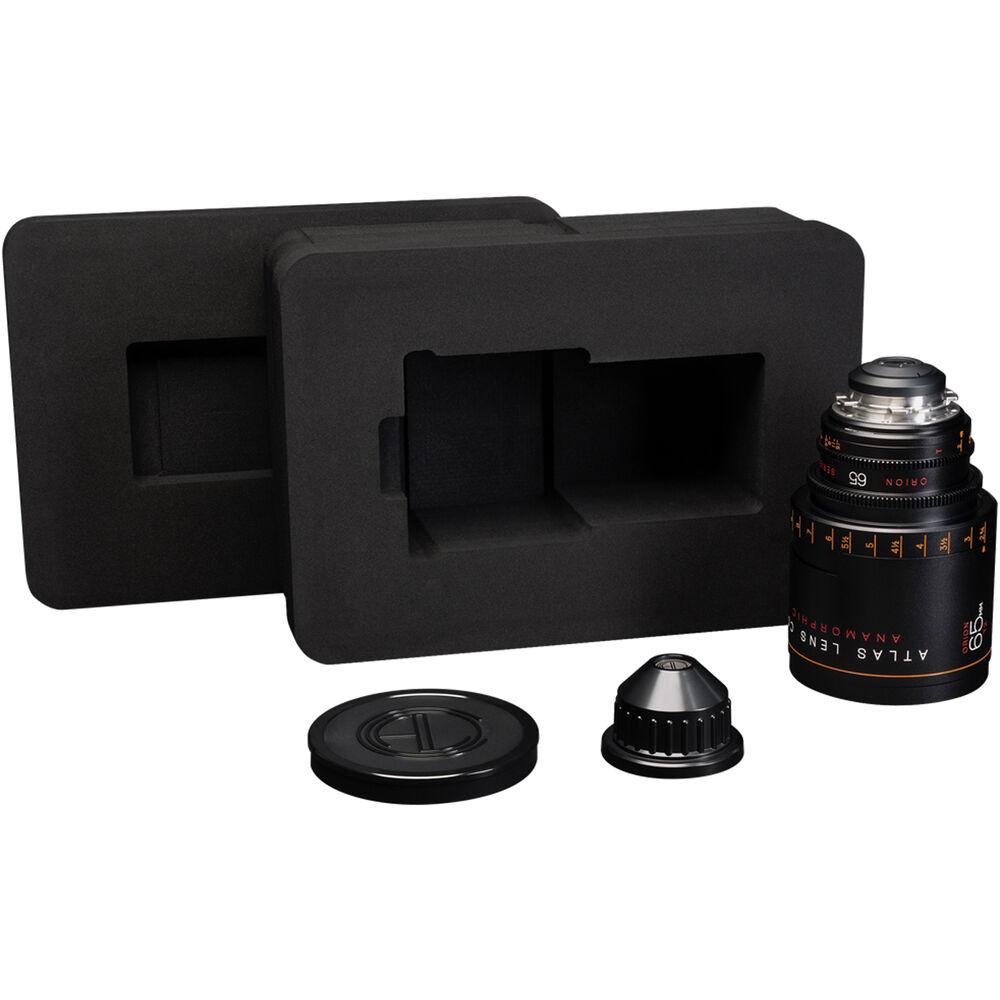

Items Included

Atlas Lens Co. Orion 65mm T2 2x Anamorphic Prime Lens (PL Mount, Feet)

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Quantity

Categories: Lenses & Lens Accessories

Designed by cinematographers for cinematographers, the Orion 65mm T2 2x Anamorphic Prime Lens from Atlas Lens Co. produces a vintage anamorphic look for Super35-sensor cine-style cameras. The 65mm creates a wide-angle field of view with the shallow dept of field found in a telephoto prime. To maximize compatibility, this PL-mount lens can be switched to a Canon EF mount using a separately available Atlas adapter. Anamorphic lens characteristics include "waterfall" bokeh, streak effects, and a spherical aberration glow when used wide open.

This mechanically dependable prime lens features a design standardized across the series with unified focus and iris gear positions and a common 114mm front diameter that make lens swaps easier when using cine-style matte boxes and FIZ systems. The Orion 65mm prime comes with focus marks in feet but can be switched by the used to meters using a separately available focus scale.

2x Vintage Anamorphic Look

Creates twice the horizontal field with the same vertical field of view as a similar spherical lens
Creates a wide-angle view with the shallow depth of field inherent to a telephoto prime
Use this Orion series lens to create a vintage anamorphic look replete with "waterfall" bokeh, streak effects, and a spherical aberration glow when used wide open

Interchangeable EF/PL Mount

Compatible with ARRI PL-mount cameras or Canon EF-mount cameras when used with the separately available lens mount.
Works with Sony E-mount or Micro Four Thirds cameras using separately available adapters

Super35 Coverage

Covers up to Super35-format camera sensors
Use with the separately available Atlas 1.6x LF extender for full-frame coverage

Fast T2 Aperture

A fast T2 aperture enables low-light capture.
Stopping down to T2.8 or less produces a crisp, flat-field look

Standardized Design

The mechanically dependable design is standardized across the series for reliable performance
Unified focus and iris gear positions reduce the need for adjustment when switching lenses on your rig
The standardized 114mm front diameter is compatible with many filters and matte boxes
Custom support feet are available separately

Wide Barrel Rotation

The 270° of focus barrel rotation enables smooth, precise focus pulls

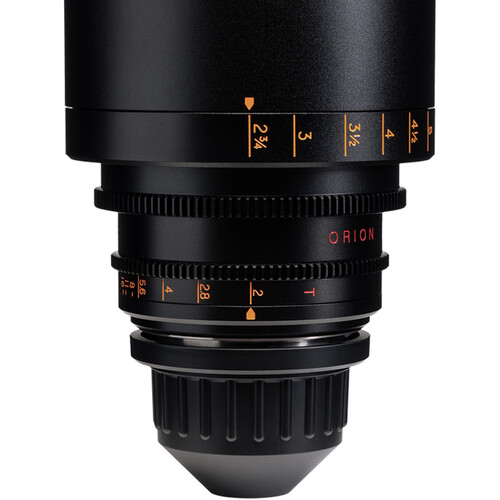

Adjustable Focus Scales

The focus scales are adjustable in the field for maximum accuracy
Focus scales in feet can be replaced by the user with those in meters, and vice versa

Focal Length	65mm
Maximum Aperture	T2
Minimum Aperture	T16

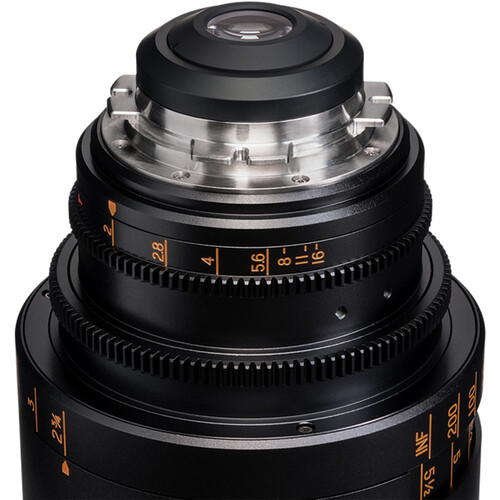

Lens Mount	ARRI PL
Horizontal Squeeze (Anamorphic)	2x
Lens Format Coverage	Super35/APS-C
Image Circle	31.0 mm
Focus Scales	Imperial
Filter Thread	105 mm
Minimum Focus Distance	From Unspecified Point in Lens: 2.8' / 84 cm
Diaphragm Blades	14
Image Stabilization	No
Electronic Communication	No
Weight	5.1 lb / 2.3 kg
