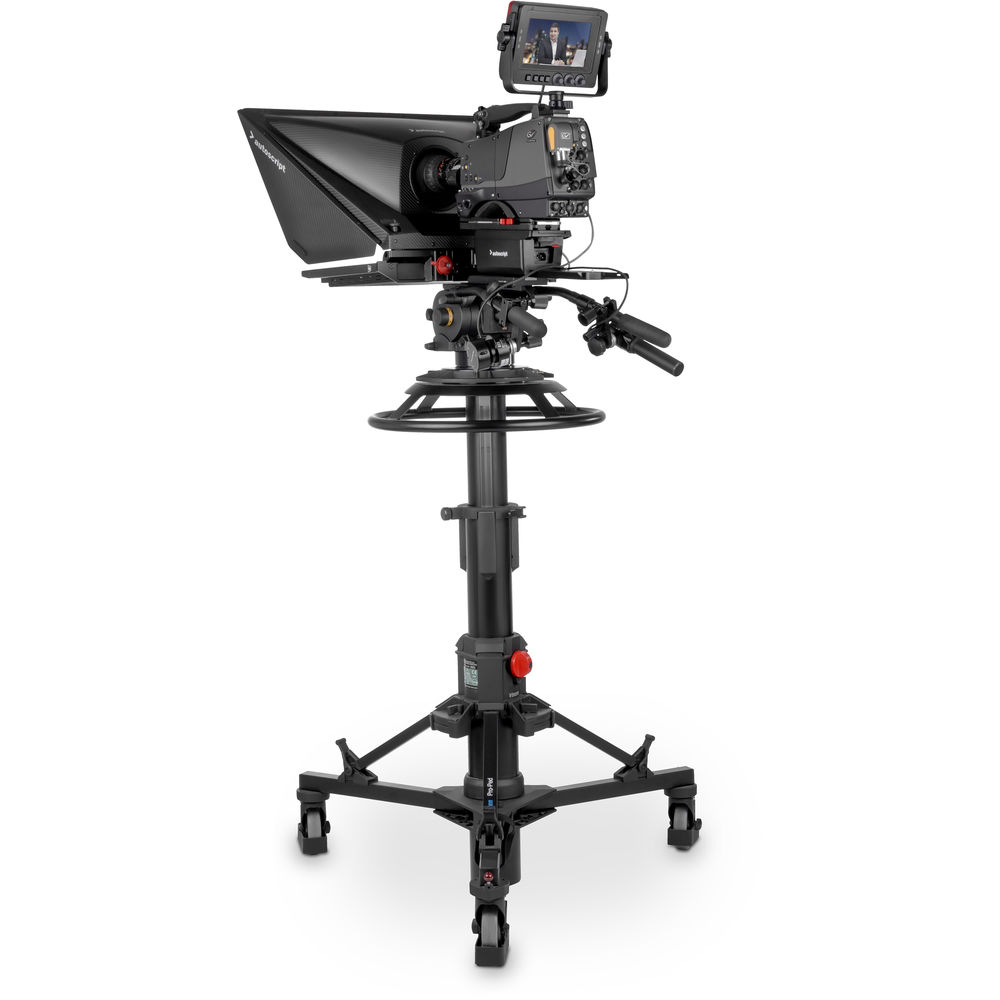

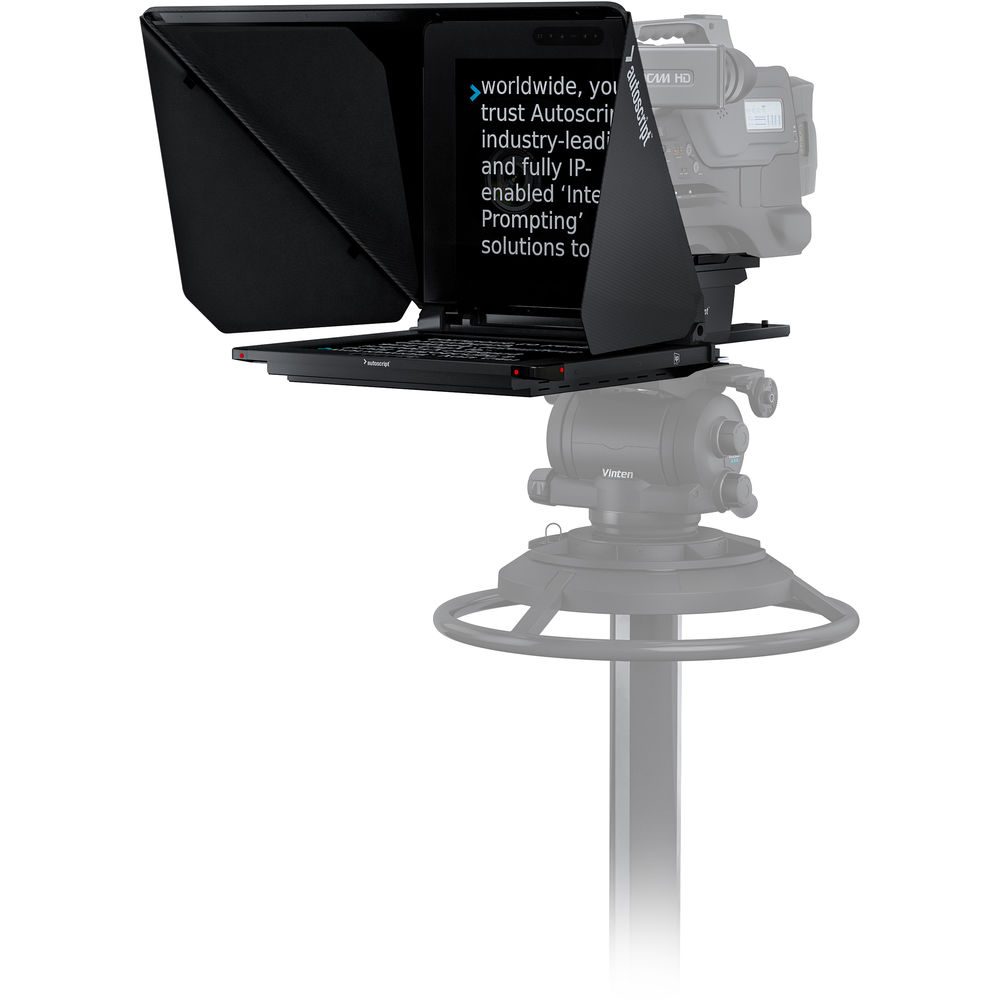

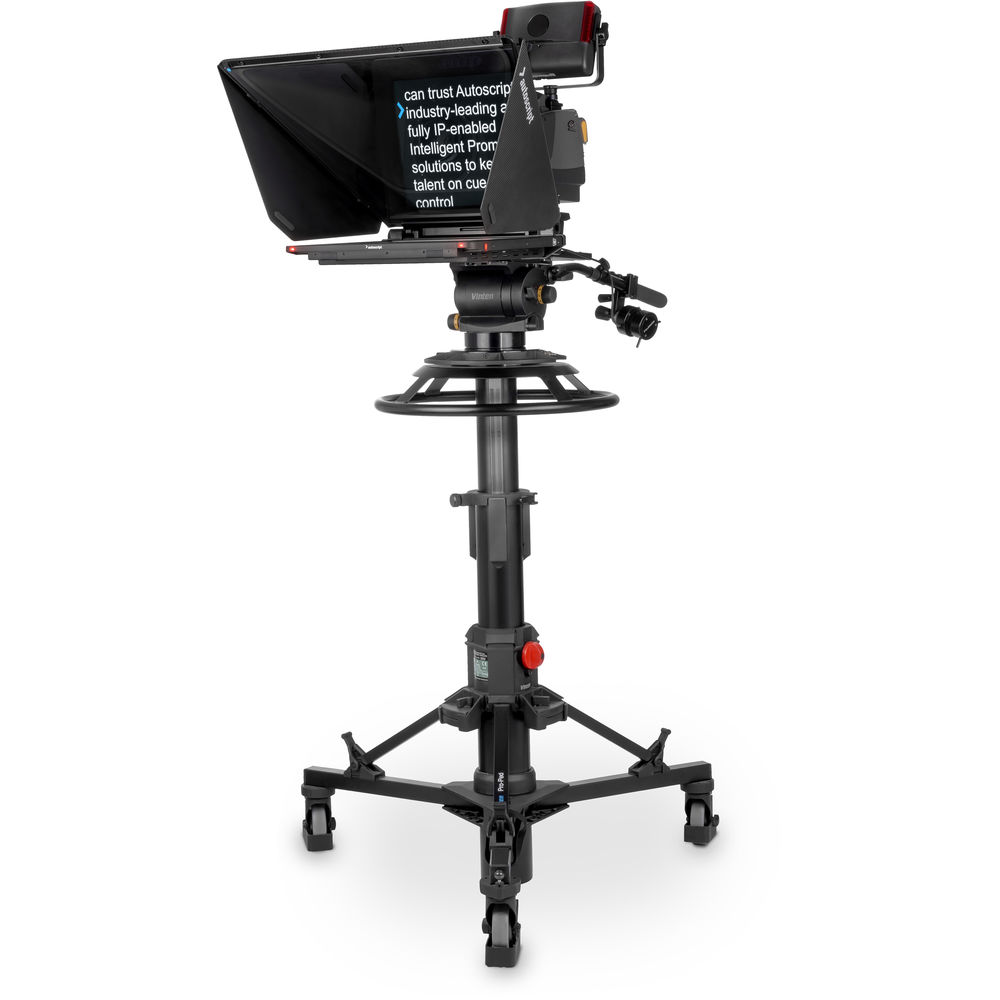

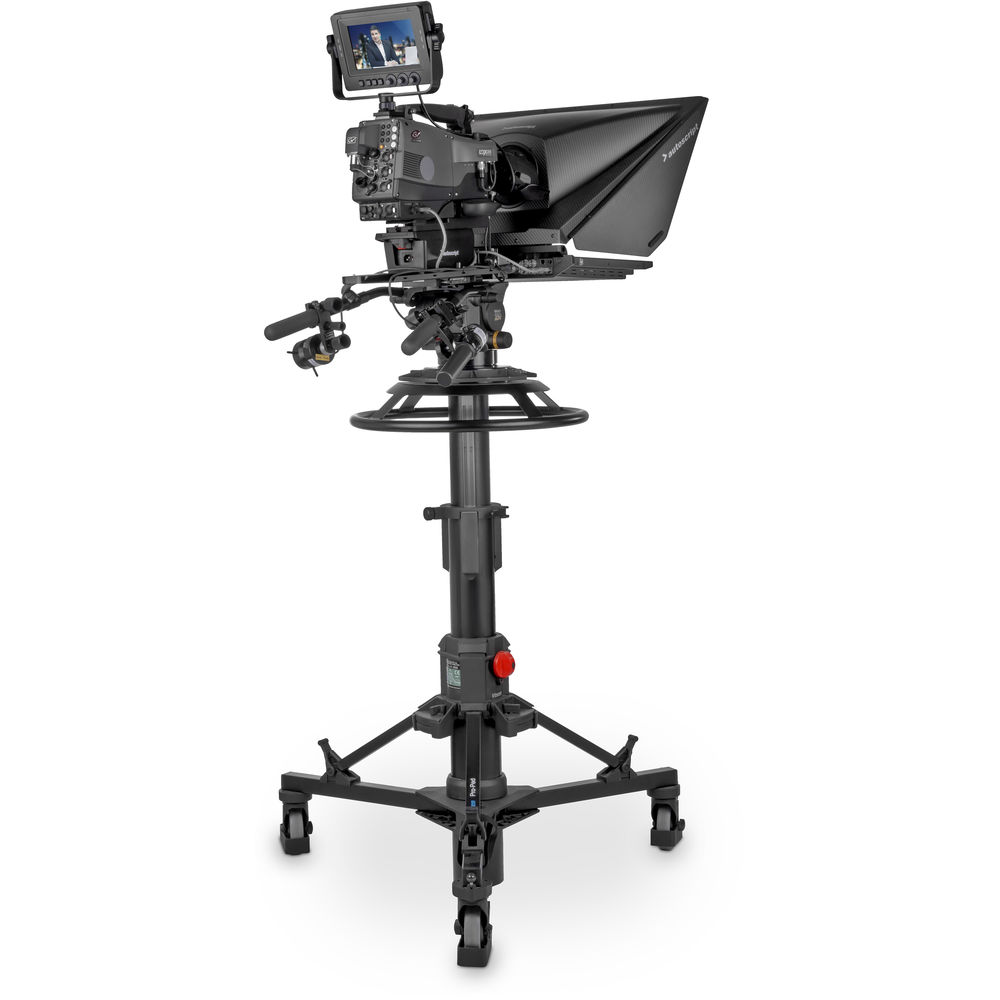

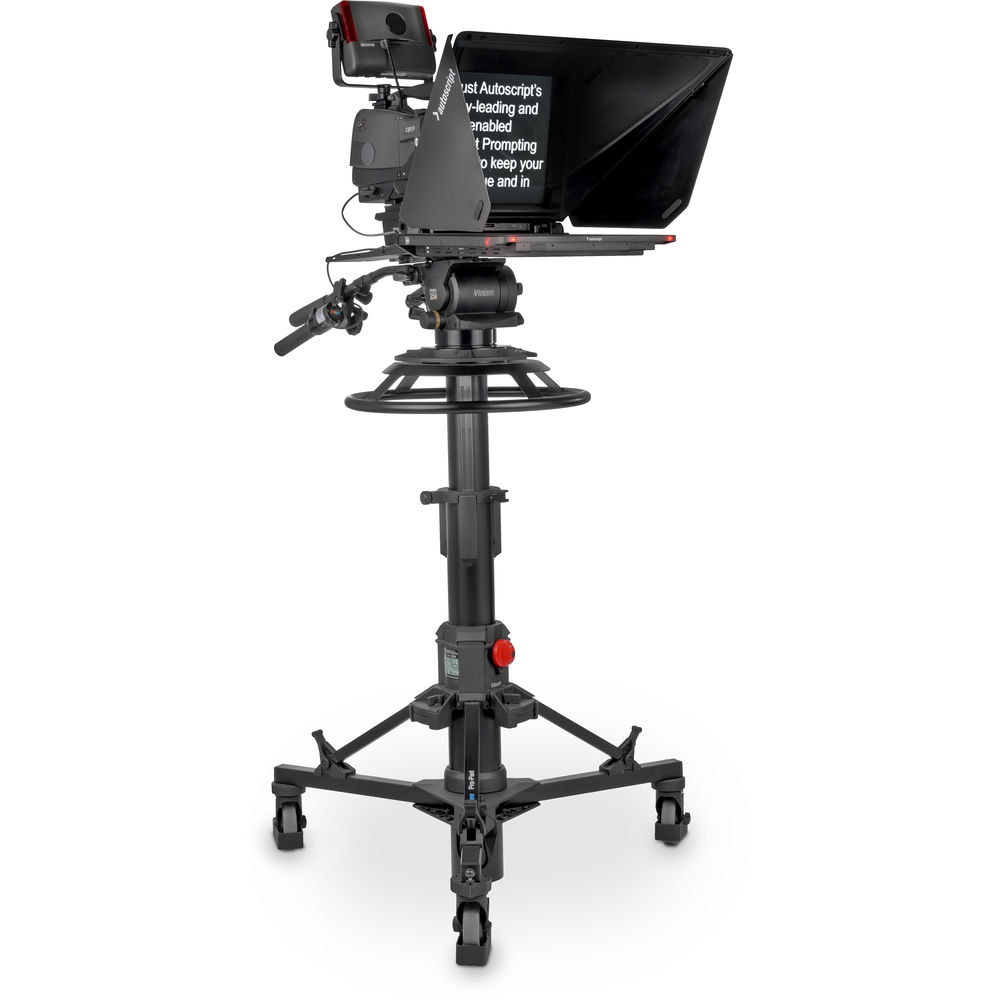

The EVO-IP Prompt Monitor Kit with VITC/D-VITC Inputs includes a 17" prompting monitor, carbon fiber hood, mounting system and camera carriage assembly to suit ENG cameras and camcorders, Tally sensor and cable, cable tray, and power supply. The monitor interfaces directly with a WinPlus-IP software (available separately) using its LAN connector, and supports also HD-SDI, VITC, and composite inputs. Along with its thin and lightweight design, the monitor incorporates four tally lights, providing 270° of visibility around the teleprompter. It features a high-bright, high-contrast solution for clear and readable text in virtually any brightness condition.
Monitor
| Size (Diagonal) | 17" / 43.2 cm |
| Maximum Brightness | 1500 nits / cd/m2 |
| Resolution | 1280 x 1024 |
| Aspect Ratio | 4:3 |
| Contrast Ratio | 1000:1 |
| Viewing Angle (H x V) | 170 x 160° |
| Inputs/Outputs | 2 x HD-SDI Input 2 x Composite Input |
| Output Voltage | 12 VDC |
| Power Consumption | 26 W |
| Dimensions | 17.3 x 14.2" / 43.9 x 36.1 cm |
| Weight | 7.7 lb / 3.49 kg |
Physical
| Weight | 24.3 lb / 11.02 kg |
Packaging Info
| Package Weight | 58.5 lb |
| Box Dimensions (LxWxH) | 43.62 x 29.37 x 26.37" |
