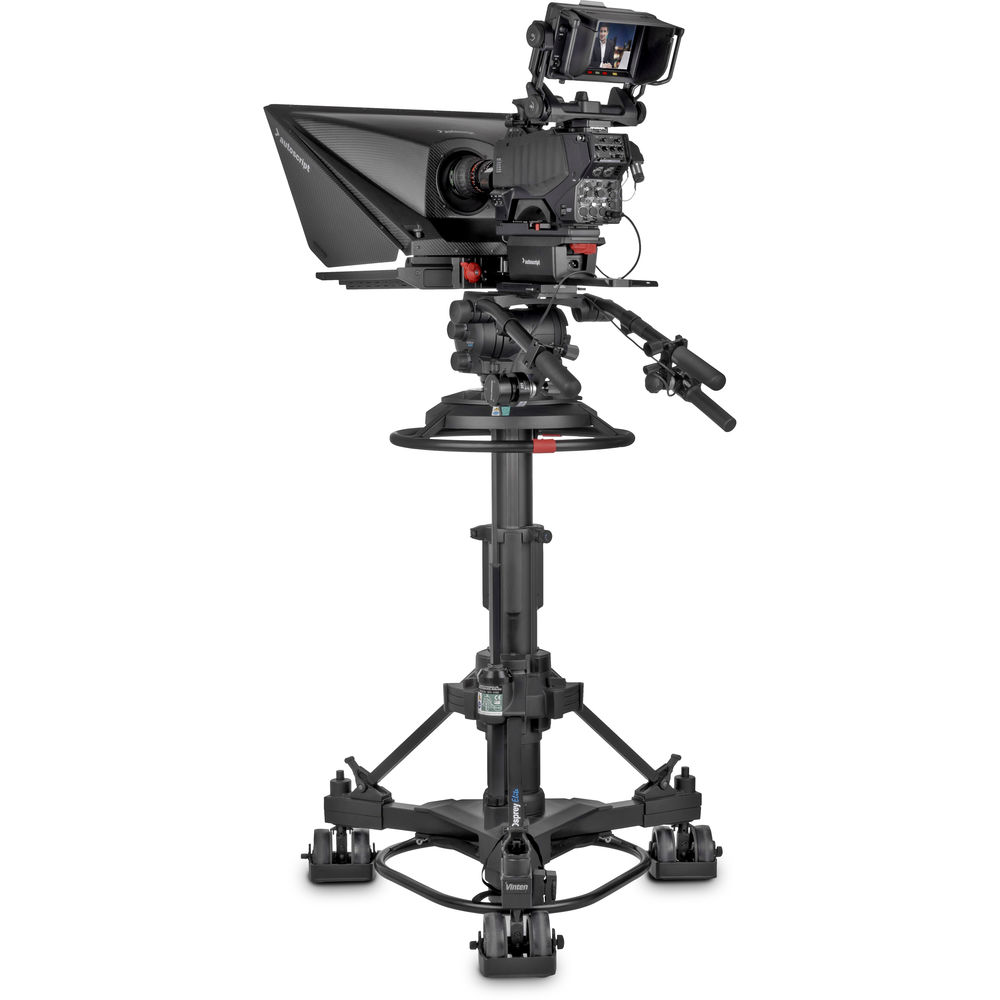

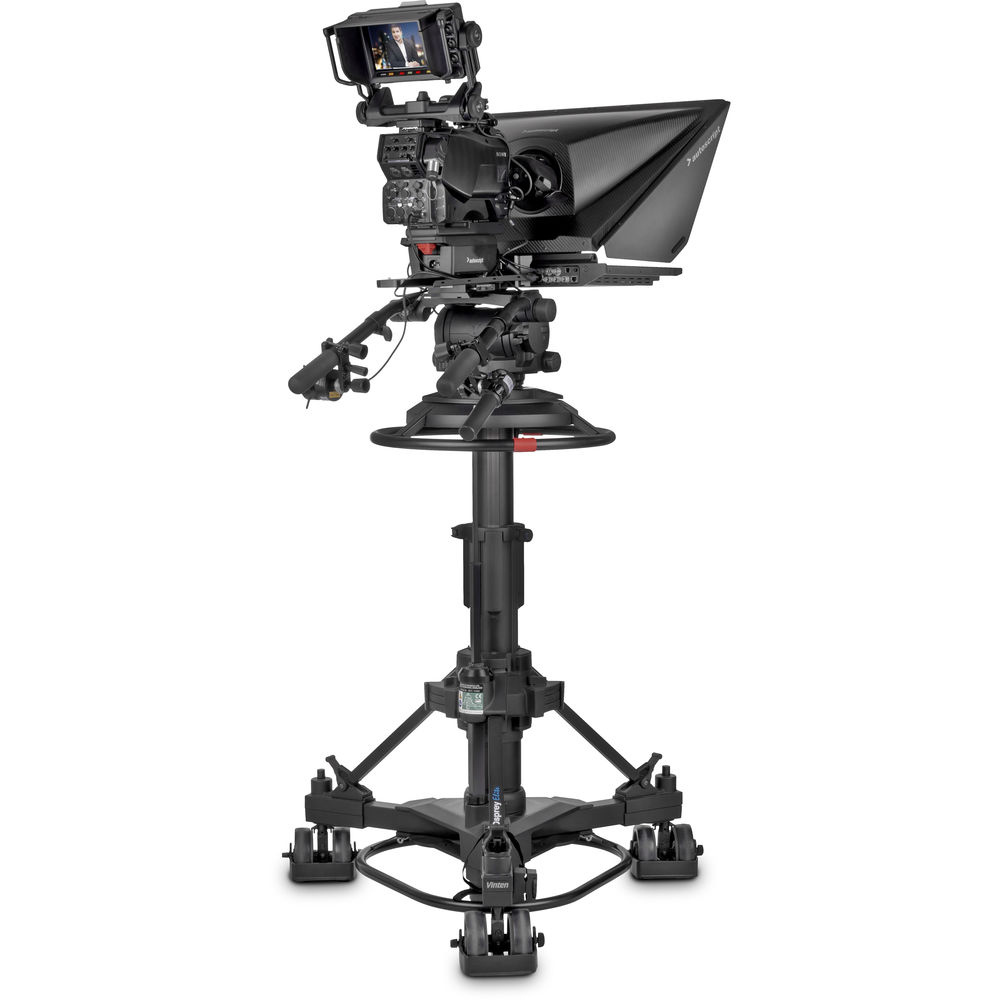

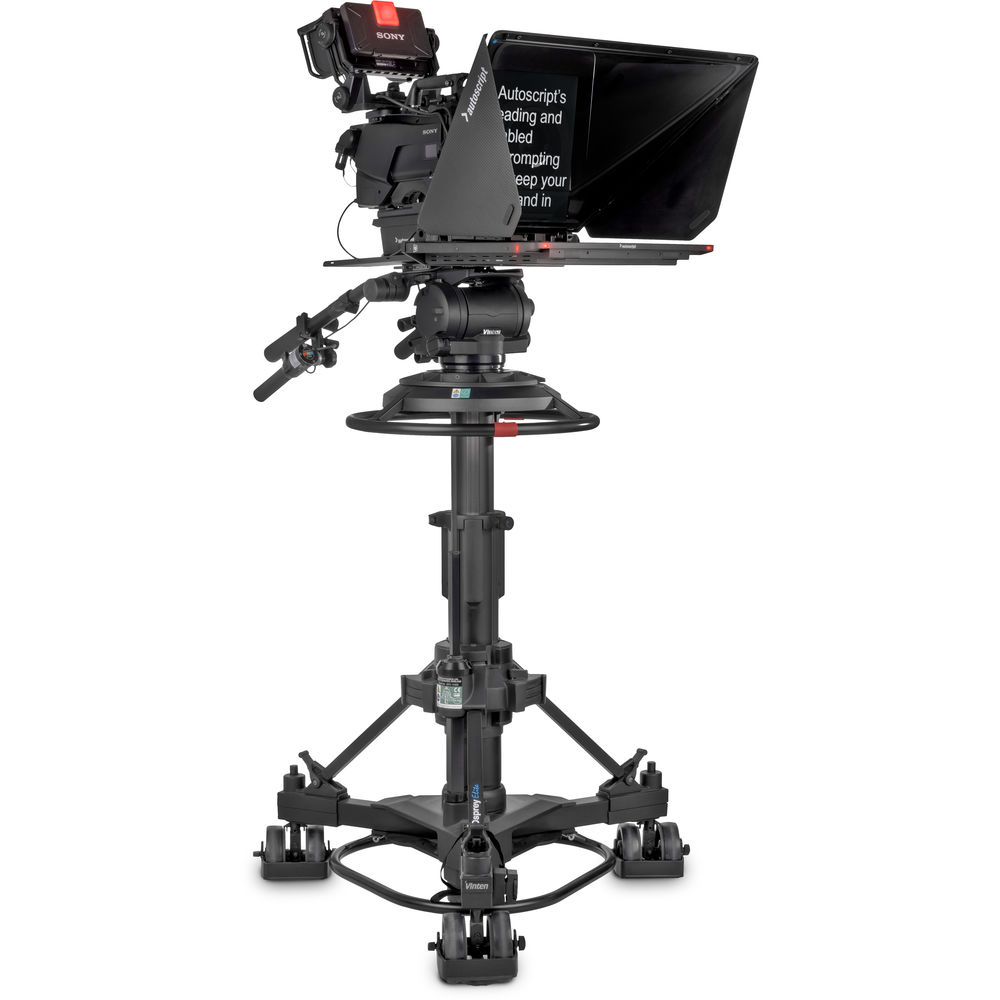

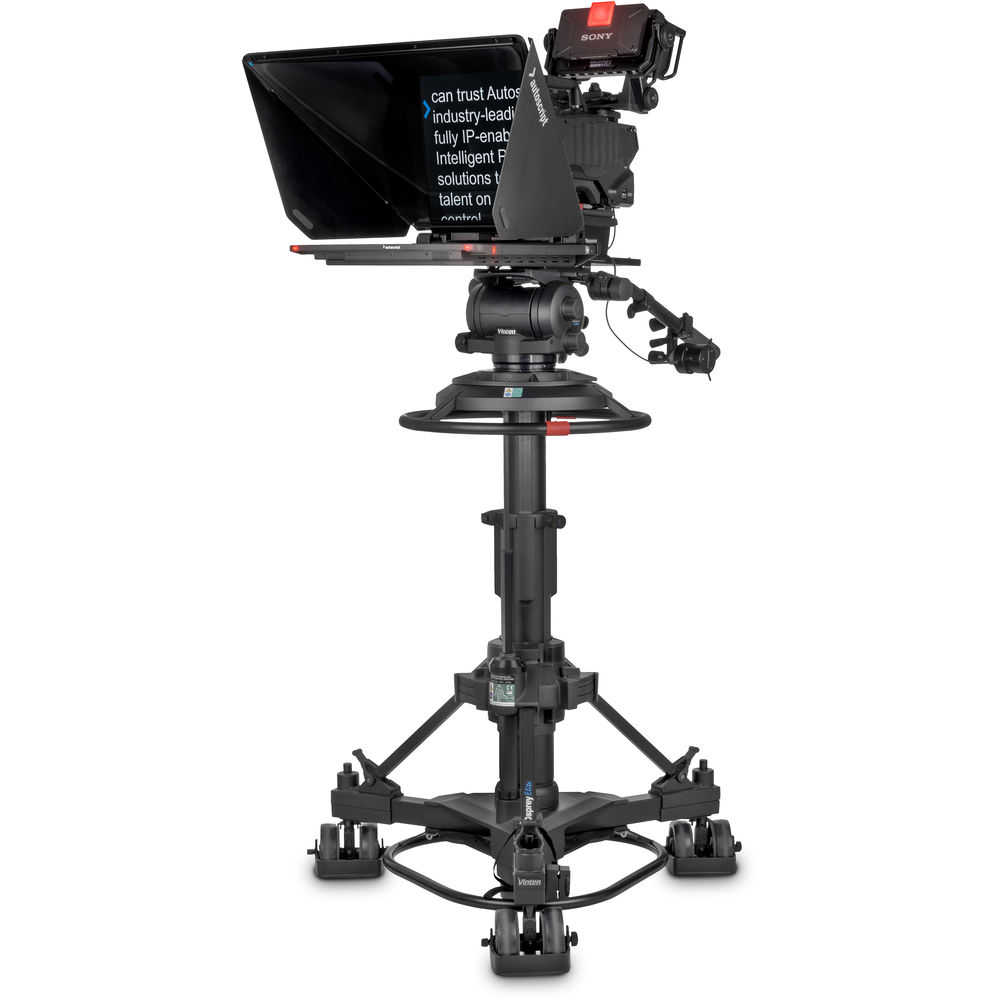

Sporting a thin monitor designed to interface directly with WinPlus-IP software, the Autoscript EVO-IP On-Camera Package with 19" Prompt Monitor features a quick-release system with a folding carbon fiber monitor hood that reduces setup and breakdown time. The monitor is IP ready and supports LAN as well as HD-SDI and composite inputs, providing you choice in how you get your text into your prompter system.

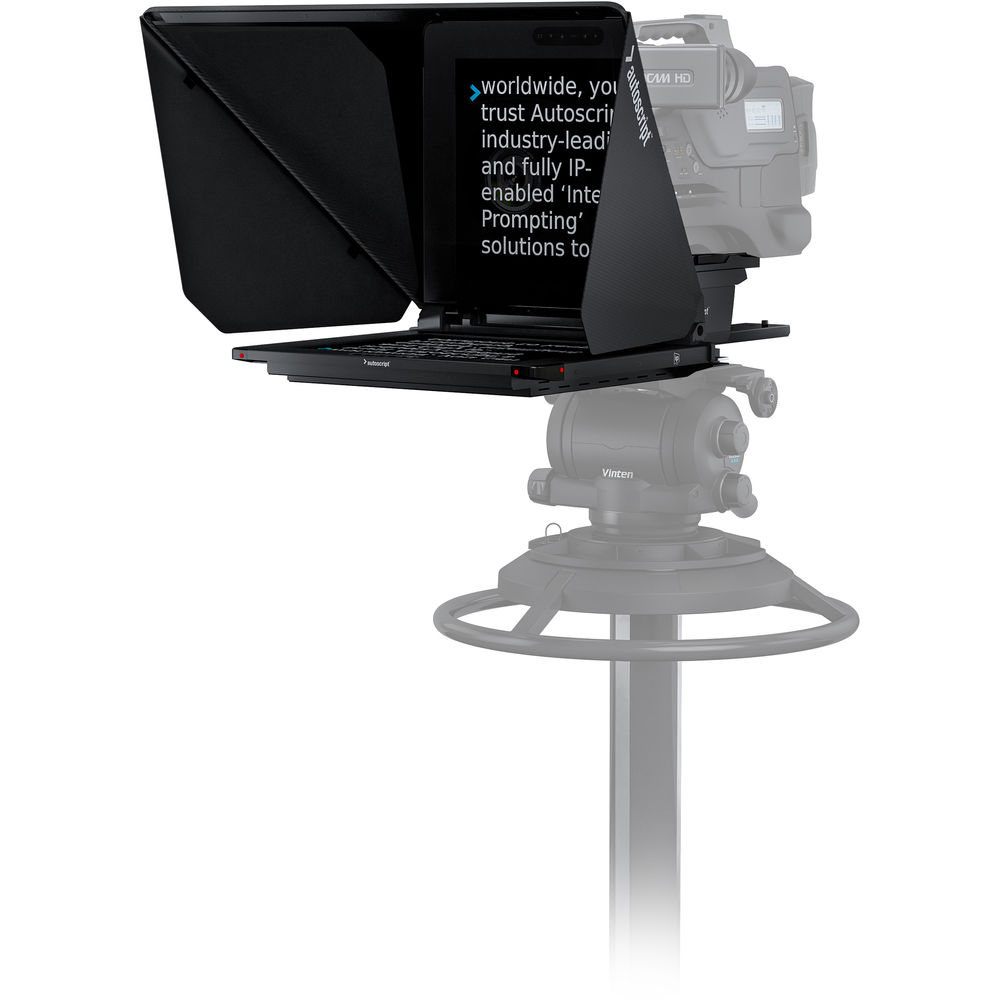

Along with its thin and lightweight design, the monitor also features improved cable connection over previous models. The carbon fiber hood folds to protect the glass during transport and storage, while allowing you to use lenses as wide as 4.3mm without vignetting. Four integrated tally lights with tally pass through enables you to use this prompter in a multicam shoot. This is for the monitor, hood, and beamsplitter glass; support rods and mounting bracket not included.
| Size | 15" / 38.1 cm |
| Resolution | 1280 x 1024 |
| Aspect Ratio | 4:3 |
| Viewing Angle | Horizontal: 170° |
| Brightness | 1500 cd/m2 |
| Contrast | 1000:1 |
| Input Connectors | Text: LAN, 2 x HD-SDI, 2 x CVBS Tally: Opto Sensor Timecode: LTC, NTP |
| Output Connectors | Repeat Tally 12 VDC |
| Power | 12-16.8 VDC, 29 W Power Input: XLR 4-pin |
| Dimensions | 18.4 x 15.7 x 1.6" / 46.7 x 39.9 x 41.5 cm |
| Weight | 25.4 lb / 11.5 kg |
