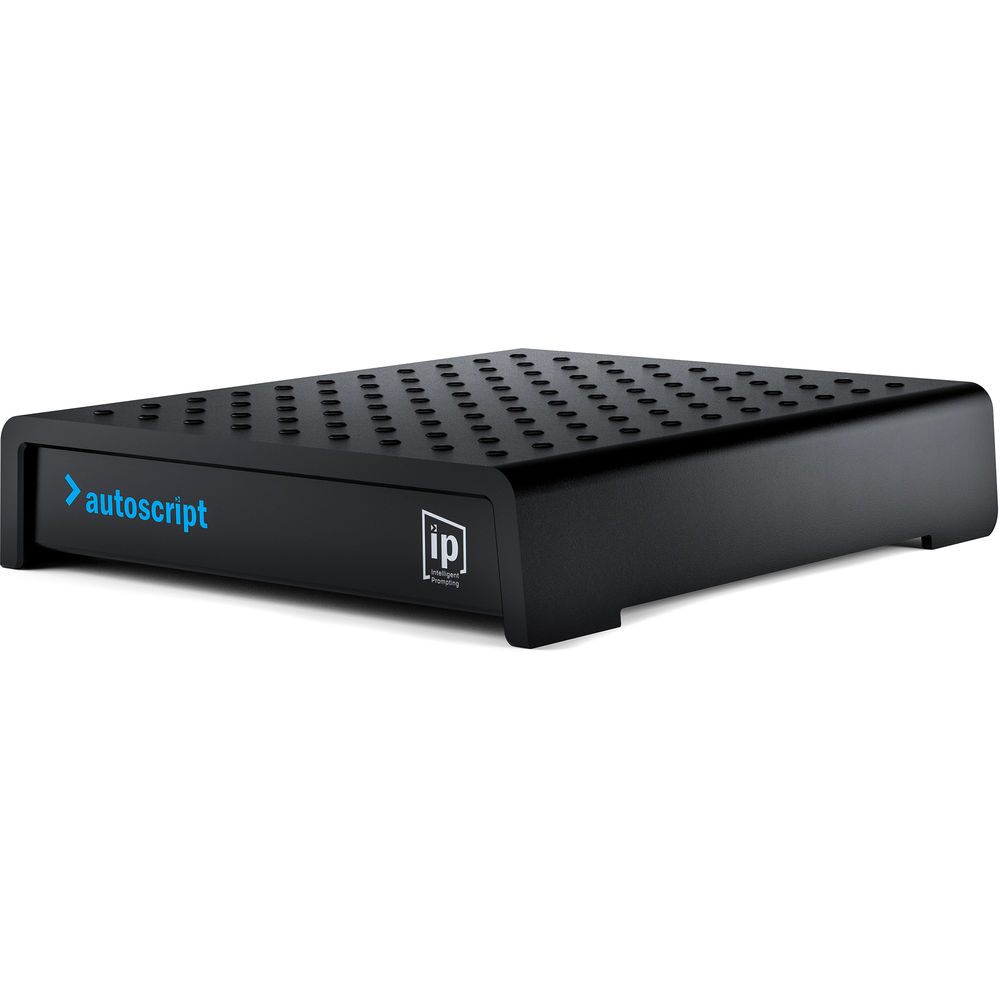

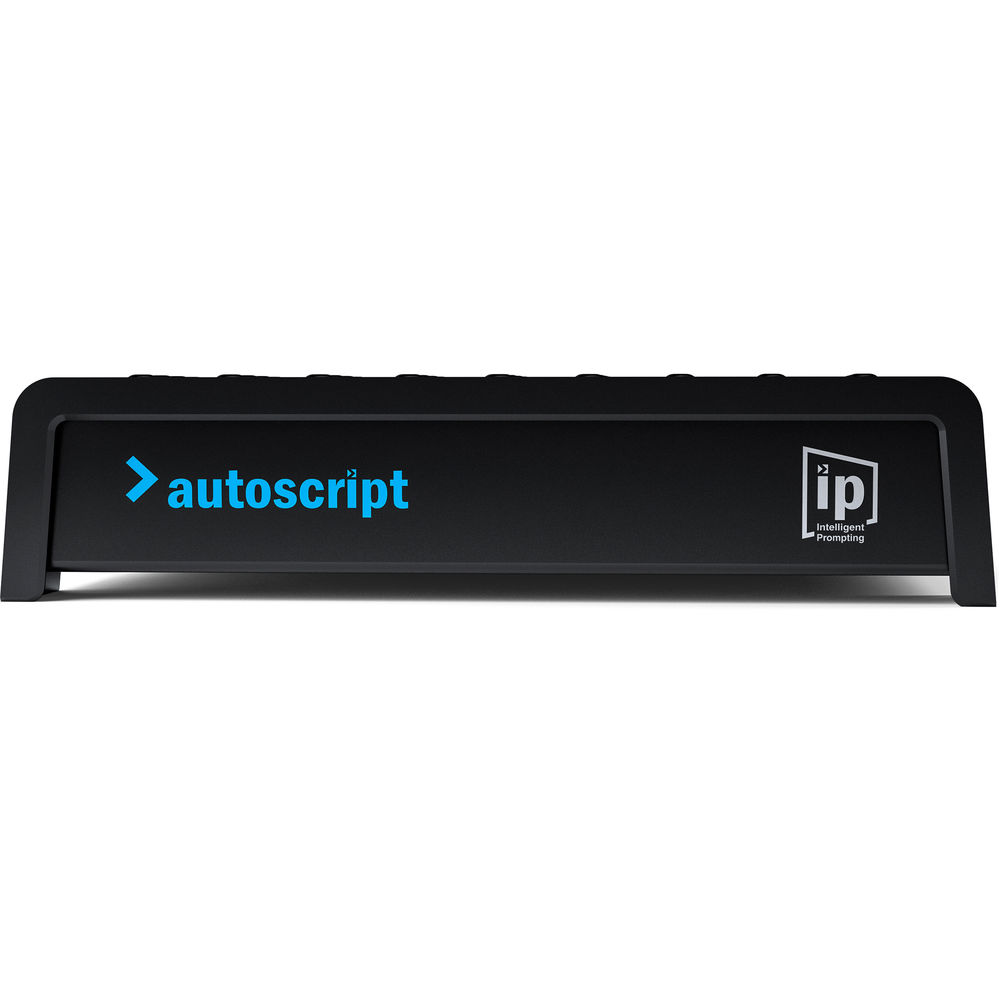

The XBox-IP from Autoscript is an external IP-Enabled HD/HD-SDI prompter video generator that is composed of a compact scroll engine. As a prompting device, it networks via Ethernet to WinPlus-IP prompting software application, where users can monitor status, manage group updates, and remote upgrades. Dual HD-SDI outputs support the distribution of the teleprompter video to traditional prompter monitors. In addition, a PoE output can be used to power an intelligent prompting scroll control for single-controller setups. The XBox-IP has a tough, portable casing with a LED status indicator. Configuration of the XBox-IP device is done via the host PC with the WinPlus-IP software installed either locally or via the network.

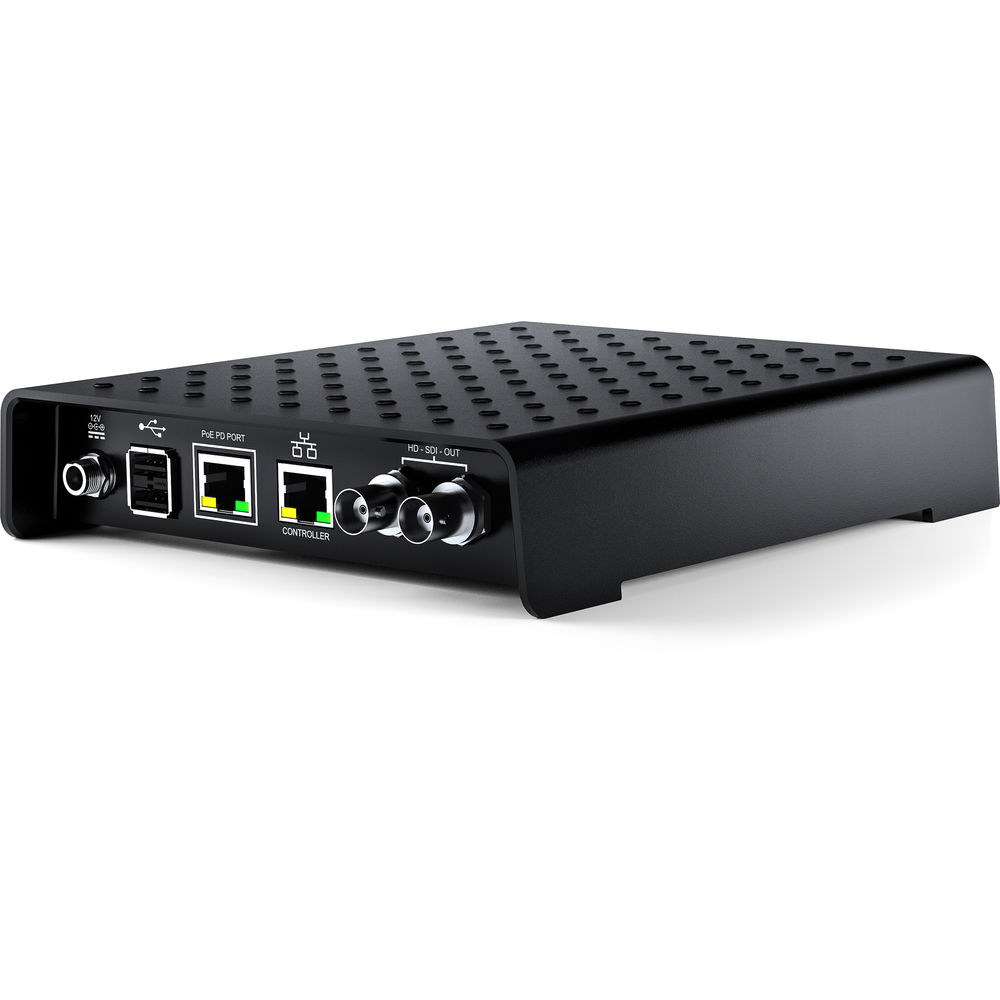

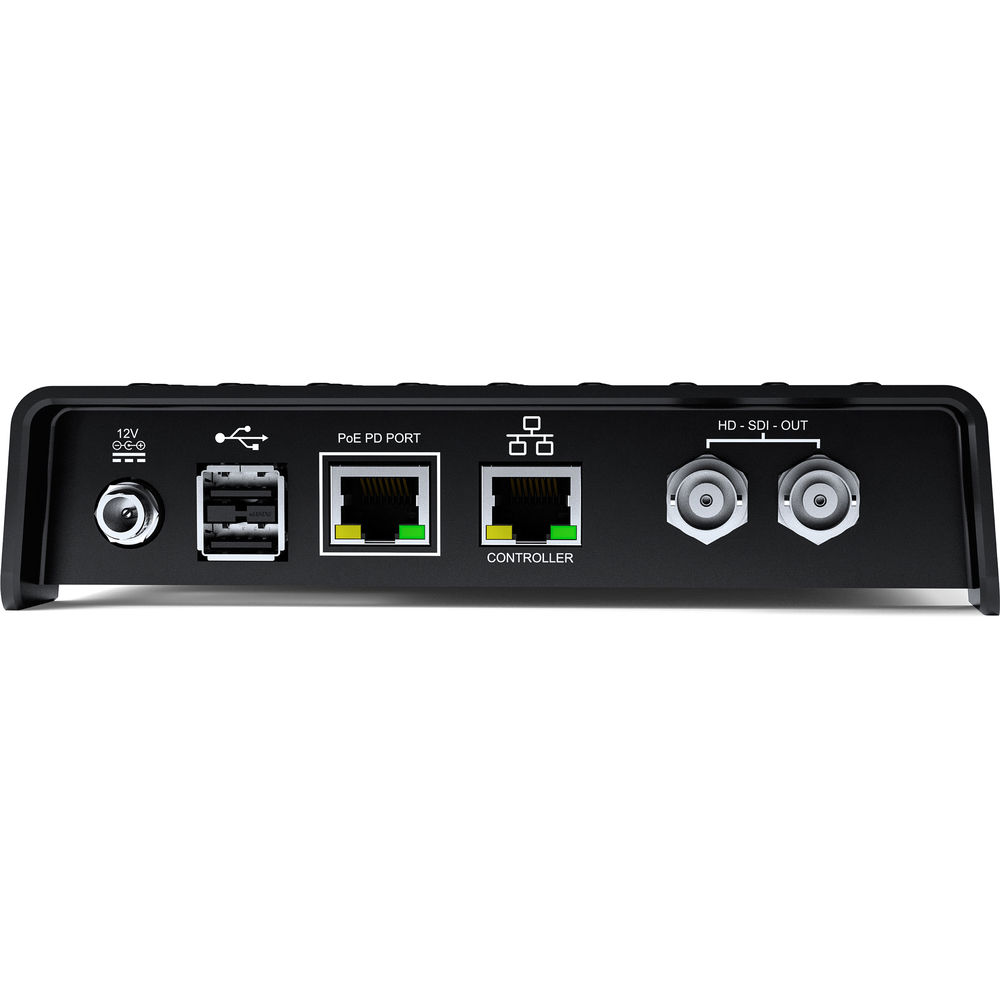

| Connectors | 1 x DC barrel, 12 VDC Power Input 1 x RJ45, PoE Ethernet, Input 2 x HD-SDI, Video Output 1 x RJ45, PoE Controller Output 2 x USB Port |
| Power Consumption | 8 W Maximum With PoE Controller: 11 W |
| Power | DC: 12 VDC, 1 A |
| Video Formats | Selectable 1080p 60/50/29.97 1080i 60/59.94/50 720p 60/50 |
| Power Supply | 100 - 230 VAC, 12 VDC 5 A |
| Fuse | Internal: 3A PCB Mounted (Not User Serviceable) |
| Certification | FCC |
| Operating Temperature | 5 to 40°C / 41 to 104°F |
| Storage Temperature | -20 to 60°C / -4 to 140°F |
| Dimensions | 6.37 x 7.16 x 1.45" / 16.2 x 18.2 x 3.7 cm |
| Weight | 1.3 lb / 600 g |
Packaging Info
| Package Weight | 2.1 lb |
| Box Dimensions (LxWxH) | 11.7 x 7 x 3.6" |
