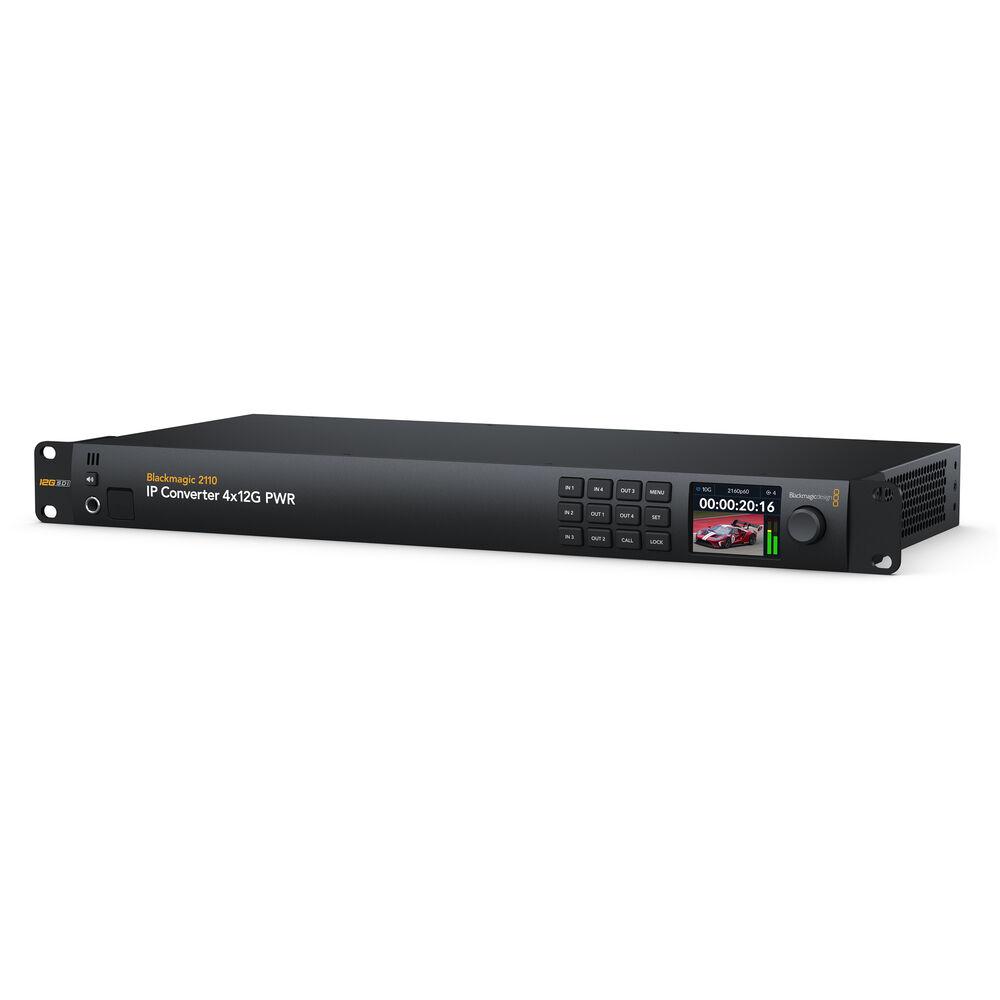

Blackmagic Design 2110 IP Converter 4x12G PWR

Blackmagic Design 2110 IP Converter 4x12G PWR

Name: Blackmagic Design 2110 IP Converter 4x12G PWR
Brand: Blackmagic Design
SKU: 22614
Price: 7930 AED
Availability: InStock

Brand: Blackmagic Design

MFR: CONVNVIPB4/12GPWR

7,930.00 ﾹ

Converts Four 2110 IP Devices to 12G-SDI
Simultaneously Powers Devices
UHD 4K Resolution Support
One 12G-SDI Program Return Feed
Redundant Power

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Quantity

Blackmagic Design 2110 IP Converter 4x12G Overview

Bring your 12G-SDI broadcast gear up to SMPTE-2110 compliance with this 2110 IP Converter 4x12G PWR from Blackmagic Design. The converter provides bidirectional 12G-SDI to SMPTE-2110 IP video conversion connections, and it supports up to four Studio 6K Pro cameras via its 10G Ethernet connections with a 12G-SDI input for each connection. It also supports providing power to the Studio cameras over each 10G Ethernet connection via PoE. Its 1 RU design fits in a standard studio rack, as well as a 12G-SDI return input and redundant power.

Features

This converter is designed to add SMPTE-2110 IP video to 12G-SDI broadcast equipment
1 RU design
Four independent bidirectional 12G-SDI to SMPTE-2110 IP video converters using RJ-45 10G Ethernet connections
It can supply high power to each 10G Ethernet connection guaranteed, so you can connect 4 Blackmagic Studio Camera 6K Pros, all at the same time
Each channel has a 12G-SDI input, and there's even a 12G-SDI program return input that sends to all channels

Key Specs

Video I/O	Input 4x BNC (12G-SDI) Female 1x BNC (12G-SDI) Female (Program) Output 4x BNC (12G-SDI) Female 1x BNC (12G-SDI) Female (Loop Output) Show More
Audio I/O	Output 1x 1/4" TRS Stereo Analog Female
Video Resolution	BNC Input/Output 4096 x 2160 at 24/25/29.97/30/47.95/48/50/59.94/60 fps 3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080PsF at 25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps Show More
Wireless	No
OS Compatibility	macOS 13 or Later Windows 10 to 11

Audio I/O	Output 1x 1/4" TRS Stereo Analog Female
Other I/O	Input 1x USB-C 3.0 / 3.1/3.2 Gen 1 Input/Output 4x RJ45 (10 GbE) Input/Output 1x RJ45 (10/100/1000 Ethernet)
Expansion Slots	No
Video Resolution	BNC Input/Output 4096 x 2160 at 24/25/29.97/30/47.95/48/50/59.94/60 fps 3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080PsF at 25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps
Embedded Audio	LAN (RJ45)/SDI

Standards

Video Standard Compliance	SMPTE: ST-2110
HDCP Support	No
HDR Support	Yes

Hardware

Wireless	No
OS Compatibility	macOS 13 or Later Windows 10 to 11
Display	2.2" LCD

Power

Power I/O	2x IEC C14 (100 to 240 VAC ) Input
PoE Support	PoE Proprietary

General

Operating Conditions	41 to 104°F / 5 to 40°C up to 90% Humidity
Storage Conditions	-4 to 113°F / -20 to 45°C up to 90% Humidity
Rack Form Factor	1 RU
Dimensions	19 x 9.22 x 1.74" / 48.3 x 23.42 x 4.42 cm
Weight	8.22 lb / 3.73 kg
