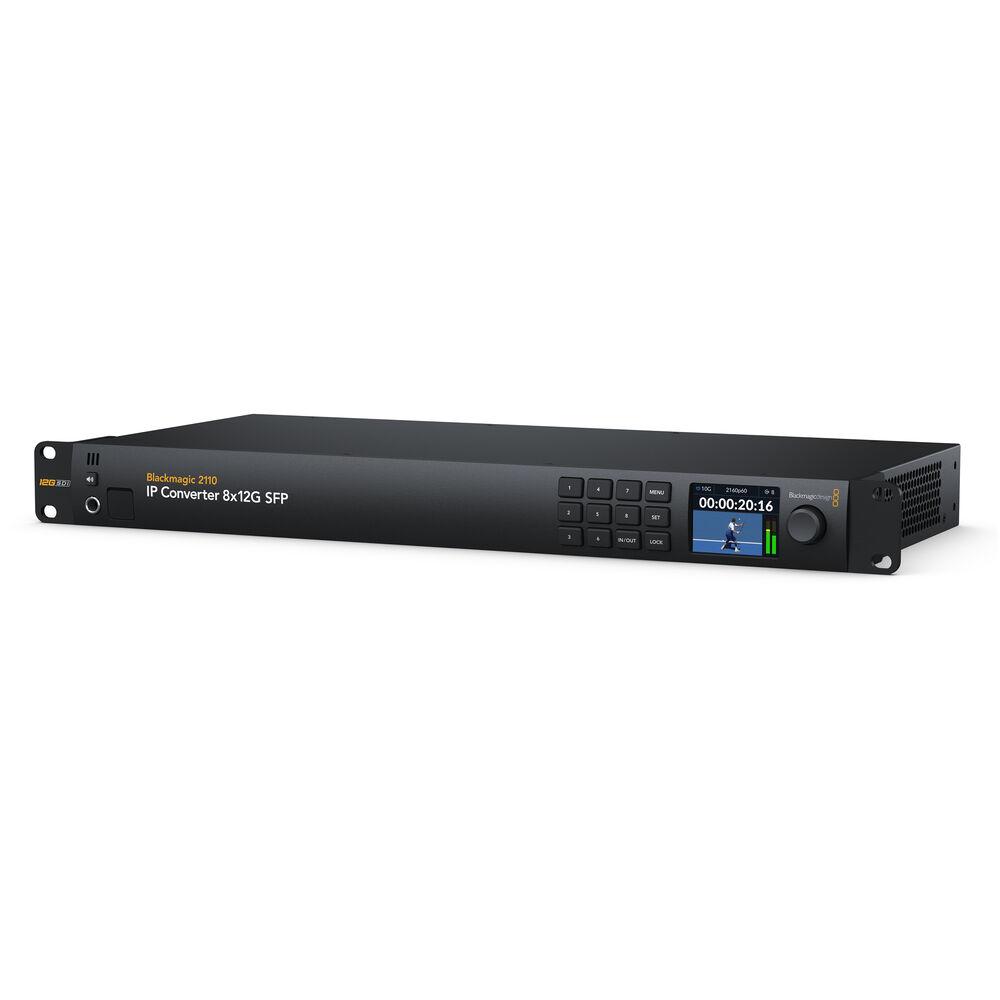

Bring your 12G-SDI broadcast gear up to SMPTE-2110 compliance with this 2110 IP Converter 8x12G SFP from Blackmagic Design. The converter provides eight bidirectional 12G-SDI video conversion connections, and it features eight SMPTE-2110 SFP IP fiber ports to extend connectivity over long distances. Its 1 RU design fits in a standard studio rack, as well as a 12G-SDI return input.
Key Specs
| Video I/O | Input Show More |
| Audio I/O | Output 1x 1/4" TRS Stereo Analog Female |
| Video Resolution | BNC Input/Output (4:2:2 YUV) Show More |
| Wireless | No |
| OS Compatibility | macOS 13 or Later Windows 10 to 11 |
| Audio I/O | Output 1x 1/4" TRS Stereo Analog Female |
| Other I/O | Input 1x USB-C 3.0 / 3.1/3.2 Gen 1 |
| Expansion Slots | 8x SFP Slot (Occupied by 10 Gb/s SMPTE 2110 IP SFP) |
| Video Resolution | BNC Input/Output (4:2:2 YUV) 4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080PsF at 25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps |
| Embedded Audio | LAN (RJ45)/SDI |
Standards
| Video Standard Compliance | SMPTE: ST-2110 |
| HDCP Support | No |
| HDR Support | Yes |
Hardware
| Wireless | No |
| OS Compatibility | macOS 13 or Later Windows 10 to 11 |
| Display | 2.2" LCD |
Power
| Power I/O | 2x IEC C14 (100 to 240 VAC ) Input |
General
| Operating Conditions | 41 to 104°F / 5 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 113°F / -20 to 45°C up to 90% Humidity |
| Rack Form Factor | 1 RU |
| Dimensions | 19 x 9.22 x 1.74" / 48.3 x 23.42 x 4.42 cm |
| Weight | 8.22 lb / 3.73 kg |
