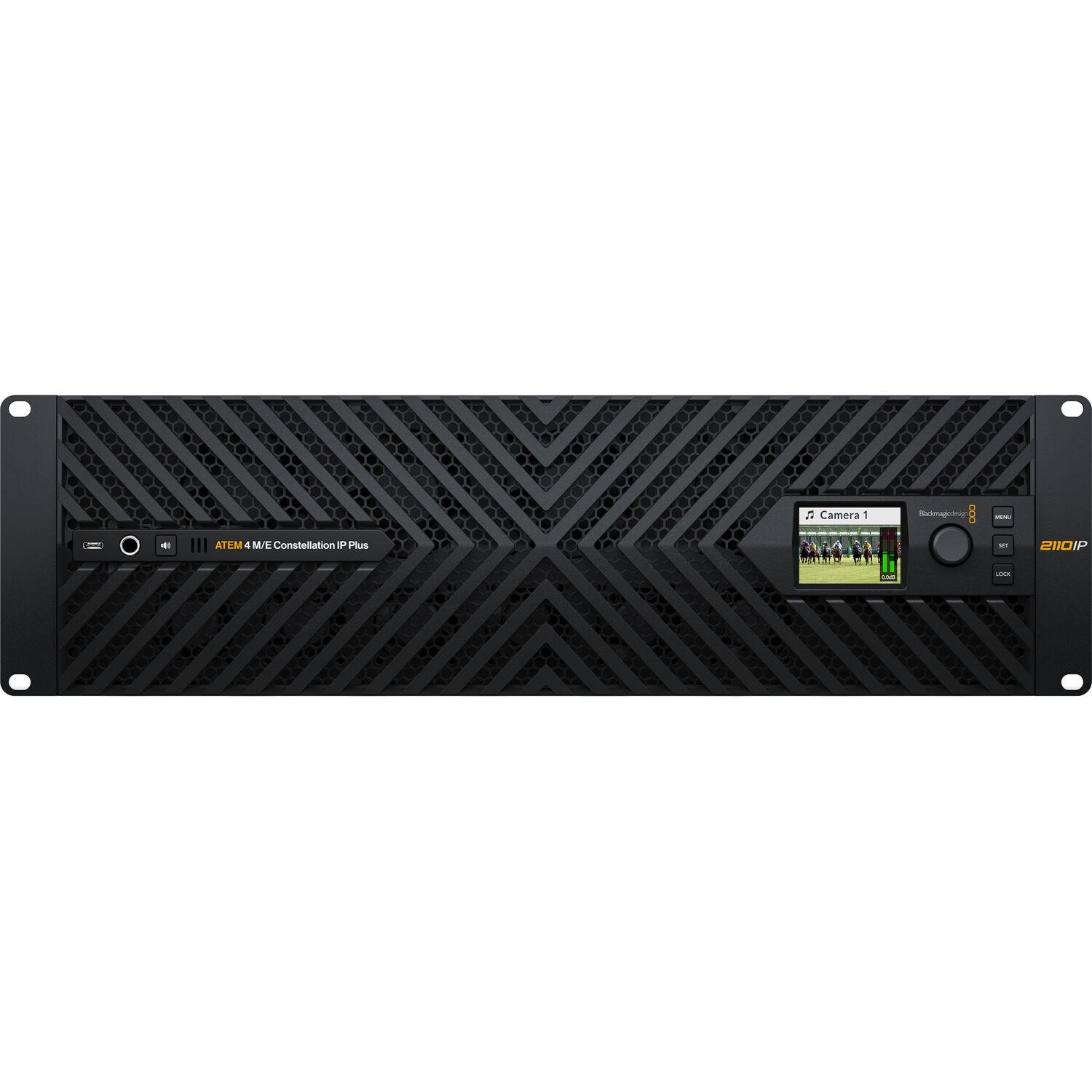

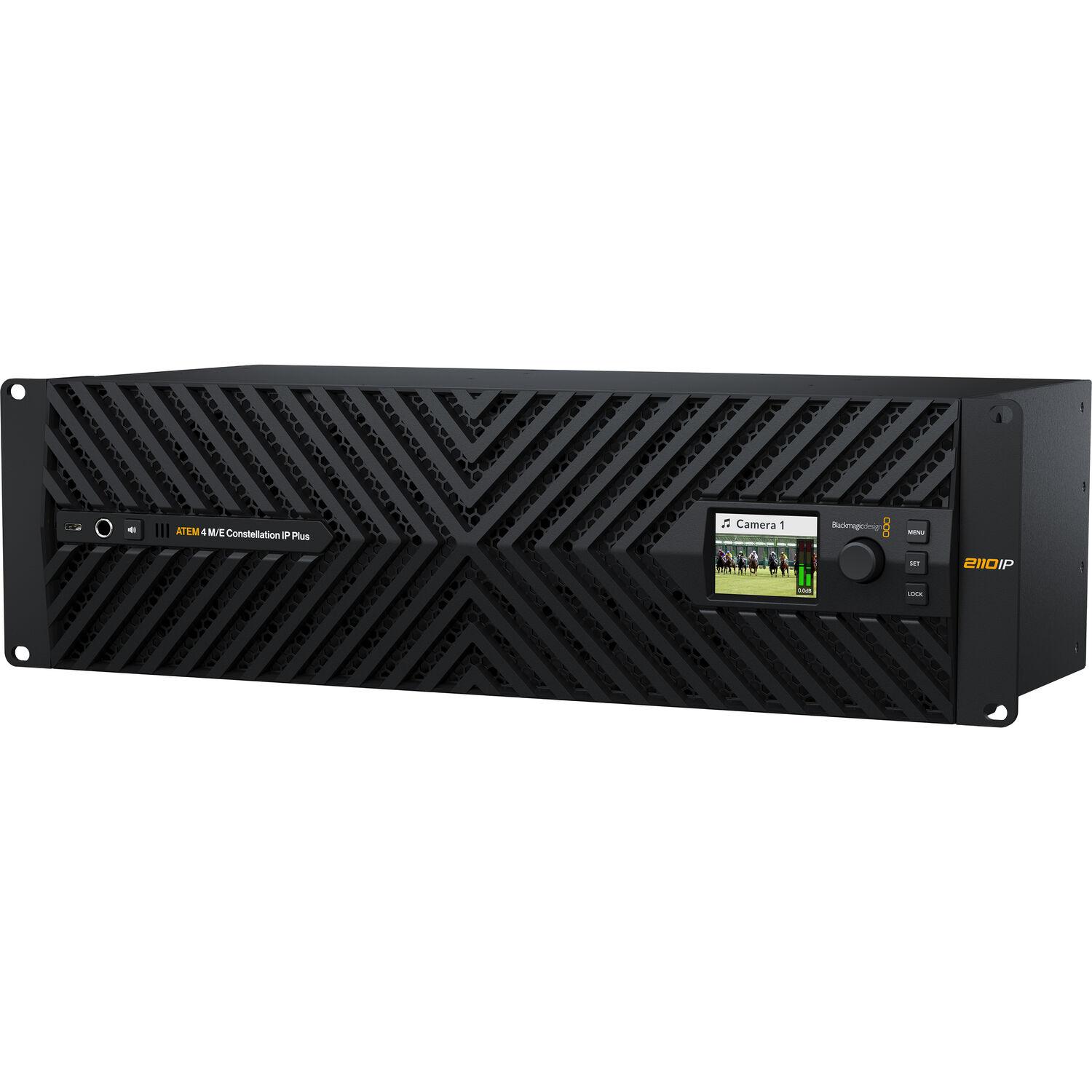

A new addition to the Constellation line, the ATEM 4 M/E Constellation IP Plus Switcher from Blackmagic Design is a 3 RU live broadcast rackmount switcher that features 64 SMPTE 2110 IP video inputs and 52 outputs (including multiview) via 100G fiber Ethernet ports. Each 100G port comes as a redundant pair with standards converters on each port, making it ideal for live broadcast applications. The switcher is controlled using the ATEM Software Control app.
| Available M/E Layers | 4 M/E |
| Effect Types | 20x Luma Key 4x DVE 4x Transition 4x Stinger |
| Graphics Memory | 64 Images |
| Downstream Keys | 4x DVE |
| Generators | 21x Pattern |
| Audio Mixing | 132-Channel Mixing |
| Switching Type | Software |
| Processing Resolution | UHD 4K at 60 |
| Color Processing | 10-Bit 4:2:2 |
| Number of Video Input Sources | 64 |

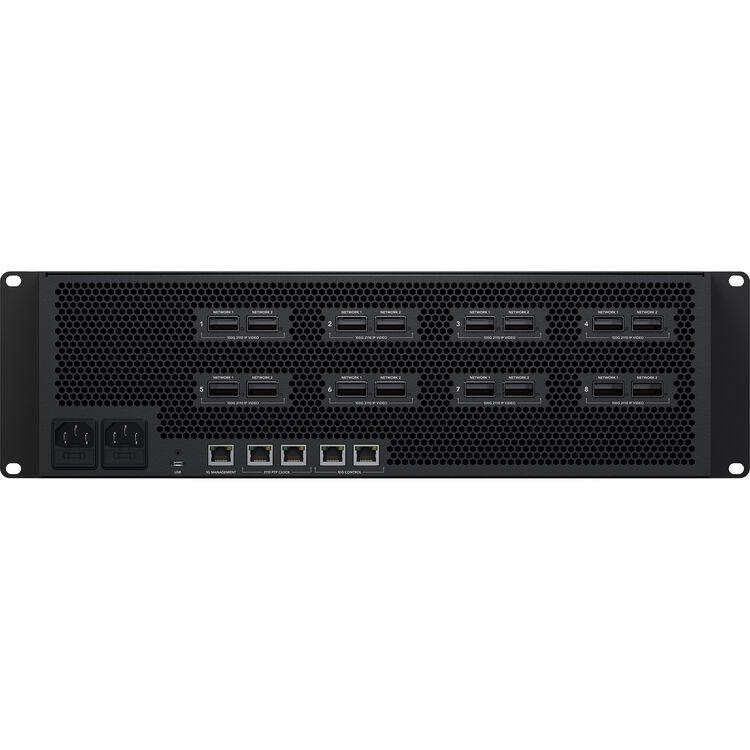

| Video Inputs | 16x QSFP28 Female |
| Input Video Format | Fiber (10-Bit 4:2:2) UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps |
| Video Output Channels | 52 |
| Video Outputs | 16x QSFP28 Female |
| Output Video Format | Fiber (10-Bit 4:2:2) UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps |
| Multiview Output | 64-Way Multiview |
| Other I/O | 2x RJ45 Control Input/Output 2x RJ45 Reference Input/Output 1x RJ45 LAN Input/Output |
| Video Standard Compliance | SMPTE ST-2110 |
| OS Compatibility | macOS 15 or Later / Windows 11 or Later |
| Processor | Not Specified by Manufacturer |
| Wireless | No |
| Power I/O | 2x IEC C14 Input |
| Operating Conditions | 32 to 104°F / 0 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 140°F / -20 to 60°C up to 90% Humidity |
| Rack Form Factor | 3 RU |
| Dimensions | 19 x 8.66 x 5.22" / 48.3 x 22 x 13.26 cm |
