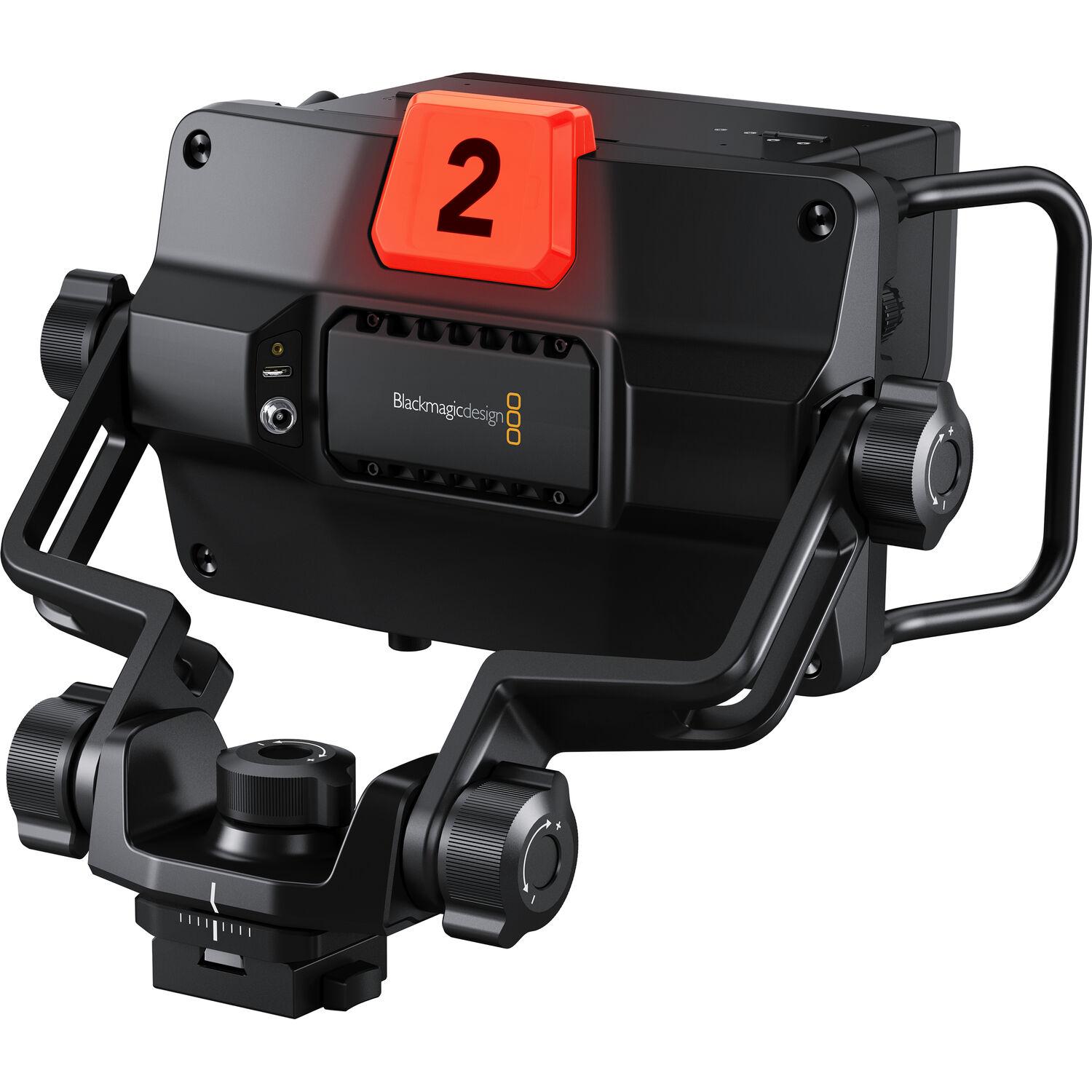

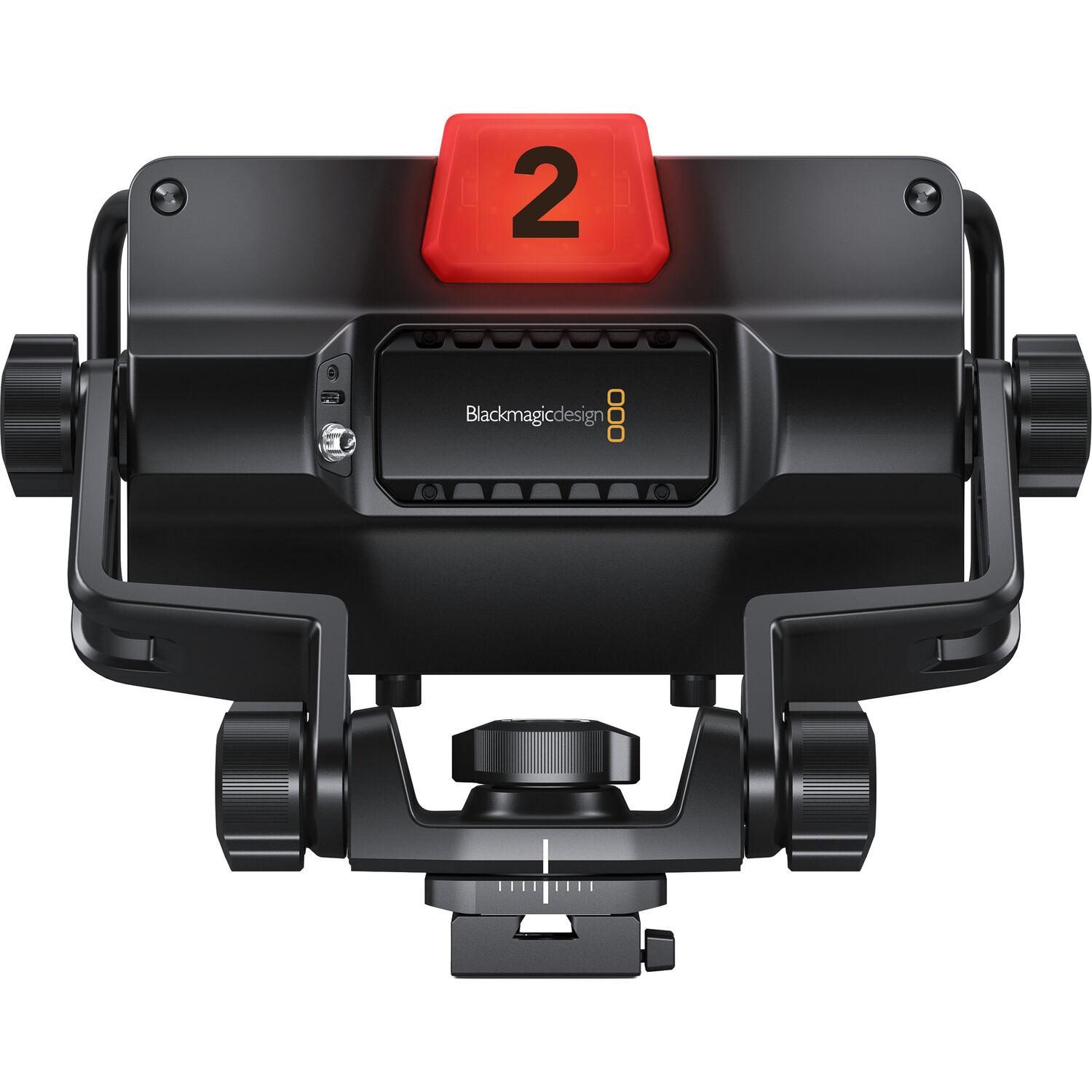

Use the URSA Cine Studio Viewfinder from Blackmagic Design to get high-resolution monitoring for your live URSA Cine event capture. This 7" viewfinder/monitor features a high-resolution 1920 x 1200 TFT LCD touchscreen, built-in grab handles, and a detachable sun hood to prevent glare. It features screen overlays, multiple controls, and a single USB-C video/power/control cable. Mount the viewfinder on your URSA Cine 12K camera using its bottom V-lock mount.
| Panel Type | TFT LCD |
| Display Size | 7.0" / 17.8 cm |
| Screen Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Touchscreen | Yes |
| Maximum Brightness | 2000 nits / cd/m2 |
| Pixels Per Inch (ppi) | 323 ppi |
| Image Controls | False Color, Focus Assist, Focus Peaking, Screen Markers |
| Inputs/Outputs | 1x USB-C Video Input 1x Barrel Power Input |
| Video Format | USB (10-Bit 4:2:2 YUV) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Input Power | 12 VDC |
| Operating Conditions | 32 to 104°F / 0 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 140°F / -20 to 60°C up to 90% Humidity |
| Tripod/Accessory Mounting | Bottom/Bracket 1x V-Lock |
| Dimensions | 11.97 x 9.17" / 30.4 x 23.29 cm (Including Bracket) |
| Weight | 5.27 lb / 2.39 kg |
