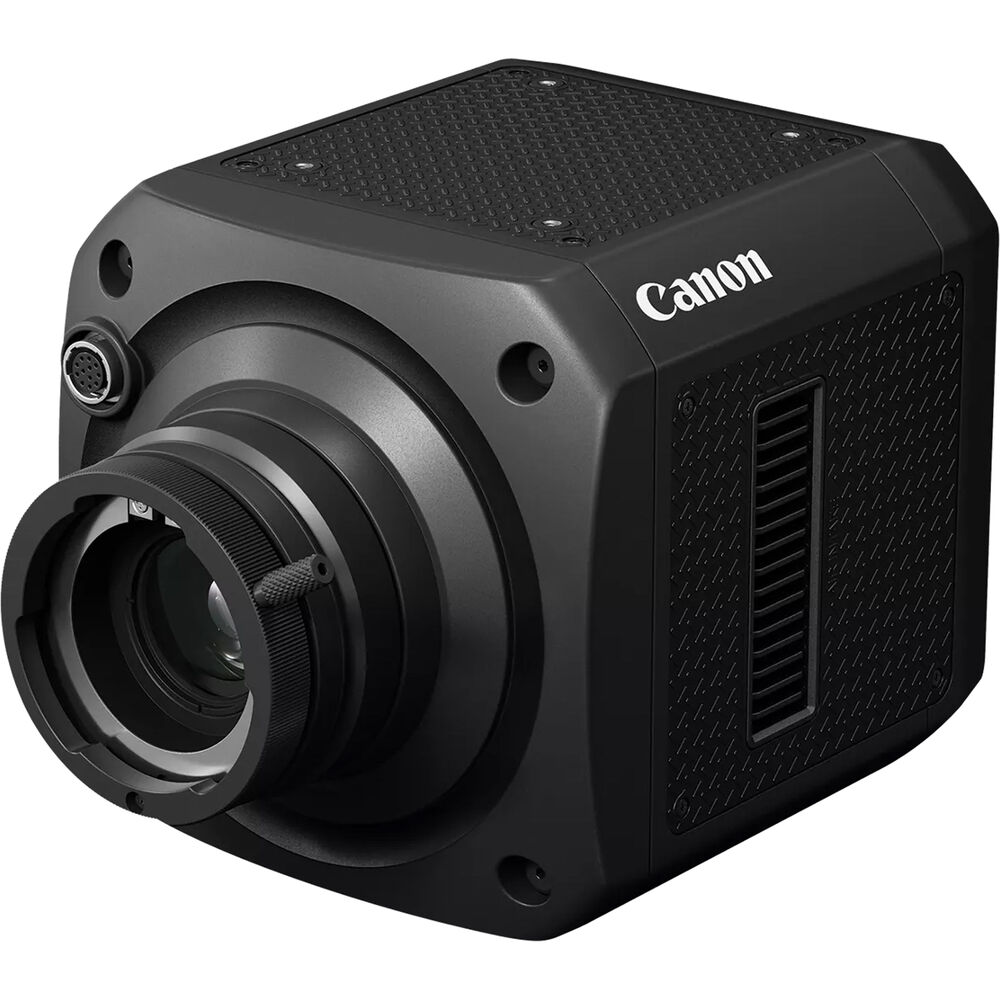

Canon MS-500 Ultrahigh-Sensitivity Interchangeable-Lens Camera

Canon MS-500 Ultrahigh-Sensitivity Interchangeable-Lens Camera

Name: Canon MS-500 Ultrahigh-Sensitivity Interchangeable-Lens Camera
Brand: Canon
SKU: 14998
Availability: InStock

Brand: Canon

MFR: 9915B001

Price Available Upon Request

Ultrasensitive 1" SPAD Sensor
B4 Lens Mount | 10x Digital Zoom
Built-In Magnifying Optical System
3G-SDI, Genlock, RJ45 LAN, 8-Pin RS-232
Supports up to 1080p 59.94 Video
Motorized IR Cut & 6-Stop ND Filters
CrispImg2 Custom Picture Preset
Night Mode Infrared Capture
Haze Compensation | Smart Shade Control
PELCO-D & NU Serial Control

Items Included

Canon MS-500 Ultrahigh-Sensitivity Interchangeable-Lens Camera

New Item - Coming Soon

Request Now

Categories: Industrial & Multi-Purpose Cameras

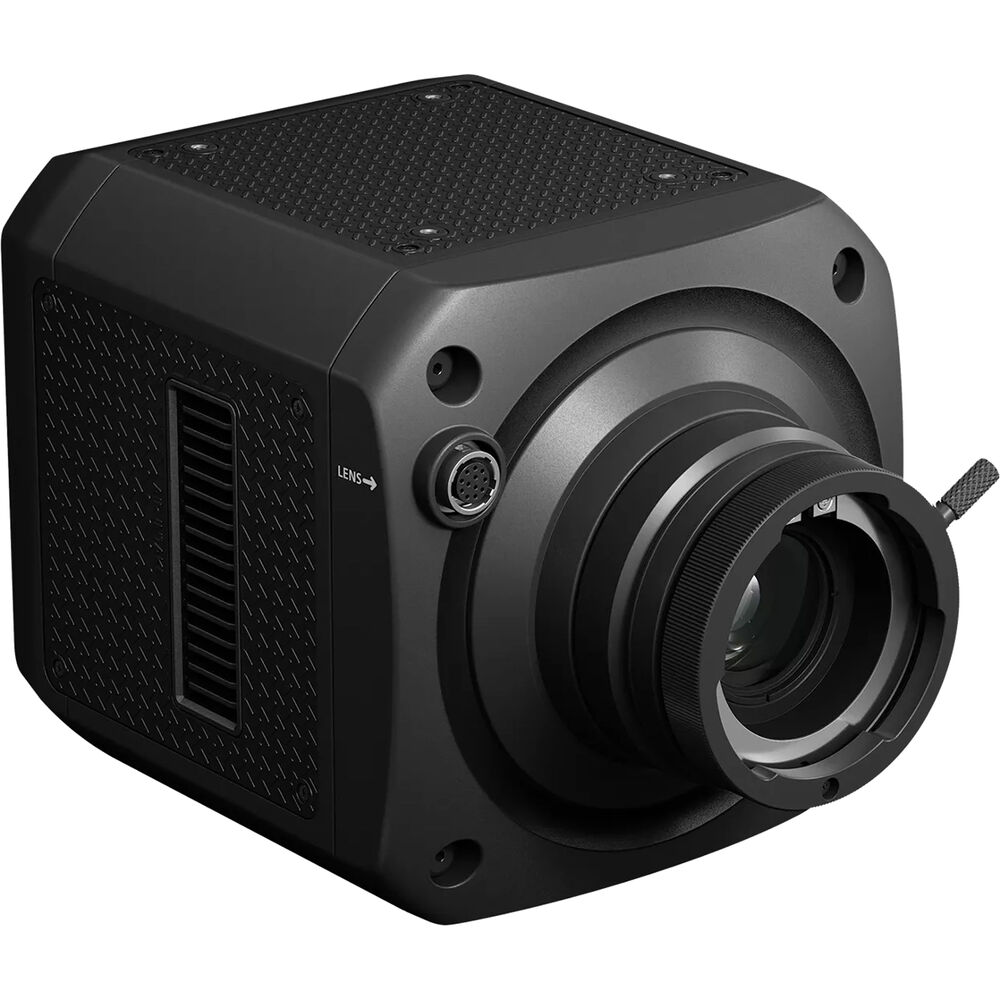

View remote objects at distances up several miles using the Canon MS-500 Ultrahigh-Sensitivity Camera. The MS-500 is built around a 1" 32MP ultrahigh-sensitivity SPAD (Single-Photon Avalanche Diode) sensor that uses photon counting to accurately detect light with less noise than CMOS sensors. This color camera has a B4 mount for using ultra-telephoto 2/3" broadcast lenses to capture images day or night. It supports video resolutions up to 1080p60 and supports both NTSC and PAL broadcast frame rates using a single 3G-HD/SDI output.

SPAD Sensor

As light reaches the SPAD (Single-Photon Avalanche Diode) sensor, the sensor instantaneously multiplies the generated electron by about 1 million times, creating an avalanche effect that is output as an electronic pulse.
Compared to CMOS sensors that have to convert analog signals to digital, the SPAD sensor detects light more accurately.

Low Light Long-Range Capture

The MS-500 can capture high-resolution color images using a small sensor thanks to approximately 3.2 million pixels measuring 6.39μm each.
This compact camera excels at long-range capture, even in low light conditions.

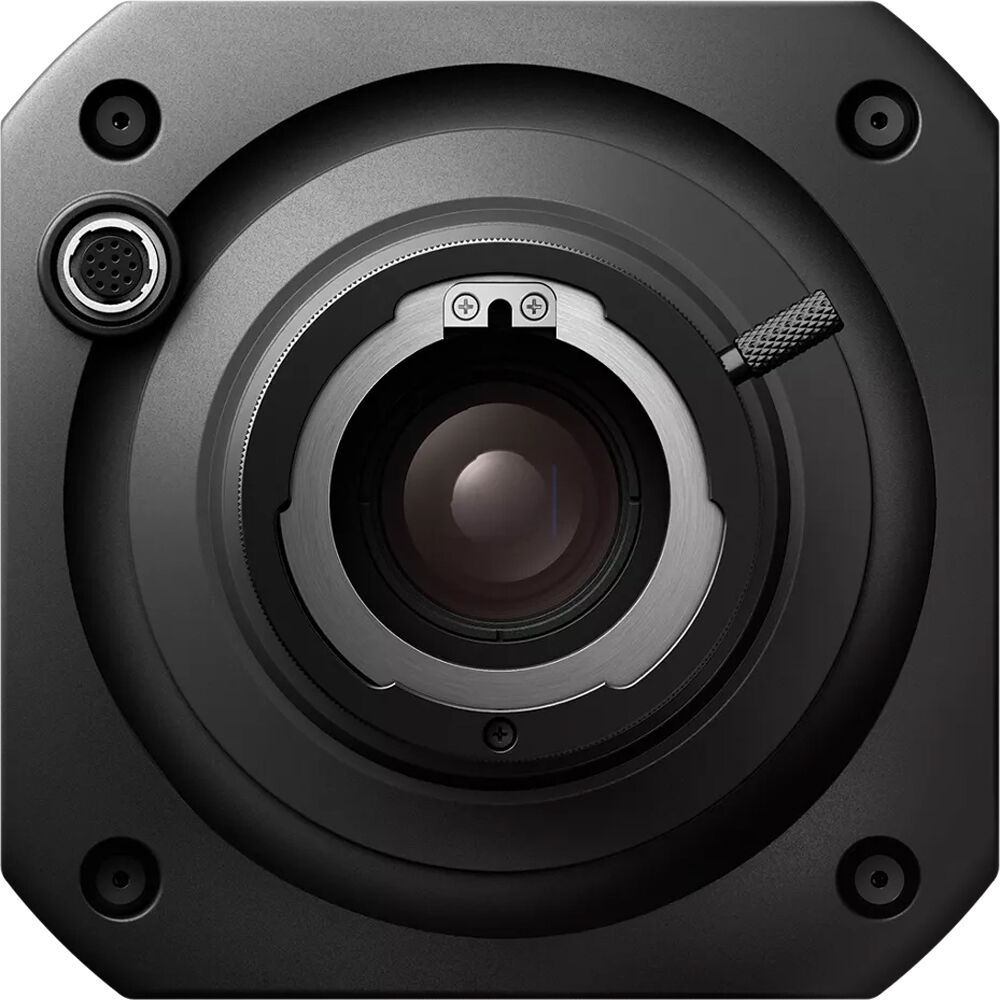

B4 Lens Mount with Magnifier

A B4 mount enables the MS-500 camera to make use of Canon's extensive lineup of high-performance broadcast lenses.
It uses a built-in magnifying optical system to match 2/3" broadcast lenses to the 1" image sensor, enabling a lens to mount directly to the camera without cropping the sensor pixels.

CrispImg2 and Custom Presets

Select the CrispImg2 Custom Picture Preset to optimize image resolution and contrast while suppressing noise. This setting offers preset sharpness, gamma curve, and noise reduction.
Users can also create custom picture presets that best suit their shooting environment; these presets can be named and stored in camera for recalling later.

Camera and Lens Control

The MS-500 enables you to control and operate the camera, lens, and a pan/tilt head using a single cable and a compatible controller. The ability to control the camera remotely enables finer adjustments than direct operation when using telephoto lenses at a long distance.
Two serial ports enable you to use PELCO-D and NU protocols and a Genlock input can be used for multi-camera setups.

Infrared Night Mode

To capture scenes in Night Mode, the MS-500 camera's IR cut filter switches to an IR transmission filter, increasing the level of infrared light that reaches the sensor.
Night Mode also uses the AWB feature to automatically correct typically red IR images to natural colors.

Haze and Shade Control

Three levels of Haze Compensation reduce haze and mist in your images by lowering the brightness range and correcting high contrast.
Prevent blown-out areas and enhance shadow details using the Smart Shade Control function.

Key Specs

Lens Mount	B4
Sensor Resolution	Actual: 3.2 Megapixel Effective: 2.1 Megapixel
Image Sensor	1"-Type SPAD
Image Stabilization	None
Internal Recording Modes	None
External Recording Modes	4:2:2 10-Bit via SDI/BNC 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps Show More
Media/Memory Card Slot	None
Mobile App Compatible	No *As of September, 2023: Check with manufacturer for the most up-to-date compatibility

Imaging

Lens Mount	B4
Sensor Resolution	Actual: 3.2 Megapixel Effective: 2.1 Megapixel
Image Sensor	1"-Type SPAD
Image Stabilization	None
Built-In ND Filter	Mechanical Filter Wheel with 6-Stop (1/64) ND Filters
Capture Type	Video Only

Exposure Control

Shutter Type	Electronic Rolling Shutter
Gain	0 to 72 dB

Video Capture

Internal Recording Modes	None
External Recording Modes	4:2:2 10-Bit via SDI/BNC 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps
Fast-/Slow-Motion Support	No
Broadcast Output	NTSC/PAL
Built-In Microphone Type	None
Audio Recording	None
IP Streaming	None

Interface

Media/Memory Card Slot	None
Video I/O	1 x BNC (3G-SDI) Output
Audio I/O	None
Power I/O	1 x Block 2-Pin (12 to 30VDC) Input

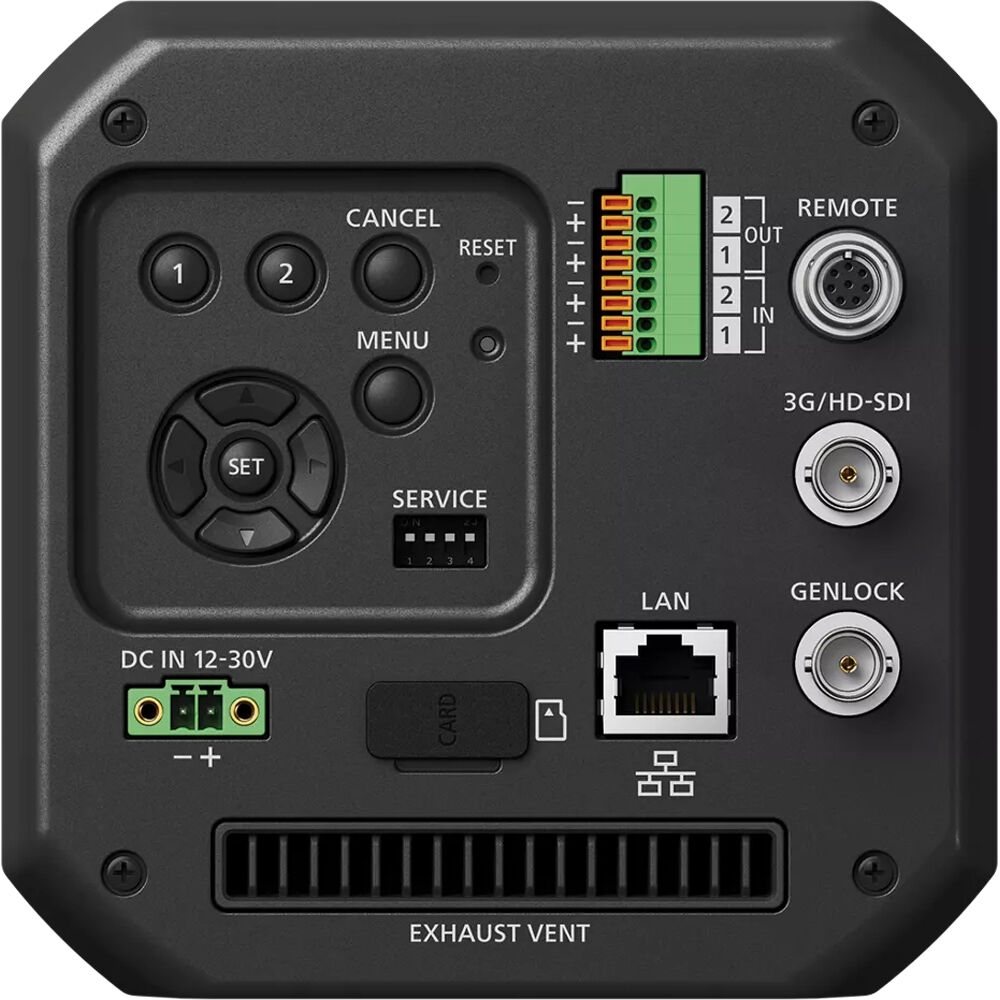

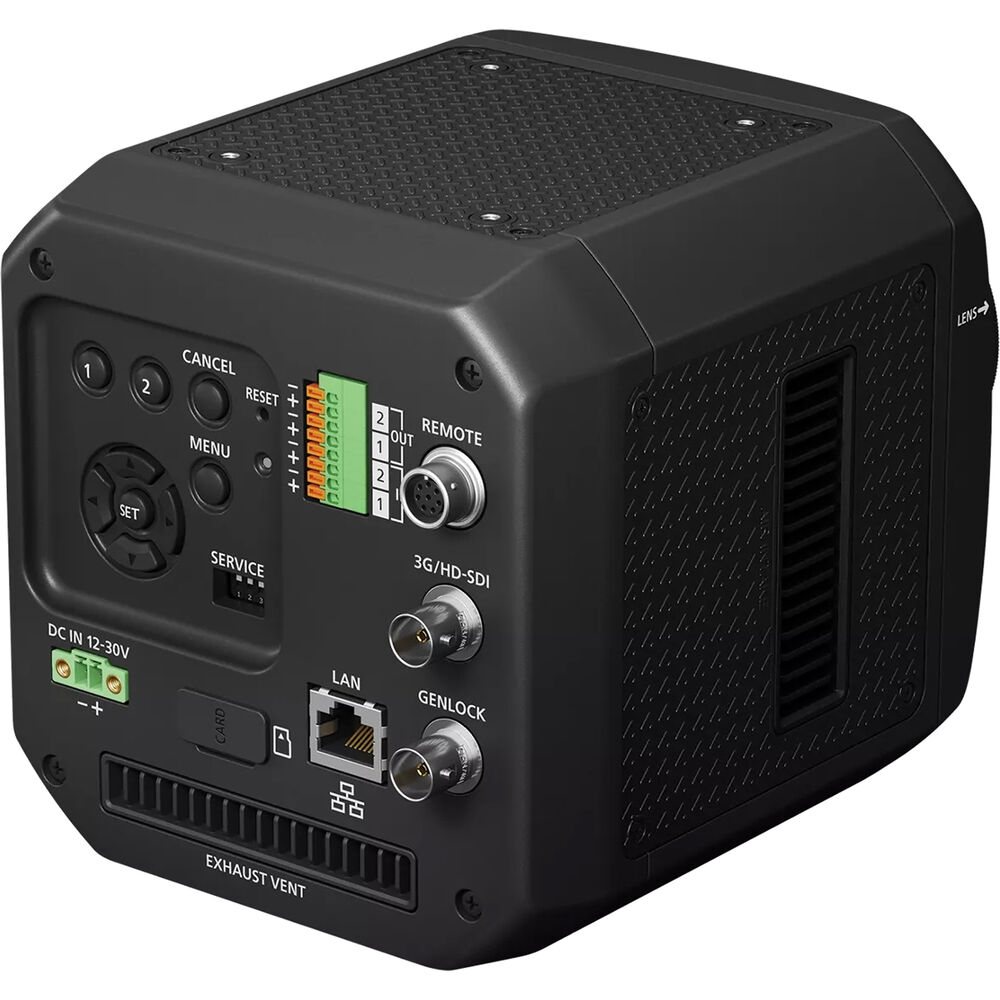

Other I/O	1 x Hirose 8-Pin (RS-232, RS-422, RS-485) Control 1 x BNC (Genlock) Input 1 x Block 8-Pin 1 x RJ45 (LAN) 1 x Block 4-Pin
Wireless	None
Mobile App Compatible	No *As of September, 2023: Check with manufacturer for the most up-to-date compatibility
Global Positioning (GPS, GLONASS, etc.)	None
Focus Type	Auto and Manual Focus

Environmental

Operating Temperature	-4 to 113°F / -20 to 45°C
Storage Temperature	-22 to 140°F / -30 to 60°C
Storage Humidity	5 to 90% (Non-Condensing)

General

Power Consumption	23.7 W
Shoe Mount	None
Accessory Mounting Thread	None
Dimensions (W x H x D)	7.2 x 5 x 5" / 184 x 128 x 128 mm (Without Protrusions)
Weight	4.9 lb / 2.2 kg
