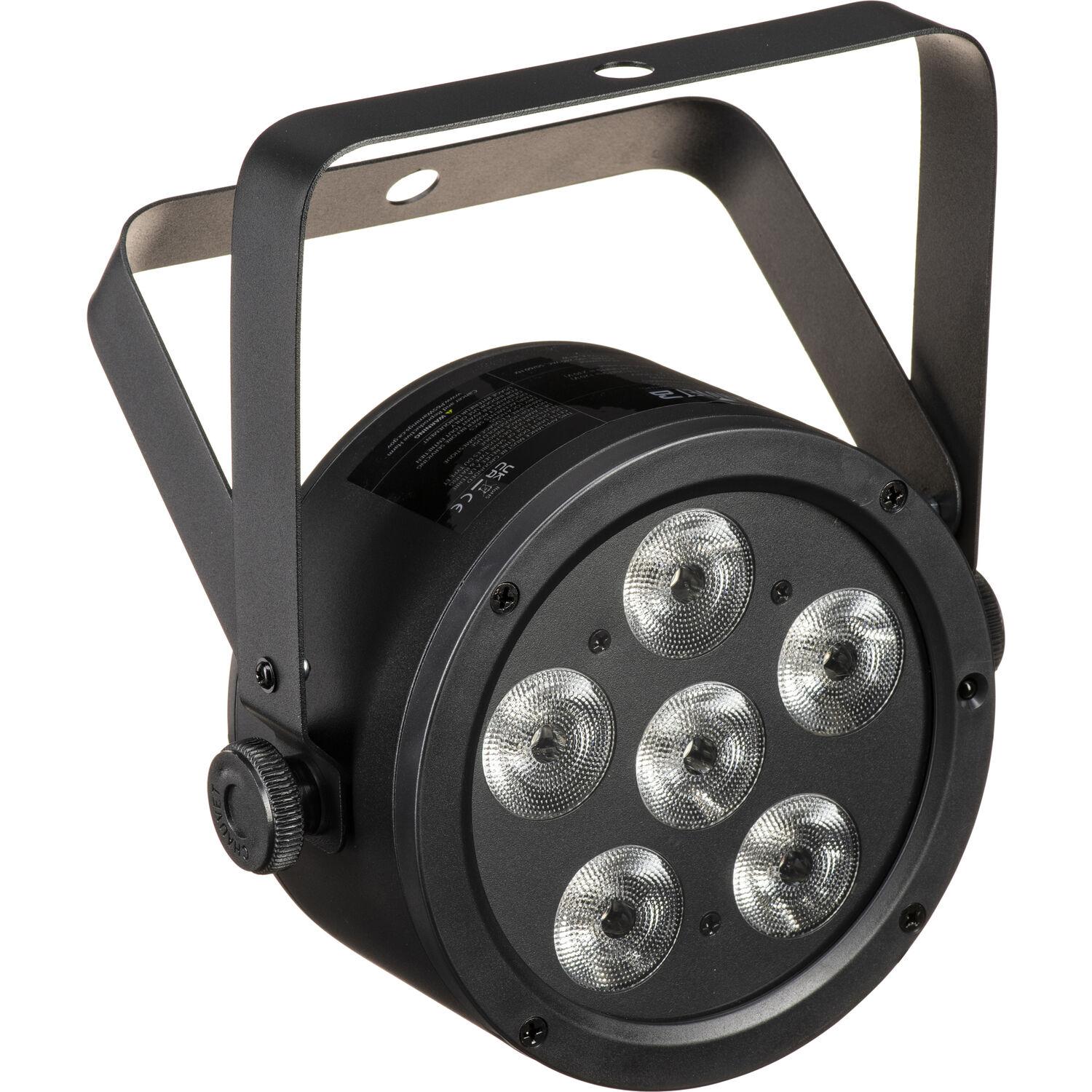

Mobile entertainers and lighting technicians in need of a wash light will be impressed with the CHAUVET DJ SlimPAR H6 ILS, a low-profile LED PAR that's powered by six 8W Hex LEDs (red, green, blue, amber, white, UV) and lets you generate a broad spectrum of colors, well suited for clubs, bars, concerts, special events, parties, and more. The Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types, allowing any ILS-enabled fixer to be controlled wired or wirelessly.
The SlimPAR H6 ILS allows you to create custom colors using the built-in LED display and achieve smooth LED fading with built-in dimming curves. The fixture is flicker-free, making a great choice for on-camera work. The fixture is equipped with a universal, auto-sensing power supply and is compatible with the IRC-6 wireless remote (available separately) and D-Fi USB for wireless master/slave and DMX applications.
ript>
| Fixture Type | PAR |
| Light Source | 6x Color LED - 8 W / 1.1 A |
| Expected Lamp Life | 50,000 Hours |
| Colors | Amber, Blue, Green, Red, Ultraviolet, White |
| Photometrics | 176 fc / 1891 Lux at 6.6' / 2 m |
| Beam Angle | 25° |
| Field Angle | 43° |
| Iris | No |
| Focus | Manual |
| Zoom Adjustment | No |
| Dimming | Electronic, 0 to 100% |
| Operating Modes | DMX, Primary/Secondary, Standalone |
| Strobe Rate | 0 to 30 Hz |
| Gobos | No |
| Control Protocols | DMX512, ILS |
| DMX Channel Modes | 3 Mode(s): 6 / 8 / 12-Channel |
| Remote Control | IR Remote (with Optional Equipment) D-Fi USB (with Optional Equipment) |
| Mobile App Compatible | No |
| Inputs/Outputs | 1 x XLR 3-Pin DMX Input 1 x XLR 3-Pin DMX Output |
| Wireless | Proprietary Wireless *Via Optional Adapter IR *Built-In |
| AC Power Connector | Input: 1x IEC Output: 1x Edison Plug Type: NEMA 5-15 |
| Input Power | 100 to 240 VAC, 60 / 50 Hz |
| Power / Current Consumption | 120 VAC, 60 Hz: 41 W / 0.6 A 230 VAC, 50 Hz: 41 W / 0.3 A |
| Power Linking | 14 Units at 120 VAC 24 Units at 230 VAC |
| Environmental Resistance | No |
| Mounting | Dual/Scissor Yoke |
| Included Accessories | 1x Power Cable |
| Exterior Color | Black |
| Cooling | Convection |
| Certifications | CE, RoHS, UKCA |
| Dimensions | 8.8 x 7.5 x 3.3" / 22.4 x 19.1 x 8.4 cm |
| Weight | 2.6 lb / 1.2 kg |
| Package Weight | 3.6 lb |
| Box Dimensions (LxWxH) | 10.5 x 9.3 x 4.9" |
