Chrosziel Lens Testing Projector TP7 II

Name: Chrosziel Lens Testing Projector TP7 II
Brand: Chrosziel
SKU: SF-2443-NN7K
Availability: InStock

Brand: Chrosziel

MFR: P-TP7II

SKU: SF-2443-NN7K

Price Available Upon Request

Test Lenses up to 60mm Image Diameter
Allows Glass and Filter Inserts
Manual and Remote Control
Laser Rangefinder
Interchangeable Large Universal Mount
Includes Lamp, Filter Holder, and Insert

Items Included

Chrosziel Lens Testing Projector TP7 II
Power Cable
Gooseneck Orientation Lamp
Filter Insert with Filter Holder (3 x 3)
Glass Insert
Wired Remote Control with Cable (32.8')

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: Lenses & Lens Accessories

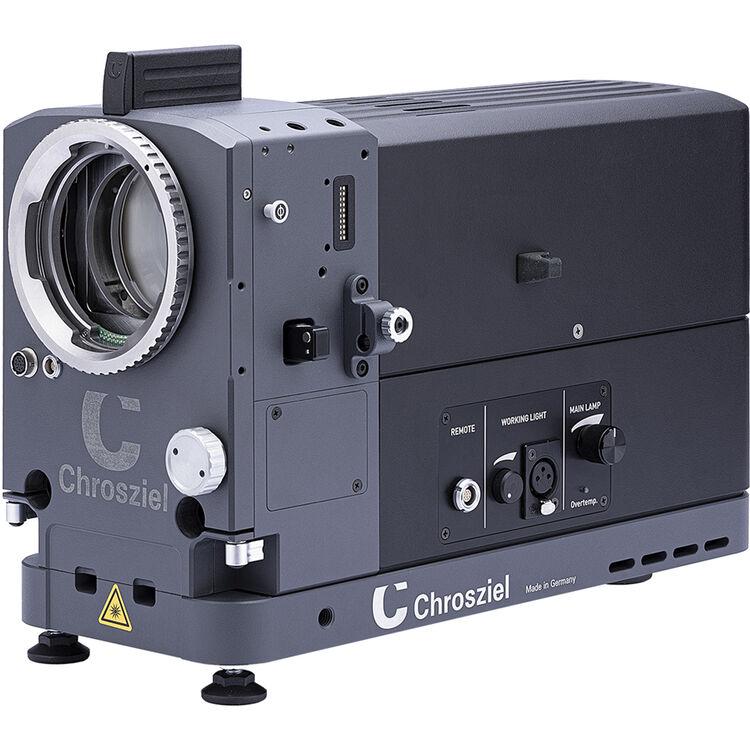

This Lens Testing Projector TP7 II from Chrosziel is designed to test lenses with image circle diameters up to 60mm, such as ARRI XPL, Hawk, Panavision with ARRI PL, Canon EF, Nikon F, and Sony E mounts, as well as other formats. It features two multiport connectors for remote control and lens data communication, a laser range finder, manual and remote back focus, as well as glass simulation and filter inserts. It is compatible with a wide range of optional accessories such as MagNum lens control, Lens Test Chart reticles, optional projector lens mounts, measuring blocks, and microscopes.

Quick Features

Glass and filter Insert
60mm LED image circle
Multiport for lens data and control
Access to centering screws of zooms
Laser rangefinder
Manual and remote back focus
Interchangeable large universal mount

Glass and Filter Insert

The 3 x 3 glass insert between the lens mount and reticle simulates the glass (up to 5mm thickness) of a specific camera. Using a 3 x 3 filter insert between the light engine and reticle allows the insert of color correction filters (up to 4.6mm thickness).

60mm LED Image Circle

The LED light source evenly illuminates an image circle with a 60mm diameter to simulate camera sensors up to XPL/medium format.

Multiport Data Converter to USB

Two Multiport data converter to USB connectors, situated on both sides of the projector, allow electronic lens data access (e.g. /i Data). They are compatible with ARRI lenses with LDS2 and the latest lens firmware.

Maximum Precision

The projector offers the highest precision below a 5ym plane parallelism between the mount and reticle.

General

Compatibility

Chrosziel P-TP7II Accessories
Universal Lenses with up to 60 mm Image Circle

Inputs/Outputs

Other I/O

2 x Multiport, Data

Power

Power Source

Plug-In Power (Included)

Packaging Info
