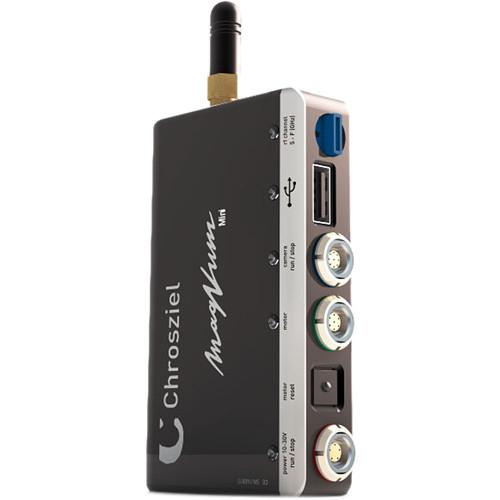

The Chrosziel MagNum Mini Receiver provides single-channel focus control and has a power booster that ensures enhanced motor drive. The MagNum Mini Receiver has a compact design suited for gimbal, handheld, drone, and Steadicam applications, yet it still has the punch to provide fast and accurate adjustments. It can be controlled by the optional MN-100T, MN-150T, or MN-200T MagNum Transmitter Hand Unit from up to 328' away. Together the receiver and hand unit are compatible with most major digital lens motors, including the Chrosziel CDM-100S digital motor.
| Connectors | 1 x LEMO 0B 7-Pin (Motor) 1 x LEMO 0B 5-Pin (Power with Run/Stop) 1 x LEMO 0B 9-Pin (Run/Stop) 1 x USB |
| Mount Type | 4 x 1/4"-20 Threaded Female |
| Status LEDs | Motor, Power, Run/Stop, USB, RF Signal |
| RF Channel Selection | 11 x 2.4 GHz Range Channels 5 - F |
| Transmission Distance | Up to 328' / 100 m |
| Power | 10-30 V, 2 A Max |
| Dimensions | 4 x 2 x 0.75" / 9.1 x 5.3 x 1.9 cm |
| Weight | 4.2 oz / 120 g |
