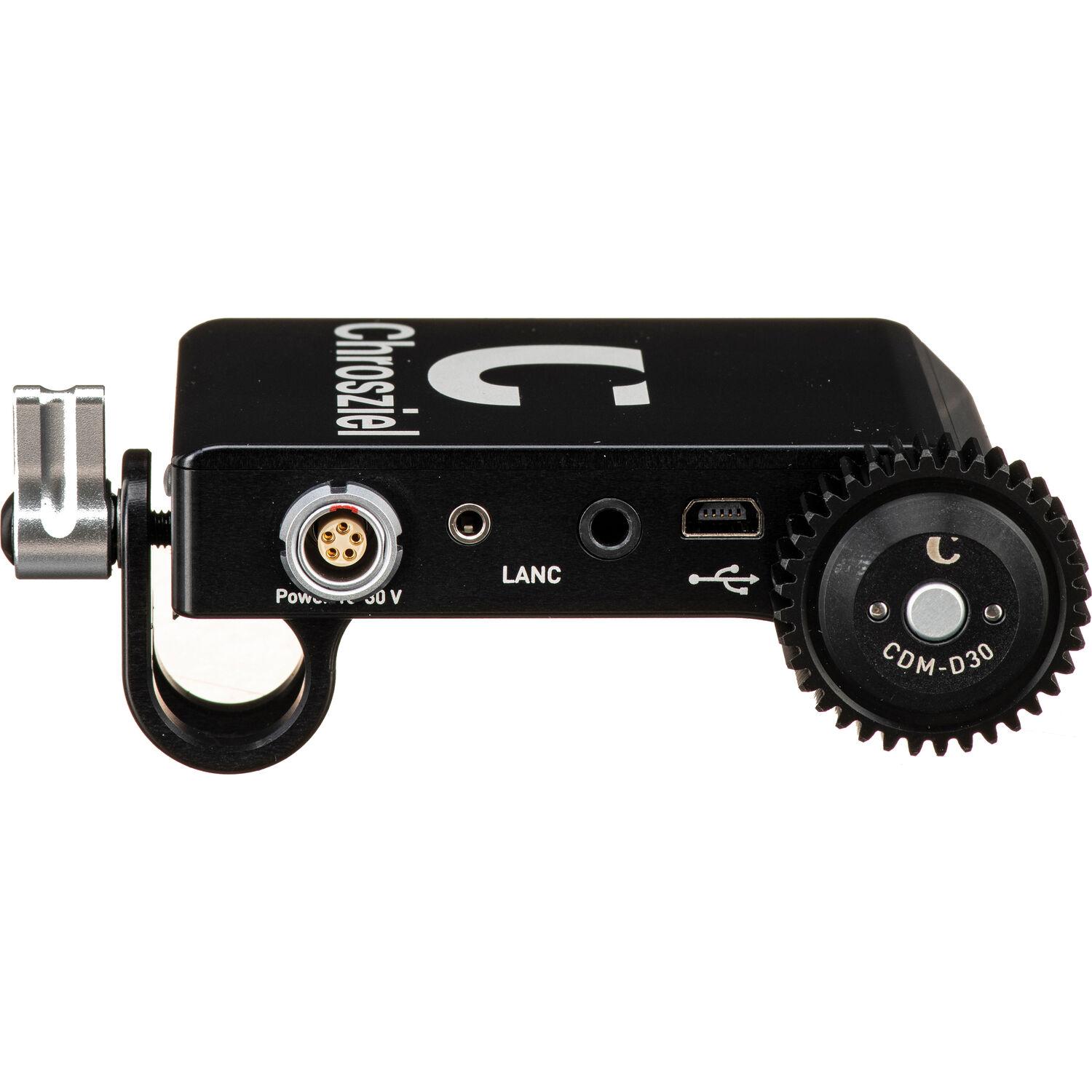

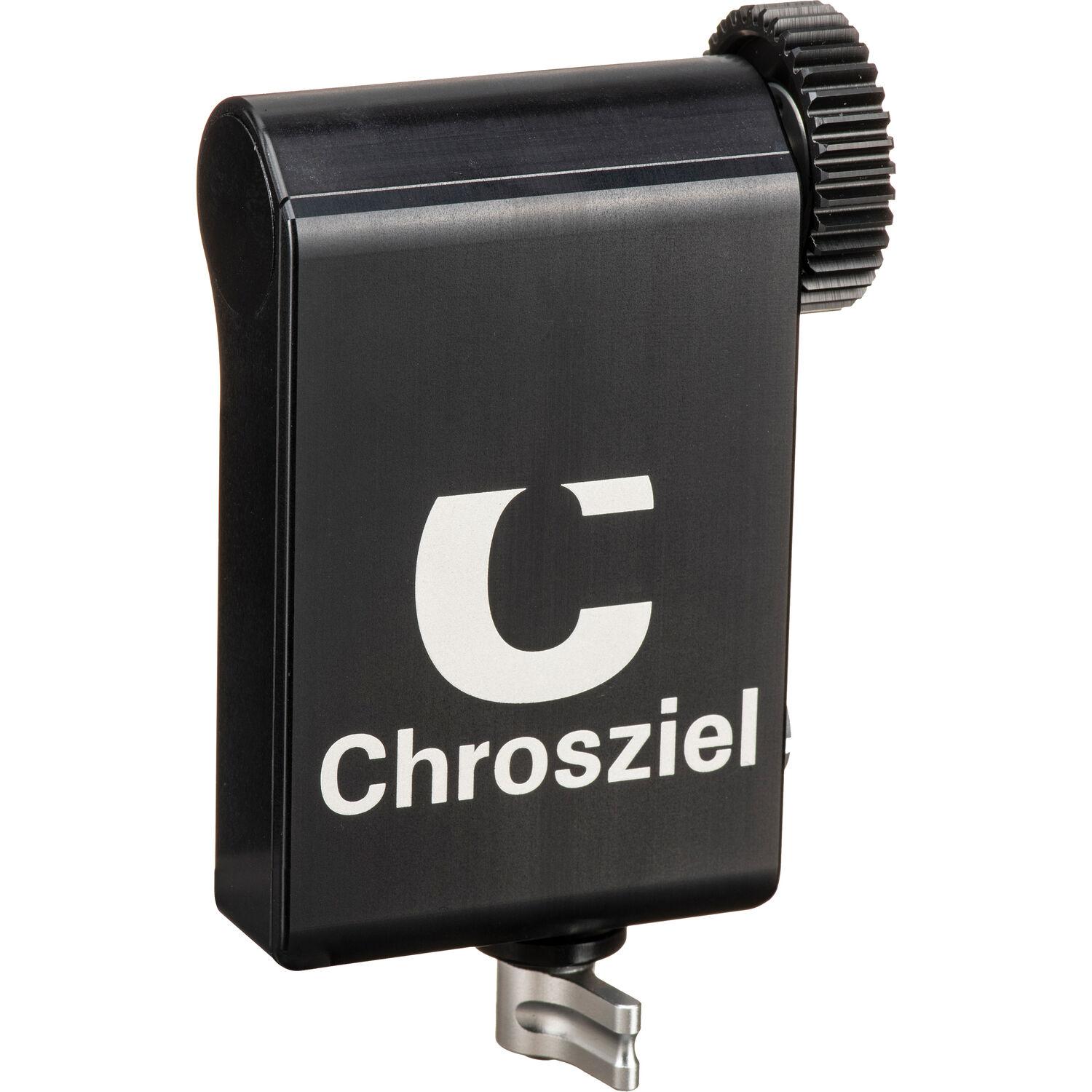

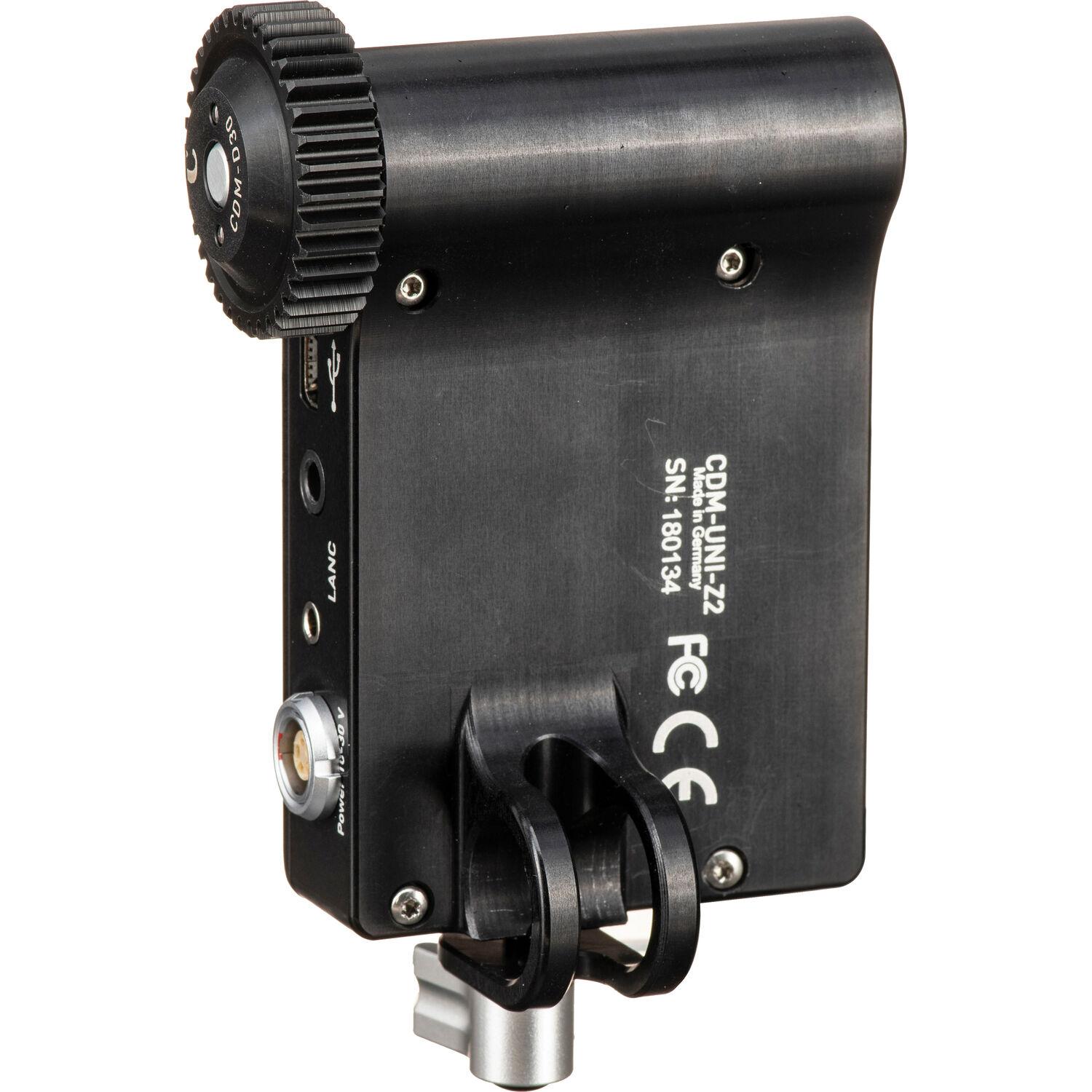

Chrosziel Zoomer Universal Servo Drive Motor

Chrosziel Zoomer Universal Servo Drive Motor

Name: Chrosziel Zoomer Universal Servo Drive Motor
Brand: Chrosziel
SKU: SF-2443-5IA9
Availability: InStock

Brand: Chrosziel

MFR: CDM-UNI-Z2

SKU: SF-2443-5IA9

Price Available Upon Request

Mounts on Single 15mm Rod
Supports LANC Control Protocols
FX6, FX9, FS5, and FS7 Handgrip Control
12 to 30 VDC Power Input
Lens Gear Belt Included
Cables for FX6 and FX9 Included

Items Included

Chrosziel Zoomer Universal Servo Drive Motor
LANC Cable
LANC Extension Cable

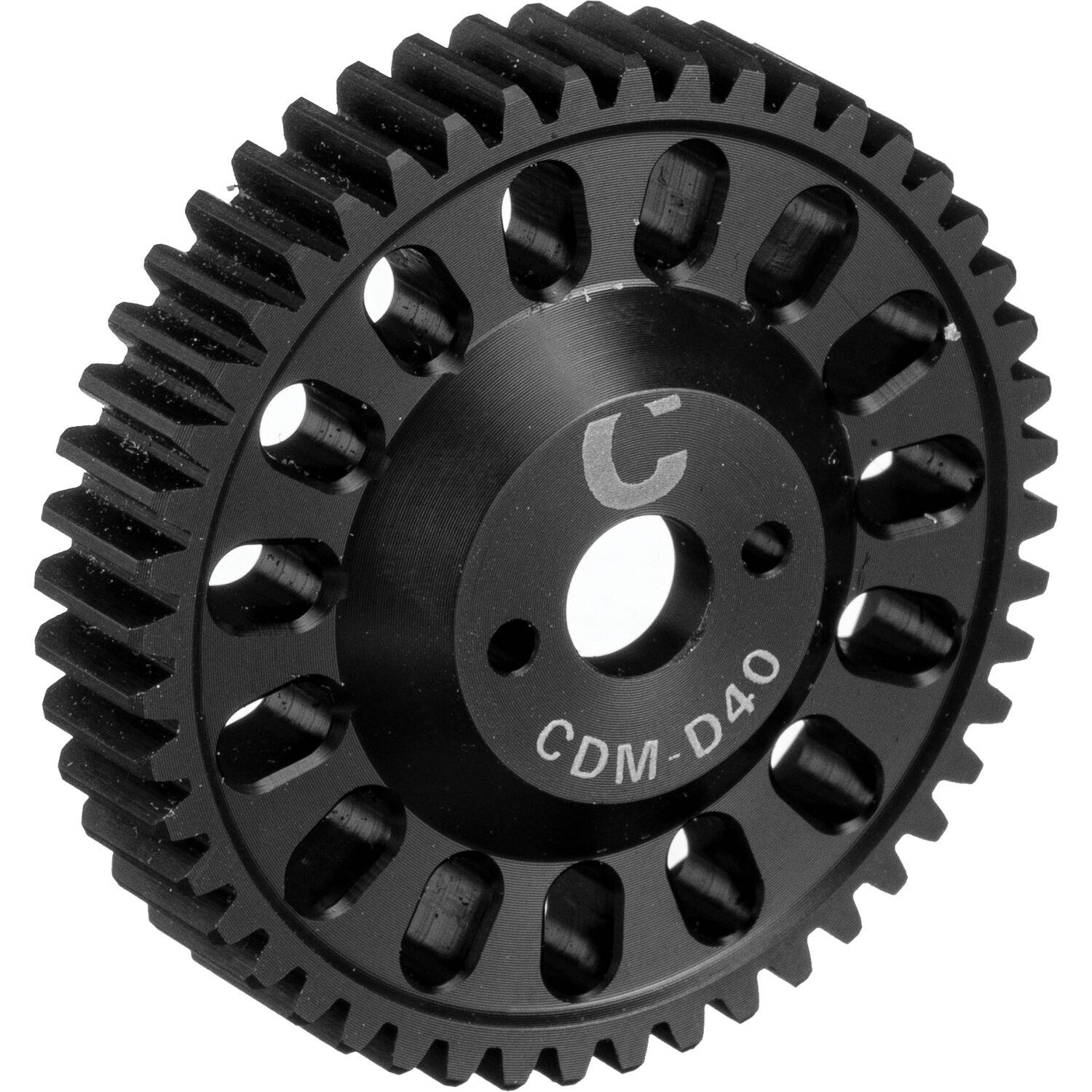

Drive Gear

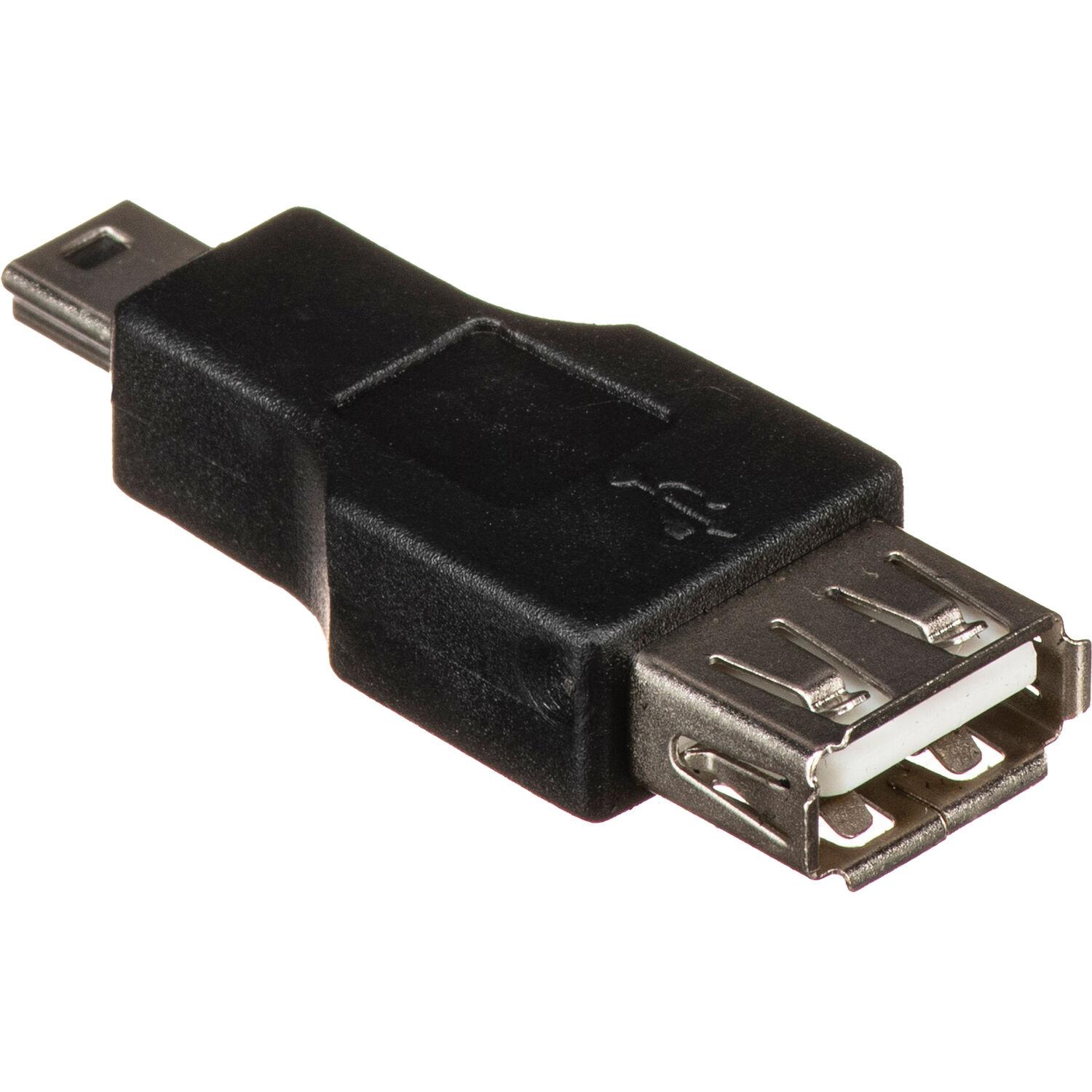

Mini-USB Adapter

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: Lenses & Lens Accessories

Add a powerful zoom motor to your shooting package with the Chrosziel Zoomer Universal Servo Drive Motor. Compatible with LANC control so you can use your existing LANC zoom rocker, the Zoomer also interfaces with Sony's FX6, FX9, FS5, and FS7 handgrip controls. The Zoomer mounts by sliding onto a single 15mm rod, and then you swing it into position against your lens and tighten it on the rod to hold it in place.

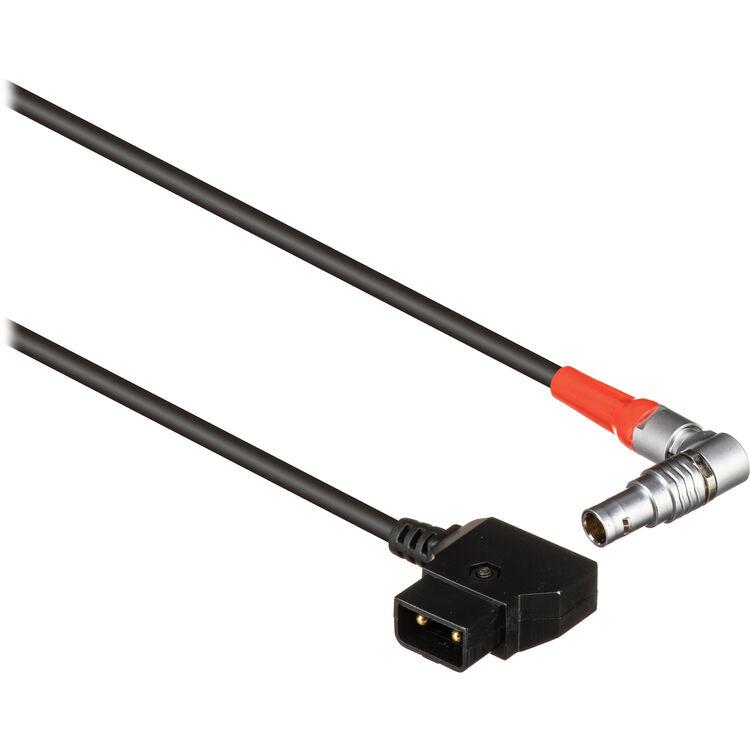

The motor supports 10 to 20 VDC power, and it comes with a D-Tap to LEMO-type 0B-5 pin connector for powering it via a D-Tap power source, such as a V-mount or Gold mount battery. An included lens gear belt can mount on manual lenses without gear with a diameter of 2.3 to 4.7".

The Sony FX6/FX9/FS5/FS7 handgrip zoom rocker direct;y controls the Zoomer servo drive unit
Other zoom rockers with LANC protocol are also compatible
Control commands are looped through to the camera, including menu, user buttons, focus magnification, and camera run/stop
When using a standard LANC zoom rocker or handle with the Sony PXW-FS5, PXW-FS7, and PXW-FS7II, the servo is connected between the handle and the camera via an input and an output jack to receive all zoom control signals
For the Sony PXW-FX9 camera, an included Y-cable is used that accepts the Sony multi-connector and connects to both the input jacks of the Zoomer and the camera

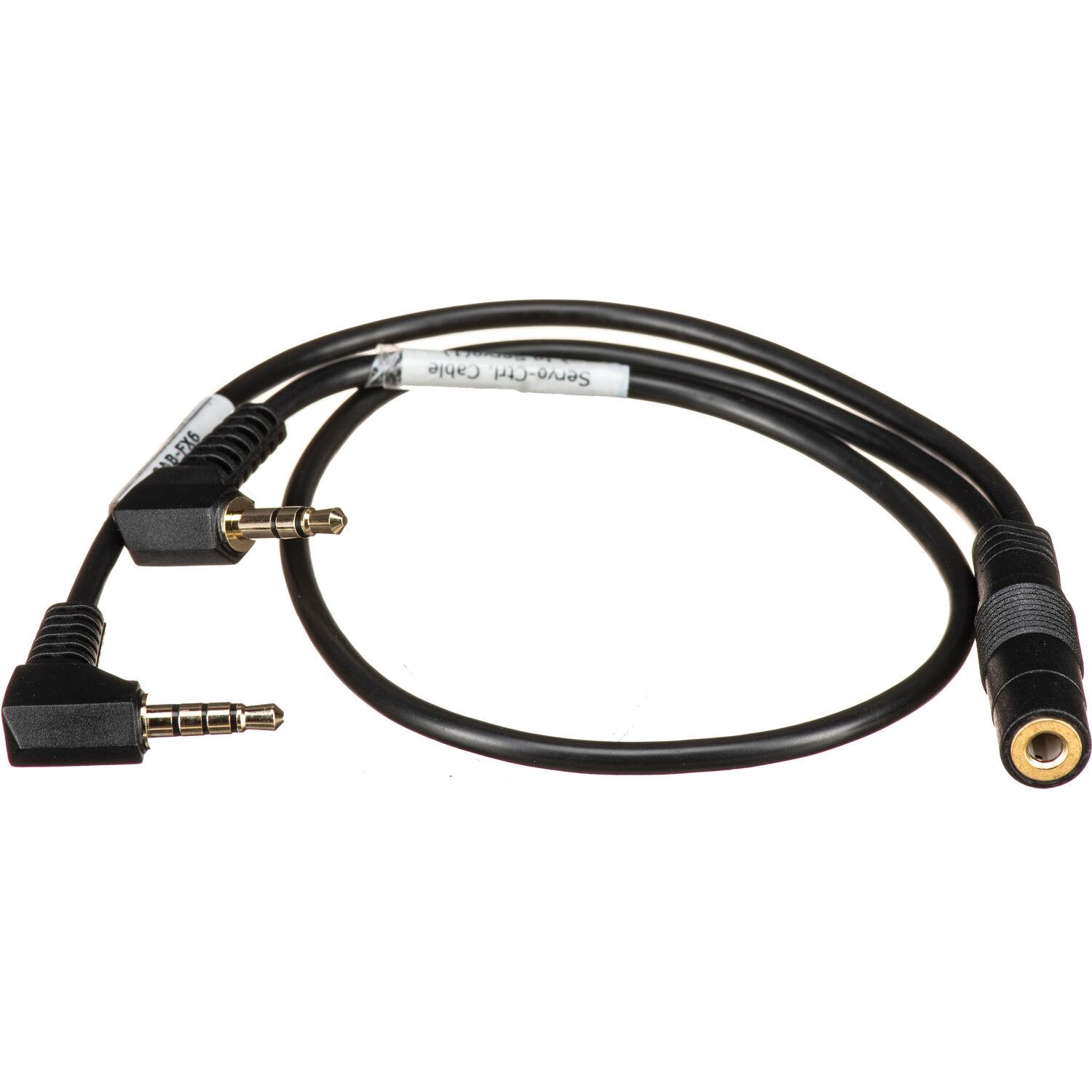

For the Sony FX6 camera, the included cable connects the 3.5mm connector of the Sony handgrip, the input jack of the Zoomer, and the Sony camera

Inputs/Outputs

USB I/O

1 x Mini-USB Integrated Male Input

Power
