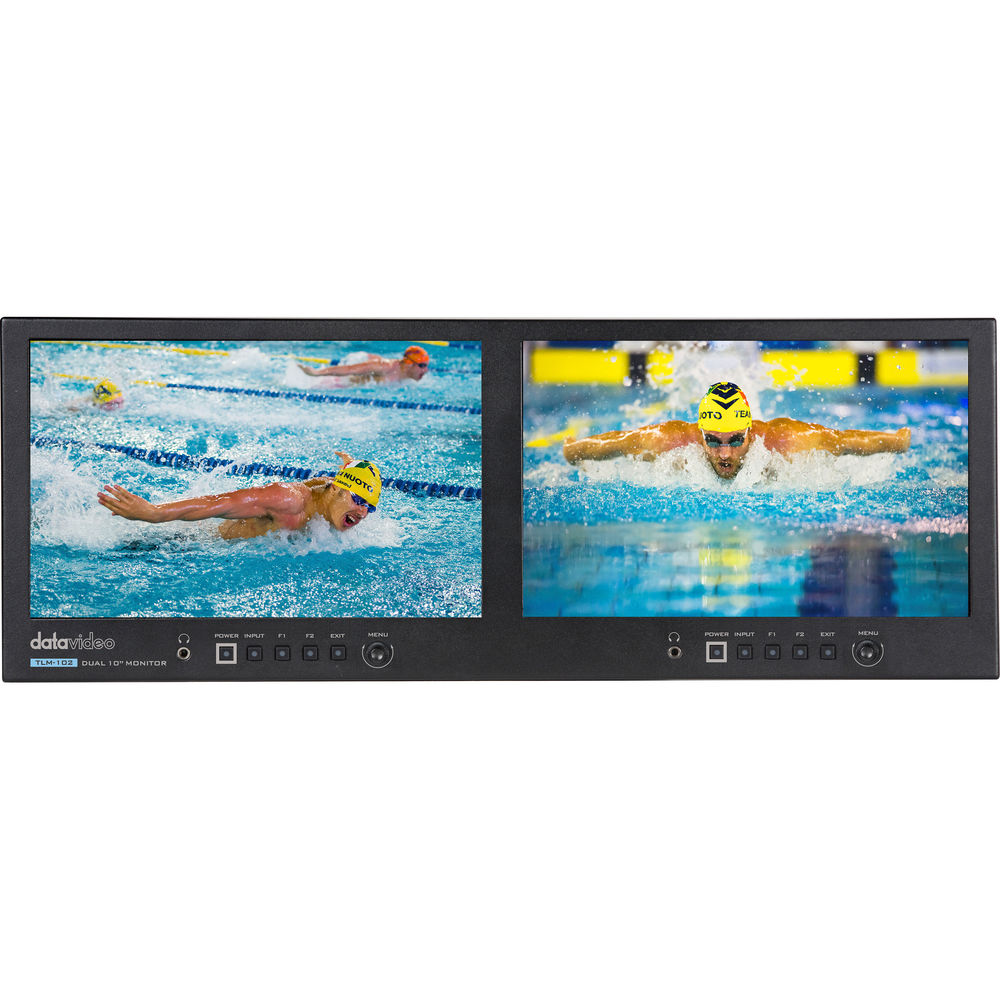

The 10" Dual IPS LCD Monitor from Datavideo is a rack-mounted monitoring unit designed for broadcast, video production, and A/V users. The monitors feature built-in vectorscope, waveform, and video signal converters. Each has one 3G/HD/SD-SDI input and one HDMI input, with loop-through output for both. Built-in signal cross conversion allows each monitor to use one input for display and the other for conversion. The 4 RU rackmount design offers a mounting solution for on-site monitoring, video walls, and production trucks.
| Screen Size | 10" (25.4 cm) |
| Screen Type | Dual LCD, IPS panel |
| Resolution | 1280 x 800 |
| Viewing Angle (H/V) | 170°/170° |
| Brightness | 300 cd/m2 |
| Contrast Ratio | 800:1 |
| Rack Mount | 4 RU |
| Video Inputs | 1 x 3G/HD/SD-SDI 1 x HDMI |
| Video Outputs | 1 x 3G/HD/SD-SDI, loop-through out 1 x HDMI, loop-through out |
| Audio In/Out | Embedded audio on SDI and HDMI Headphone jack |
| Supported Input Resolutions | 1080p 23.98/24/25/29.97/30/50/59.94/60 1080i 50/59.94/60 720p 23.98/24/25/29.97/30/50/59.94/60 480i (NTSC) 576i (PAL) |
| Aspect Ratio | 16:9, 4:3 |
| Special Features | Timecode, waveform, vectorscope, audio level meter, peaking, zoom, pix-to-pix, underscan, SDI/HDMI cross conversion |
| Tally LED Indicator | Live (red) Cued (green) |
| Power Requirements | 12 VDC, 26 W |
| Dimensions | Not specified by the manufacturer |
| Weight | Not specified by the manufacturer |
Packaging Info
| Package Weight | 11 lb |
| Box Dimensions (LxWxH) | 22.6 x 13.1 x 5.3" |
