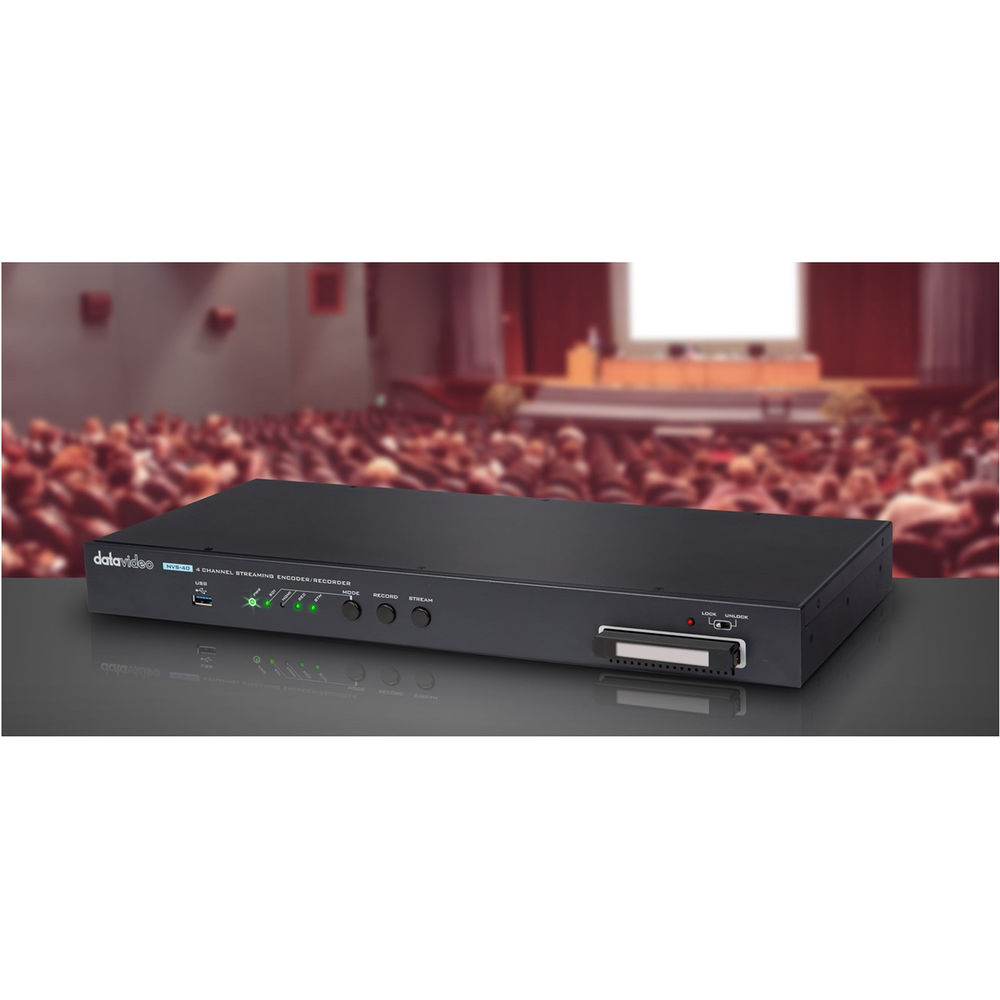

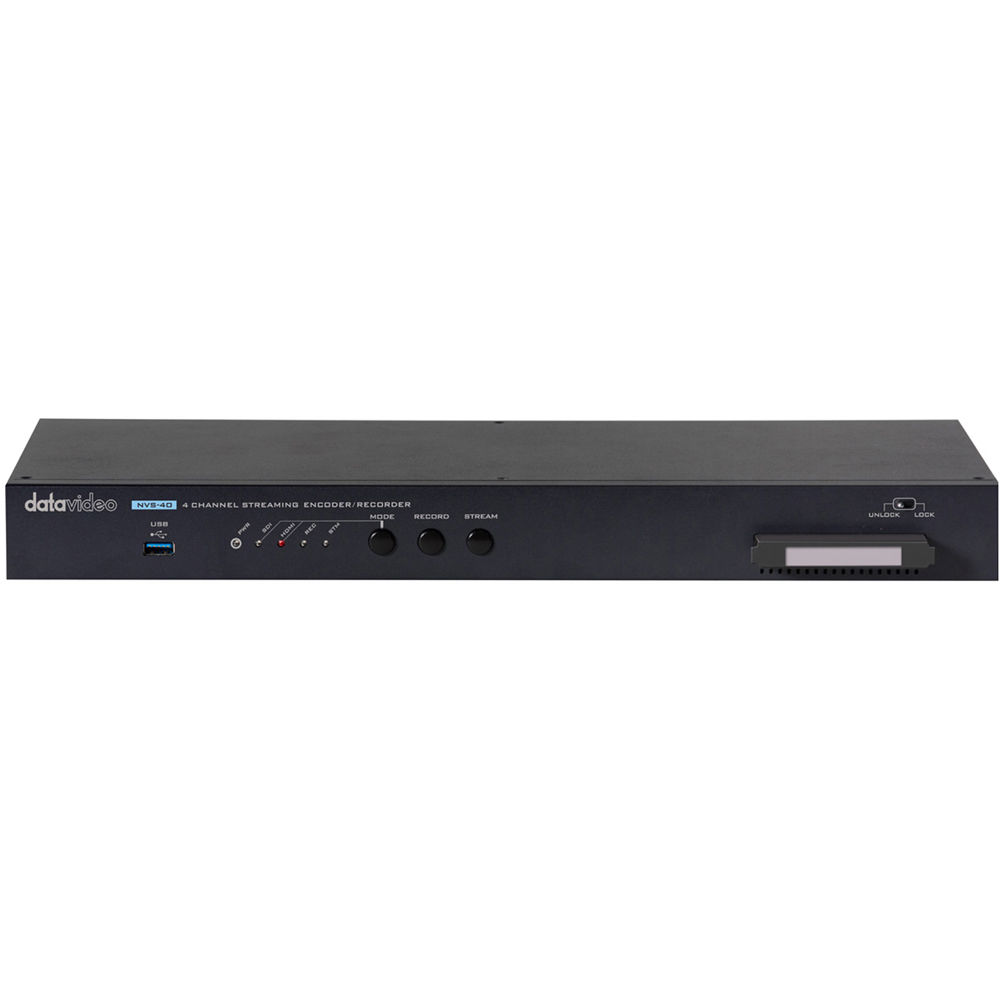

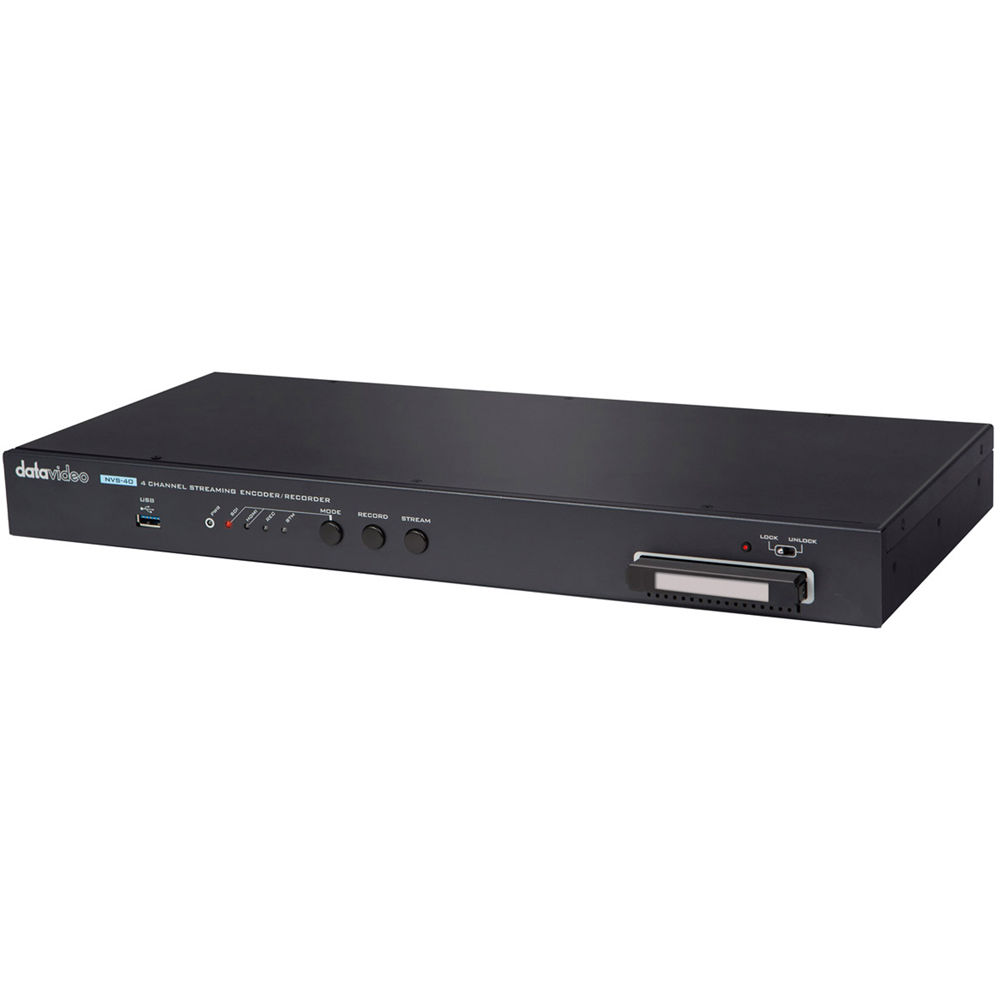

Stream, output, and record a variety of video resolutions at an event, broadcast, conference room, audio-visual space, or other video production environment with this 1 RU 4-Channel Streaming Encoder and Recorder from Datavideo. The streaming encoder/recorder supports resolutions up to 1920 x 1080p60 and features one SDI and four HDMI video inputs as well as one HDMI 1.4 and one SDI video loop output to a local display. It can also stream via IP over its RJ45 port to a variety of online content services using RTMP/RTMPS or RTSP over HTTP.
The streaming encoder/recorder provides simultaneous streaming and recording to a separately available 2.5" HDD/SSD that can be inserted into into the encoder/recorder's front-panel disk enclosure and supports multiple formats including NTFS, FAT, and exFAT that support different file sizes and video durations. The unit also allows audio input via balanced XLR and unbalanced RCA audio inputs for embedding into your HDMI output.
| Video Inputs | 4 x HDMI (HDMI 1.4) Female 1 x BNC (3G-SDI) Female |
| Audio Inputs | 1 x 2RCA Stereo Analog Female 2 x XLR 3-Pin Analog Female |
| Video Outputs | 1 x BNC (3G-SDI) Female (Loop Output) 1 x HDMI (HDMI 1.4) Female 1 x RJ45 Female |
| Other I/O | 1 x RJ45 LAN Input/Output |
| Input Video Format | HDMI / SDI 1080p at 50/59.94/60 fps 1080p 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 50 fps 480i / 525 lines 59.94 fps |
| Input Audio Format | Analog: 48 kHz / 16-Bit |
| Output Video Format | HDMI / RJ45 / SDI 1080p at 50/59.94/60 fps 1080p 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 50 fps 480i / 525 lines 59.94 fps |
| Embedded Audio | HDMI/LAN(RJ45)/SDI |
Standards
| HDCP Support | None |
| HDR Compatibility | Not Specified by Manufacturer |
IP Streaming
| Video IP Encoding | H.264, MP4, RTMP, RTSP: 1920 x 1080 at 60p (30 Mb/s) |
| Audio IP Encoding | AAC-LC: 16-Bit / 48 kHz (128.00 to 384.00 Kb/s) |
Hardware
| OS Compatibility | Windows 8.1 to 10 (64-Bit Only) *As of August, 2022: Check with manufacturer for the most up-to-date compatibility |
Power
| Power I/O | 1 x Barrel (12 VDC) Input |
| Power Consumption | Power Supply: 12 VDC (16 W) |
Environmental
| Operating Temperature | 32 to 72°F / 0 to 40°C |
General
| Certifications | CE, FCC *as per Manufacturer |
| Dimensions | 18.9 x 7.1 x 1.7" / 480 x 180 x 44 mm |
| Weight | 5.07 lb / 2.3 kg |
Packaging Info
| Package Weight | 8 lb |
| Box Dimensions (LxWxH) | 21.5 x 11.75 x 6.5" |
