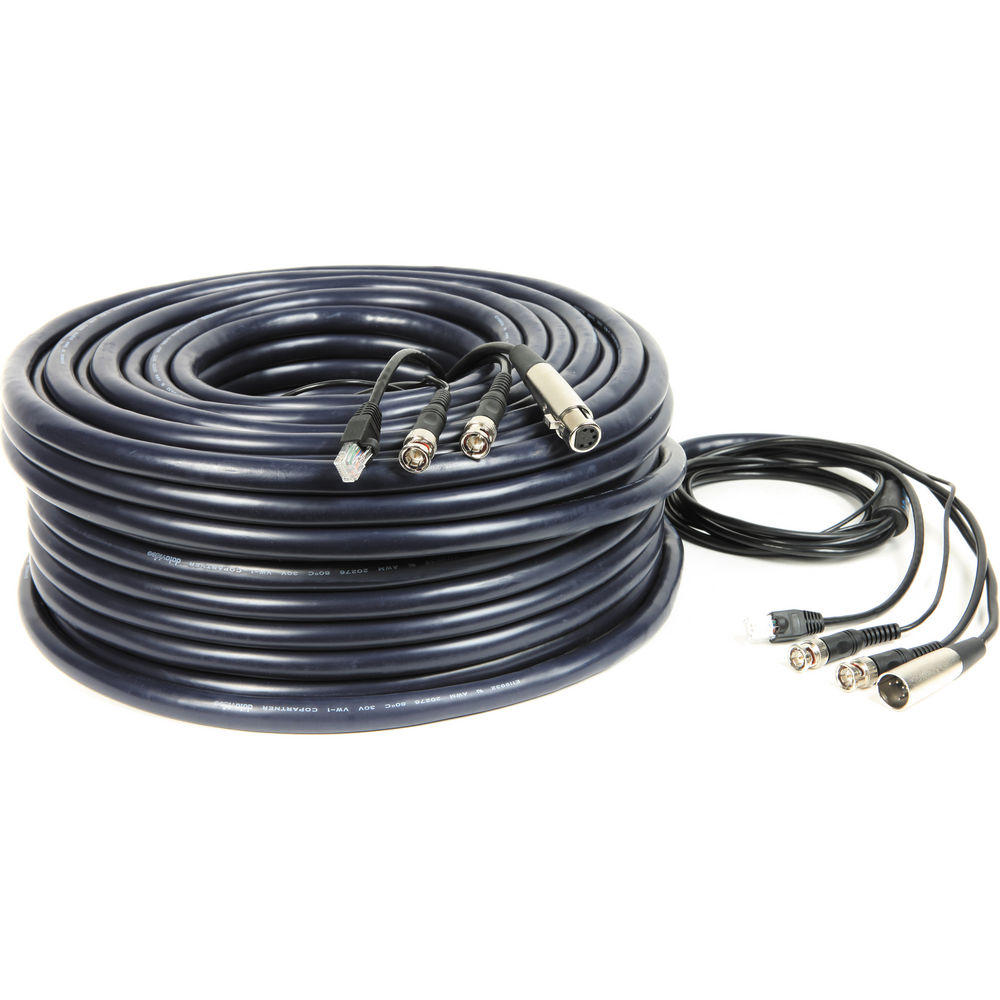

The 164’ long CB-31 CB-31 All-in-One Video Cable from Datavideo is a multicore video, audio, and control cable designed for EFP multi-camera operation with the MCU-100 and MCU-200 Multi-Camera Control Units (sold separately). The cable consists of a 5-Pin XLR ITC/Tally cable, HD-SDI cable for camera, CV cable for return video, and RJ-45 cable for camera control.
Note:
This cable does not provide a power connection.

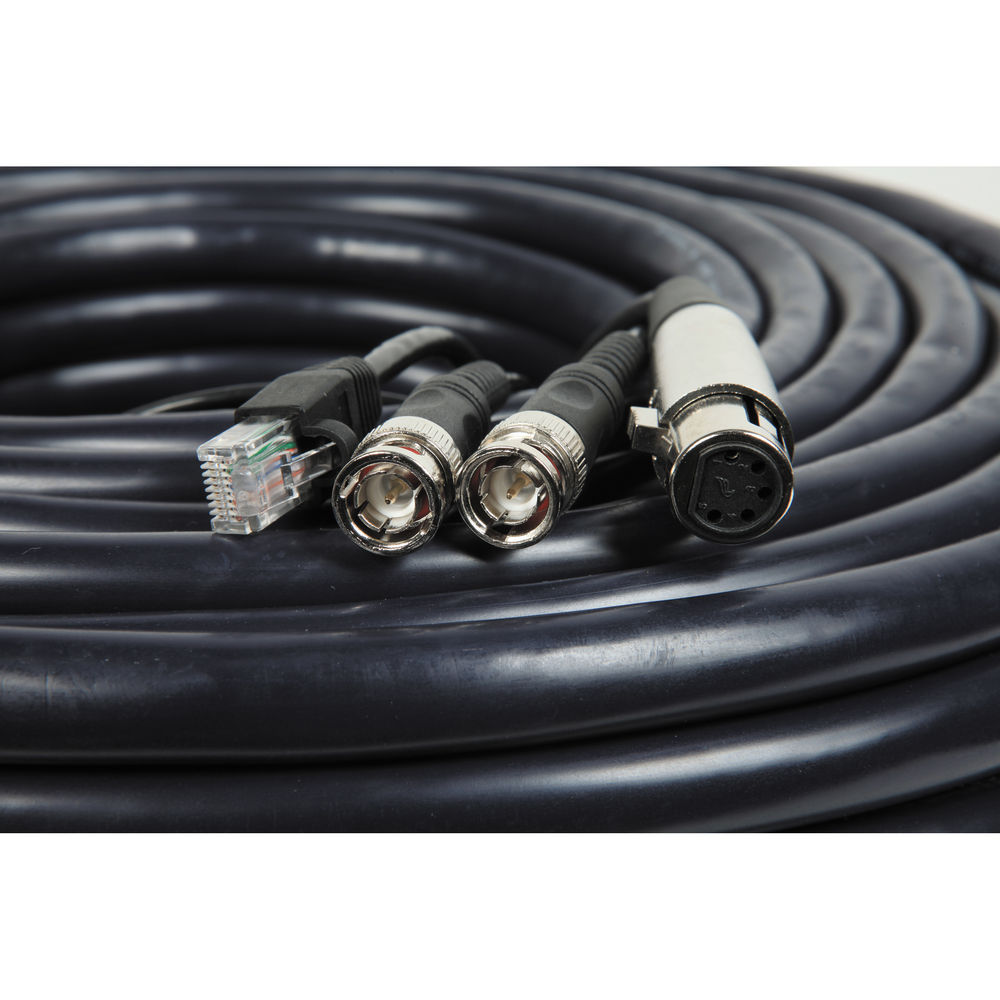

| Connectors | 2 x 5-Pin XLR for ITC/Tally, 4 x BNC for HD-SDI and return video, and 2 x RJ-45 for camera control. |
| Dimensions | Length of Cable: 164' (50 m) Size of the Roll: 14.0 x 14.0 x 7.0" (35.5 x 35.5 x 17.8 cm) |
| Weight | 24.0 lb (10.9 kg) |
Packaging Info
| Package Weight | 24.4 lb |
| Box Dimensions (LxWxH) | 14.173 x 13.937 x 6.142" |
