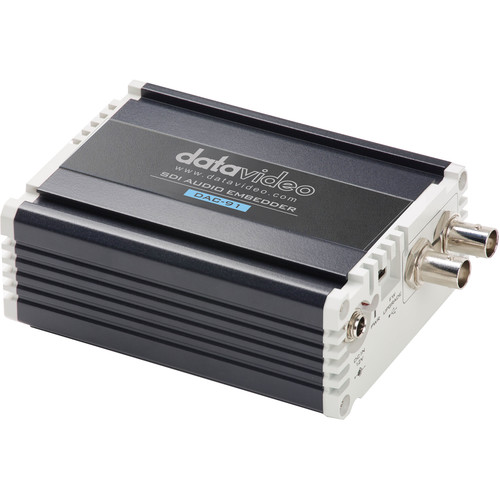

The DAC-91 2-Channel SDI Analog Audio Embedder from Datavideo autodetects SD, HD, and 3G signals and allows users to embed two channels of analog audio into SDI video signal. It features 3G/HD/SD-SDI and supports up to 1080p60 video formats, automatically detecting and switching between the different formats. It provides mini XLR and RCA audio connectors for inputting analog audio.
Features at a Glance
Inputs / Outputs
| USB I/O | 1 x Mini-USB Integrated Male Input |
| Video I/O | 1 x BNC (3G-SDI) Input 2 x BNC (3G-SDI) Output |
| Audio I/O | 2 x Mini-XLR Input 2 x 2RCA Input |
Power
| Power Source | Proprietary Interface |
| DC Input Power | 12 VDC at 0.5 A |
Environmental
| Operating Temperature | 32 to 72°F / 0 to 40°C |
Physical
| Color | Black |
| Material of Construction | Aluminum Alloy |
| Dimensions | 4.4 x 3.3 x 1.8" / 112 x 85 x 45 mm |
| Weight | 0.9 lb / 0.4 kg |
Packaging Info
| Package Weight | 1.65 lb |
| Box Dimensions (LxWxH) | 8.4 x 5.9 x 3" |
