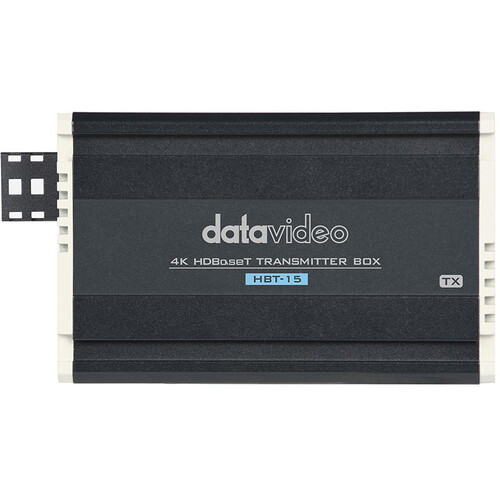

Interface between transmitting and receiving HDBaseT devices with this HBT-15 HDMI to HDBaseT Transmitter from Datavideo. The transmitter can deliver 4K video up to 328' away over a single Cat 6a cable. Both the video signal and its embedded digital audio can be transmitted by the device.
RS-232, RS-422, and DVIP serial connections allow you to control the receiver easily. Power can be delivered to the receiver via PoE or using the DC input and included cord. The HBT-15 is compatible with various Datavideo transmitters, receivers, and PTZ cameras like the HBT-16 or PTC-280 camera.
Features at a Glance
Interfaces
| Inputs | 1 x HDMI (HDMI 2.0) Female |
| Embedded Audio Input | HDMI |
| Outputs | 1 x RJ45 (HDBaseT) Female |
| Other I/O | 1 x RJ45 Input 1 x RJ45 RS-232, RS-422 Input |
Standards
| HDCP Support | Yes |
| EDID Support | Yes |
Transmission
| Max Transmission Distance | UHD 4K at 60 Hz: 328.1' / 100 m (via Cat 6a) |
| Video Format | HDMI Input (8/10-Bit 4:4:4/4:2:0) UHD 4K: 25/29.97/30/50/59.94/60 fps 1080p: 25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 59.94 fps PAL: 50 fps |
| DTS Compatibility | DTS-HD High Resolution |
| Dolby Compatibility | Dolby Digital, Dolby TrueHD |
| Supported Cable Types | Cat 6a |
Power
| Power Connector | 1 x Barrel (12 VDC) Input |
| PoE Support | Yes |
| Power Consumption | Device: (30 W) |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 10 to 80% (Non-Condensing) |
General
| Certifications | CE *as per Manufacturer |
| Dimensions | 6.2 x 3.3 x 1.8" / 157 x 85 x 46 mm |
| Weight | 16.7 oz / 474 g |
Packaging Info
| Package Weight | 1.435 lb |
| Box Dimensions (LxWxH) | 9.2 x 6.3 x 3.1" |
