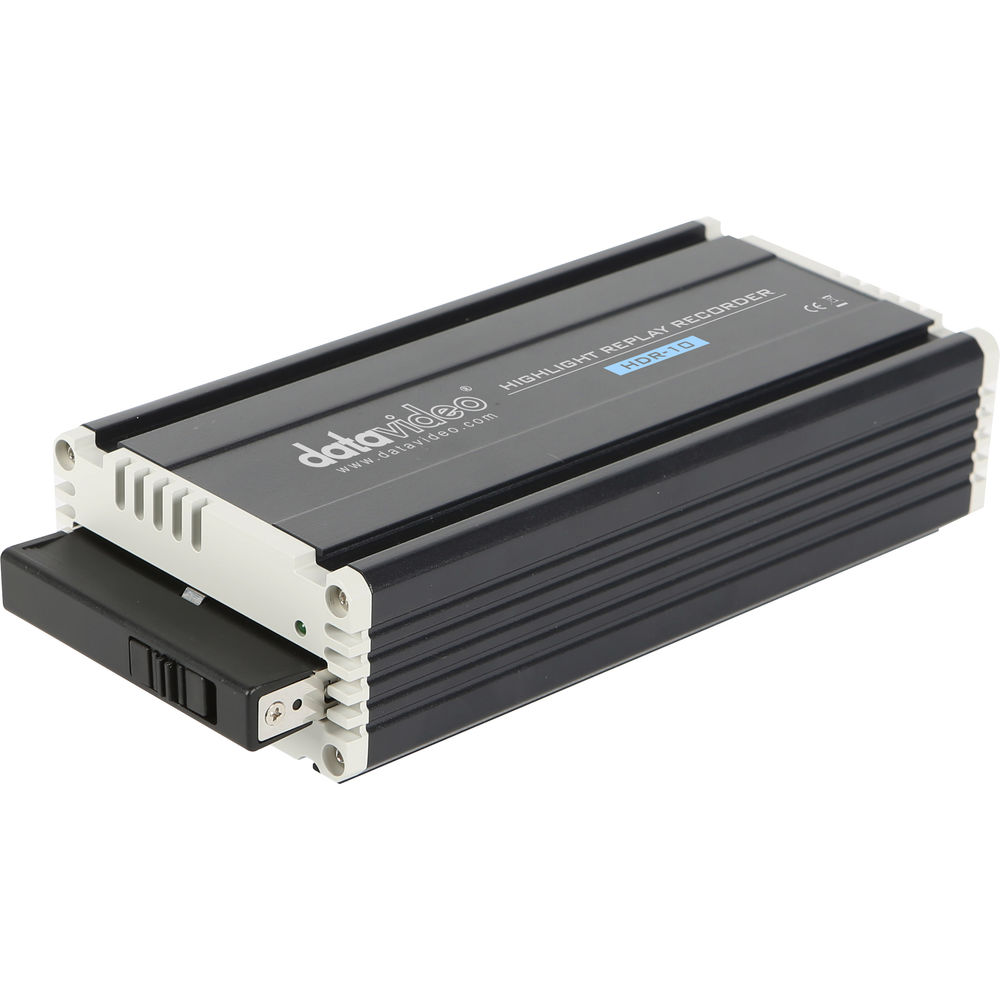

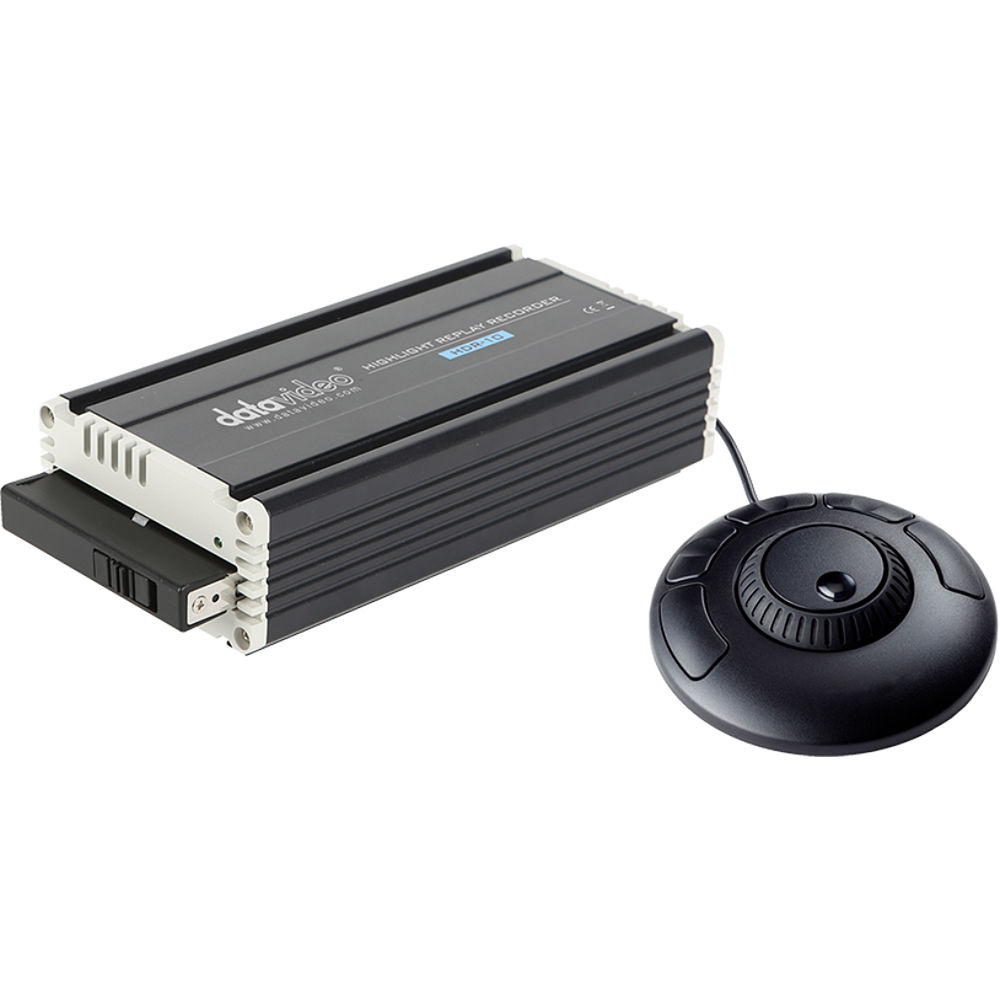

The Datavideo HDR-10 Highlight Replay Recorder with HD/SD-SDI Input and Output is a single-channel replay solution that is suitable for club teams, high school sporting events, coaches training, and smaller productions needing replay. It constantly buffers the past 30 seconds of program-out signal (or any ISO signal connected) on its internal 4GB buffer. Using a jog shuttle control (available separately), you can scan back the past 30 seconds to play at any point and at any speed on a separate monitor. In addition, the jog shuttle control lets you mark and record highlights from a sporting event, then instantly play it back on your switcher with ease. Since the HDR-10 is a standalone unit, it can be used without a switcher if only one camera is being used for an event. Video replay clips can be stored on a removable solid state drive (available separately) for future playback or highlight reel.
| Video Standard | HD & SD |
| Video Format | 720p (50/59.94/60), 1080i (50/59.94/60), 1080p (23.976/24/50/59.94/60), 480i/576i |
| Video Inputs | HD/SD-SDI |
| Video Output | Monitoring/Playback: 2 x HD/SD-SDI |
| Embedded Audio | Yes |
| Storage | Removable SSD (available separately), data transfer via USB 2.0 |
| Buffer Memory | 4 GB (buffers the past 30 sec of program-out signal (or any ISO signal connected) |
| File System Support | NTFS |
| File Format | Recorded Video: MOV Audio: Uncompressed PCM |
| Bit Rate | Video Recording: Uncompressed 10-bit 4:2:2 |
| Timecode | Via embedded SDI |
| Dimensions | 6.75 x 3.5 x 2" (17.1 x 8.9 x 5.1 cm) |
| Weight | 1 lb (0.45 kg) |
Packaging Info
| Package Weight | 3.05 lb |
| Box Dimensions (LxWxH) | 9.7 x 8 x 4.3" |
