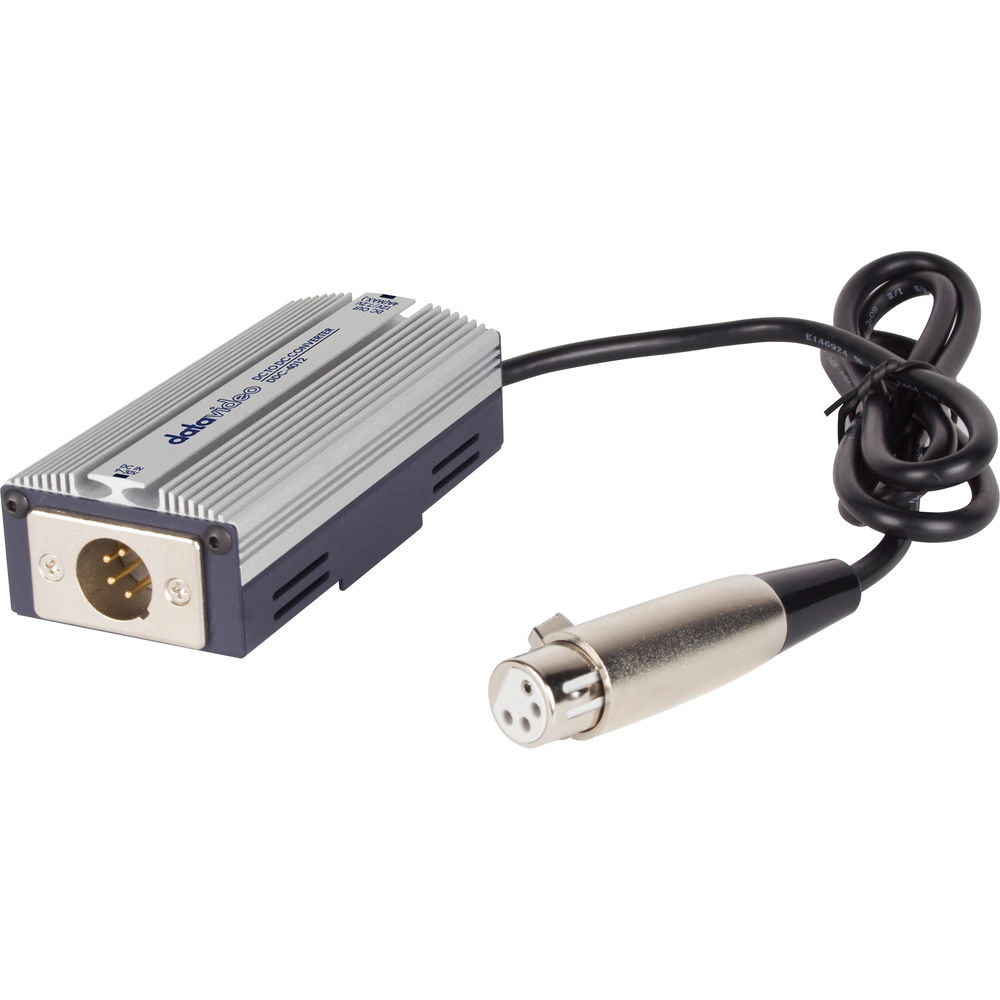

The Datavideo In-Line XLR DC to DC 9-12V Converter converts unregulated 15-50 volts DC from a 4-pin XLR source to regulated 7.2 or 12 volts DC over 5.5mm PSU or 4-pin XLR output.
| Input | Voltage Range: 15 to 50 VDC Efficiency: Up to 85% |
| Output | DC Voltage: 7.2V / 8.4V / 12V Voltage Tolerance: ±3% Rated Current: 4 A Current Range: 0 to 4 A Rated Power: 48W Ripple and Noise: <400mV |
| Protection | Overload: 105 to 150% rated output power Protection Type: Recovery automatically after fault condition is removed |

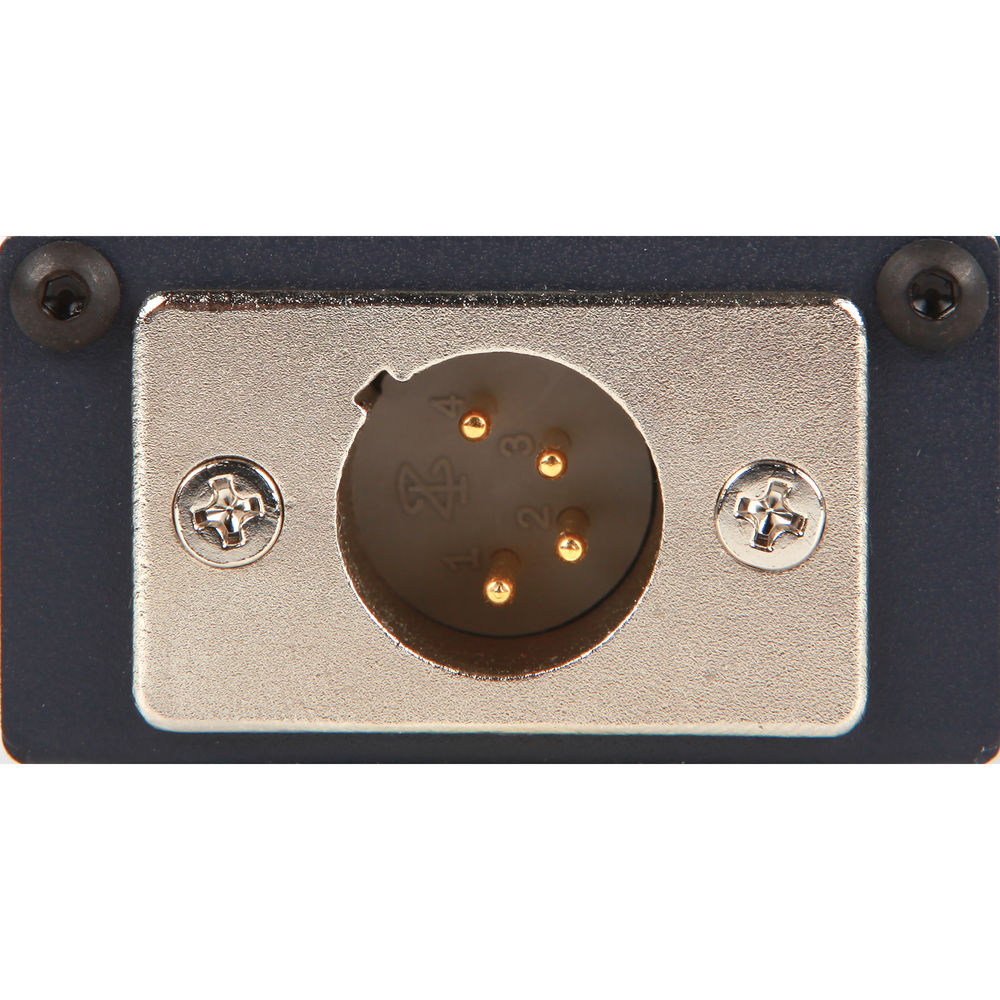

| Connector | DC Input: 4-pin XLR male DC Output: 4-pin XLR female, 5.5mm DC jack (Center: DC out, Shell: Ground) |
| Environmental | Operating Temperature: 32 to 114°F / 0 to 40°C Operating Humidity: 10 to 90% (non-condensing) Storage Temperature:-40 to 185°F / -40 to 85°C Storage Humidity: 10 to 95% RH |
| Dimensions | 4.5 x 2 x 1.4" / 115 x 50 x 35 mm |
| Weight | 10.6 oz / 300g |
Packaging Info
| Package Weight | 0.8 lb |
| Box Dimensions (LxWxH) | 6.3 x 4 x 2.2" |
