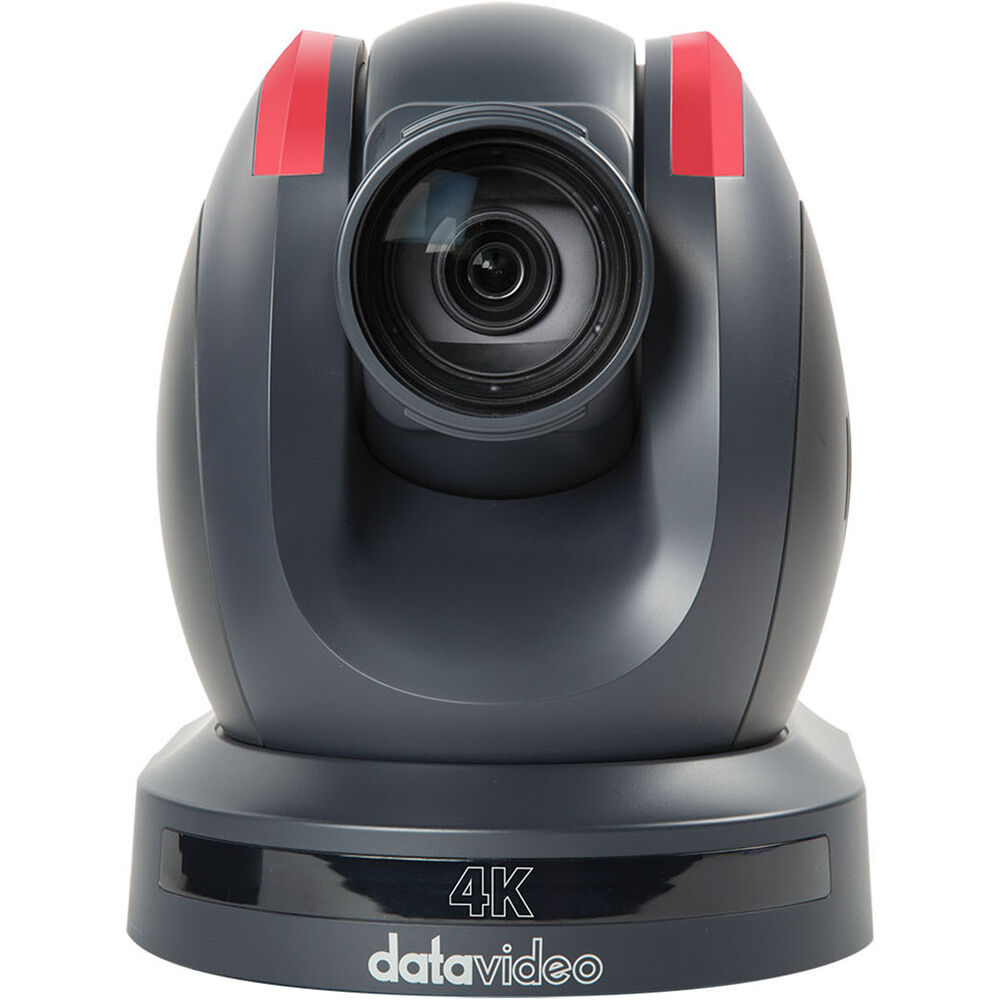

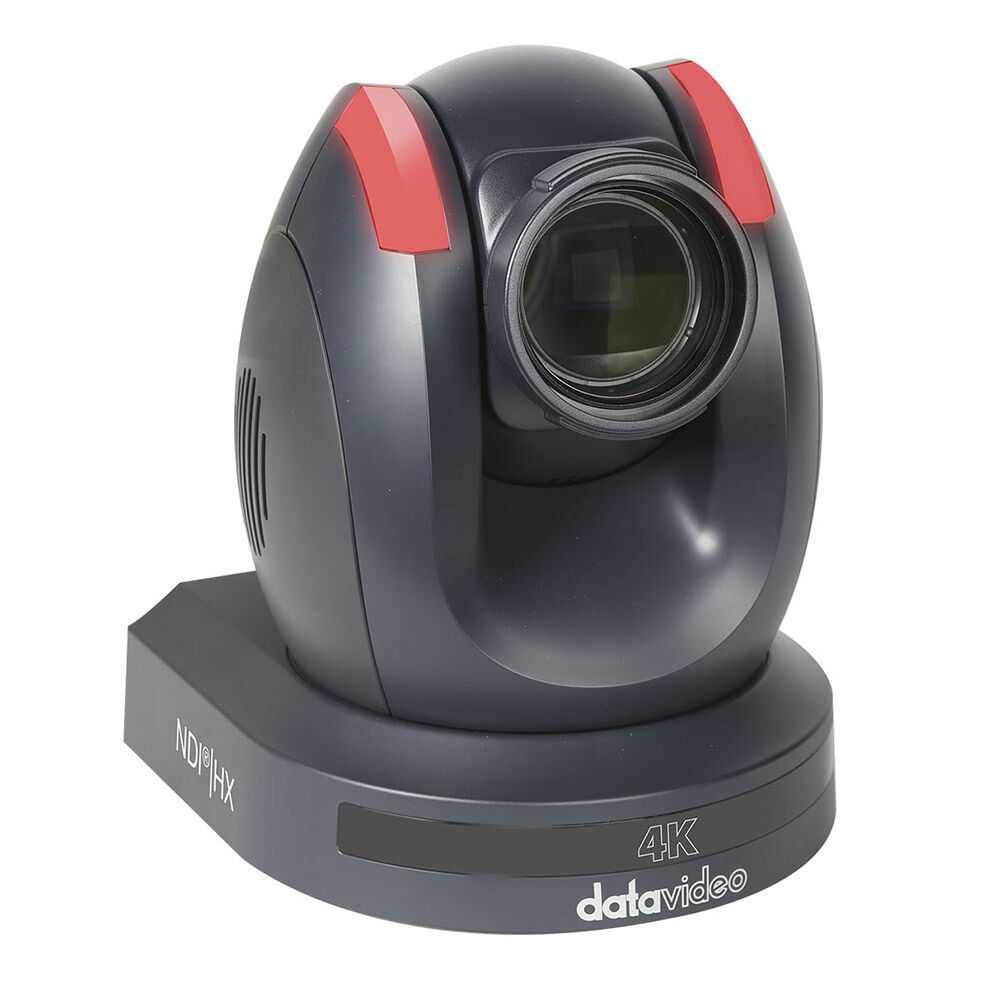

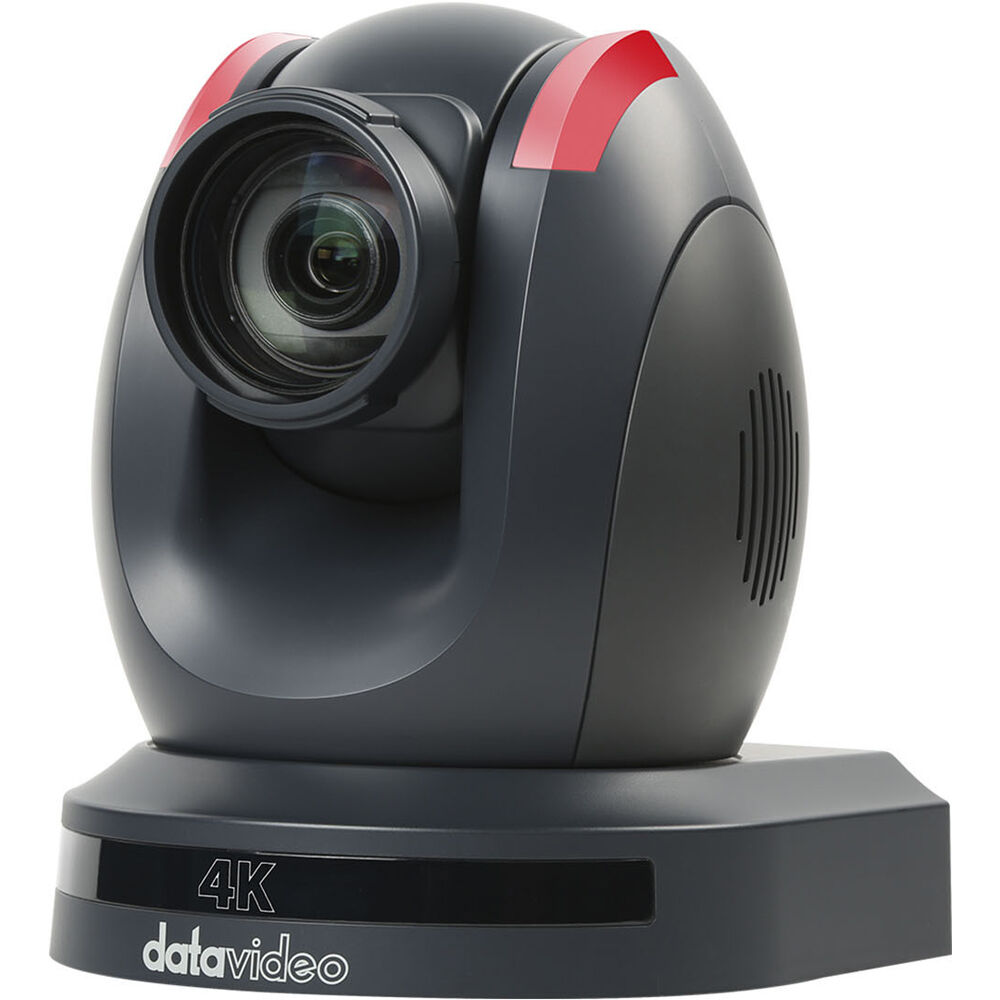

Whether you are setting up a corporate video shoot, live streaming from a house of worship, or integrating multi-camera acquisition into your broadcast facility, this black PTC-280NDI 4K HDMI/3G-SDI/NDI PTZ Camera from Datavideo provides the ideal solution while bringing together 4K resolution video with the power and simplicity of single-cable connectivity, using NDI.
Employing a powerful, 1/2.5" CMOS sensor and a 12x optical/16x digital zoom, the PTC-280NDI offers 255 preset positions and a multitude of streaming protocols, including TCP/IP, HTTP, RTSP, RTMP(S), SRT, ONVIF, DHCP, and Multicast, with H.264/H.265/MJPEG video compression. The supported NDI|HX technology allows you to transfer video, audio, tally, control, and PoE (Power-over-Ethernet) over a single Ethernet cable, while HDMI and 3G-SDI connectivity provide you with options to send your signal to a video switcher, external recorder, and/or imaging display. Add audio coming from an external microphone or an audio mixer into your program, using the 3.5mm mic/line input or the embedded digital audio in the AAC compression format.
A standard 1/4"-20 mounting thread at the bottom of the camera enables you to set it up on a tripod or, if you prefer, to mount the camera on a wall; the separately available WM-1, WM-10, or WM-11 wall mount kits are all compatible with the PTC-280NDI.
2D/3D Noise Reduction Technology
Reduces noise while ensuring sharper imaging, especially in lower light conditions
Simultaneous High-Resolution Video Outputs
Up to UHD 4K from HDMI and NDI output and up to 1080p60/50 from 3G-SDI
SRT Ready
Fully supported by SRT and Datavideo's own dvCloud for reliable live streaming workflows
Wide Field of View
Provides a 71° field of view for wide shots

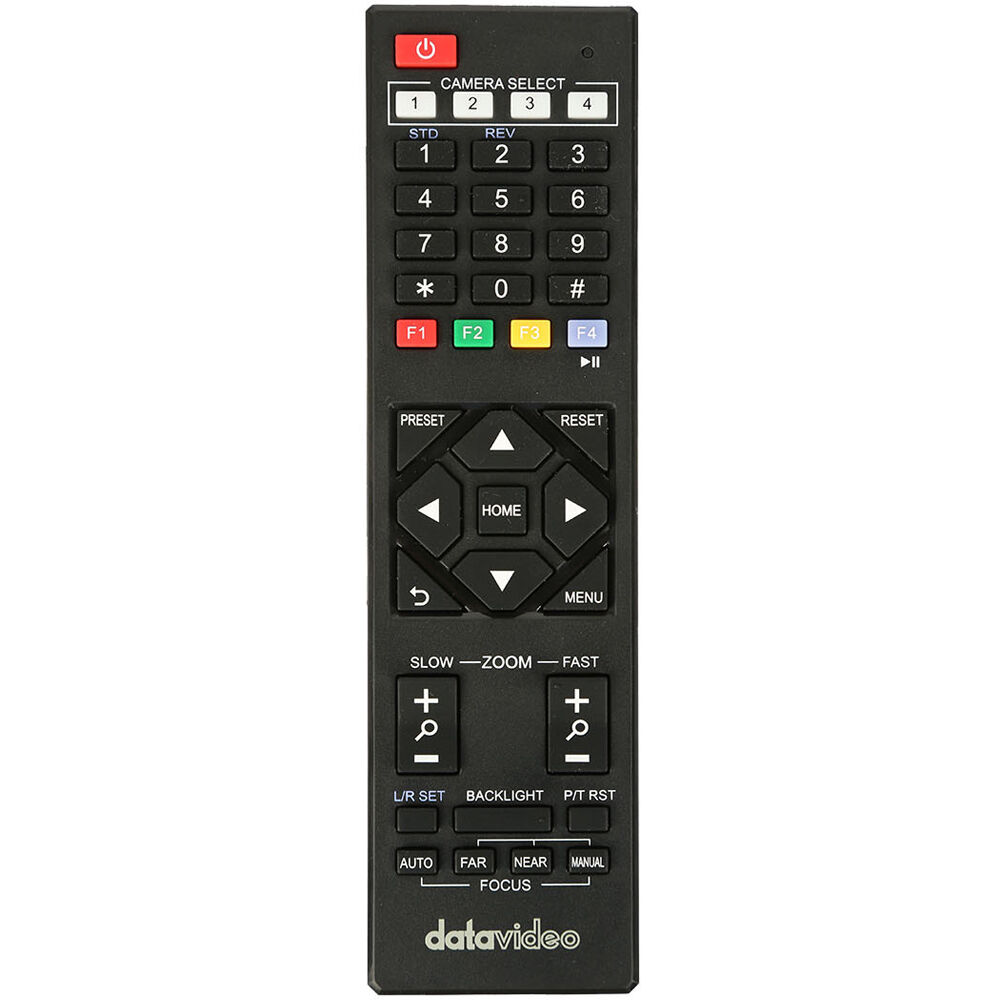

Multiple Remote Control Options
Easily controlled via RS-422 serial port, DVIP and VISCA over IP, or any NDI controller
Imaging
| Image Sensor | 1/2.5"-Type CMOS |
| Sensor Resolution | Effective: 8.51 Megapixel |
| Built-In ND Filter | None |
| Focus Control | Autofocus Manual Focus |
Exposure Control
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/10000 to 1/30 Second |
| Signal-to-Noise Ratio | 55 dB |
| Minimum Illumination | 0.5 Lux |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| White Balance | 2500 to 8000K Presets: Auto, Indoors, Manual, One Push, Outdoors |
Lens
| Focal Length | 4.4 to 52.8mm |
| Optical Zoom Ratio | 12x |
| Max Digital Zoom | 16x |
| Field of View | Horizontal: 71° |
| Maximum Aperture | f/1.8 to 2.6 |
Video Capture
| External Recording Modes | HDMI 3840 x 2160 at 25/29.97/50/59.94 fps 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps SDI/BNC 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps |
| Broadcast Output | NTSC/PAL |
| IP Streaming | H.264, H.265, MJPEG, NDI|HX, ONVIF, RTMP, RTSP, TCP 3840 x 2160 1920 x 1080 1280 x 720 1024 x 576 960 x 540 720 x 576 720 x 480 720 x 408 640 x 480 640 x 360 480 x 270 320 x 240 |
Control
| Presets | 255 via IR, RS-232, VISCA |
| Move Speed | Pan: 0.87 to 43°/sec Tilt: 0.69 to 21.32°/sec |
| Movement Range | Pan: 300° Tilt: 145° (-15 to 130°) |
| Tally Light | Yes |
| Supported Control Protocols | DVIP IP IR NDI Pelco-D Pelco-P RS-232 VISCA |

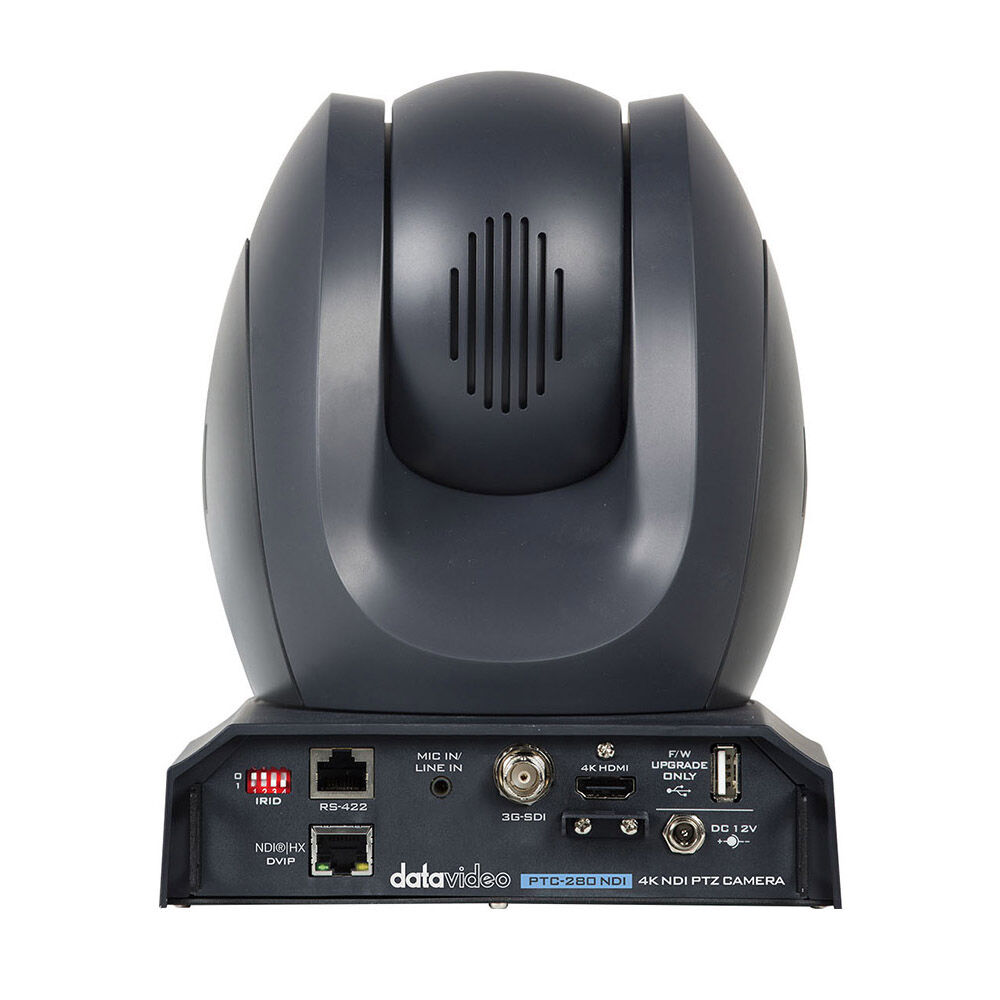

Interface
| Video I/O | 1 x HDMI 2.0 Output 1 x BNC (3G-SDI) Output 1 x RJ45 (NDI) Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Mic/Line Input |
| Other I/O | 1 x RJ45 (RS-422) Control Input 1 x RJ45 (DVIP, LAN) Control Input 1 x USB-A Input |
| Built-In Speaker | No |
Power
| PoE Support | PoE 802.3af |
| Power I/O | 1 x Barrel (12VDC) Input |
| Power Consumption | Device: 12 W |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
General
| Mounting | 1 x 1/4"-20 Female |
| Mobile App Compatible | Yes: Android & iOS App Name: DVIP Network Config Functionality: Setup *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| Certifications | FCC Part 15 *as per Manufacturer |
| Dimensions (W x H x D) | 6.8 x 8.6 x 7.4" / 17.3 x 21.9 x 18.91 cm |
| Weight | 6.2 lb / 2.8 kg |
Packaging Info
| Package Weight | 9.26 lb |
| Box Dimensions (LxWxH) | 14.2 x 12 x 10.9" |
