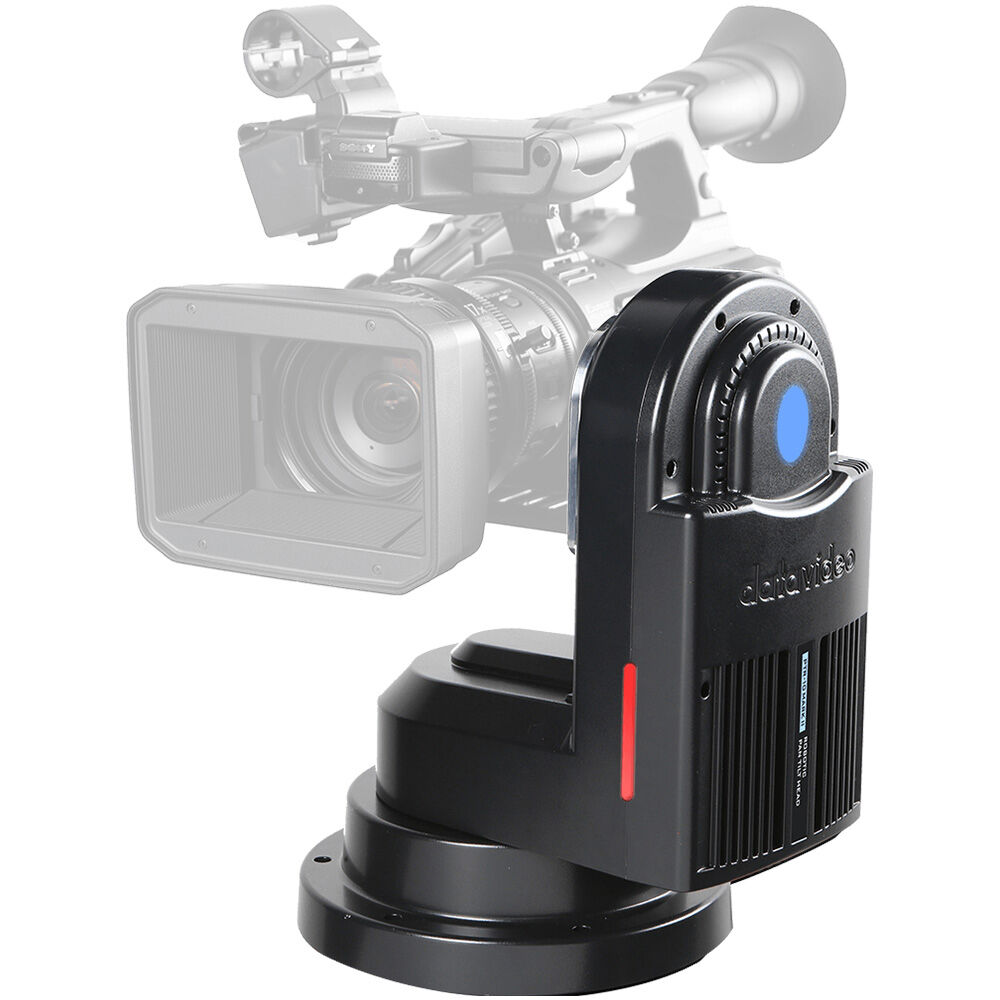

Bring the remote control functionality to your own non-PTZ camera with the PTR-10 MK II Robotic Pan Tilt Head from Datavideo. More than just a motorized head, the PTR-10 MK II interfaces with PTZ-compatible control systems, allowing you the same kind of experience. From pan and tilt control to powering your camera and controlling its zoom lens via LANC or other protocols, this head is a compact PTZ solution for cameras weighing up to 8 lb.
The head easily mounts to most tripod legs and with an optional bracket, it can be mounted on a wall or ceiling. It can send your camera's video output to external video displays, switchers, and controllers such as the RMC-180 series or RMC-300A while also receiving control information for pan and tilt operations via VISCA, DVIP, RS-422, or an included IR remote control. The head is equipped with LED indicators, a tally light, and a remote port that allows you to adjust the zoom and focus of select camera lenses. It is powered by the included 12 VDC power adapter and can supply power to the attached camera or accessories, using its D-Tap output with selectable power voltage and includes a D-Tap to lockable camera power connector for use with a variety of Datavideo block cameras.
| Pan & Tilt Range | Pan: 340° Tilt: ±45° |
| Pan & Tilt Speed | Pan: 0.12~15°/Sec Tilt: 0.06~10°/Sec |
| Preset Positions | Pan: 50 Tilt: 50 |
| Load Capacity | 8.82 lb / 4 kg |
| Supported Video Formats | SDI: 6G HDMI: 1.4 |
| Control | Protocols Visca DVIP Units IR RMC-180 (Not Included) RMC-300A (Not Included) Output RS-232 RS-422 BX-Lens LANC |

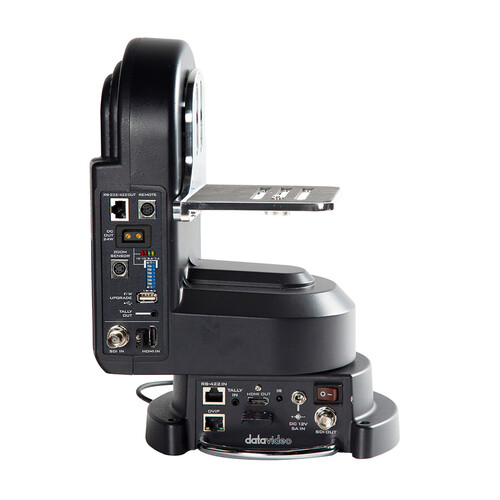

| Connections | Video SDI Input: 1 x BNC SDI Output: 1 x BNC HDMI Input: 1 x Type-A HDMI Output: 1 x Type-A Control Remote Port for Camera: 1 x 8-Pin Mini-DIN RS-232/422 Input: 1 x RJ45 RS-232/422 Output: 1 x RJ45 TAlly: 1 x port Zoom Sensor: 1 x 4-Pin Mini-DINDC Out: 1 x D-Tap |
| Power | Input Voltage 12 to 18 VDC Draw With Camera: 5A Without Camera: 3A Output Voltage 12, 10, 8.4, 7.4 Output Power 24 W Max |
| Environmental | Operating Temp: 32 to 104°F / 0 to 40°C Humidity: 10 to 80% Storage Temp: 14 to 140°F / -10 to 60°C Humidity: 5 to 80% |
| Dimensions | 11.81 x 9.06 x 7.48" / 30 x 23 x 19 cm |
| Weight | 7.5 lb / 3.4 kg |
Packaging Info
| Package Weight | 11.53 lb |
| Box Dimensions (LxWxH) | 15 x 12.9 x 12.1" |
