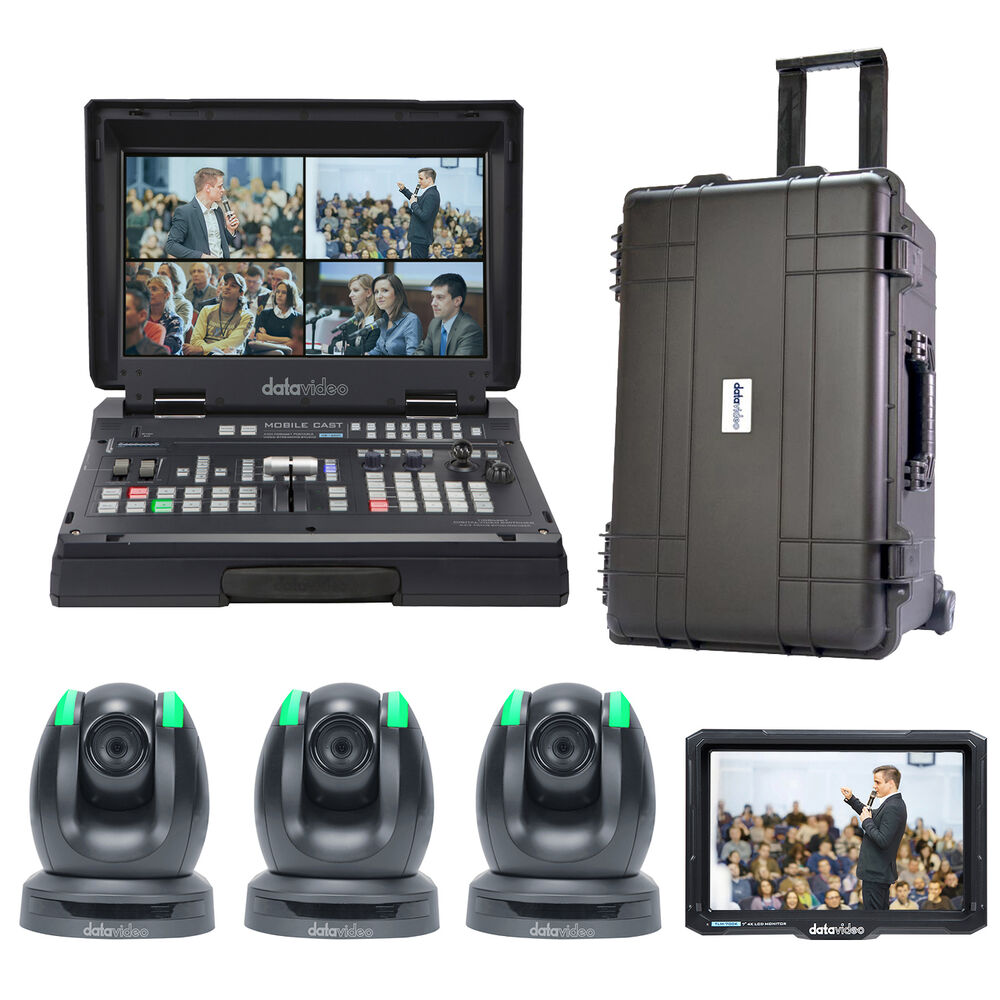

Datavideo Streaming Studio Kit with 4-Ch Mobile Switcher, 3 x PTZ Cameras, Monitor & Case

Built-in HDBaseT technology allows for control of up to three PTC-150T/140T PTZ cameras

Support multiple bit rates for recording to SD card and streaming function

One-button setup for recording and streaming

Broadcast quality H.264 network streaming over Cat 6 Ethernet cable

Four video inputs: three RJ45 HDBaseT for cameras and one HDMI graphic input

Pan, tilt, and zoom with speed control via joystick

Three HDMI program video outputs

Analog audio inputs: Two 3-pin XLRs and one L/R 2RCA pair

Flexible mix/effects: PiP, wipe, mix, fade

Tally output

Datavideo PTC-150TL HD/SD-SDI HDBaseT PTZ Camera (No Receiver, Black)

The black PTC-150TL HD/SD HDBaseT PTZ Camera (No HDBaseT Receiver) from Datavideo captures up to 1080p HD video and features HDBaseT technology for remotely controlling the camera via Cat 6 or above cable. Configured specifically for use with the HS-1500T HDBaseT Production Switcher, the PTC-150TL does not include an HDBaseT receiver.

PTC-150TL video capture functions include wide dynamic range, backlight compensation, and digital noise reduction for detailed imaging. Features include 30x optical zoom, 50 programmable presets, and an IR cut filter for optimal low-light performance. Adjust the camera to your choice of multiple mounting options with the help of the image mirror and rotation functions.

For multi-camera shoots, the built-in green/red tally light can be used to signal when the camera is active. Virtual studio applications benefit from the PTC-150TL's support for real-time position reporting on a per frame basis. The PTC-150TL camera supports Sony VISCA protocol for PTZ control using RS-422 interface over the unit's RJ45 port.

Features

• Capture up to 1080p HD video with wide dynamic range, and backlight compensation
• The 30x, 4.3 to 129mm, f/1.6 to 4.7 zoom lens captures detail from near or far positions
• HDBaseT compatibility enables cable video, power, control, and tally using a single Cat 6 cable, and separately available HDBaseT components
• Create up to 50 preset pan, tilt, and zoom position combinations
• An IR cut filter, and digital noise reduction enhances capture, even in low-light environments
• Auto/manual iris and white balance options enable individual calibration for multi-camera setups
• Built-in dual tally with red and green LEDs
• Compatible with the Datavideo RMC-180 camera control unit
• Day and night image-compensation functions
• Firmware updates via USB port

Datavideo Wheeled Trolley-Style Water-Resistant Case for 3 PTZ Cameras (XXL)

The XXL Wheeled Trolley-Style Water-Resistant Case for 3 PTZ Cameras from Datavideo features a pre-cut foam that holds three PTC-140 or PTC 150 cameras and cables. This allows you to safely nestle your cameras, cables, and accessories into the case. The case is a trunk-shaped, hard-shell case that is water-, dust-, and crush-resistant. Integrated padlock inserts and rubber seals provide additional security. You can wheel the case along using the retractable handle or grasp it using the large, hinged top handle.

Features

• Trunk-style wheeled case with a custom-cut foam interior, a retractable handle, and a hinged top handle
• Water-, dust-, and crush-resistant hard case with rubber seals and padlock inserts

Datavideo 7" 4K HDMI LCD Monitor for Professional DSLR and Camcorder

The TLM-700K 7" 4K HDMI LCD Monitor from Datavideo is a 16:9 aspect ratio LCD monitor designed for professional DSLRs and camcorders. This 7" Full HD monitor features 1920 x 1200 resolution and HDMI input and loop-through output. The mini-USB port is used exclusively for firmware updates. The monitor operates via its internal rechargeable battery or by the included external power supply. The TLM-700K monitor offers a wide range of professional features including focus assist (peaking), false color filters, a variety of screen markers, underscan mode, check field, and pixel-to-pixel mode.

Accurate Manual Focusing

The red/green/blue peaking profile helps users determine if the focus is accurate, and it enables to preview shooting, recording, and playback.

False Color Display

Assists users to observe and calculate the brightness level in the video and judge if it is necessary to adjust the parameter settings of the camera exposure.

Check Field

Provides monochrome, red, green, and blue modes for easy color recognition and correction.

Zoom-In

Zoom-In to 1.5X/2X/3X/4X to view shooting details for adjustment.

Various Built-In Functions

Support for focus assist, false color, histogram, exposure, zoom, pixel-to-pixel, underscan, and check field.

Dual Power Modes

Power is available by adapter or battery.

Foldable Sun Hood

The foldable sun hood lined with fleece makes it easy to monitor the screen in the sun.

Screen Flip Function

Vertical and horizontal screen flip is compatible with tripod, arm, or cage and convenient for viewing from multiple angles.

Safety Marker and Aspect Marker

Safety marker: 95 / 93 / 90 / 88 / 85 / 80%
Aspect Marker: 16:9 / 1.85:1 / 2.35:1 / 4.3 / 3:2
