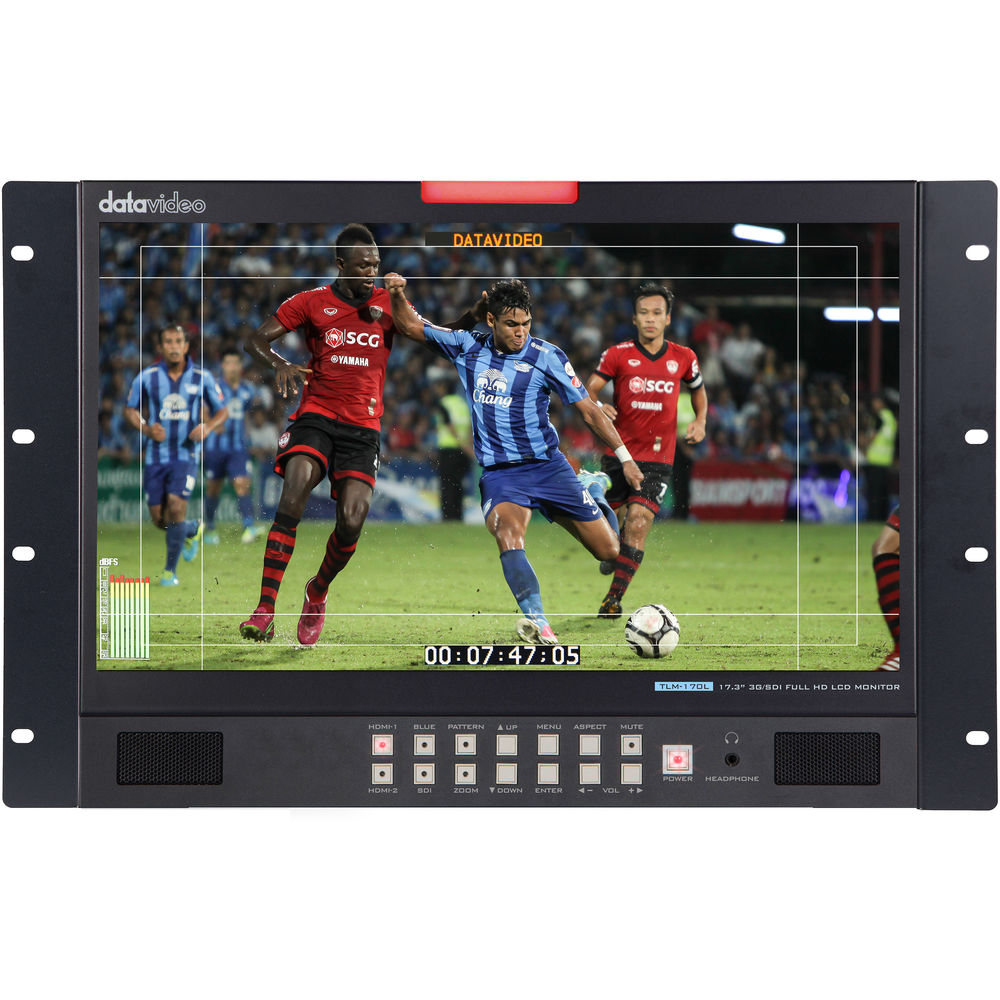

The TLM-170LR 17.3" Full HD Rackmount Monitor from Datavideo features a 1080p display and supports up to 1080p60 video via a 3G/HD/SD-SDI input, two HDMI inputs, and an SDI loop-through output. The monitor features a dual-color LED tally light on the front at the very top, indicating live or cued status. Other features include pixel zoom up to 8x, blue only, and safe frame. The monitor comes with a 7 RU rack ear kit for rackmount installation.
Display
| Panel Type | TFT LCD |
| Display Size | 17.3" / 43.9 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 140° (70/70) Vertical: 120° (60/60) |
| Touchscreen | No |
| Maximum Brightness | 300 nits / cd/m2 |
| Contrast Ratio | 400:1 |
| Pixels Per Inch (ppi) | 127 ppi |
| Video I/O | 1 x BNC (3G-SDI) Input 2 x HDMI Input 1 x BNC (3G-SDI) Loop Output |
| Embedded Audio | SDI HDMI |
| Audio I/O | None |
| Built-In Speaker | None |
| Media/Memory Card Slot | None |
Format Support
| Video Format | SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24 1080i: 60/59.94/50 720p: 60/59.94/50 576i 480i HDMI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24 1080i: 60/59.94/50 720p: 60/59.94/50 576i 480i |
Power
| Battery Type | None |
| Power Consumption | 16 W (Maximum) |
Mounting
| Rack Form Factor | 7 RU |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
General
| Dimensions | 15.9 x 12 x 1.6" / 40.3 x 30.5 x 4.1 cm |
| Weight | 9.04 lb / 4.1 kg |
Packaging Info
| Package Weight | 12.6 lb |
| Box Dimensions (LxWxH) | 28.5 x 16 x 6.5" |
