Categories: Wireless Microphone Systems
Part of DJI's Mic 3 wireless system, the Camera-Mount Wireless Receiver is a compact, 2-channel receiver available individually to expand your existing setup or serve as a backup. It supports stereo and mono audio channels and can be paired with up to four Mic 3 transmitters and seven additional receivers for multi-person audio capture across a variety of production environments. The receiver features support for both timecode input and output for improved postproduction workflows.

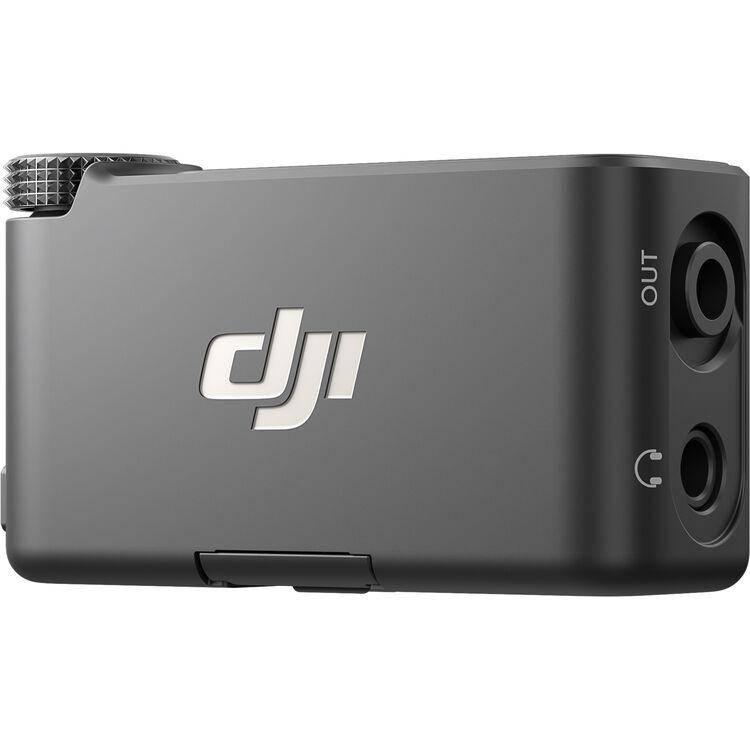

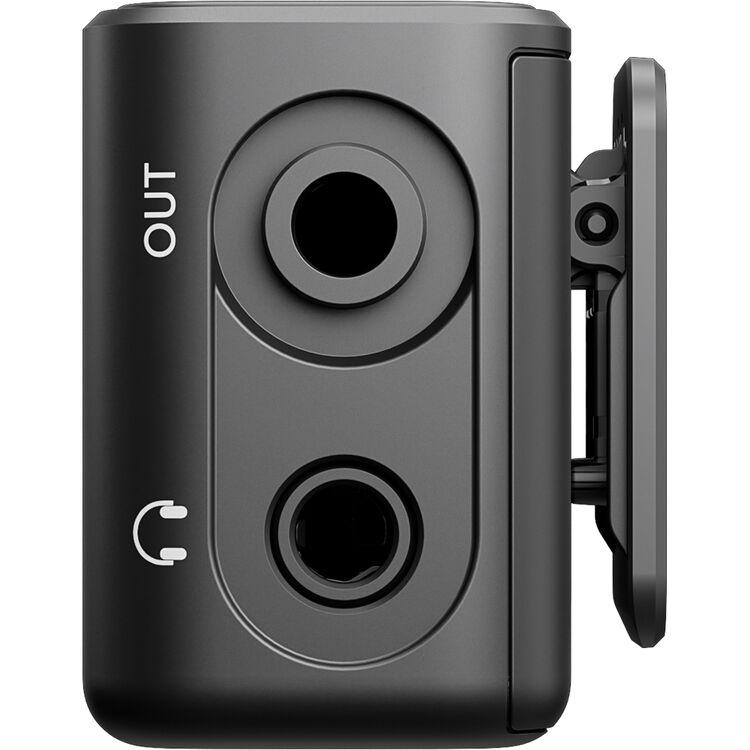

A 3.5mm TRS output allows direct audio recording to your camera, while a dedicated 3.5mm headphone jack provides real-time monitoring. An included USB-C adapter allows you to plug it directly into your mobile device. Purchase the separately available Mic Series Camera Adapter for direct compatibility with Sony MI shoes. Dual-band wireless and Bluetooth 5.4 technology ensure communication from up to 1312' away. An AMOLED touchscreen and onboard controls let you adjust parameters directly from the receiver. Further control is available via the DJI Mimo mobile app. The built-in rechargeable battery delivers up to 10-hour runtime.
Additional Details
Key Specs
| Wireless Technology | Digital 2.4 GHz / Digital 5.8 GHz / Bluetooth |
| Diversity | Non-Diversity |
| Max Operating Range | 1312.3' / 400 m (Line of Sight) 262.5' / 80 m (with Obstruction) |
| Receiver Type | 1x Camera-Mount |
| Number of Audio Channels | 2 |
| Included Transmitters | No Transmitters Included |
| Microphone Type | No Microphone Included |
| Included Charging Case | No, Available Separately |
System
| Wireless Technology | Digital 2.4 GHz / Digital 5.8 GHz / Bluetooth |
| Diversity | Non-Diversity |
| RF Frequency Band | 2400 to 24,835 MHz / 5150 to 5250 MHz / 5250 to 5350 MHz / 5470 to 5725 MHz / 5725 to 5850 MHz |
| Max Operating Range | 1312.3' / 400 m (Line of Sight) 262.5' / 80 m (with Obstruction) |
| Max Transmitters per Band | 4 |
| Built-In Recorder | No |
| Timecode Support | Yes |
| Mobile App Compatible | Yes: Android & iOS App Name: DJI Mimo |
Receiver
| Receiver Type | 1x Camera-Mount |
| Mounting Options | Shoe-Mount (with Included Hardware) USB-C Plug-In (with Included Adapter) |
| Antenna | 1x Internal |
| Number of Audio Channels | 2 |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Unbalanced Output |
| Network I/O | No |
| USB/Lightning Connectivity | 1x USB-C Female |
| Display | OLED |
| Power Requirements | Battery |
Transmitters
| Included Transmitters | No Transmitters Included |
Microphones
| Microphone Type | No Microphone Included |
Power
| Receiver Battery Type | 1x Built-In Rechargeable - 275 mAh |
| Receiver Battery Life | 10 Hours |
| Battery Charging Time | 50 Minutes |
| Included Charging Case | No, Available Separately |
| AC/DC Power Adapter | No |
| Input Power | 5 VDC |
Physical
| Environmental Resistance | No |
| Dimensions | 2.1 x 1.1 x 0.9" / 53.9 x 28.7 x 22 mm |
| Weight | 0.9 oz / 25.1 g |
