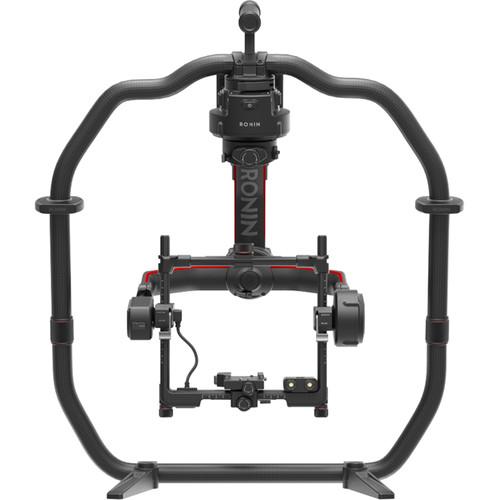

DJI Ronin 2 Professional Combo (2024)
Categories: Tripods, Supports & Rigs , Tripods, Supports & Rigs

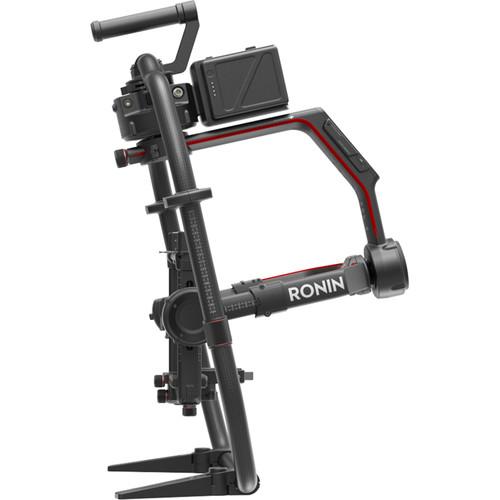

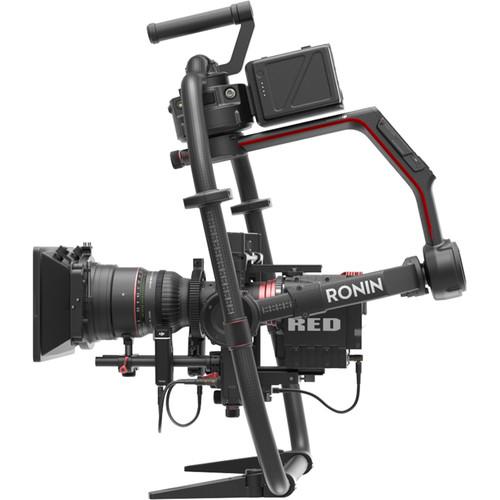

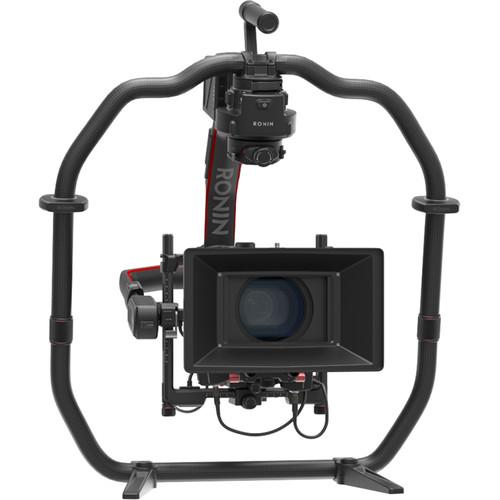

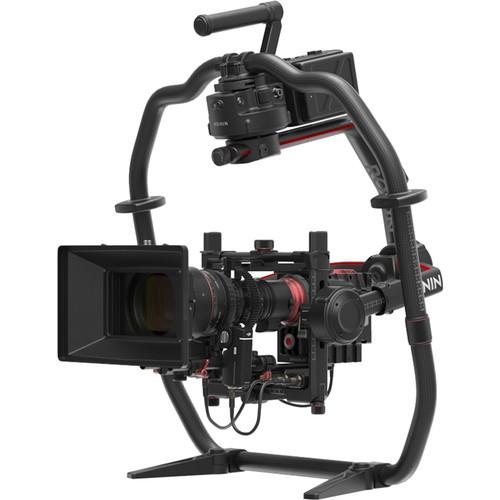

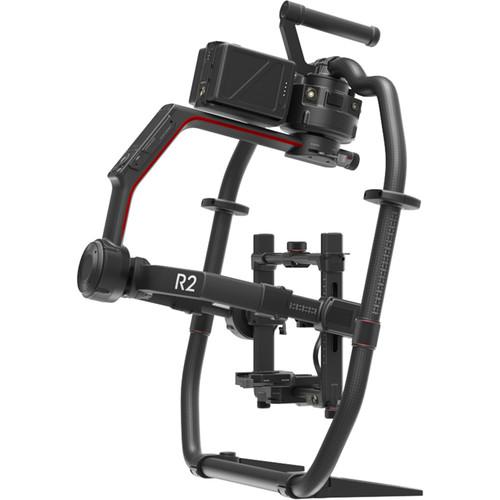

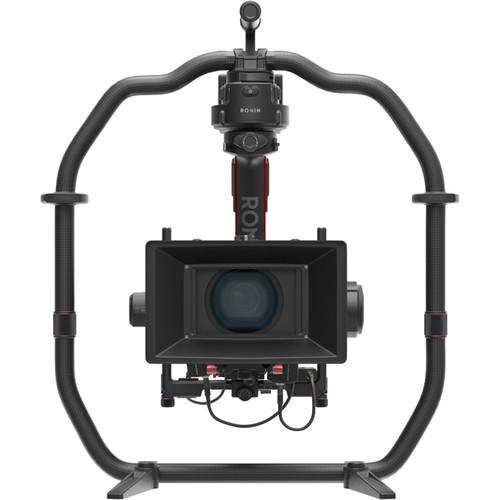

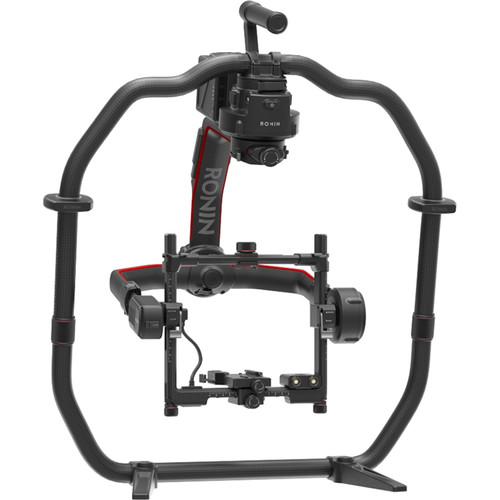

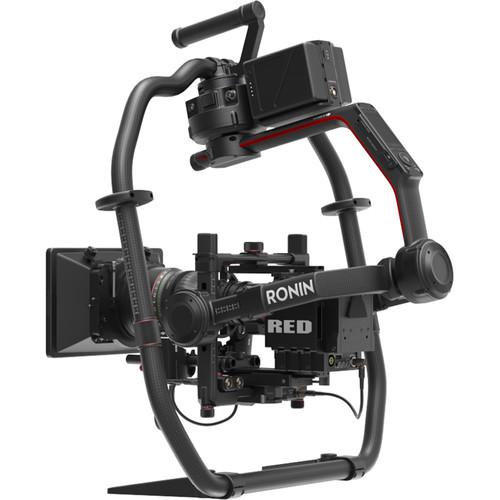

The versatile Ronin 2 Professional Combo (2024) gimbal from DJI is suitable for use either handheld or mounted in a variety of ways, including onto a drone, Steadicam, vehicle mount, and more. An update from the original Ronin, this motorized stabilization system is suitable for a range of camera and lens configurations, boasting a payload capacity of 30 pounds. This means it can be used for everything from DSLRs up to cinema cameras such as the ARRI ALEXA Mini or Sony FS7.
The Ronin 2 supports a range of cameras from DSLRs to cinema cameras, even with high-grade lenses and other accessories mounted. The maximum horizontal length between the camera mounting base center and the roll axis should not exceed 9.64", the width of the camera should not exceed 7.1", and the height should not exceed 6.5".
Compatible camera/lens configurations include:
DJI Ronin 2 Specs
Key Specs
| Gimbal Design | Handheld Ring with Dual Handgrip |
| Load Capacity | 30 lb / 13.6 kg |
| Number of Axes | Three: Pitch (Tilt) / Roll / Yaw (Pan) |
| Camera Control | On Compatible Models |
| Mobile App Compatible | Yes (Required): Android & iOS |
| Display Type | Fixed Touchscreen LCD |
| Dimensions | 28.3 x 24.8 x 16.4" / 720 x 630 x 416 mm (with Handlebar) 20.9 x 16.4 x 13.8" / 530 x 416 x 350 mm (without Handlebar) |
| Weight | 12 lb / 5.5 kg (with Handlebar) 9 lb / 4.2 kg |
Gimbal
| Load Capacity | 30 lb / 13.6 kg |
| Number of Axes | Three: Pitch (Tilt) / Roll / Yaw (Pan) |
| Rotation Range | Controllable Range Yaw (Pan): 360° Roll: 60° (-30 to 30°) Pitch (Tilt): 170° (-135 to 135°) Mechanical Range Yaw (Pan): 360° Roll: 440° (-220 to 220°) Pitch (Tilt): 170° (-135 to 135°) |
| Follow Speed | Pan: 400°/s Tilt: 360°/s Roll: 360°/s |
| Stabilization Accuracy | ±0.02° (Motionless) |
Compatibility
| Camera Control | On Compatible Models |
| Camera Compatibility | Universal Width: 7.1" / 18 cm Height: 6.5" / 16.5 cm |
Connectivity
| Inputs/Outputs | 1x D-Bus Input 1x USB-C 4x Proprietary (Power) Output 2x Proprietary (Power) Output 1x D-Tap (Power) Output |
| Mobile App Compatible | Yes (Required): Android & iOS App Name: DJI Ronin |
Battery
| Battery Type | 1x Lithium-Ion Polymer |
| Battery Runtime | 2.5 to 8 Hours |
General
| Display Type | Fixed Touchscreen LCD |
| Operating Conditions | -4 to 122°F / -20 to 50°C |
| Dimensions | 28.3 x 24.8 x 16.4" / 720 x 630 x 416 mm (with Handlebar) 20.9 x 16.4 x 13.8" / 530 x 416 x 350 mm (without Handlebar) |
| Weight | 12 lb / 5.5 kg (with Handlebar) 9 lb / 4.2 kg |
