Innovative 0, 90, and 360° Probe Zoom

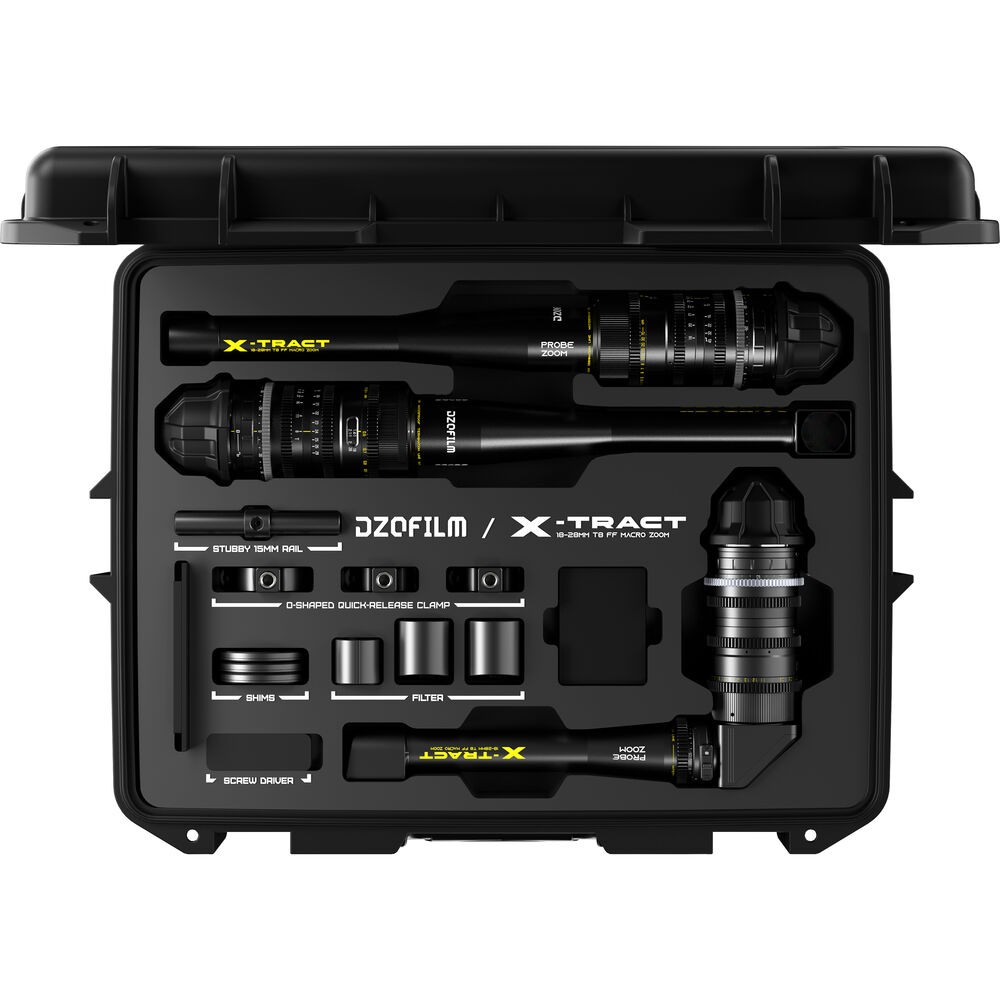

Offering a 100 to 73° field of view, the ARRI PL-mount, X-Tract 18-28mm T8 FF Probe Zoom Lens from DZOFilm brings innovative close-up capture to your productions. This compact probe lens includes 0, 90, and 360° tubes for maximum flexibility. It measures just 16.3" in length and has a front outside diameter of less than 1.2", making it ideal for tight setups. It features a relatively fast T8 maximum aperture, a 2.1:1 maximum magnification, and a 0.24" minimum focusing distance.
Wide 18-28mm Zoom
0, 90, and 360° View Tubes
Close Capture in Narrow Spaces
Low-Distortion, High-Resolution Optics
T8 Maximum Aperture
Waterproof, Cine-Style Design
| Maximum Aperture | T8 |
| Minimum Aperture | T22 |
| Lens Mount | ARRI PL |
| Interchangeable Mount | No |
| Lens Format Coverage | Full-Frame |
| Angle of View | Full Frame Horizontal: 100 to 73° |
| Focus Scales | Metric |
| Zoom Ratio | 1.56x |
| Magnification | 2.1:1 Macro Reproduction Ratio 0.47x Magnification |
| Image Stabilization | No |
| Lens Mounting | 1x 1/4"-20 (via Included Support Foot) 3x 3/8"-16 (via Included Support Foot) |
| Gear Rotation | Focus: 300° |
| Electronic Communication | No |
| Diameter | Front: 1.2" / 30 mm |
| Length | 16.3" / 415 mm |
| Weight | 2.38 lb / 1.08 kg |
