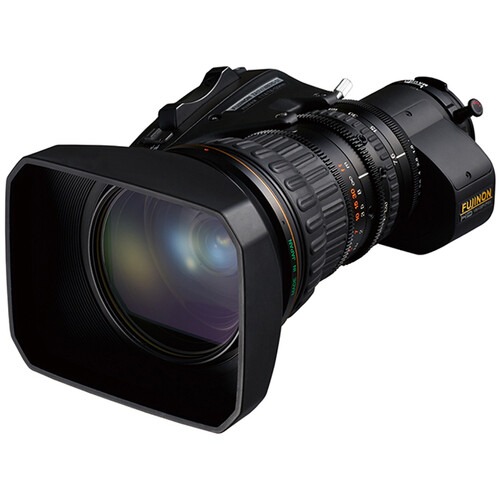

The Fujinon ZA17x7.6BERD-S10 2/3" Select Series Zoom Lens with Servo & 2x Extender provides optimal optical performance for 2/3" HD cameras. This 17x zoom has a 7.6–130mm range which doubles to 15.2–260mm when used with the built-in 2x extender. The maximum aperture is a fast f/1.8 at 7.6–102mm and f/2.3 at 130mm. The ZA17x7.6BERD-S10 lens includes an ergonomic S10 digital servo that features 16-bit encoding for use with virtual systems.
Select Series for 2/3" Cameras
This 7.6–130mm wide-to-telephoto zoom lens provides optimal optical performance for 2/3" HD cameras.
2x Extender
Provides a 15.2–260mm range when used with the built-in 2x extender.
Fast f/1.8 Maximum Aperture
A fast f/1.8 max aperture at 7.6–102mm and f/2.3 at 130mm helps to capture low-light subjects.
Digital Servo
The included S-10 digital servo offers ergonomic focus, iris, and zoom control plus 16-bit encoding for use with virtual systems.
| Sensor Compatibility | 2/3" (16:9) |
| Focal Length | 7.6 to 130mm With Extender: 15.2 to 360mm |
| Built-In Extender | 2x |
| Zoom Ratio | 17x (Servo) |
| Angle of View | 16:9 Wide: 64.5 x 39° (H x V) Tele: 4.2 x 2.4° (H x V) 16:9 With 2x Extender Wide: 35 x 20.1° (H x V) Tele: 2.1 x 1.2° (H x V) |
| Maximum Aperture | f/1.8 to 2.3 |
| Focus Type | Manual Focus, Servo |
| Iris Type | Manual, Servo |
| Filter Thread | M82 x 0.75 mm |
| Macro | Yes |
| Minimum Object Distance | 1.97' / 0.6 m Macro: 2" / 5 cm |
| Optical Image Stabilization | No |
| Certifications | CE *as per Manufacturer |
| Dimensions | 3.3 x 8.0" / 85.0 x 203.0 mm (ø x L) |
| Weight | 3.84 lb / 1.74 kg |
Packaging Info
| Package Weight | 6.45 lb |
| Box Dimensions (LxWxH) | 13.5 x 11.5 x 11" |
