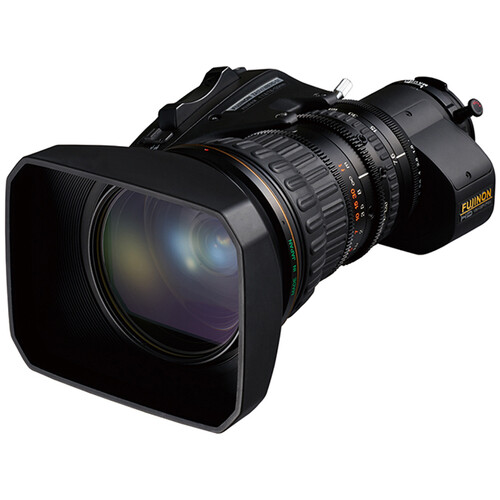

The ZA17x7.6BRD-S10 2/3" HD Select Series Lens is a 7.6-130mm ENG-style lens that provides a wide-to-telephoto angle of view for 2/3" cameras. The lens has a zoom ratio of 17x and an f/1.8 maximum aperture at 7.6-102mm. The ZA17x7.6BRD-S10 lens includes the ergonomic S10 digital servo for focus and zoom with 16-bit encoders compatible with virtual effects systems.
| Sensor Compatibility | 2/3" (16:9) |
| Focal Length | 7.6 to 130mm |
| Built-In Extender | None |
| Zoom Ratio | 17x |
| Angle of View | 16:9 Wide: 64.5 x 39° (H x V) Tele: 4.2 x 2.4° (H x V) |
| Maximum Aperture | f/1.8 to 2.3 |
| Focus Type | Manual Focus, Servo |
| Iris Type | Manual, Servo |
| Filter Thread | M82 x 0.75 mm |
| Macro | Yes |
| Minimum Object Distance | 1.97' / 0.6 m |
| Optical Image Stabilization | No |
| Certifications | CE *as per Manufacturer |
| Dimensions | 3.4 x 8.0" / 85.0 x 203.0 mm (ø x L) |
| Weight | 3.68 lb / 1.67 kg |
Packaging Info
| Package Weight | 6.375 lb |
| Box Dimensions (LxWxH) | 14.2 x 11.5 x 10.8" |
