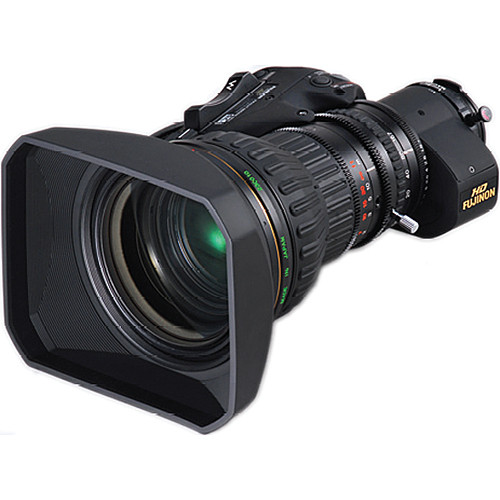

The Fujinon ZA22x7.6BRM-M6 ENG Style Lens with Servo Zoom and M6 is a 7.6-167mm lens, designed to provide 2/3" cameras with a wide to super telephoto angle-of-view. The lens has a 22x zoom ratio. The maximum aperture is a fast f/1.8 at 7.6-120mm and stops down to f/2.6 at 167mm. A 16-bit encoder and a digital servo for zoom control are also included.
Internal focusing minimizes the effects of lens breathing, ensuring a more consistent focal length when making focus adjustments. QuickZoom improves zoom speed to 0.7 seconds end to end. With the push of a button, QuickZoom facilitates a rapid shift to the telephoto end to check focus. Releasing the button automatically returns the lens to the previously selected focal length. The Zoom Limit function purposefully constrains the focal range to only desirable focal lengths.
| Sensor Compatibility | 2/3" (16:9) |
| Focal Length | 7.6 to 167mm |
| Built-In Extender | 2x |
| Zoom Ratio | 22x |
| Angle of View | 16:9 Wide: 64.5 x 39.05° (H x V) Tele: 3.28 x 1.85° (H x V) |
| Maximum Aperture | f/1.8 to 2.5 (T9 to 2.6) |
| Filter Thread | M95 x 1 mm M107 x 1 mm |
| Minimum Focus Distance | From : 3.51' / 1.07 m |
| Minimum Object Distance | 2.62' / 0.8 m |
| Dimensions | 3.9 x 8.8" / 100.0 x 222.6 mm (ø x L) |
| Weight | 3.86 lb / 1.75 kg |
