Hollyland Astra P1
Hollyland Astra P1
Hollyland Astra P1
Hollyland Astra P1
Hollyland Astra P1
Hollyland Astra P1
Hollyland Astra P1
Hollyland Astra P1
Hollyland Astra P1
Hollyland Astra P1
Hollyland Astra P1
Hollyland Astra P1
Hollyland Astra P1
Hollyland Astra P1

Hollyland Astra P1

Brand: Hollyland

MFR: Astra P1

SKU: SF-2443-BLAD

7,350.00 ﾹ

Key Features
  • 1/1.8" High-Quality 8.42MP CMOS Sensor
  • 30x Optical/16x Digital Zoom
  • HDMI and 3G-SDI Connectivity
  • UHD 4K60 Resolution, AI Auto Tracking
  • Supports NDI HX3
  • Intelligent Face Detection AE
  • 255 Preset Positions with 0.1° Accuracy

Items Included

  • Hollyland Astra P1 UHD 4K PTZ Camera with 30x Optical Zoom
  • Remote Control
  • Power Adapter
  • USB-B to USB-A Cable
  • RS-232 Cable
  • Wall Mount Bracket
  • Ceiling Mount Bracket
Not in stock - Order now and we'll deliver when available - Normally ships in 3-4 weeks or less
Quantity

Categories: PTZ Cameras & Solutions

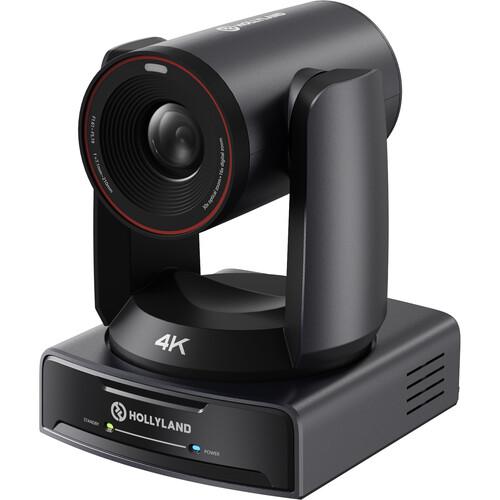

Hollyland Astra P1 UHD 4K PTZ Camera

Capture stunning UHD 4K video with the Astra P1 PTZ Camera, featuring an 8.42MP CMOS sensor, 30x optical zoom, AI auto-tracking, intelligent face detection AE, and NDI HX3 support. With HDMI and 3G-SDI connectivity, 60 fps 4K recording, and 255 preset positions with 0.1° accuracy, it’s designed for professional live events, houses of worship, and presentation venues.


Hollyland Astra P1 PTZ Camera — Specifications

Key Features

  • Image Sensor: 1/1.8" CMOS
  • Effective Resolution: 8.42 Megapixels
  • Optical Zoom: 30x
  • Digital Zoom: 16x
  • Maximum Video Output:
    • HDMI: Up to UHD 4K 60fps
    • SDI/BNC: Up to 1080p 60fps
  • Streaming Protocols: DHCP, HTTP, NDI|HX3, RTMP, RTMPS, RTSP, SRT, TCP
  • IP Streaming Resolution: 320 × 240 to 3840 × 2160
  • PoE Support: PoE+ IEEE 802.3at
  • Recording: Not supported

Imaging

  • Sensor Type: 1/1.8" CMOS
  • Effective Sensor Resolution: 8.42 MP
  • Signal-to-Noise Ratio: 55 dB
  • Minimum Illumination: 0.5 Lux (f/1.8 aperture)
  • Image Controls:
    • Image Flip
    • Vertical Mirror

Lens

  • Focal Length: 7.1–210mm
  • Maximum Aperture: f/1.61–5.19
  • Optical Zoom: 30x
  • Digital Zoom: 16x
  • Field of View:
    • Horizontal: 59.2° to 2.5°
    • Vertical: 34.6° to 1.4°

Video Output

HDMI 2.0

  • 3840 × 2160:
    • 25/29.97/30 fps
    • 50/59.94/60 fps
  • 1920 × 1080p:
    • 29.97/30/50/59.94/60 fps
  • 1920 × 1080i:
    • 50/59.94/60 fps
  • 1280 × 720:
    • 59.94/60 fps

SDI/BNC (3G-SDI)

  • 1920 × 1080:
    • 25/29.97/30/50/59.94/60 fps
  • 1920 × 1080i:
    • 50/59.94/60 fps
  • 1280 × 720:
    • 59.94/60 fps

Camera Movement

  • Pan: 170°
  • Tilt: 120° (30° to 90°)
  • Presets: 255

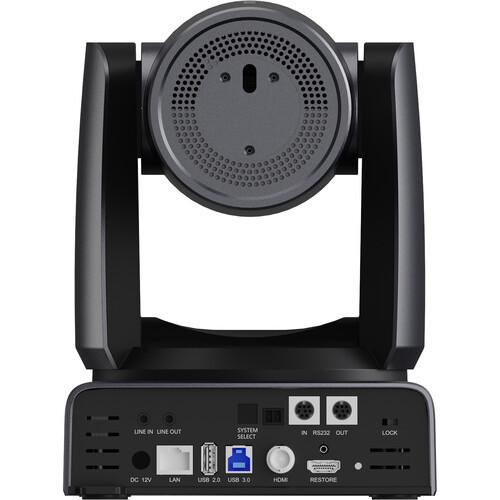

Connectivity

Video I/O

  • 1 × HDMI 2.0 Output
  • 1 × BNC 3G-SDI Output

Audio I/O

  • 1 × 3.5mm TRS Stereo Line Input
  • 1 × 3.5mm TRS Stereo Line Output

Control & Other Ports

  • 1 × RS-485 Block Connector (2-pin)
  • 1 × RS-232 Mini-DIN 8-pin
  • 1 × RJ45 Ethernet
  • 1 × USB-A 2.0
  • 1 × USB-B 3.0

Audio

  • Embedded Audio: HDMI / SDI
  • Built-in Microphone: No
  • Built-in Speaker: No

Power

  • Power Input: 12V DC, 2A
  • Power Consumption: 18W
  • PoE: PoE+ IEEE 802.3at

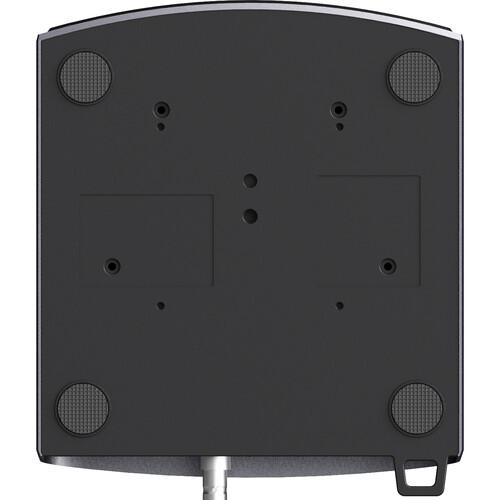

Mounting

  • Ceiling Mount Support
  • Wall Mount Support

Environmental

  • Operating Temperature: 32 to 104°F (0 to 40°C)
  • Storage Temperature: -4 to 140°F (-20 to 60°C)
  • Impact Resistance: No
  • Environmental Protection: No

Physical Specifications

  • Dimensions: 7.4 × 8.9 × 6.7 inches
    (188 × 226 × 169 mm)
  • Weight: 5.1 lb (2.3 kg)

Summary

The Hollyland Astra P1 is a professional PTZ camera designed for broadcast, live streaming, conferencing, and production environments. It features a 30x optical zoom lens, UHD 4K HDMI output, 3G-SDI connectivity, NDI|HX3 streaming support, PoE+ power, and advanced remote control capabilities.

Add your review

Your email address will not be published. Required fields are marked *

Please login to write review!

Upload photos

Looks like there are no reviews yet.

Items Included

  • Hollyland Astra P1 UHD 4K PTZ Camera with 30x Optical Zoom
  • Remote Control
  • Power Adapter
  • USB-B to USB-A Cable
  • RS-232 Cable
  • Wall Mount Bracket
  • Ceiling Mount Bracket
