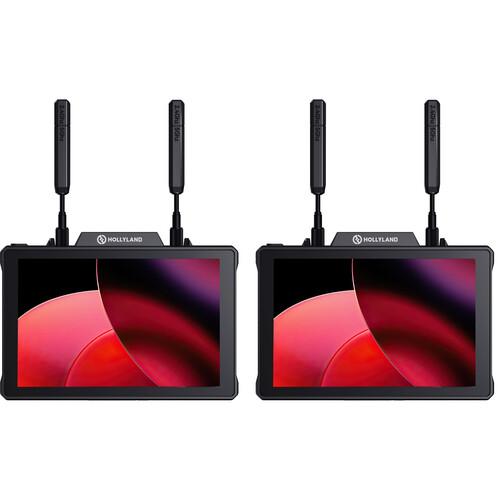

Hollyland Pyro 7 Wireless Transceiver Monitor Kit (Set of Two
Categories: Wireless Transmission
Transmit, receive, and monitor high-quality wireless video transmissions using the versatile Pyro 7 Wireless Transceiver Monitor Kit from Hollyland. This kit comprises a set of two Pyro 7 transceivers/monitors that can be used in transmitter or receiver mode. The Pyro 7 takes the previous M1 transceiver/monitor and makes everything bigger and better with a bright 7" touchscreen display, dual L-series battery plate, wireless transmission up to 1300' away, updated HollyOS imaging tools, SD card video recording, HDMI/SDI input/output, RTSP streaming, one Pyro 7 sends to up to four receivers, as well as auto dual-band 2.4/5 GHz hopping and auto-frequency hopping.
| Display | Specification |
|---|---|
| Panel type | LCD |
| Display size | 7.0 in / 17.8 cm |
| Native resolution | 1920 × 1200 |
| Touchscreen | Yes |
| Maximum brightness | 1200 nits |
| Contrast ratio | 1000:1 |
| HDR support | No |
| LUT support | Yes |
| Image tools | Focus peaking, waveform |
| Video & Audio | Specification |
| HDMI input/output | 1 × HDMI 1.4b input; 1 × HDMI 1.4b output |
| SDI input/output | 1 × 3G-SDI BNC input; 1 × 3G-SDI BNC output |
| HDMI video formats | UHD 4K up to 30p; 1080p up to 60p; 1080i and 720p |
| SDI video formats | 1080p up to 60p; 1080i and 720p |
| Embedded audio | HDMI/SDI, up to 8-channel |
| Audio output | 1 × 3.5 mm headphone output |
| Timecode support | Yes |
| Built-in speaker | No |
| Wireless | Specification |
| Wireless type | Proprietary wireless |
| Maximum range | Up to 1300 ft / 396.2 m line of sight |
| Additional range rating | 650 ft / 198.1 m |
| Frequency range | 2.412–2.484 GHz and 5.1–5.8 GHz (US) |
| Channel bandwidth | 20 / 40 MHz |
| Latency | 60 ms |
| RF power | 23 dBm |
| RF sensitivity | -80 dBm |
| Antenna connections | 2 × RP-SMA male |
| Wi-Fi / Bluetooth | No / No |
| Mobile app | HollyView for Android and iOS |
| Recording & Storage | Specification |
| Card slot | 1 × SD/SDHC/SDXC slot |
| Recording | Supported |
| Video compression | Compressed |
| USB-C | Firmware input |
| Power & Mounting | Specification |
| DC input | 10–18 VDC at 2.5 A |
| Battery plate | Dual L-series interchangeable battery plate |
| Maximum power draw | 22 W |
| Accessory mounting | 1 × 1/4"-20 female thread on bottom, left, and right sides |
| Physical | Specification |
| Construction | Aluminum and magnesium |
| Dimensions | 18 × 12.7 × 3.18 cm, excluding antennas |
| Weight | 0.545 kg, excluding antennas |
| Operating temperature | -10 to 45°C |
| Storage temperature | -40 to 60°C |
| Environmental resistance | None |
