Flagship MobileCast Production Station

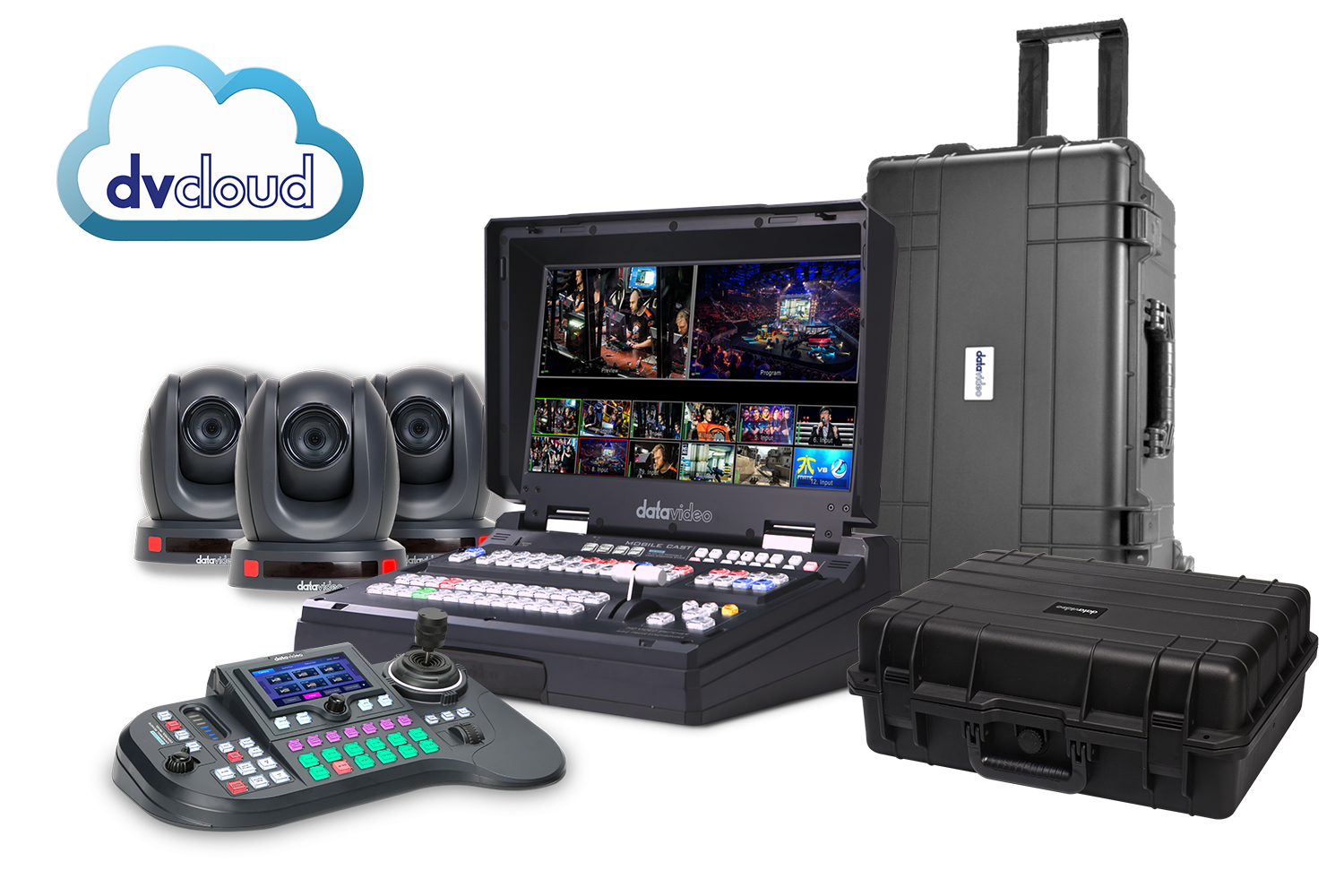

BDL-1603 is a complete production ready bundle with three cameras and a camera controller. The beating heart of this bundle is the HS-3200, our flagship MobileCast workstation with built in streaming and recording. Three PTC-140's are included and are perfect for any small to medium sized production with broadcast quality. You can connect up to 12 cameras or other sources to the HS-3200. For controlling your cameras we include the RMC-300A. HC-800 and HC-600 are the carrying solutions for this bundle, with room for
three cameras, the controller and extra space for cables*.
*Cables are situation specific and therefore not included. Datavideo recommends using high quality CAT6 cables up to 75 meters.
1 X HS-3200 MARK II MobileCast

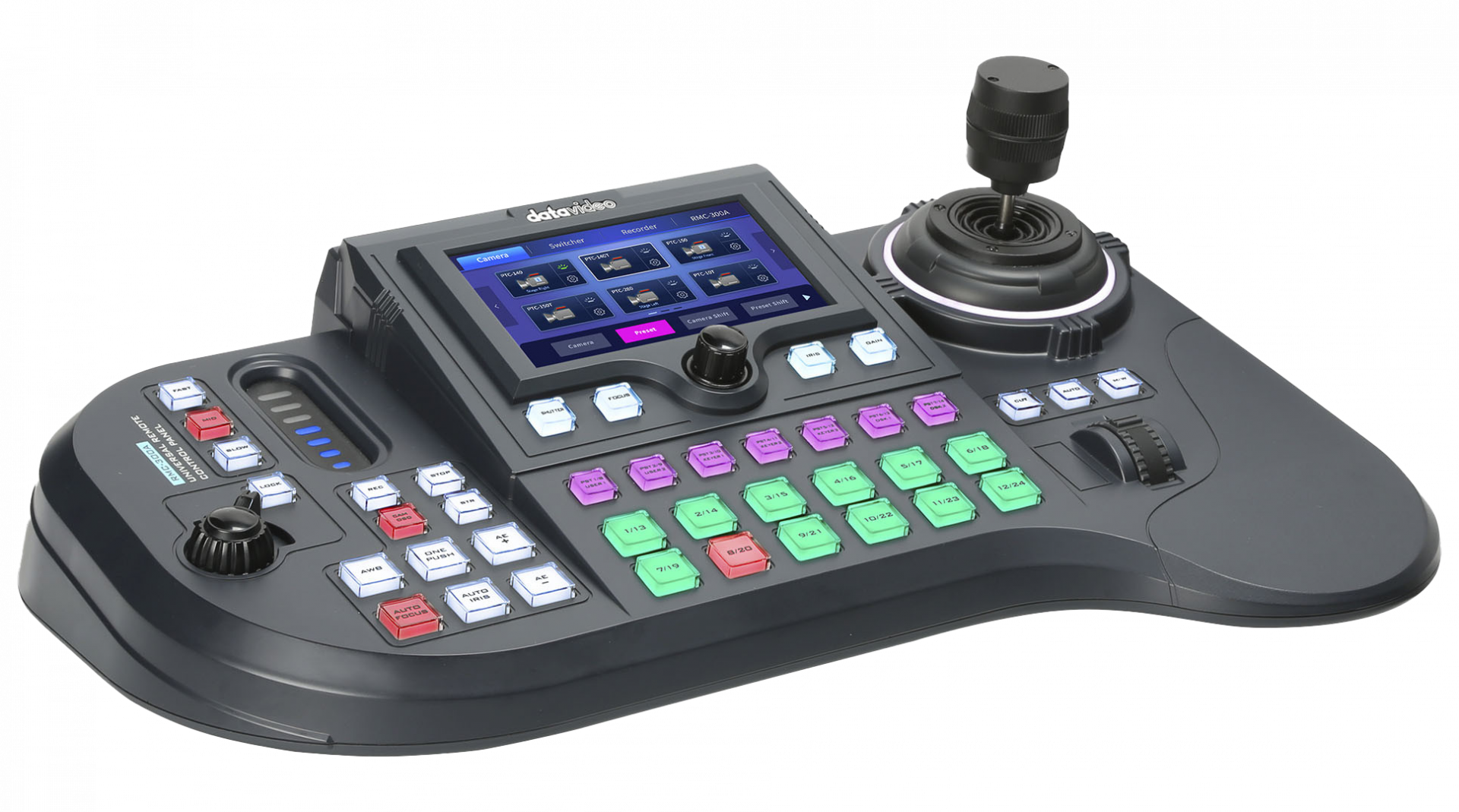

1 X RMC-300A Universal Remote Control Panel

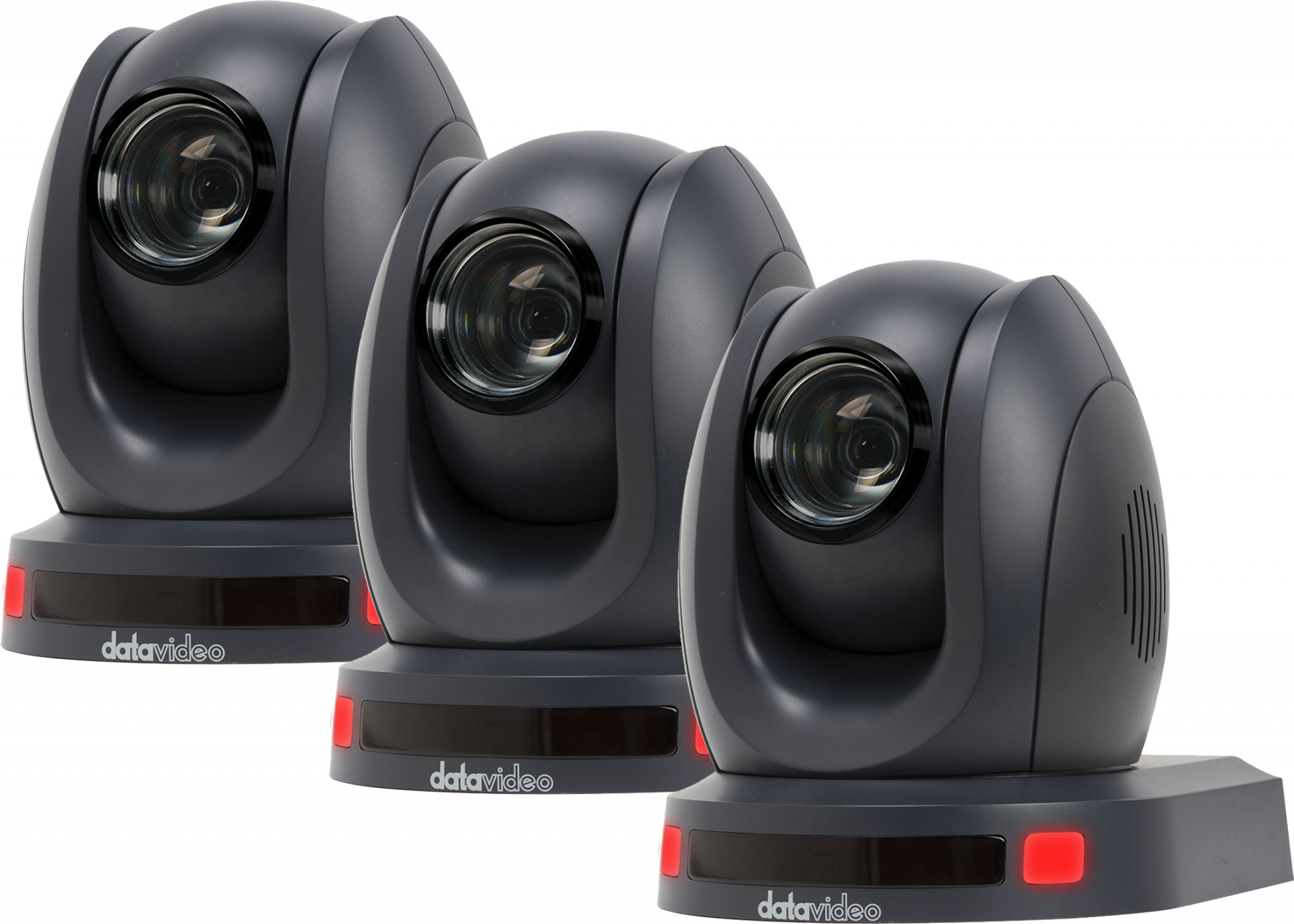

3 X PTC-140 PTZ Cameras

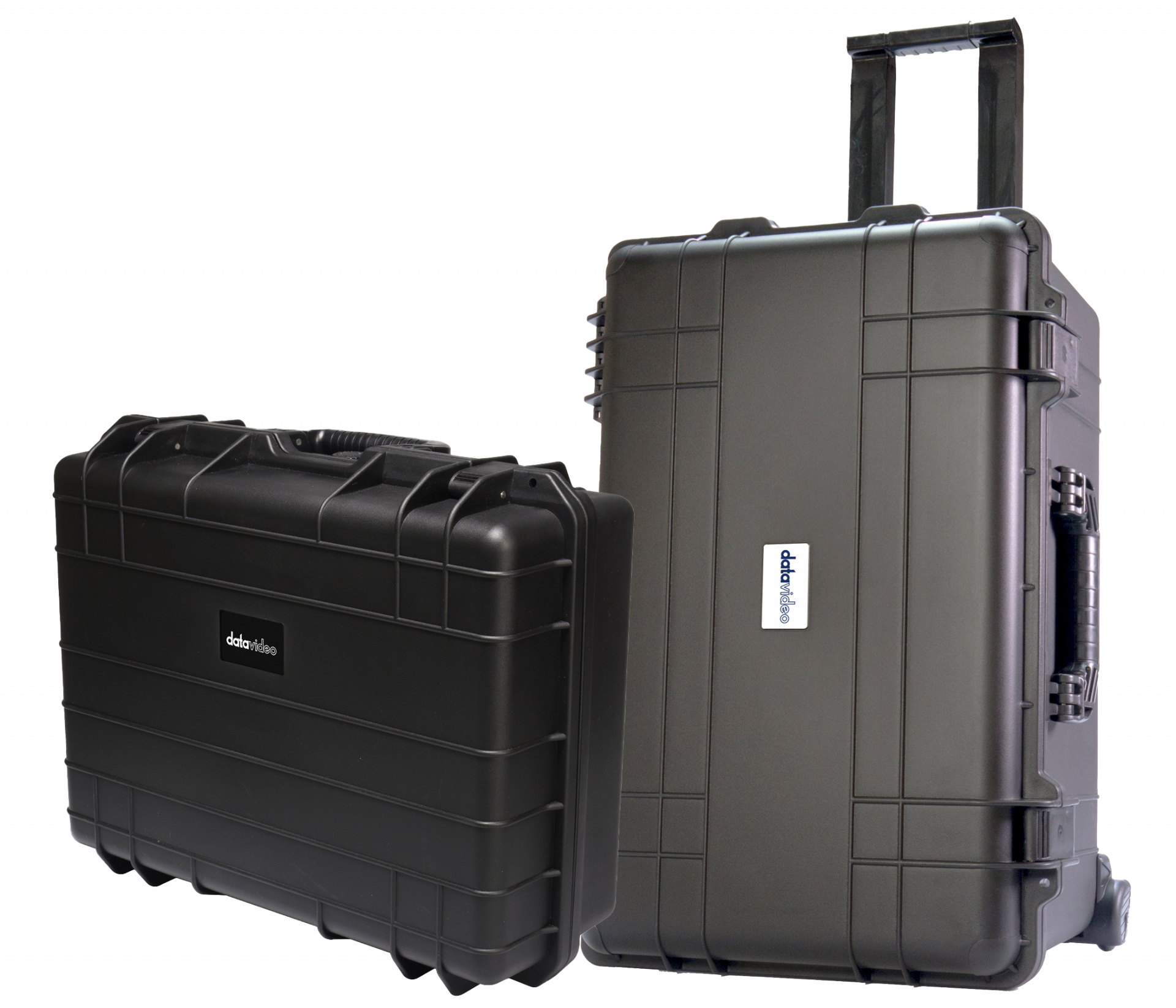

1 X HC-800 Protective Case
1 X HC-600 Protective Case
Categories: Production Switchers & Controllers

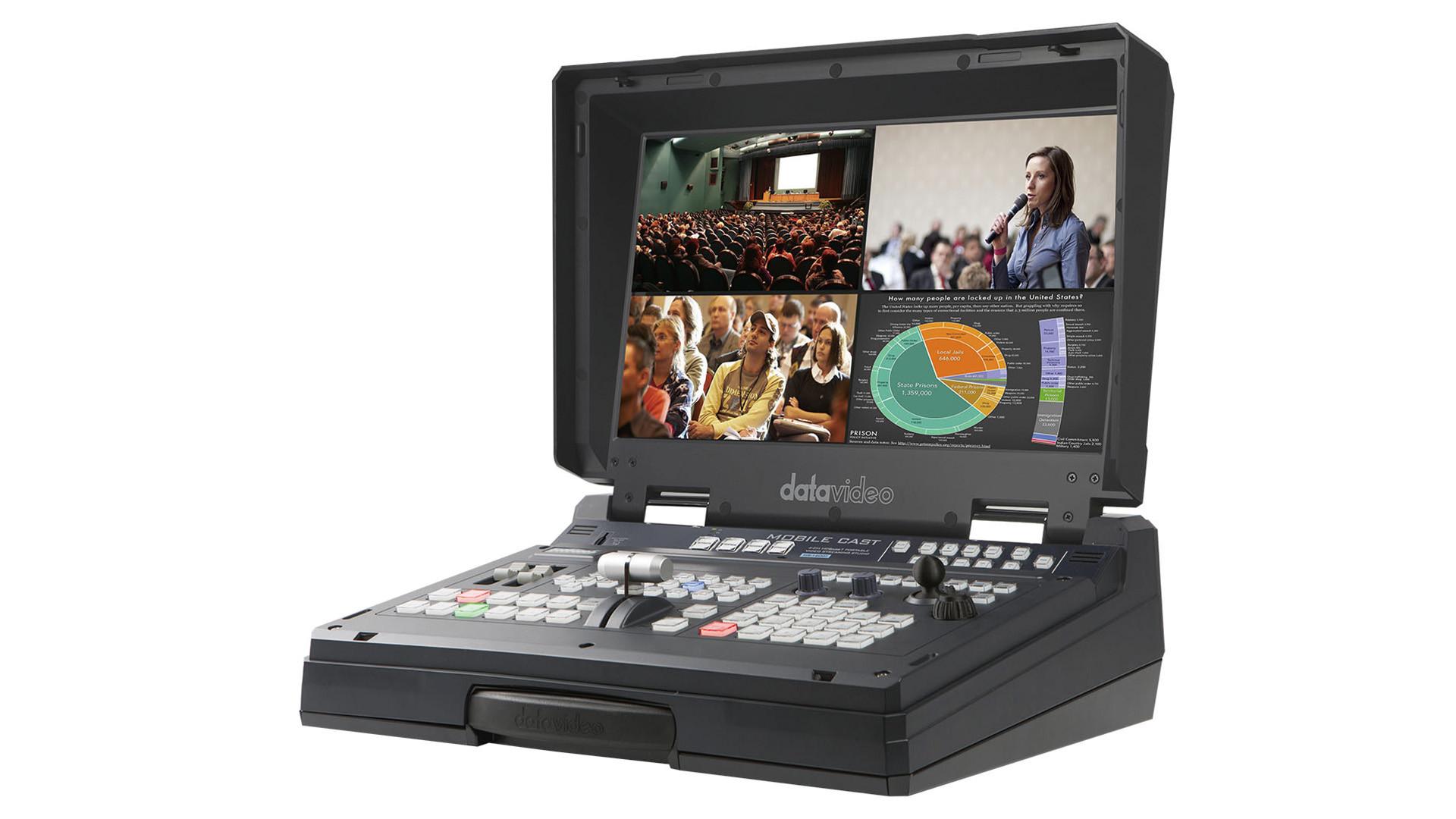

HS-3200: Unleash Your Creative Potential
Meet the heart of the BDL-1603 bundle, the HS-3200 MobileCast workstation. This flagship unit redefines simplicity in a professional portable workflow. Its "suitcase" design ensures quick and hassle-free setup, while maintaining advanced broadcasting features like chroma keying and versatile PiP options. Equipped with a built-in H.264 web streaming encoder, the HS-3200 effortlessly streams to popular CDNs like YouTube and Facebook, and seamlessly integrates with Datavideo's dvCloud service.
| HS-3200 | |
| Video Standard | Full HD |
| Video Format | 1080p 50/59.94/60Hz 1080i 50/59.94/60Hz 720p 50/59.94/60Hz |
| Input Routable / Crosspoint | All 12, |
| repeatable | |
| Video Input | 8x SDI, 4x HDMI |
| Computer Graphic Interface | 4 via HDMI |
| Down-converted Output | 1x SDI |
| Video Output | 5x SDI, 1x HDMI assignable: Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12, STILL 1, STILL 2, Flex source 3x HDMI PGM only |
| Analogue Audio Input | 4x Balanced XLR |
| Analogue Audio Output | 2x Balanced XLR |
| Digital Embedded Audio Support | Input 2 channels, Output 4 channels |
| Audio Delay Calibration | Up to 16 frames |
| A+V Switching | Yes |
| USK | 4 |
| DSK | 2, support Lumakey & Linear key (Key / Fill) |
| Picture in Picture | 8 (4x Keyer, 4x Flex Source) |
| Logo Insertion | 2 |
| Title Creator | Yes, CG-200 software free |
| download | |
| Built-in Audio Mixer | ---- |
| Built-in Monitor Display | 17.3” HD TFT LED |
| backlit, 1920x1080 pix | |
| Built-in Intercom & Tally | ---- |
| Streaming | |
| Streaming | H.264 / AVC, Main/ High Profile Configurable Bit-rate up to 10Mbps |
| Streaming Audio Encode | AAC-LC Configurable bit rate range from 32Kbps to |
| 384Kbps | Sample rate: 48KHz, 16bit |
| Streaming Protocol | TS over TCP/UDP |
| (unicast & multicast) | RTSP over HTTP/TCP/UDP (RTSP |
| Elementary Streaming) | RTMP/RTMPS (Publish) HLS SRT |
| Streaming Control | Web browser UI for |
| configuration and control Socket commands | |
| Recording File System | FAT, exFAT, NTFS |
| Recording File Format | MP4 |
| Streaming & Recording Setting Control | Web |
| UI for system configuration and control | |
| Others | |
| Special Features | 4 Chroma-Key Virtual Studio 9 stinger transition and 4 user preset Built in TC-200 CG interface Streaming encoder and recorder 12x9 matrix seamless switch |
| Dimension (LxWxH) | 455 x 355 x 134 mm |
| Weight | 17.8 Lbs (8.1 kg), Reinforce Plastic |
| Case | |
| Power | DC 12V, 11A |
| Operating Temp. Range | 0~40 °C |
| PTC-140 | |
| Video format/Resolution | 1080p 60/59.94/50/30/29.97/25 1080i 60/59.94/50 720p 60/59.94/50 |
| Image Sensor | 1/2.8 inch high quality HD CMOS sensor |
| Effective Pixels (approx.) | 2.07 Mega pixels |
| S/N Ratio | >55dB |
| Min. Illumination | 0.5Lux (F1.8, AGC ON) |
| Electronic Shutter | Auto / Manual |
| Zoom Ratio | 20x Optical Zoom, 10x Digital Zoom |
| Gamma Control | Off / Normal |
| Iris Control | Auto / Manual |
| Digital Noise Reductions | Yes |
| On-Screen Display (OSD) | English, Simplified Chinese |
| White Balance | Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K |
| AGC / Gain Control | Auto / Manual |
| Mirror / Flip Image | Yes |
| Focus Mode | Auto / Manual |
| Panning / Tilting Range | Pan: 340° , Tilt: +90° to -30° |
| Panning / Tilting Speed | Pan: 0.1~60°/sec Tilt: 0.1~30°/sec |
| Preset | 255 Position |
| Focal Length | f=5.2 (wide) to 98 (tele) mm F1.6 to F3.5 |
| Field of View (Horizontal, Wide) | Approx. 54.7° (WIDE END) / 3.3° (TELE END) |
| Image Compensation | Backlight Compensation |
| Video Output | HDMI x 1 SDI x 1 |
| Audio Input | 3.5mm Line in |
| Tally LED | Dual color (Red, Green) |
| Lens Filter | M52.0 x 0.75 Thread with UV Protection |
| Control Protocol | VISCA, Pelco-D, Pelco-P, DVIP |
| Remote Control Interface | RJ-45: for IP control (DVIP) RS-232 RS-422 RS-485 |
| Video Compression Format | H.264, H.265, Dual stream output |
| Audio Compression Format | AAC/MP3/G.711A Audio compression |
| Audio Bitrate | 96Kbps, 128Kbps, 256Kbps |
| HD IP Interface | 100M IP port(100BASE-TX); Support DVIP |
| Streaming Protocols | TCP/IP, HTTP, RTSP, RTMP(S), DHCP, SRT, Multicast, etc |
| First Stream Supported Resolution | ---- |
| Second Stream Supported Resolution | ---- |
| Video Bitrate | ---- |
| Video Bitrate Mode | ---- |
| Encoding Frame rate | ---- |
| POE | ---- |
| F/W Update | Ethernet |
| IR Control | Yes |
| Camera Control Unit | RMC-180 series/RMC-300 series/PTZ View Assist APP |
| Tripod Mount | 1/4-20 UNC |
| Optional Accessories | WM-1/ WM-10/ WM-11 |
| Dimension (LxWxH) | 156 x 184 x 186 mm |
| Weight | 1.6 kg |
| Operating Temp. Range | 0~40 °C |
| Power | DC 12V 12W |
