- Color: silver
- Weight: 1.46kg (3.21lbs)
- Load Capacity: 500kg (1100lbs)
- Fixed angle: every 45 degree
- 6061-T6 aluminum extrusion

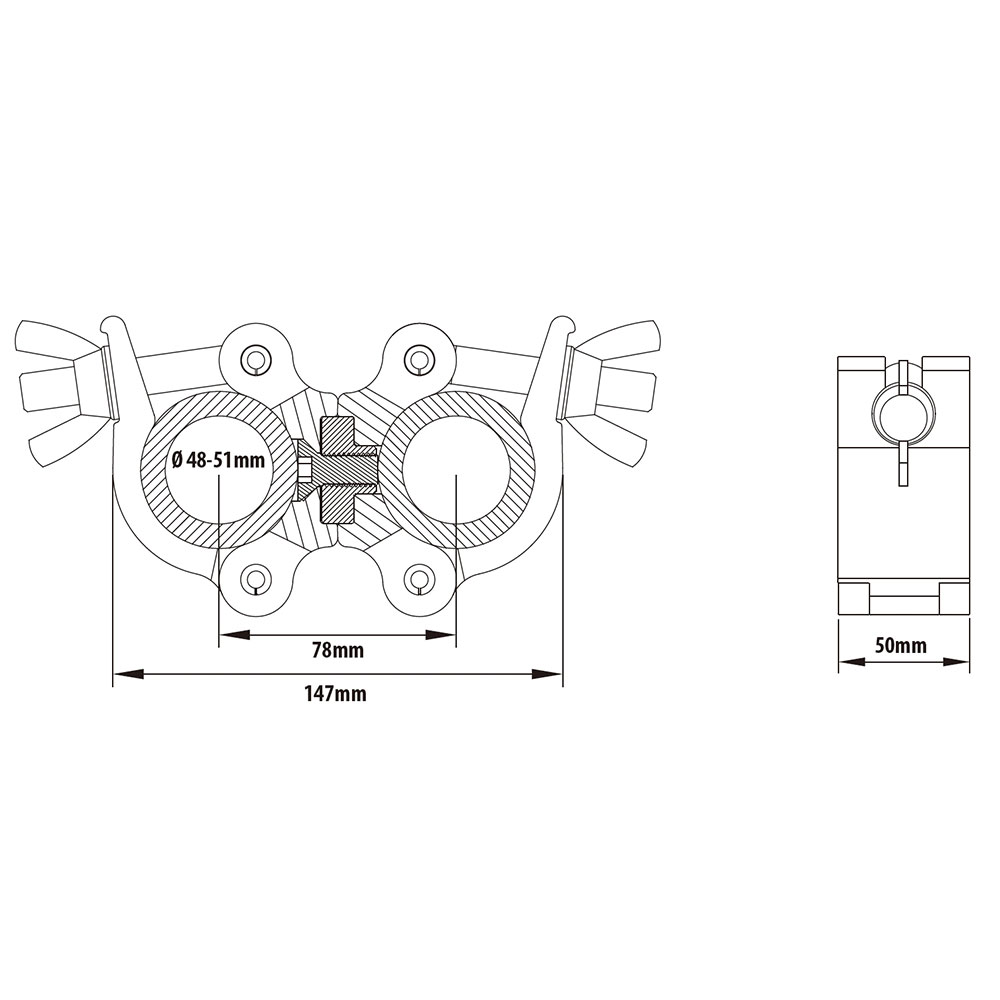

- For dia. 48~51mm (1.89"~2.0") tube
- Wing nut
Categories: Couplers & Clamps
KUPO 45 Degree Coupler (KCP-873) is constructed from high tensile aluminum extrusion. Heavy duty and working load limit is up to 500kgs (1100lbs). For diameters of 48~51mm (1.89"~2.0") tube. Can fix in every 45 degree without a drift pin. To release or tighten, use hextool to adjust the position. A captive on top of thread bolt to avoid wing nut falling off the clamp. Ideal for stage, event, theater and studio.
- 6061 T6 high tensile aluminum extrusion
- Feasible for tube dia. 48~51mm (1.89"~2.0")
- WLL up to 500kgs (1100lbs)
- Can fix in every 45 degree without a - Drift pin

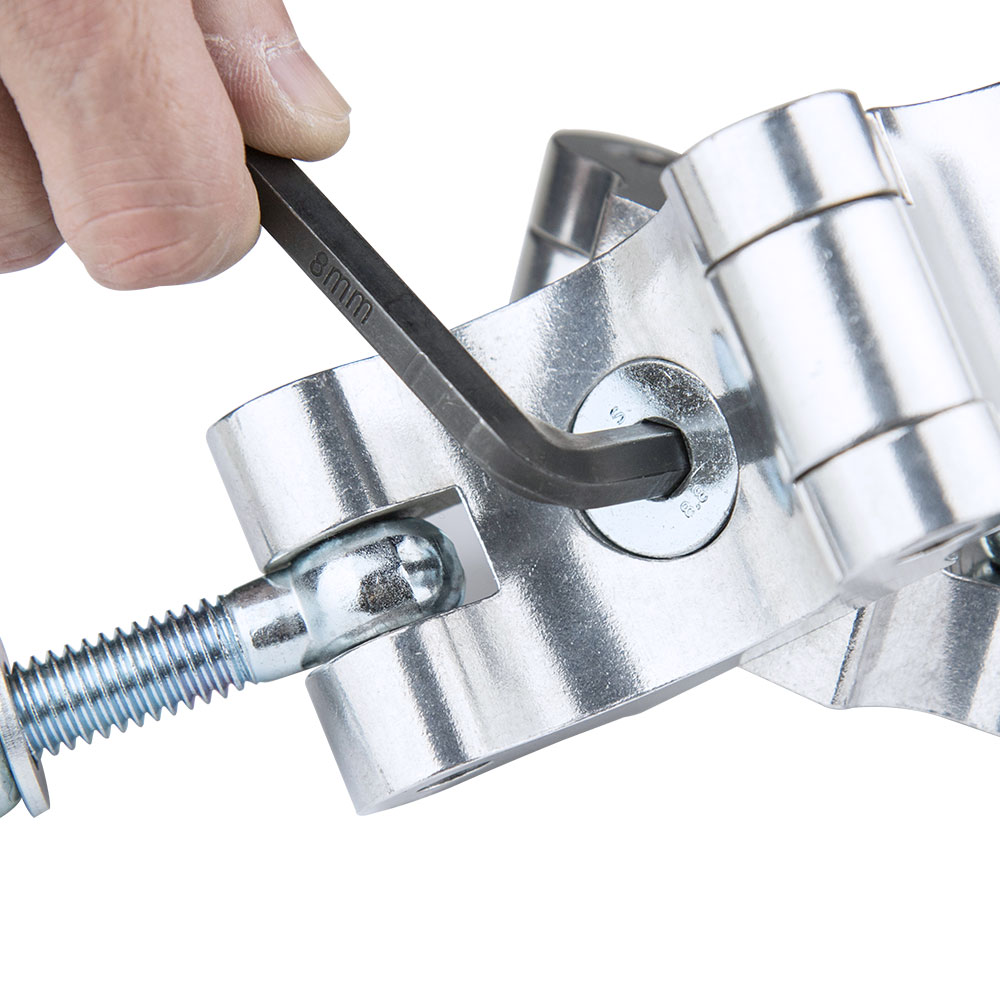

- To release or tighten, use hex tool to adjust the position
- A captive on top of thread bolt to avoid wing nut falling off the clamp
