- Color：Silver (Couplers), black(Bracket/Spigot)
- Weight：3.1 kg
- WLL：200kg
- Material: 6061-T6 high tensile aluminum extrusion
- For dia. 48~51mm tube
- With 28mm spigot

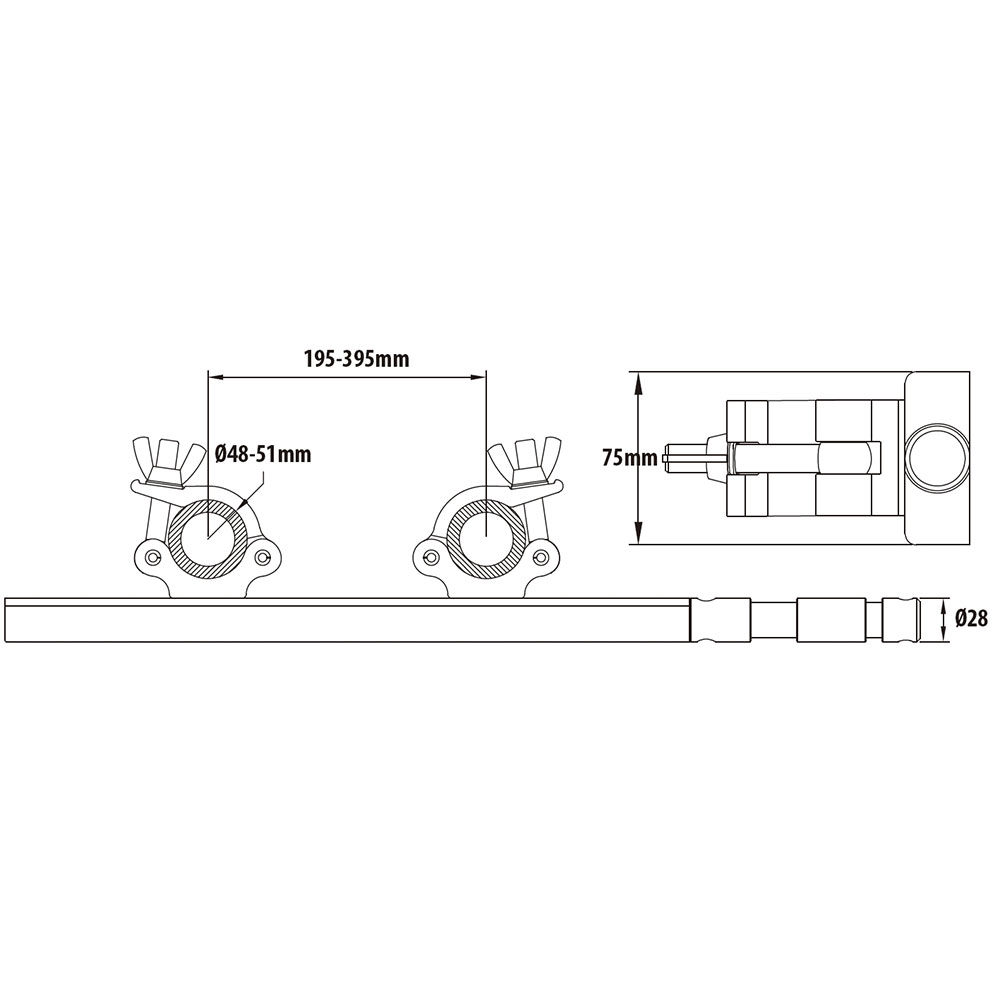

- Adjustable distance 195mm-395mm (central to central)
Categories: Couplers & Clamps

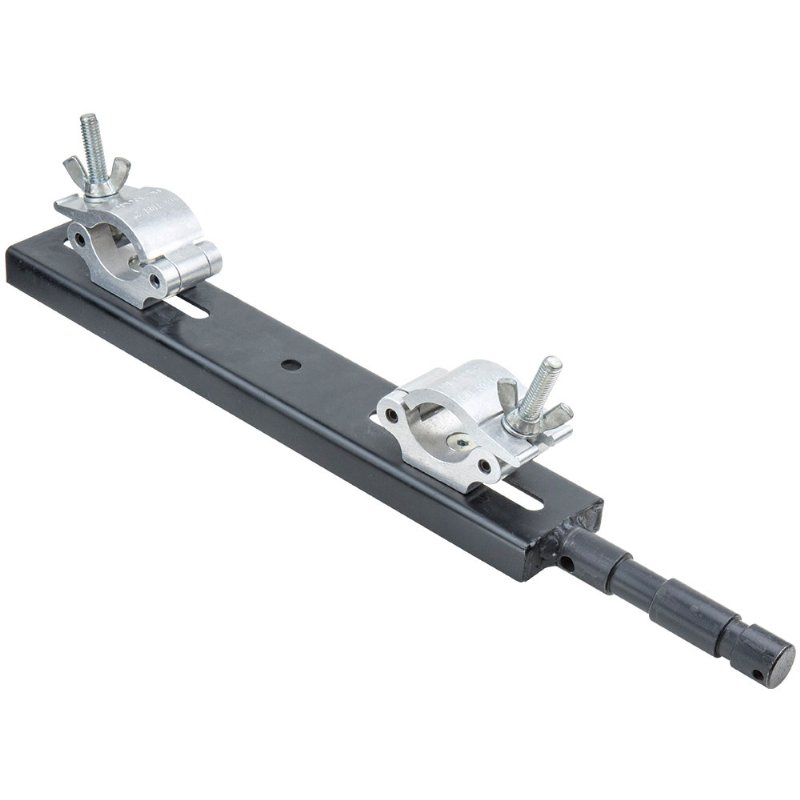

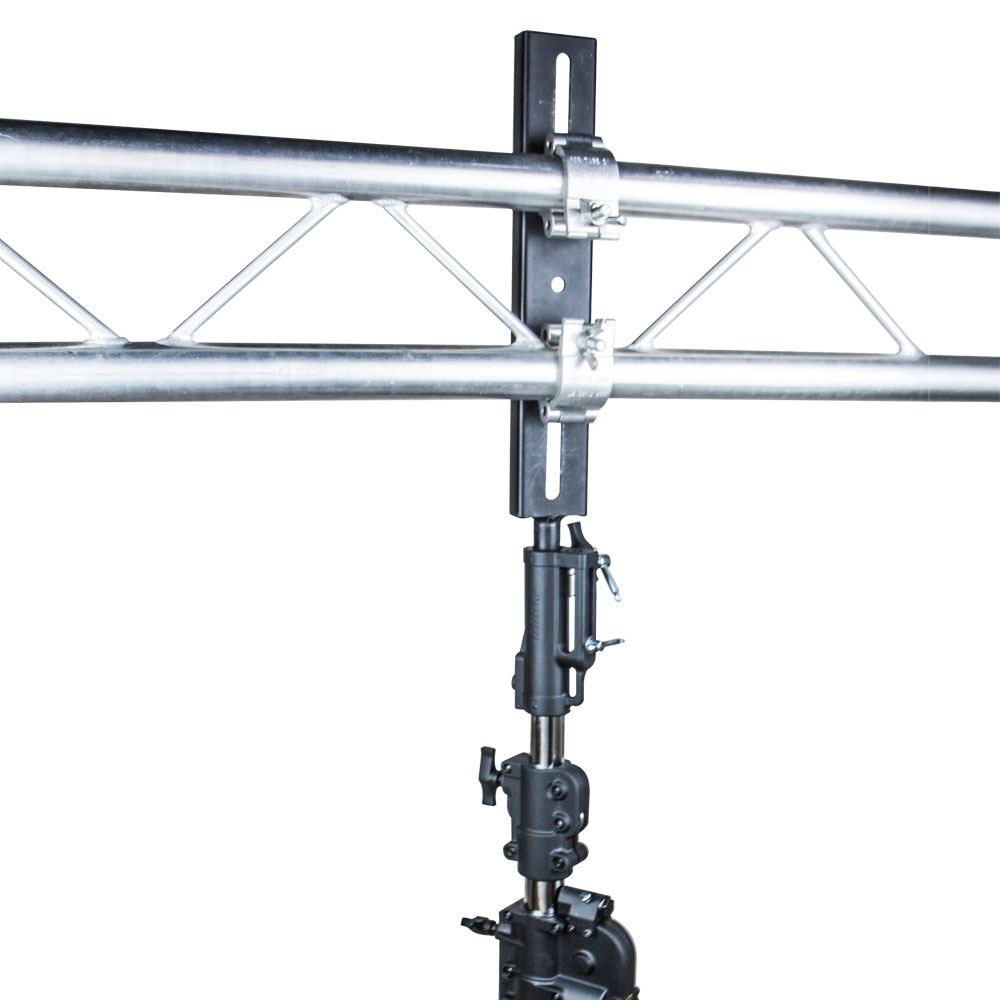

KUPO Ladder Truss coupler (KCP-835V) is structured with high tensile 6061-T6 Aluminum couplers and a 3mm thick plate. Heavy duty and working load limit is up to 200kgs. Applicable for 2 point truss. For truss with dia. 48-51mm main tube, and the distance between main tubes is 195-395mm. It can be set on lighting stands with its 28mm spigot.
-6061 T6 high tensile aluminum extrusion
-Feasible for tube dia. 48~51mm
-WLL up to 200kgs
-Distance of main tubes (center to center) 195-395mm
-With 28mm spigot
